2014 MAZDA MODEL 6 bluetooth

Black plate (378,1)
Shuffle playback (only AVRCP Ver. 1.4)
Folder shuffle
Touch the
on-screen button during
playback to play the songs in the folder
shuffle.“
”is displayed during
playback.
Touch the
on-screen button two
times while“
”is displayed to cancel.
Device shuffle
Touch the
on-screen button two
times during playback to play the songs in
the device shuffle.“
”is displayed
during playback.
Touch the
on-screen button while
“
”is displayed to cancel.
Display scroll
If a whole title cannot be displayed at one
time, touch the
on-screen button on
the right side of the title. When the last
character is displayed, touch the
on-
screen button to display the first character
of the title.
qBluetooth® audio device
information display
If a Bluetooth®audio device is connected,
the following information is displayed in
the display.
AVRCP
Ver. lower
than 1.3AVRCP
Ver. 1.3AVRCP
Ver. 1.4 or
higher
Device name X X X
Remaining
battery charge
of device―XX
Title―XX
Artist name―XX
Album name―XX
File number―XX
Playback time―XX
Folder number――X
NOTE
Some information may not display depending
on the device, and if the information cannot be
displayed,“No Song Name”is indicated.
qHow to Use Pandora®
What is Pandora®?
Pandora
®is free personalized internet
radio. Simply enter a favorite artist, track,
genre, and Pandora
®will create a
personalized station that plays their music
and more like it. Rate songs by giving
thumbs-up and thumbs-down feedback to
further refine your station, discover new
music and help Pandora
®play only music
you love.
* Pandora
®, the Pandora®logo, and the
Pandora®trade dress are trademarks or
registered trademarks of Pandora
Media, Inc., used with permission.
NOTE
To operate Pandora®from your Bluetooth®
device, perform the following in advance:lCreate Pandora®account on the web.lCreate Pandora®station using Pandora®
application.lInstall Pandora®application on your
device.
Playback
1. To listen to Pandora
®, touch the
on-screen tab.
2. To stop playback, press the
on-
screen button.
3. Press the button again to resume
playback.
Skip song
Press the
on-screen button.
5-106
Interior Features
Bluetooth®
Mazda6_8DQ8-EA-13L_Edition3 Page378
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (379,1)
NOTElThe skip function may not be available
depending on the device.
lThe number of skips is limited by
Pandora®.
Selection from station list
Selection can be made from a
programmed radio station list.
1. Press the
on-screen button.
2. Select the desired radio station.
NOTE
Whenis selected, songs randomly
selected from the radio station list are played.
Thumbs up function
Press the
on-screen button to tell
Pandora®“you like this track”and it helps
to bring in more tracks like it to your
station.
Thumbs down function
Press the
on-screen button to tell
Pandora®not to play this track.
NOTE
If theon-screen button is touched when the
skip song function is running, the next song is
skipped.
Bookmarking
You can bookmark song or artist to check
out later on the Web.
Bookmark the song name
Press the
on-screen button on the right
side of the song name.
Bookmark the artist name
Press the
on-screen button on the right
side of the artist name.
Display scroll
If a whole title cannot be displayed at one
time, touch the
on-screen button on
the right side of the title.
When the last character is displayed,
touch the
on-screen button to display
the first character of the title.
Interior Features
Bluetooth®
5-107
Mazda6_8DQ8-EA-13L_Edition3 Page379
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (380,1)
Troubleshooting
Bluetooth®does not operate under the following conditions. Check whether the following
conditions apply to your Bluetooth®device:lThe device is not being operated correctly.lThe device is not connected to the Bluetooth®unit equipped on the vehicle.lThe device's battery is weak.lA device which interferes with radio wave reception has been placed in the vehicle.lThe ignition switch has been turned off.
If none of the above conditions apply, refer to the following to see if any of the problem
symptoms correspond to your device.
If the problem cannot be resolved, consult an Authorized Mazda Dealer or Mazda
Bluetooth
®Hands-Free Customer Service.
Mazda Bluetooth®Hands-Free Customer Service
If you have any problems with Bluetooth
®, contact with our toll-free customer service
center.
lU.S.A.
Phone: 800-430-0153 (Toll-free)
Web: www.MazdaUSA.com/bluetooth
lCanada
Phone: 800-430-0153 (Toll-free)
Web: www.mazdahandsfree.ca
lMexico
Center of Attention to Client (CAC)
Phone: 01-800-01-MAZDA (Toll-free)
Web: www.mazdamexico.com.mx
5-108
Interior Features
Bluetooth®
Mazda6_8DQ8-EA-13L_Edition3 Page380
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (381,1)
Device pairing, connection problems
Symptom Cause Solution method
Unable to perform pairing
―First make sure the device is
compatible with the Bluetooth
®unit,
and then check whether the
Bluetooth
®function and the Find
Mode/Visible setting*1on the device
are turned on. If pairing is still not
possible after this, contact an
Authorized Mazda Dealer or Mazda
Bluetooth
®Hands-Free Customer
Service.
Unable to perform pairing The Bluetooth
®function and the
Find Mode/Visible setting*1on the
device may turn off automatically
after a period of time has elapsed
depending on the device.Check whether the Bluetooth
®
function and the Find Mode/Visible
setting*1on the device are turned on
and pairing or reconnect. Does not connect automatically
when starting the engine
Automatically connects, but then
disconnects suddenly
Disconnects intermittently The device is in a location in which
radio wave interference can occur
easily, such as inside a bag in a rear
seat, in a rear pocket of a pair of
pants.Move the device to a location in
which radio wave interference is less
likely to occur.
*1 Setting which detects the existence of a device external to the Bluetooth
®unit
Interior Features
Bluetooth®
5-109
Mazda6_8DQ8-EA-13L_Edition3 Page381
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (382,1)
Voice recognition related problems
Symptom Cause Solution method
Poor voice recognition
lExcessive, slow speech.lExcessive, forceful speech
(shouting).
lSpeaking before the beep sound
has ended.
lLoud noise
(speaking or noise from outside/
inside vehicle).
lAirflow from A/C is blowing
against the microphone.
lSpeaking in off-standard
expressions (dialect).Regarding the causes indicated on
the left, be careful with how you
speak. In addition, when numbers are
spoken in a sequence, recognition
ability will improve if no stop is
placed between the numbers. False recognition of numbers
Names in the phonebook are not
easily recognizedThe Bluetooth
®system is under a
condition in which recognition is
difficult.By carrying out the following
measures, the rate of recognition will
improve.
lClear memory from the
phonebook which is not used
very often.
lAvoid shortened names, use full
names.
(Recognition improves the longer
the name is. By not using names
such as“Mom”,“Dad”, recogni-
tion will improve.)
You want to skip guidance
―Guidance can be skipped by quickly
pressing and releasing the Talk
button.
When the Talk button is pressed,
voice recognition endsThe Talk button is pressed for too
long.Operate the Talk button as follows:
lPress the button and release it
within 0.7 seconds to start voice
recognition and skip the
guidance.
lPress the button for longer than
0.7 seconds to turn off voice
recognition or end a
conversation.
Regarding problems with calls
Symptom Cause Solution method
When starting a call, vehicle noise
from the other party can be heardFor about three seconds after starting
a call, the Bluetooth
®unit's Noise
Suppression function requires time to
adapt to the call environment.This does not indicate a problem
with the device.
The other party cannot be heard or
the speaker's voice is quietThe volume is set at zero or low. Increase the volume.
5-110
Interior Features
Bluetooth®
Mazda6_8DQ8-EA-13L_Edition3 Page382
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (383,1)
Other problems
Symptom Cause Solution method
The indication for the remaining
battery is different between the
vehicle and the deviceThe indication method is different
between the vehicle and the device.―
When a call is made from the
vehicle, the telephone number is
updated in the incoming/outgoing
call record but the name does not
appearThe number has not been registered
into the phonebook.If the number has been registered
into the phonebook, the
incoming/outgoing call record is
updated by the name in the
phonebook when the engine is
restarted.
The cell phone does not synchronize
with the vehicle regarding the
incoming/outgoing call recordSome types of cell phones do not
synchronize automatically.Operate the cell phone for
synchronization.
It takes a long time to complete the
function for changing the languageA maximum of 60 seconds is
required.―
Interior Features
Bluetooth®
5-111
Mazda6_8DQ8-EA-13L_Edition3 Page383
Friday, June 13 2014 6:22 PM
Form No.8DQ8-EA-13L

Black plate (549,1)

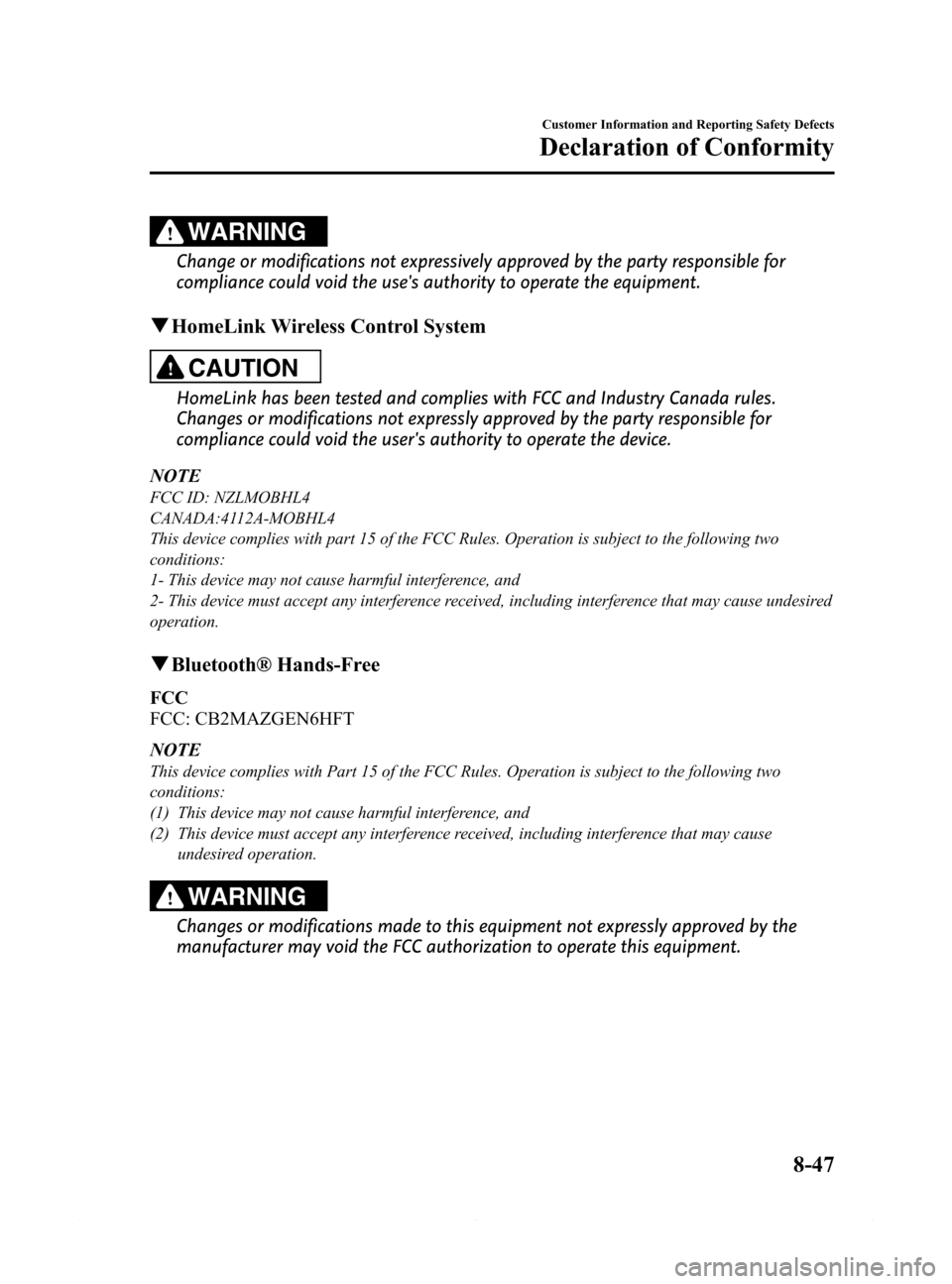

WARNING
Change or modifications not expressively approved by the party responsible for
compliance could void the use's authority to operate the equipment.
qHomeLink Wireless Control System
CAUTION
HomeLink has been tested and complies with FCC and Industry Canada rules.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the device.
NOTE
FCC ID: NZLMOBHL4
CANADA:4112A-MOBHL4
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1- This device may not cause harmful interference, and
2- This device must accept any interference received, including interference that may cause undesired
operation.
qBluetooth® Hands-Free
FCC
FCC: CB2MAZGEN6HFT
NOTE
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
WARNING
Changes or modifications made to this equipment not expressly approved by the
manufacturer may void the FCC authorization to operate this equipment.
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-47
Mazda6_8DQ8-EA-13L_Edition3 Page549
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L

Black plate (568,1)
A
Accessory Socket ............................ 5-116
Adaptive Front Lighting System
(AFS) ................................................ 4-62
Add-On Non-Genuine Parts and
Accessories ....................................... 8-19
Advanced Key
Operational range ....................... 3-10
Advanced Keyless Entry System ........ 3-9
Air Bag Systems ............................... 2-39
Antilock Brake System (ABS) .......... 4-92
Audio Control Switch
Adjusting the Volume ................ 5-57
Mute Switch ............................... 5-58
Seek Switch ................................ 5-57
Audio System
Antenna ...................................... 5-13
Audio Control Switch ................ 5-56
Audio Set (Type A) .................... 5-25
Audio Set (Type B) .................... 5-35
AUX/USB/iPod mode ................ 5-60
Commander switch operation .... 5-58
Operating Tips for Audio
System ........................................ 5-13
Satellite Radio ............................ 5-44
Automatic Transaxle
Driving tips ................................ 4-56
Shift-lock override ..................... 4-51
Shift-lock system ....................... 4-51
Transaxle ranges ........................ 4-50
B
Battery ............................................... 6-30
Maintenance ............................... 6-31
Replacement ............................... 6-31
Specifications ............................... 9-4
Battery runs out ................................. 7-20
Jump-Starting ............................. 7-20
B
Beep Sounds
Air bag/front seat belt pretensioner
system warning .......................... 7-39
Blind spot monitoring
(BSM) system warning .............. 7-41
i-ELOOP ..................................... 7-40
Ignition not switched off
(STOP) warning ......................... 7-39
Key left-in-trunk compartment
warning ...................................... 7-40
Key left-in-vehicle warning ....... 7-40
Key removed from vehicle
warning ...................................... 7-40
Lane departure warning system
(LDWS) warning ....................... 7-41
Lights-on reminder ..................... 7-38
Request switch inoperable
warning ...................................... 7-40
Seat belt warning ........................ 7-39
Tire inflation pressure warning ... 7-40
Blind Spot Monitoring
(BSM) System ................................ 4-121
Blind Spot Monitoring
(BSM) ...................................... 4-123
BSM OFF switch ..................... 4-129
BSM warning light ................... 4-128
Care of radar sensors ................ 4-129
Rear Cross Traffic Alert
(RCTA) system ........................ 4-125
Bluetooth® ....................................... 5-79
Bluetooth® Audio .................... 5-104
Bluetooth® Hands-Free ............. 5-85
Troubleshooting ....................... 5-108
Body Lubrication .............................. 6-26
Bottle Holder ................................... 5-118
10-2
Index
Mazda6_8DQ8-EA-13L_Edition3 Page568
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L
