2014 MAZDA MODEL 5 engine

Black plate (392,1)
NOTElDo not use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lAlways use a sponge or soft cloth to clean
the wheels.
Rinse the wheels thoroughly with lukewarm
or cold water. Also, be sure to clean the
wheels after driving on dusty or salted
roads to help prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
(With Tire Pressure Monitoring System)
Check special requirements for Tire Pressure
Monitoring System.
Refer to Tires and Wheels on page 5-32.
q Plastic Part Maintenance
lWhen cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.
lIf plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately.
lHigh water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended
period of time, it could deform plastic
parts or damage the paint.
lDo not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
lIn addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result in
deformation of plastic parts or paint
damage.
8-62
Maintenance and Care
Appearance Care
Mazda5_8DH4-EA-13H_Edition3 Page392
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (411,1)
Outside the United States
Government regulations in the United States require that automobiles meet specific
emission regulations and safety standards. Therefore, vehicles built for use in the United
States may differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside the United States. However, in the event that you are moving to Canada
permanently, Mazda vehicles built for use in the United States could be eligible for
exportation to Canada with specific vehicle modifications to comply with the Canadian
Motor Vehicle Safety Standards (CMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to travelers on
vacation.
You may have the following problems if you do take your vehicle outside of the United
States:
lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
Customer Information
Warranty
9-15
Mazda5_8DH4-EA-13H_Edition3 Page411
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (412,1)
Outside Canada
Government regulations in Canada require that automobiles meet specific emission
regulations and safety regulations. Therefore, vehicles built for use in Canada may differ
from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside Canada. However, in the event that you are moving to the United States
permanently, Mazda vehicles built for use in Canada could be eligible for exportation to the
United States with specific vehicle modifications to comply with the United States Federal
Motor Vehicle Safety Standards (FMVSS).
NOTE
The above is applicable for a permanent import/export situation and not related to travelers on
vacation.
You may have the following problems if you do take your vehicle outside of Canada:lRecommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine.
lProper repair facilities, tools, testing equipment, and replacement parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
9-16
Customer Information
Warranty
Mazda5_8DH4-EA-13H_Edition3 Page412
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (414,1)
Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your
vehicle's performance or safety systems; the Mazda warranty doesn't cover this. Before you
install any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WARNING
Always consult an Authorized Mazda Dealer before you install non-genuine parts or
accessories:Installation of non-genuine parts or accessories is dangerous. Improperly designed
parts or accessories could seriously affect your vehicle's performance or safety
systems. This could cause you to have an accident or increase your chances of
injuries in an accident.
Be very careful in choosing and installing add-on electrical equipment, such as
mobile telephones, two-way radios, stereo systems, and car alarm systems: Incorrectly choosing or installing improper add-on equipment or choosing an
improper installer is dangerous. Essential systems could be damaged, causing engine
stalling, air-bag (SRS) activation, ABS/TCS/DSC inactivation, or a fire in the vehicle.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
9-18
Customer Information
Warranty
Mazda5_8DH4-EA-13H_Edition3 Page414
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (435,1)
SAMPLE
WARNING
Exceeding Axle Weight Rating Limits:Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.
Do not tow a trailer with this vehicle: Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
Customer Information
Tire Information (U.S.A.)
9-39
Mazda5_8DH4-EA-13H_Edition3 Page435
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (443,1)
qEngine Number
Forward
Identification Numbers
10-3
Mazda5_8DH4-EA-13H_Edition3 Page443
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (444,1)
Specifications
qEngine
Item Specification
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 2,488.5 ml (2,488.5 cc)
Compression ratio 9.7
qElectrical System
Item Classification
Battery 12V-60Ah/20HR or 12V-65Ah/20HR
Spark-plug number Mazda Genuine spark
plug LFJD-18-110 or L3Y2-18-110
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
q
Lubricant Quality
Lubricant Classification
Engine oil Refer to Recommended Oil on page 8-20.
Manual transaxle oil API Service
GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Genuine ATF M-V
Power steering fluid Mazda Genuine ATF M-III , M-V, or equivalent
(e.g. Dexron® II)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 8-2) for owner's responsibility in protecting your investment.
10-4
Specifications
Mazda5_8DH4-EA-13H_Edition3 Page444
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H

Black plate (445,1)

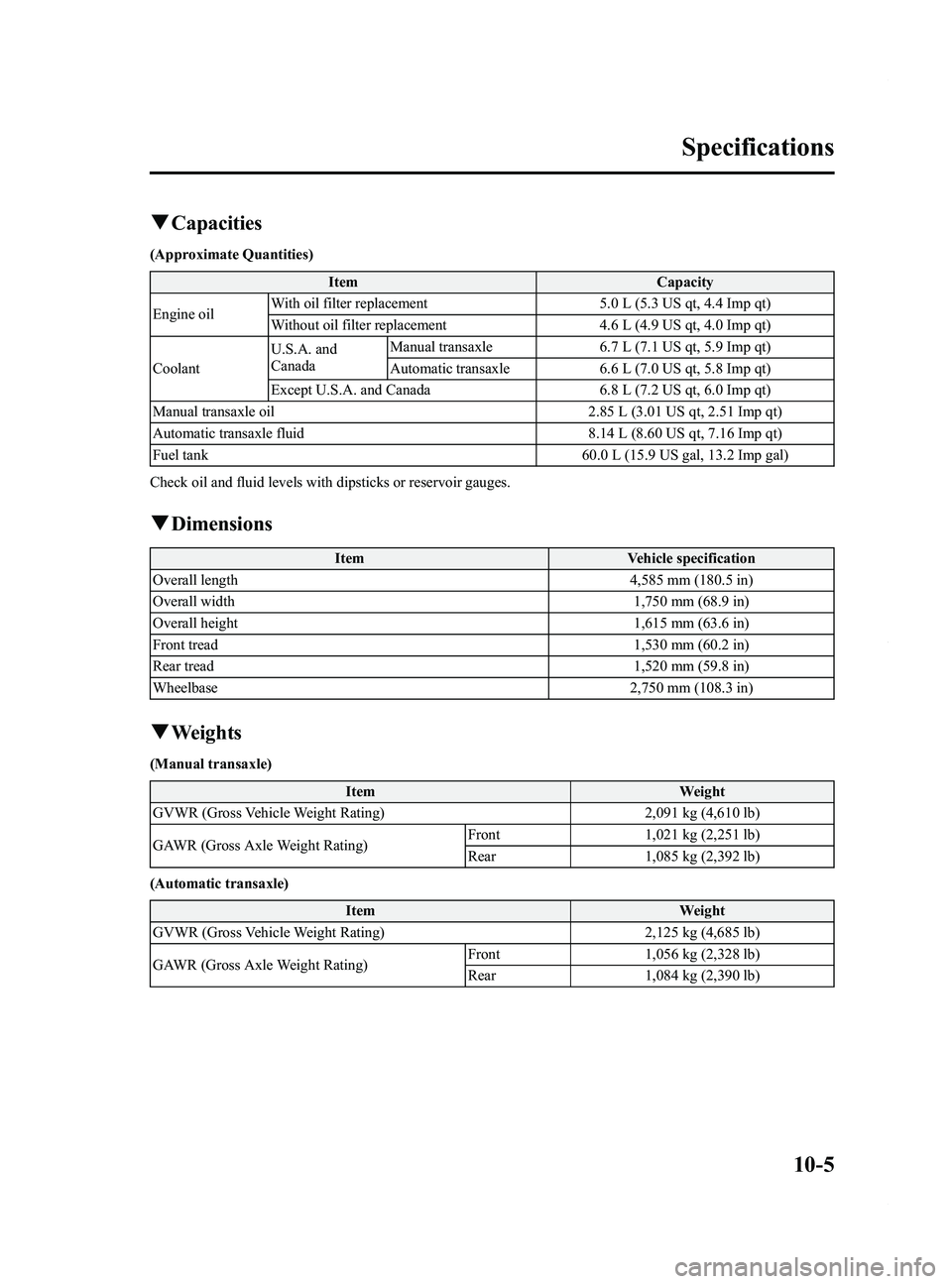

qCapacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter replacement 5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant U.S.A. and
Canada Manual transaxle 6.7 L (7.1 US qt, 5.9 Imp qt)
Automatic transaxle 6.6 L (7.0 US qt, 5.8 Imp qt)
Except U.S.A. and Canada 6.8 L (7.2 US qt, 6.0 Imp qt)
Manual transaxle oil 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic transaxle fluid 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Vehicle specification
Overall length 4,585 mm (180.5 in)
Overall width 1,750 mm (68.9 in)
Overall height 1,615 mm (63.6 in)
Front tread 1,530 mm (60.2 in)
Rear tread 1,520 mm (59.8 in)
Wheelbase 2,750 mm (108.3 in)
qWeights
(Manual transaxle)
Item Weight
GVWR (Gross Vehicle Weight Rating) 2,091 kg (4,610 lb)
GAWR (Gross Axle Weight Rating) Front 1,021 kg (2,251 lb)
Rear 1,085 kg (2,392 lb)
(Automatic transaxle) Item Weight
GVWR (Gross Vehicle Weight Rating) 2,125 kg (4,685 lb)
GAWR (Gross Axle Weight Rating) Front 1,056 kg (2,328 lb)
Rear 1,084 kg (2,390 lb)
Specifications
10-5
Mazda5_8DH4-EA-13H_Edition3 Page445
Tuesday, January 14 2014 9:21 AM
Form No.8DH4-EA-13H
