When Driving
Instrument Cluster and Display
Signal Indicator Lights Page
* Shift Position Indication 4-31
* SPORT Mode Indicator Light 4-89
Headlight High-Beam Indicator Light 4-45 ,
4-45
Turn Signal/Hazard Warning Indicator Lights 4-51 ,
4-58
Security Indicator Light *1 3-42
(Green)
* Mazda Radar Cruise Control (MRCC) Indicator Light 4-95
(Amber)
* Cruise Main Indicator Light 4-101
(Green)
* Cruise Set Indicator Light 4-101
Lights-On Indicator Light 4-41
*1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
/C\FCA&('#*A'FKVKQPKPFD

4–26
When Driving
Instrument Cluster and Display
Wrench Warning Indicator Light
When the ignition is switched ON, the
warning light is illuminated and then turns
off after a few seconds.
The wrench warning indicator light is
illuminated when the preset maintenance
period arrives. Verify the content and
perform maintenance.
Refer to Maintenance Monitor on page
6-20 .
Low Engine Coolant Temperature
Indicator Light (Blue)
The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been suffi ciently warmed
up, the temperature sensor could have
a malfunction. Consult an Authorized
Mazda Dealer.
/C\FCA&('#*A'FKVKQPKPFD

4–31
When Driving
Transaxle
Shift Position Indication
This indicates the selected shift position.
Gear position indication
In manual shift mode, the “M” of the shift
position indication illuminates and the
numeral for the selected gear is displayed.
Warning Light
The warning light turns on when the
system has a malfunction.
Refer to Warning Lights on page 4-22 .
Transaxle Ranges





y The shift position indicator light in the
instrument cluster illuminates. Refer to
Warning/Indicator Lights on page 4-21 .



y The selector lever must be in P or N to
operate the starter.
P (Park)
P locks the transaxle and prevents the front
wheels from rotating.
WARNING
Always set the selector lever to P and set
the parking brake:
Only setting the selector lever to the
P position without using the parking
brake to hold the vehicle is dangerous.
If P fails to hold, the vehicle could move
and cause an accident.
CAUTION



¾ Shifting into P, N or R while the vehicle is
moving can damage your transaxle.



¾ Shifting into a driving gear or reverse
when the engine is running faster than
idle can damage the transaxle.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete
stop before shifting to or from R, except
under rare circumstances as explained in
Rocking the Vehicle (page 3-47 ).
N (Neutral)
In N, the wheels and transaxle are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.
WARNING
If the engine is running faster than idle,
do not shift from N or P into a driving
gear:
It's dangerous to shift from N or P
into a driving gear when the engine
is running faster than idle. If this is
done, the vehicle could move suddenly,
causing an accident or serious injury.

Do not shift into N when driving the
vehicle:
Shifting into N while driving is
dangerous. Engine braking cannot
be applied when decelerating which
could lead to an accident or serious
injury.
/C\FCA&('#*A'FKVKQPKPFD

4–40
When Driving
Transaxle
Driving Tips
WARNING
Do not let the vehicle move in a
direction opposite to the direction
selected by the selector lever:
Do not let the vehicle move backward
with the selector lever in a forward
position, or do not let the vehicle
move forward with the selector lever
in the reverse position. Otherwise, the
engine may stop, causing the loss of
the power brake and power steering
functions, and make it diffi cult to
control the vehicle which could result
in an accident.
Passing
For extra power when passing another
vehicle or climbing steep grades, depress
the accelerator fully. The transaxle will
shift to a lower gear, depending on vehicle
speed.
NOTE
(Some models)
The accelerator pedal feels heavy as it is
being depressed, but then lightens as it
is fully depressed. This change in pedal
force aids the engine control system in
determining how much the accelerator
pedal has been depressed for performing
kickdown, and functions to control
whether or not kickdown should be
performed.
Climbing steep grades from a stop
To climb a steep grade from a stopped
position:
1. Depress the brake pedal.
2. Shift to D or M1, depending on the
load weight and grade steepness.
3. Release the brake pedal while gradually
accelerating.
Descending steep grades
When descending a steep grade, shift to
lower gears, depending on load weight and
grade steepness. Descend slowly, using the
brakes only occasionally to prevent them
from overheating.
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–44
When Driving
Switches and Controls
Xenon fusion headlight bulbs *
The low-beam bulbs of the headlights have xenon fusion bulbs that produce a bright white
beam over a wide area.
WARNING
Do not replace the xenon fusion bulbs yourself:
Replacing the xenon fusion bulbs yourself is dangerous, because the xenon fusion
bulbs require high voltage. You could receive an electric shock if the bulbs are handled
incorrectly. Consult an Authorized Mazda Dealer when replacement is necessary.
NOTE
If the headlights fl icker or the brightness weakens, the bulb-life may be depleted and a
replacement is necessary. Consult an Authorized Mazda Dealer.
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–45
When Driving
Switches and Controls
Headlight High-Low Beam
Press the lever forward to turn on the high
beams.
Pull the lever back to its original position
for the low beams.
High beam
Low beam
The headlight high-beam indicator light
in the instrument cluster illuminates while
the high beams are turned on.
Flashing the Headlights
T o fl ash the headlights, pull the lever fully
towards you (the headlight switch does not
need to be on).
OFF
Flashing
The headlight high-beam indicator light
in the instrument cluster illuminates
simultaneously. The lever will return to the
normal position when released.
Headlight Leveling *
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.
Auto type
The angle of the headlights will be
automatically adjusted when turning on
the headlights.
The warning/indicator light turns on when
the system has a malfunction.
Refer to Warning/Indicator Lights on page
4-21 .
/C\FCA&('#*A'FKVKQPKPFD

*Some models.4–48
When Driving
Switches and Controls

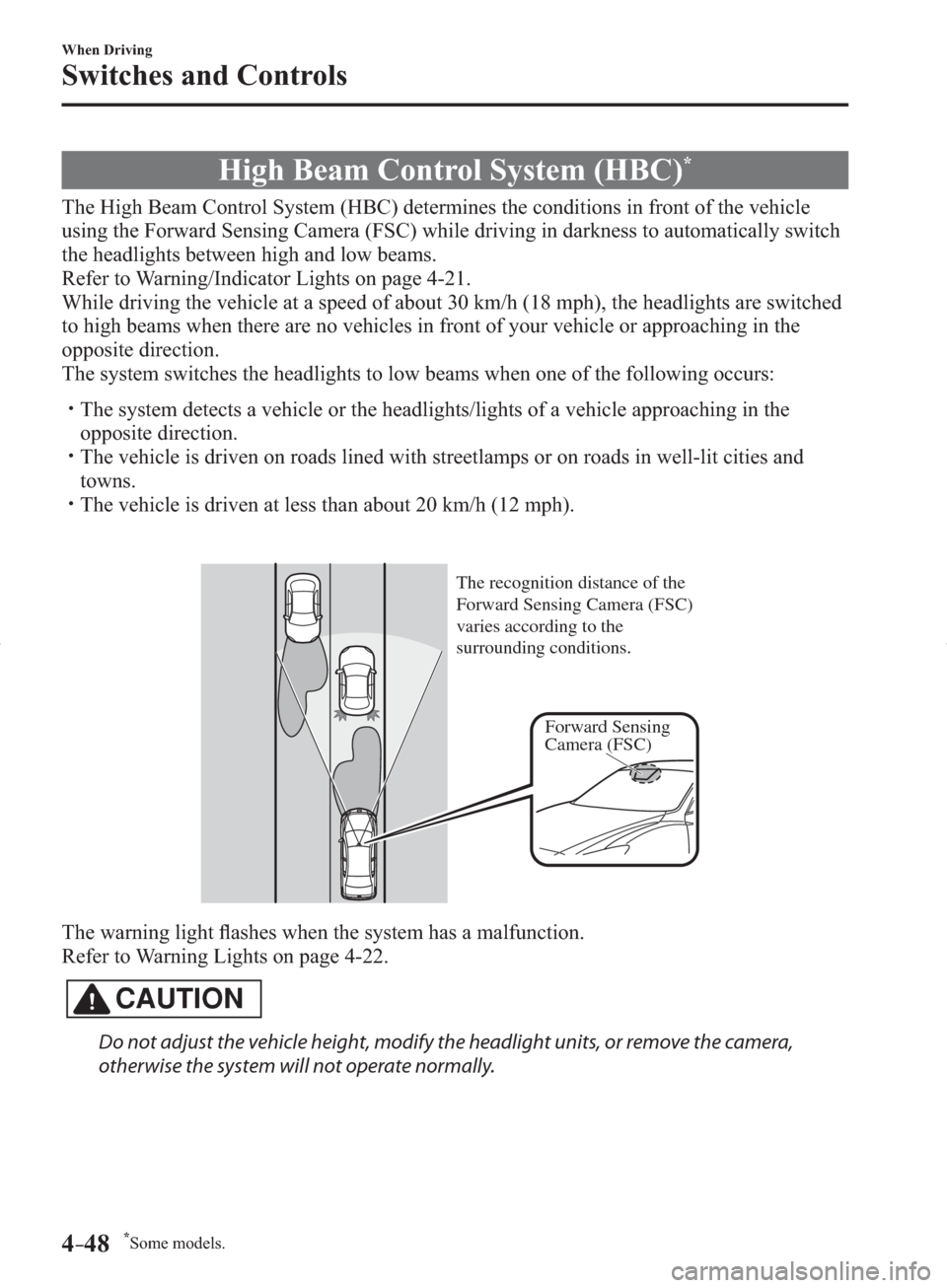

High Beam Control System (HBC) *
The High Beam Control System (HBC) determines the conditions in front of the vehicle
using the Forward Sensing Camera (FSC) while driving in darkness to automatically switch
the headlights between high and low beams.
Refer to Warning/Indicator Lights on page 4-21 .
While driving the vehicle at a speed of about 30 km/h (18 mph), the headlights are switched
to high beams when there are no vehicles in front of your vehicle or approaching in the
opposite direction.
The system switches the headlights to low beams when one of the following occurs:



y The system detects a vehicle or the headlights/lights of a vehicle approaching in the
opposite direction.



y The vehicle is driven on roads lined with streetlamps or on roads in well-lit cities and
towns.



y The vehicle is driven at less than about 20 km/h (12 mph).
Forward Sensing
Camera (FSC) The recognition distance of the
Forward Sensing Camera (FSC)
varies according to the
surrounding conditions.
The warning light fl ashes when the system has a malfunction.
Refer to Warning Lights on page 4-22 .
CAUTION
Do not adjust the vehicle height, modify the headlight units, or remove the camera,
otherwise the system will not operate normally.
/C\FCA&('#*A'FKVKQPKPFD

4–52
When Driving
Switches and Controls
NOTE



y If an indicator light stays on without
fl ashing or if it fl ashes abnormally, one
of the turn signal bulbs may be burned
out.



y A personalized function is available
to change the turn indicator sound
volume. (page 9-12 )
Lane-Change Signals
Move the lever halfway toward the
direction of the lane change—until the
indicator fl ashes— and hold it there. It will
return to the off position when released.
Three-Flash Turn Signal
To signal a lane change, operate the turn
signal lever up or down slightly and
release. After releasing the lever, the turn
signal indicator fl ashes three times.
NOTE
The three-fl ash turn signal function can be
switched to operable/inoperable using the
personalization function.
Refer to Personalization Features on page
9-12 .
Windshield Wipers and
Washer
The ignition must be switched ON to use
the wipers.
WARNING
Use only windshield washer fl uid or
plain water in the reservoir:
Using radiator antifreeze as washer
fl uid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
aff ect your visibility, and could result in
an accident.

Only use windshield washer fl uid mixed
with anti-freeze protection in freezing
weather conditions:
Using windshield washer fl uid without
anti-freeze protection in freezing
weather conditions is dangerous as
it could freeze on the windshield and
block your vision which could cause
an accident. In addition, make sure
the windshield is suffi ciently warmed
using the defroster before spraying the
washer fl uid.
