2–61
Essential Safety Equipment
SRS Air Bags
Constant Monitoring
The following components of the air bag systems are monitored by a diagnostic system:



y Crash sensors, and diagnostic module (SAS unit)



y Front air bag sensors



y Air bag modules



y Side crash sensors



y Air bag/Front seat belt pretensioner system warning light



y Front seat belt pretensioners



y Related wiring
(With Front Passenger Occupant Classifi cation System)




y Front passenger air bag deactivation indicator light



y Front passenger seat weight sensors



y Front passenger seat weight sensor control module



y Front passenger seat belt buckle switches
The diagnostic module continuously monitors the system's readiness. This begins when the
ignition is switched ON and continues while the vehicle is being driven.
/C\FCA&('#*A'FKVKQPKPFD

3–27
Before Driving
Fuel and Emission
Fuel and Engine Exhaust Precautions
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
This vehicle will perform best with fuel listed in the table.
Fuel Octane Rating * (Anti-knock index)
Regular unleaded fuel
87 [(R
M)/2 method] or above (91 RON or above)




*
 U.S. federal law requires that octane ratings be posted on gasoline station pumps.
Fuel with a rating lower than 87 octane (91 RON) could cause the emission control system
to lose effectiveness. It could also cause engine knocking and serious engine damage.
CAUTION



¾ USE ONLY UNLEADED FUEL.
 Leaded fuel is harmful to the catalytic converter and oxygen sensors and will lead to
deterioration of the emission control system and or failures.



¾ This vehicle can only use oxygenated fuels containing no more than 10 % ethanol by
volume. Damage to the vehicle may occur when ethanol exceeds this recommendation,
or if the gasoline contains any methanol. Stop using gasohol of any kind if your vehicle
engine is performing poorly.



¾ Never add fuel system additives, otherwise the emission control system could be damaged.
Consult an Authorized Mazda Dealer for details.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10 %. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name "Gasohol".
Vehicle damage and drivability problems resulting from the use of the following may not be
covered by the warranty.



y Gasohol containing more than 10 % ethanol.



y Gasoline or gasohol containing methanol.



y Leaded fuel or leaded gasohol.
/C\FCA&('#*A'FKVKQPKPFD

3–35
Before Driving

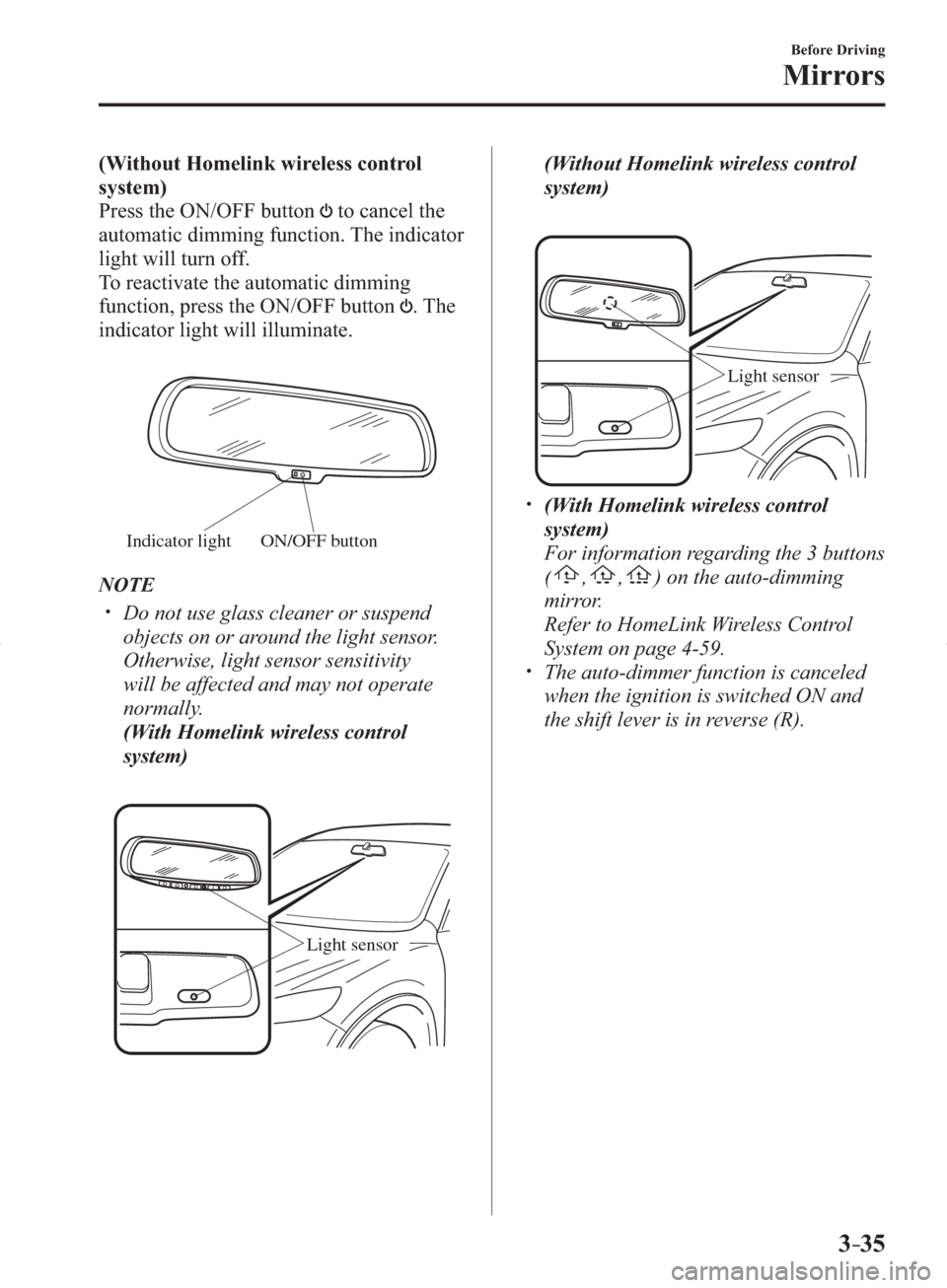

Mirrors
(Without Homelink wireless control
system)
Press the ON/OFF button
to cancel the
automatic dimming function. The indicator
light will turn off.
To reactivate the automatic dimming
function, press the ON/OFF button
. The
indicator light will illuminate.
ON/OFF button Indicator light
NOTE




y Do not use glass cleaner or suspend
objects on or around the light sensor.
Otherwise, light sensor sensitivity
will be affected and may not operate
normally.
  (With Homelink wireless control
system)

Light sensor

(Without Homelink wireless control
system)

Light sensor




y(With Homelink wireless control
system)
  For information regarding the 3 buttons
(
,,) on the auto-dimming
mirror.
  Refer to HomeLink Wireless Control
System on page 4-59 .



y The auto-dimmer function is canceled
when the ignition is switched ON and
the shift lever is in reverse (R).
/C\FCA&('#*A'FKVKQPKPFD
