8–23
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)

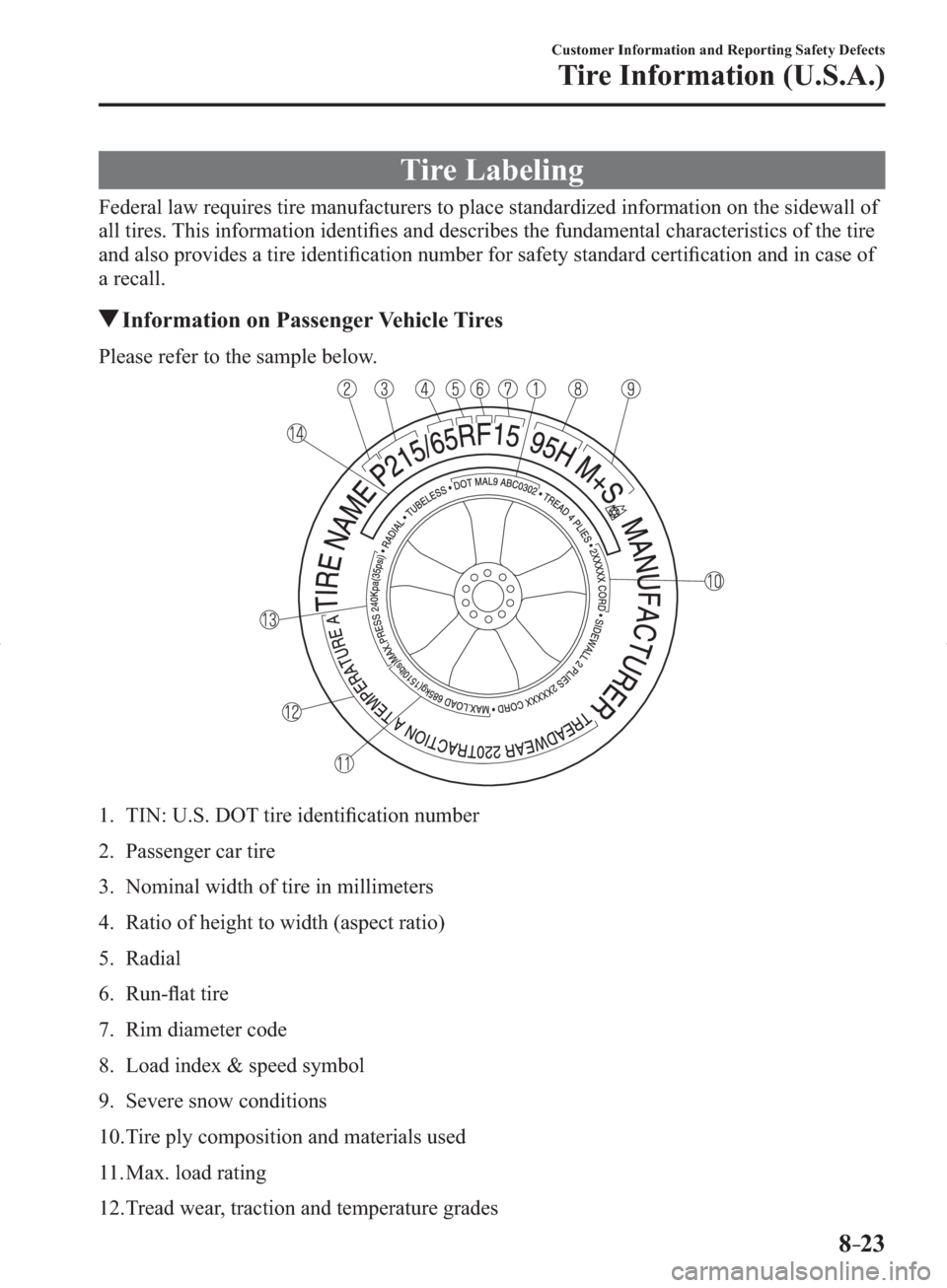

Tire Labeling
Federal law requires tire manufacturers to place standardized information on the sidewall of
all tires. This information identifi es and describes the fundamental characteristics of the tire
and also provides a tire identifi cation number for safety standard certifi cation and in case of
a recall.
Information on Passenger Vehicle Tires
Please refer to the sample below.
1. TIN: U.S. DOT tire identifi cation number
2. Passenger car tire
3. Nominal width of tire in millimeters
4. Ratio of height to width (aspect ratio)
5. Radial
6. Run-fl at tire
7. Rim diameter code
8. Load index & speed symbol
9. Severe snow conditions
10. Tire ply composition and materials used
11. Max. load rating
12. Tread wear, traction and temperature grades
/C\FCA&('#*A'FKVKQPKPFD

8–24
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)

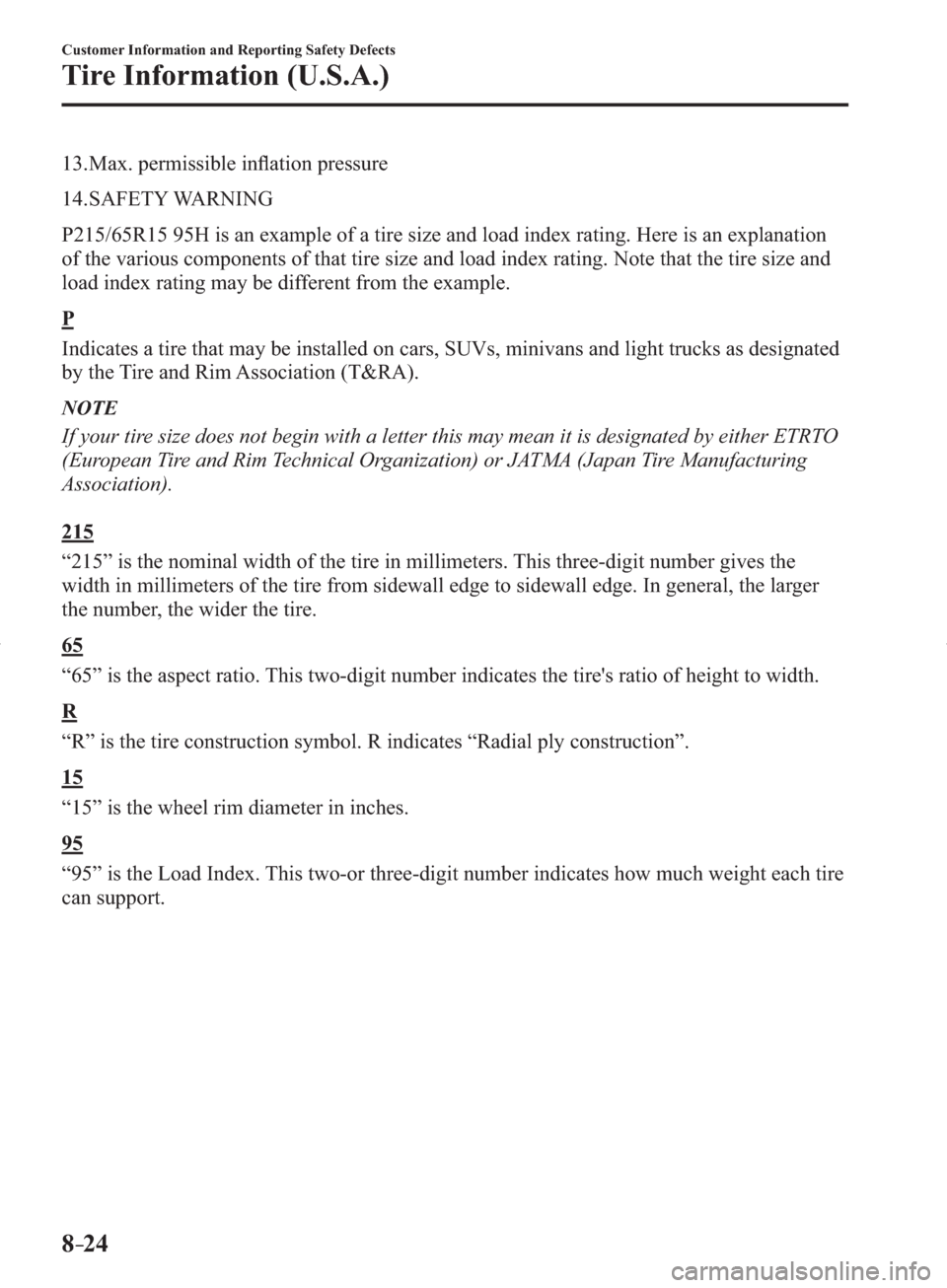

13. Max. permissible infl ation pressure
14. SAFETY WARNING
P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
P
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
NOTE
If your tire size does not begin with a letter this may mean it is designated by either ETRTO
(European Tire and Rim Technical Organization) or JATMA (Japan Tire Manufacturing
Association).
215
“215” is the nominal width of the tire in millimeters. This three-digit number gives the
width in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger
the number, the wider the tire.
6 5
“65” is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
R
“R” is the tire construction symbol. R indicates “Radial ply construction”.
1 5
“15” is the wheel rim diameter in inches.
9 5
“95” is the Load Index. This two-or three-digit number indicates how much weight each tire
can support.
/C\FCA&('#*A'FKVKQPKPFD

8–27
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Information on Temporary Tires
Please refer to the sample below.
1. Temporary tires
2. Nominal width of tire in millimeters
3. Ratio of height to width (aspect ratio)
4. Diagonal
5. Rim diameter code
6. Load index & speed symbol
T115/70D16 90M is an example of a tire size and load index rating. Here is an explanation
of the various components of that tire size and load index rating. Note that the tire size and
load index rating may be different from the example.
T
Indicates a tire that may be installed on cars, SUVs, minivans and light trucks as designated
by the Tire and Rim Association (T&RA).
1 1 5
“115” is the nominal width of the tire in millimeters. This three-digit number gives the width
in millimeters of the tire from sidewall edge to sidewall edge. In general, the larger the
number, the wider the tire.
7 0
“70” is the aspect ratio. This two-digit number indicates the tire's ratio of height to width.
D
“D” is the tire construction symbol. D indicates “diagonal ply construction”.
/C\FCA&('#*A'FKVKQPKPFD

9–6
Specifi cations
Specifi cations
Dimensions
4-Door
(U.S.A. and Canada)
Item Vehicle specifi cation
Overall length 4,580 mm (180.3 in)
Overall width 1,795 mm (70.7 in)
Overall height 1,455 mm (57.3 in)
Front tread 1,555 mm (61.2 in)
Rear tread 1,560 mm (61.4 in)
Wheelbase 2,700 mm (106.3 in)
(Mexico)
Item Vehicle specifi cation
Overall length 4,580 mm (180.3 in)
Overall width 1,795 mm (70.7 in)
Overall height 1,450 mm (57.1 in)
Front tread 1,555 mm (61.2 in)
Rear tread 1,560 mm (61.4 in)
Wheelbase 2,700 mm (106.3 in)
5-Door
(U.S.A. and Canada)
Item Vehicle specifi cation
Overall length 4,460 mm (175.6 in)
Overall width 1,795 mm (70.7 in)
Overall height
*1 Type A 1,470 mm (57.9 in)
Type B 1,455 mm (57.3 in)
Front tread 1,555 mm (61.2 in)
Rear tread 1,560 mm (61.4 in)
Wheelbase 2,700 mm (106.3 in)
/C\FCA&('#*A'FKVKQPKPFD

9–7
Specifi cations
Specifi cations
(Mexico)
Item Vehicle specifi cation
Overall length 4,460 mm (175.6 in)
Overall width 1,795 mm (70.7 in)
Overall height
*1 Type A 1,465 mm (57.7 in)
Type B 1,450 mm (57.1 in)
Front tread 1,555 mm (61.2 in)
Rear tread 1,560 mm (61.4 in)
Wheelbase 2,700 mm (106.3 in)
*1 The overall height is categorized according to the antenna type as follows:
Type A
Antenna
Type B
Except above.
