2-4. Using other driving systems
RX350/270_EE

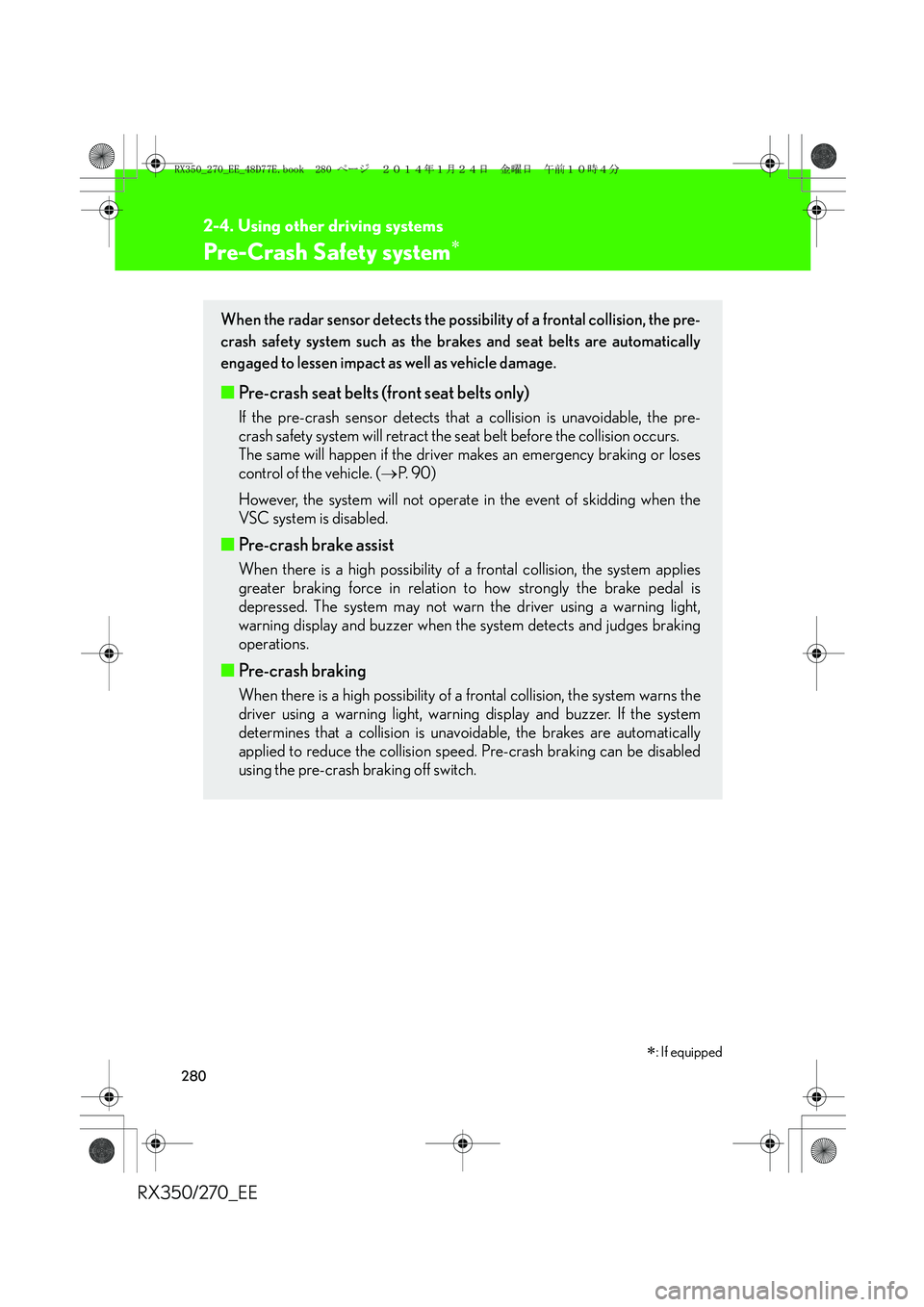

Pre-Crash Safety system∗
When the radar sensor detects the possibility of a frontal collision, the pre-
crash safety system such as the brakes and seat belts are automatically
engaged to lessen impact as well as vehicle damage.
■Pre-crash seat belts (front seat belts only)
If the pre-crash sensor detects that a collision is unavoidable, the pre-
crash safety system will retract the seat belt before the collision occurs.
The same will happen if the driver makes an emergency braking or loses
control of the vehicle. (→P. 9 0 )
However, the system will not operate in the event of skidding when the
VSC system is disabled.
■Pre-crash brake assist
When there is a high possibility of a frontal collision, the system applies
greater braking force in relation to how strongly the brake pedal is
depressed. The system may not warn the driver using a warning light,
warning display and buzzer when the system detects and judges braking
operations.
■Pre-crash braking
When there is a high possibility of a frontal collision, the system warns the
driver using a warning light, warning display and buzzer. If the system
determines that a collision is unavoidable, the brakes are automatically
applied to reduce the collision speed. Pre-crash braking can be disabled
using the pre-crash braking off switch.
∗: If equipped
RX350_270_EE_48D77E.book 280 ページ ２０１４年１月２４日　金曜日　午前１０時４分

281
2-4. Using other driving systems
2
When driving
RX350/270_EE
Disabling pre-crash braking
Pre-crash braking disabled
Pre-crash braking enabled
The pre-crash safety system warn-
ing light turn on when pre-crash
braking is disabled.
Radar sensor
The radar sensor detects vehicles
or other obstacles on or near the
road ahead and determines
whether a collision is imminent
based on the position, speed, and
heading of the obstacles.
RX350_270_EE_48D77E.book 281 ページ ２０１４年１月２４日　金曜日　午前１０時４分

283
2-4. Using other driving systems
2
When driving
RX350/270_EE
■Conditions that may trigger the system even if there is no possibility of collision
●When there is an object by the roadside at the entrance to a curve
●When passing an oncoming vehicle on a curve
●When driving over a narrow iron bridge
●When there is a metal object on the road surface
●When driving on an uneven road surface
●When passing an oncoming vehicle on a left-turn
●When your vehicle rapidly closes on the vehicle in front
●When a grade separation/interchange, sign, billboard, or other structure
appears to be directly in the vehicle’s line of travel
●When climbing a steep hill causes an overhead billboard or other metallic struc-
ture to appear directly in the vehicle’s line of travel
●When an extreme change in vehicle height occurs
●When the axis of the radar is out of adjustment
●When passing through certain toll gates
●When driving on a bridge
●When passing through a tunnel
When the system is activated in the situations described above, there is also a possi-
bility that the seat belts will retract quickly and the brakes will be applied with a force
greater than normal. When the seat belt is locked in the retracted position, stop the
vehicle in a safe place, release the seat belt and refasten it.
■Obstacles not detected
The sensor cannot detect plastic obstacles such as traffic cones. There may also be
occasions when the sensor cannot detect pedestrians, animals, bicycles, motorcy-
cles, trees, or snowdrifts.
RX350_270_EE_48D77E.book 283 ページ ２０１４年１月２４日　金曜日　午前１０時４分

284
2-4. Using other driving systems
RX350/270_EE
■Situations in which the pre-crash safety system does not function properly
The system may not function effectively in situations such as the following:
●On roads with sharp bends or uneven surfaces
●If a vehicle suddenly moves in front of your vehicle, such as at an intersection
●If a vehicle suddenly cuts in front of your vehicle, such as when overtaking
●In inclement weather such as heavy rain, fog, snow or sand storms
●When your vehicle is skidding with the VSC system off
●When an extreme change in vehicle height occurs
●When the axis of the radar is out of adjustment
■Automatic cancelation of the pre-crash safety system
When a malfunction occurs due to sensor contamination, etc. that results in the
sensors being unable to detect obstacles, the pre-crash safety system will be auto-
matically disabled. In this case, the system will not activate even if there is a collision
possibility.
■When there is a malfunction in the system, or if the system is temporarily unus-
able
Warning lights and/or warning messages will turn on or flash. (→P. 5 4 3 , 5 5 2 )
RX350_270_EE_48D77E.book 284 ページ ２０１４年１月２４日　金曜日　午前１０時４分

288
2-4. Using other driving systems
RX350/270_EE
CAUTION
■When the sensor may not be correctly detecting the vehicle ahead
Apply the brakes as necessary in any of the following situations:
●When water or snow thrown up by the surrounding vehicles hinders the function-
ing of the sensor
●When your vehicle is pointing upwards (caused by a heavy load in the luggage
compartment etc.)
●Vehicles that cut in suddenly
●Vehicles with small rear ends (trailers with no load on board etc.)
●Motorcycles traveling in the same lane
■Handling the radar sensor
Observe the following to ensure the pre-crash safety system can function effec-
tively:
●Keep the sensor and front grille clean at all times.
Clean the sensor and front grille with a soft cloth so you do not mark or damage
them.
●Do not subject the sensor or surrounding area to a strong impact.
If the sensor moves even slightly off position, the system may become inaccurate
or malfunction. If the sensor or surrounding area is subject to a strong impact,
always have the area inspected and adjusted by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
●Do not disassemble the sensor.
●Do not attach accessories or stickers to the sensor, grille or surrounding area.
●Do not modify or paint the sensor and grille cover.
RX350_270_EE_48D77E.book 288 ページ ２０１４年１月２４日　金曜日　午前１０時４分

453
4-1. Maintenance and care
4
Maintenance and care
RX350/270_EE
■Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical cleaners.
Use the same mild detergent and wax as used on the paint.
●Do not use detergent on the wheels when they are hot, for example after driving
for long distance in the hot weather.
●Wash detergent from the wheels immediately after use.
■Bumpers
Do not scrub with abrasive cleaners.
CAUTION
■When cleaning the windshield
●When the upper part of the windshield where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the
raindrop sensor
■Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled suffi-
ciently, as touching a hot exhaust pipe can cause burns.
Set the wiper switch to off.
If the wiper switch is in , the wipers
may operate unexpectedly in the following
situations, and may result in hands being
caught or other serious injuries and cause
damage to the wiper blades.
Off
RX350_270_EE_48D77E.book 453 ページ ２０１４年１月２４日　金曜日　午前１０時４分

509
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
23ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
24RAD NO. 110 AAudio system, navigation system
25AM27. 5 AStarter system
26ECU-B NO. 27. 5 A
Air conditioning system, audio system,
vehicle stability control system, power
windows
27MAYDAY/TEL7. 5 AMAYDAY/TEL
28IMMOBI7. 5 AIMMOBI
29ALT-S7. 5 ACharging system
30DRL7. 5 ADaytime running light system
31IGN10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
32DOME10 A
Vanity mirror lights, luggage compart-
ment lights, interior lights, personal
lights, door courtesy lights, footwell
lights, scuff lights
33ECU-B NO. 110 A
Tilt and telescopic steering, multiplex
communication system, meters and
gauges, driving position memory,
power seats, power back door, head-
up display, outside rear view mirror,
steering sensor
34EFI NO. 110 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, electronic controlled transmis-
sion
FuseAmpereCircuit
RX350_270_EE_48D77E.book 509 ページ ２０１４年１月２４日　金曜日　午前１０時４分

513
4-3. Do-it-yourself maintenance
4
Maintenance and care
RX350/270_EE
7ECU-IG1 NO. 110 A
Multiplex communication system,
steering sensor, shift lock control sys-
tem, tilt and telescopic steering, auto-
matic transmission system, power
back door, pre-crash safety system,
vehicle stability control system, tire
pressure warning system
8S/ROOF30 AMoon roof
9FUEL OPN7. 5 AFuel filler door opener
10PSB30 APre-crash seat belt
11TI & TE30 ATilt and telescopic steering system
12DR LOCK10 ADR LOCK
13FR FOG7. 5 AFront fog lights
14P- S E AT L H30 APower seat (left-side)
154WD7. 5 AAW D s y s t e m
16INVERTER20 A
17RR FOG7. 5 ARear fog lights
18D/L ALT B25 A
Multiplex communication system,
power door lock system, power back
door
19EPS10 AElectric power steering system
20ECU-IG1 NO. 210 ALexus parking assist-sensor, AWD
system, pre-crash seat belt
FuseAmpereCircuit
