2014 LEXUS RX270 CD player

361
3-2. Using the audio system
3
Interior features
RX350/270_EE
Bluetooth® audio system
■Conditions under which the system will not operate
●If using a portable player that does not support Bluetooth®
●If the portable player is switched off
●If the portable player is not connected
●If the portable player’s battery is low
●If the portable player is behind the seat or in the glove box or console box
●If metal is covering or touching the portable player
The Bluetooth® audio system enables you to enjoy music played on a por-
table digital audio player (portable player) from the vehicle speakers via
wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable of
playing portable audio music without cables. If your portable player does
not support Bluetooth
®, the Bluetooth® audio system will not function.
Ti t l ePa g e
Using the Bluetooth® audio systemP. 3 6 6
Operating a Bluetooth® enabled portable playerP. 3 6 9
Setting up a Bluetooth® enabled portable playerP. 3 7 2
Bluetooth® audio system setupP. 3 76
RX350_270_EE_48D77E.book 361 ページ ２０１４年１月２４日　金曜日　午前１０時４分

362
3-2. Using the audio system
RX350/270_EE
■When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improperly
accessed. (→P. 4 0 9 )
■About Bluetooth®
■Compatible models
●Bluetooth® specifications:
Ver. 1.1, or higher (Recommended: Ver. 1.2 or higher)
●Following profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (Conformed:
Ve r. 1 . 2
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (Con-
formed: Ver. 1.3)
Portable players must correspond to the above specifications in order to be con-
nected to the Bluetooth
® audio system. However, please note that some functions
may be limited depending on the type of portable player.Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
RX350_270_EE_48D77E.book 362 ページ ２０１４年１月２４日　金曜日　午前１０時４分

364
3-2. Using the audio system
RX350/270_EE
CAUTION
■Caution while driving
Do not connect portable players or operate the controls.
■Caution regarding interference with electronic devices
●Your audio unit is fitted with Bluetooth® antennas. People with implantable car-
diac pacemakers, cardiac resynchronization therapy-pacemakers or implantable
cardioverter defibrillators should maintain a reasonable distance between them-
selves and the Bluetooth
® antennas. The radio waves may affect the operation of
such devices.
●Before using Bluetooth® devices, users of any electrical medical device other
than implantable cardiac pacemakers, cardiac resynchronization therapy-pace-
makers or implantable cardioverter defibrillators should consult the manufac-
turer of the device for information about its operation under the influence of radio
waves. Radio waves could have unexpected effects on the operation of such
medical devices.
12

Ovim , PIONEER, izjavljuje da ovaj DEX-6418 je usklaÿen sa bitnim zahtjevima idrugim relevantnim
odredbama Direktive 1999/5/EC. Ovim , PIONEER, izjavljuje da ovaj DEX-6418 je usklaðen sa bitnim zahtjevima
idrugim relevantnim odredbama Direktive 1999/5/EC.
RX350_270_EE_48D77E.book 364 ページ ２０１４年１月２４日　金曜日　午前１０時４分

365
3-2. Using the audio system
3
Interior features
RX350/270_EE
NOTICE
■To prevent damage to portable players
Do not leave portable players in the vehicle. The temperature inside the vehicle
may become high, resulting in damage to the player.
RX350_270_EE_48D77E.book 365 ページ ２０１４年１月２４日　金曜日　午前１０時４分

367
3-2. Using the audio system
3
Interior features
RX350/270_EE
Using the Bluetooth® audio system for the first time
Before using the Bluetooth
® audio system, it is necessary to register a
Bluetooth® enabled portable player in the system. Follow the procedure
below to register (pair) a portable player:
Press and select “BT•A MENU” using .
Select “BT•A Setup” using .
Select “Pair Audio” using .
Select “Record Name” using , and say the name to be reg-
istered after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using .
A passkey will be displayed.
Input the passkey into the audio player.
Refer to the manual that comes with the portable player for the opera-
tion of the portable player.
If the portable player has a Bluetooth® phone, the phone can be regis-
tered at the same time.
When “Pair Phone?” is displayed, select “Yes” or “No” using
. (Bluetooth
® phone →P. 387)
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP7
RX350_270_EE_48D77E.book 367 ページ ２０１４年１月２４日　金曜日　午前１０時４分

368
3-2. Using the audio system
RX350/270_EE

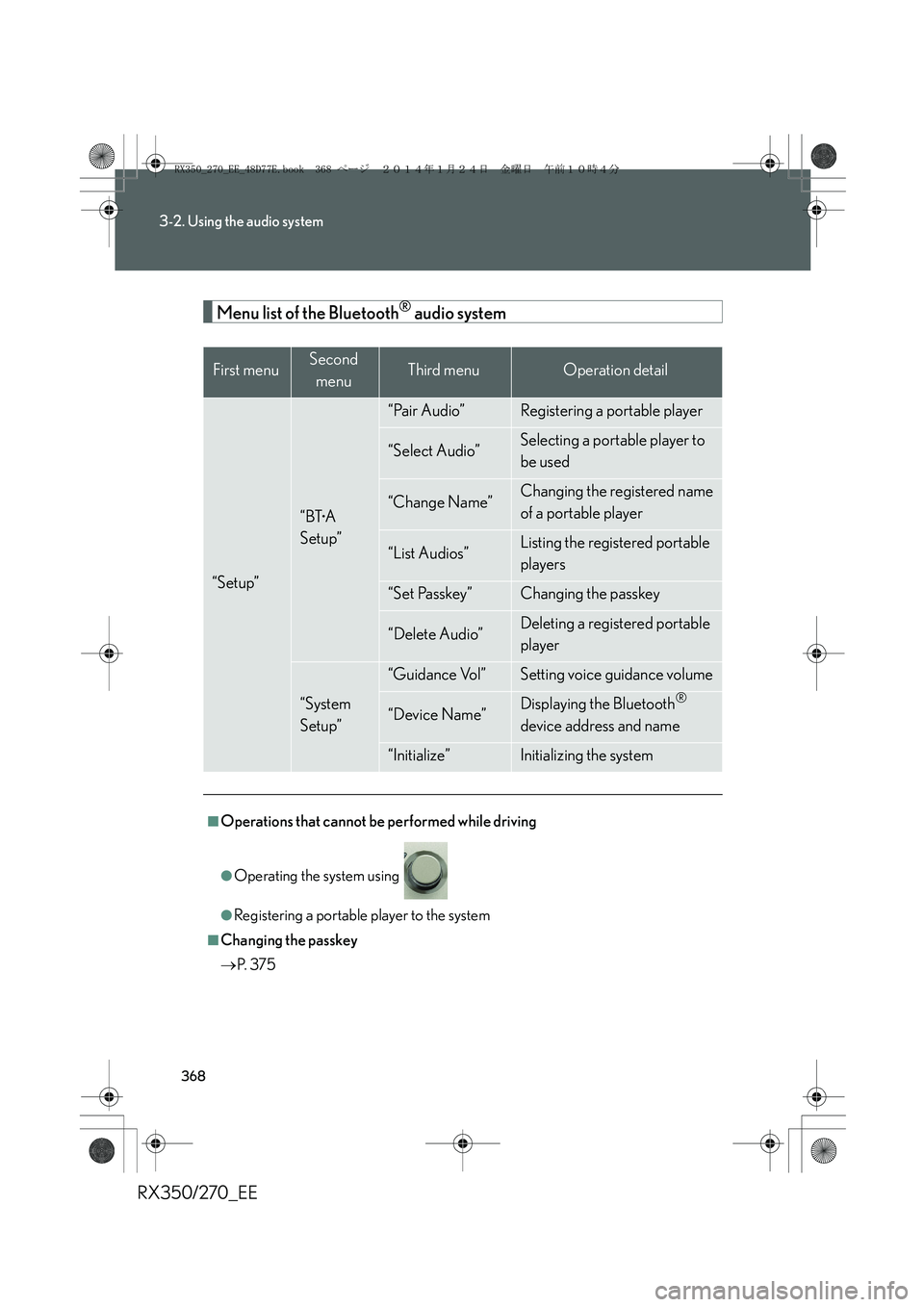

Menu list of the Bluetooth® audio system
First menuSecond
menuThird menuOperation detail
“Setup”
“BT•A
Setup”
“Pair Audio”Registering a portable player
“Select Audio”Selecting a portable player to
be used
“Change Name”Changing the registered name
of a portable player
“List Audios”Listing the registered portable
players
“Set Passkey”Changing the passkey
“Delete Audio”Deleting a registered portable
player
“System
Setup”
“Guidance Vol”Setting voice guidance volume
“Device Name”Displaying the Bluetooth®
device address and name
“Initialize”Initializing the system
■Operations that cannot be performed while driving
●Operating the system using
●Registering a portable player to the system
■Changing the passkey
→P. 3 7 5
RX350_270_EE_48D77E.book 368 ページ ２０１４年１月２４日　金曜日　午前１０時４分

369
3-2. Using the audio system
3
Interior features
RX350/270_EE
Operating a Bluetooth® enabled portable player
“PWR⋅VO L” k no b
Po w e r Vo l u m eText button
Playback button
Repeat play button
Random playback button
Track selector buttonBT•A menu knob Album selector buttons Playback/Pause button
RX350_270_EE_48D77E.book 369 ページ ２０１４年１月２４日　金曜日　午前１０時４分

371
3-2. Using the audio system
3
Interior features
RX350/270_EE
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain functions
may not be available.
■Display
→P. 3 3 4
■Error messages
“Memory Error”: This indicates a problem in the system.
RX350_270_EE_48D77E.book 371 ページ ２０１４年１月２４日　金曜日　午前１０時４分
