2014 LEXUS RX270 stop start

81
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
RX350/270_EE

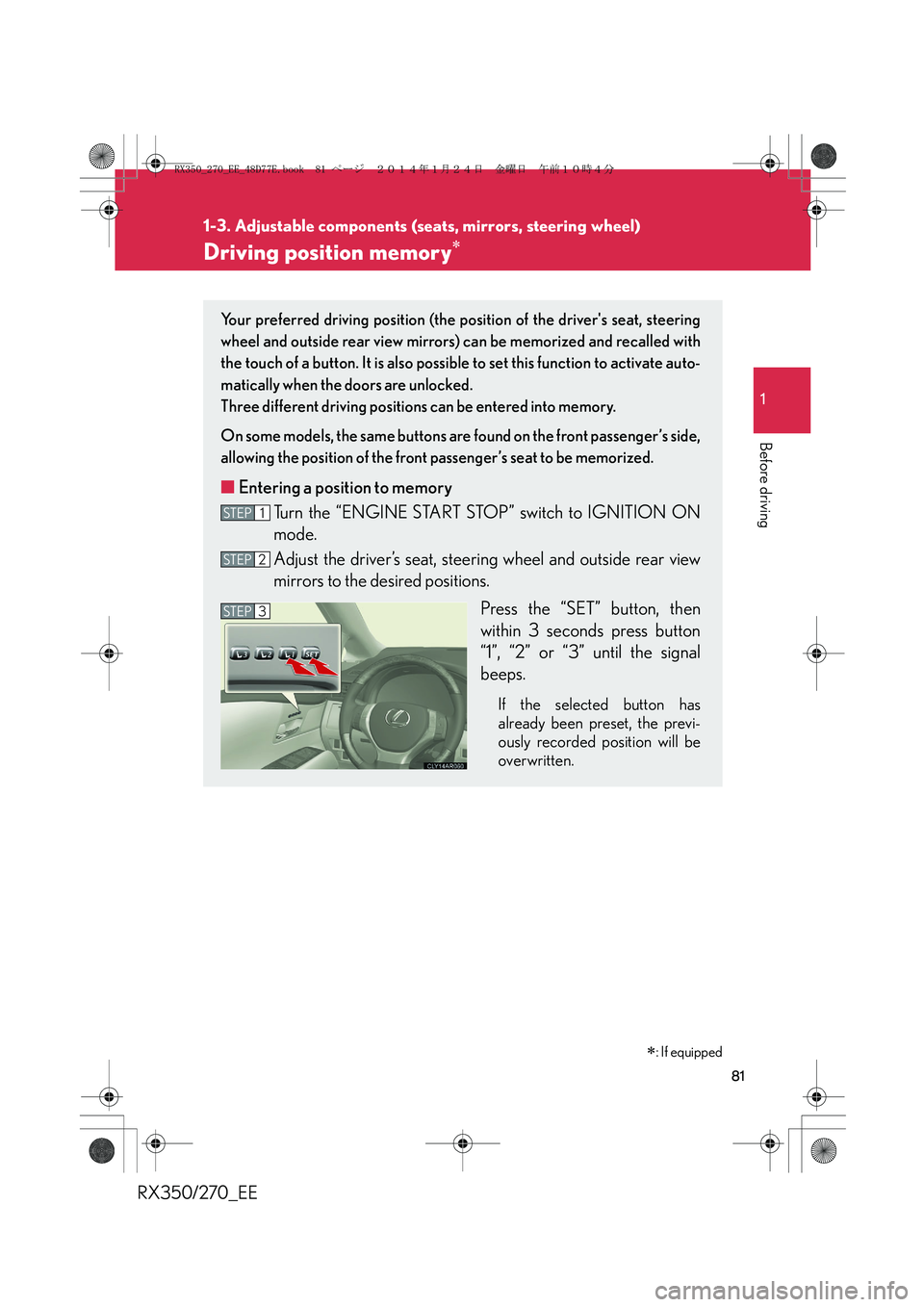

Driving position memory∗
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be memorized and recalled with
the touch of a button. It is also possible to set this function to activate auto-
matically when the doors are unlocked.
Three different driving positions can be entered into memory.
On some models, the same buttons are found on the front passenger’s side,
allowing the position of the front passenger’s seat to be memorized.
■Entering a position to memory
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Adjust the driver’s seat, steering wheel and outside rear view
mirrors to the desired positions.
Press the “SET” button, then
within 3 seconds press button
“1”, “2” or “3” until the signal
beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3
∗: If equipped
RX350_270_EE_48D77E.book 81 ページ ２０１４年１月２４日　金曜日　午前１０時４分

82
1-3. Adjustable components (seats, mirrors, steering wheel)
RX350/270_EE
■Recalling the memorized position
Check that the shift lever is set in P.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Press button “1”, “2” or “3” until
the signal beeps to recall the
desired position.
STEP1
STEP2
STEP3
RX350_270_EE_48D77E.book 82 ページ ２０１４年１月２４日　金曜日　午前１０時４分

83
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX350/270_EE
Linking driving position memory with door unlock operation (driver’s side only)
Record your driving position to button “1”, “2” or “3” before performing
the following.
Carry only the key (including the card key) to which you want to link the
driving position. If 2 or more keys are in the vehicle, the driving position
cannot be linked properly.
Shift the shift lever to P and close the driver's door. Turn the
“ENGINE START STOP” switch to IGNITION ON mode.
Press the desired button (“1”, “2” or
“3”) to recall the position. Then,
while keep pressing the button,
press the driver's door lock
switches (either lock or unlock)
until the signal beeps.
The driving position is recalled
when the driver's door is unlocked
using the entry function or wireless
remote control and the driver's
door is opened.
STEP1
STEP2
RX350_270_EE_48D77E.book 83 ページ ２０１４年１月２４日　金曜日　午前１０時４分

84
1-3. Adjustable components (seats, mirrors, steering wheel)
RX350/270_EE
Power easy access system (driver’s side only)
When the driver enters and exits the vehicle, the driver's seat and steer-
ing wheel will automatically perform the following operations:
Exiting the vehicle: When all of the
following actions have been per-
formed, the steering wheel will
move up and back to the point far-
thest away from the driver and the
seat will move backward (auto
away function):
• The shift lever has been shifted to P
• The “ENGINE START STOP”
switch has been turned off
• The driver’s seat belt has been
unfastened
Entering the vehicle: When either
of the following actions has been
performed, the steering wheel will
move toward the driver and seat
will move forward (auto return
function):
• The “ENGINE START STOP”
switch has been turned to ACCES-
SORY mode
• The driver’s seat belt has been fas-
tened
RX350_270_EE_48D77E.book 84 ページ ２０１４年１月２４日　金曜日　午前１０時４分

85
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX350/270_EE
■When driving position memory is linked with door unlock operation
If the driver’s door is opened, the driver’s seat will move toward the memorized
position but stop slightly beforehand to allow easy access to the vehicle.
Turning the “ENGINE START STOP” switch to ACCESSORY mode or fastening
the driver’s seat belt moves the seat fully into the memorized position.
■Canceling the linked door unlock operation
Turn the “ENGINE START STOP” switch to IGNITION ON mode and
close the driver's door.
While pressing the “SET” button, press the driver’s door lock switches
(either lock or unlock) until the signal beeps.
■Operating the driving position memory after turning the “ENGINE START
STOP” switch off
Memorized positions (except for the steering wheel position) can be activated up
to 180 seconds after the driver’s door is opened and another 60 seconds after it is
closed again, even after turning the “ENGINE START STOP” switch off.
■Stopping seat position operation part-way through
Perform any of the following operations:
●Press the “SET” button.
●Press button “1”, “2” or “3”.
●Adjust the seat using the switches (only cancels seat position recall).
●Adjust the steering wheel using the tilt and telescopic steering control switch
(only cancels steering wheel position recall).
■Correct seat position
When the seat is in the most forward or most backward position, and the seat is
being moved in those directions, the system may not correctly recognize the cur-
rent position and the memorized position will not be correctly recalled.
■The auto away function for exiting the driver seat
If the seat is already close to the rearmost position, the auto away function may not
operate when the driver exits the vehicle.
■Customization
The distance that the driver’s seat moves backward during the auto away function
can be changed. (Customizable features →P. 6 2 2 )
STEP1
STEP2
RX350_270_EE_48D77E.book 85 ページ ２０１４年１月２４日　金曜日　午前１０時４分

94
1-3. Adjustable components (seats, mirrors, steering wheel)
RX350/270_EE
Steering wheel
Auto tilt away
When the “ENGINE START
STOP” switch is turned off, the
steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit.
Tu r n i n g t h e “ E N G I N E S T A R T
STOP” switch to ACCESSORY or
IGNITION ON mode will return
the steering wheel to the original
position.
The steering wheel can be adjusted to a comfortable position.
Operating the switch moves the steering wheel in the following direc-
tions:
Up
Down
Away from the driver
Toward the driver
RX350_270_EE_48D77E.book 94 ページ ２０１４年１月２４日　金曜日　午前１０時４分

95
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX350/270_EE
■The steering wheel can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON
mode*.
*: Vehicles with driving position memory: If the driver's seat belt is fastened, the
steering wheel can be adjusted regardless of “ENGINE START STOP” switch
mode.
■Automatic adjustment of the steering position (vehicles with driving position
memory)
A desired steering position can be entered to memory and recalled automatically
by the driving position memory. (→P. 8 1 )
■Notes for the auto tilt away function (vehicles with driving position memory)
The auto tilt away function can only operate when the “ENGINE START STOP”
switch has been turned off, the driver seat belt has been unfastened and the driver’s
seat movement (→P. 622) is in a setting other than off.
When the driver fastens the seat belt again, the steering wheel will return to the
original position. (→P. 8 4 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.
RX350_270_EE_48D77E.book 95 ページ ２０１４年１月２４日　金曜日　午前１０時４分

97
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX350/270_EEAuto anti-glare inside rear view mirror
Responding to the level of brightness of the headlights of vehicles
behind, the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON/OFF
When the automatic anti-glare
function is in ON mode, the indica-
tor illuminates.
The function will set to ON mode
each time the “ENGINE START
STOP” switch is turned to IGNI-
TION ON mode.
Pressing the button turns the func-
tion to OFF mode. (The indicator
also turns off.)
Indicator
■To prevent sensor error (vehicles with auto anti-glare inside rear view mirror)
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident, resulting in
death or serious injury.
To ensure that the sensors operate properly,
do not touch or cover them.
RX350_270_EE_48D77E.book 97 ページ ２０１４年１月２４日　金曜日　午前１０時４分
