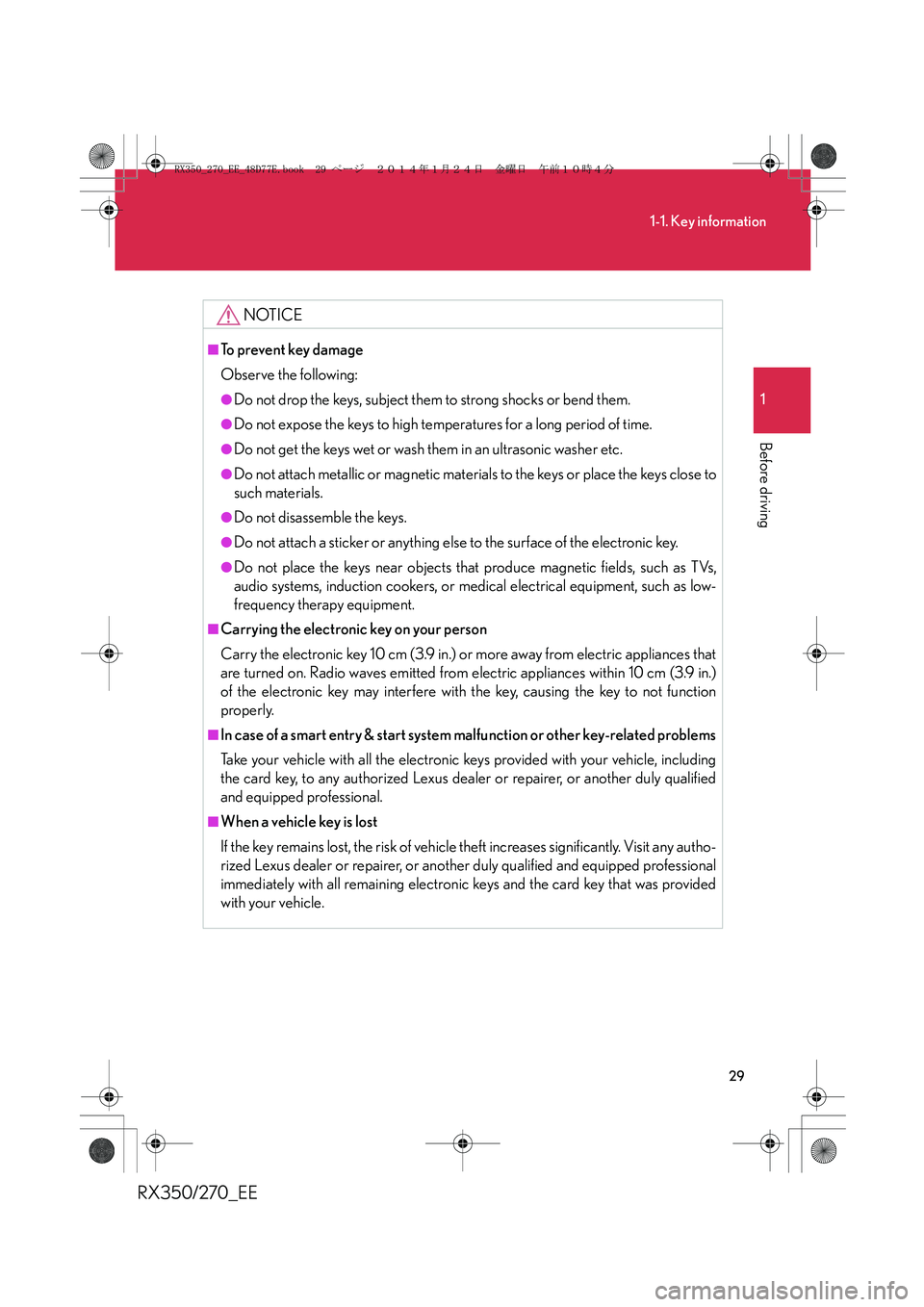

1-1. Key information
1
Before driving
RX350/270_EE
NOTICE
■To prevent key damage
Observe the following:
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for a long period of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys close to
such materials.
●Do not disassemble the keys.
●Do not attach a sticker or anything else to the surface of the electronic key.
●Do not place the keys near objects that produce magnetic fields, such as TVs,
audio systems, induction cookers, or medical electrical equipment, such as low-
frequency therapy equipment.
■Carrying the electronic key on your person
Carry the electronic key 10 cm (3.9 in.) or more away from electric appliances that
are turned on. Radio waves emitted from electric appliances within 10 cm (3.9 in.)
of the electronic key may interfere with the key, causing the key to not function
properly.
■In case of a smart entry & start system malfunction or other key-related problems
Take your vehicle with all the electronic keys provided with your vehicle, including
the card key, to any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
■When a vehicle key is lost
If the key remains lost, the risk of vehicle theft increases significantly. Visit any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped professional
immediately with all remaining electronic keys and the card key that was provided
with your vehicle.
RX350_270_EE_48D77E.book 29 ページ ２０１４年１月２４日　金曜日　午前１０時４分

30
1-1. Key information
RX350/270_EE
NOTICE
■Precautions for handling the card key
●Do not apply excess force when inserting the mechanical key into the card key.
Doing so may damage the card key.
●If the battery or card key terminals get wet, the battery may corrode and the card
key may stop working.
If the key is dropped into water, or if drinking water etc. is spilled on the key,
immediately remove the battery cover and wipe the battery and terminals. (To
remove the battery cover, lightly grasp and pull it.) If the battery is corroded, have
any authorized Lexus dealer or repairer, or another duly qualified and equipped
professional, replace the battery.
●Do not crush the battery cover or use a screwdriver to remove the battery cover.
Forcibly removing the battery cover may bend or damage the key.
●If the battery cover is frequently removed, the battery cover may become loose.
●When installing the battery, make sure to check the direction of the battery.
Installing the battery in the wrong direction may cause the battery to deplete rap-
idly.
●The surface of the card key may be damaged, or its coating may peel off in the
following situations:
• The card key is carried together with hard objects, such as coins and keys.
• The card key is scraped with a sharp object, such as the tip of a mechanical
pencil.
• The surface of the card key is wiped with thinner or benzene.
RX350_270_EE_48D77E.book 30 ページ ２０１４年１月２４日　金曜日　午前１０時４分

31
1
Before driving
RX350/270_EE
1-2. Opening, closing and locking the doors
Smart entry & start system
The following operations can be performed simply by carrying the elec-
tronic key (including the card key) on your person, for example in your
pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the side doors (→P. 32)
Locks and unlocks the back door (
→P. 32)
Starts the engine (→P. 1 8 0 )
Electronic key
Electronic keyElectronic key
RX350_270_EE_48D77E.book 31 ページ ２０１４年１月２４日　金曜日　午前１０時４分

34
1-2. Opening, closing and locking the doors
RX350/270_EE■Effective range (areas within which the electronic key is detected)
When locking or unlocking
the doors
The system can be operated
when the electronic key is
within about 0.7 m (2.3 ft.) of
an outside door handle. (Only
the doors detecting the key
can be operated.)
When starting the engine
or changing “ENGINE
START STOP” switch
modes
The system can be operated
when the electronic key is
inside the vehicle.
■Operation signals
The emergency flashers flash to indicate that the doors have been locked/unlocked.
(Locked: Once; Unlocked: Twice)
■When the door cannot be locked by the lock sensor on the upper part of the door
handle
Touch both lock sensors on the upper and
lower part of the door handle simultaneously.
RX350_270_EE_48D77E.book 34 ページ ２０１４年１月２４日　金曜日　午前１０時４分

36
1-2. Opening, closing and locking the doors
RX350/270_EE
■Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■Battery-saving function
If the vehicle is parked for a long period of time, the battery-saving function is acti-
vated in order to prevent the vehicle battery from being discharged and the elec-
tronic key battery from being depleted.
●In the following circumstances, unlocking the vehicle using the entry function
may take longer than usual:
• When the entry function has not been used for 5 days or more
• When the electronic key has been left within approximately 2 m (6 ft.) of the
vehicle for 10 minutes or more
●If the entry function has not been used for 14 days or more, the vehicle cannot
be unlocked by a door other than the driver's door. To unlock the vehicle, grip
the driver's door handle or use the wireless remote control or the mechanical
key.
The system will resume operation when:
●The vehicle is locked using the lock sensor.
●The vehicle is locked/unlocked using the wireless remote control function.
(→P. 5 3 )
●The vehicle is locked/unlocked using the mechanical key. (→P. 5 9 1 )
RX350_270_EE_48D77E.book 36 ページ ２０１４年１月２４日　金曜日　午前１０時４分

37
1-2. Opening, closing and locking the doors
1
Before driving
RX350/270_EE
■Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situations,
the communication between the electronic key and the vehicle may be affected,
preventing the smart entry & start system, wireless remote control and immobilizer
system from operating properly.
(Ways of coping: →P. 5 9 1 )
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display,
airport or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wire-
less communication device
●When the electronic key is in contact with, or is covered by the following metal-
lic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When multiple electronic keys are in the vicinity
●When another wireless key (that emits radio waves) is being used nearby
●When carrying the electronic key together with the following devices that emit
radio waves
• Another vehicle's electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or metallic objects are attached to the rear
window
RX350_270_EE_48D77E.book 37 ページ ２０１４年１月２４日　金曜日　午前１０時４分

38
1-2. Opening, closing and locking the doors
RX350/270_EE
■Note for the entry function
●Even when the electronic key is within the effective range (detection areas), the
system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near the
ground, or in a high place when the doors are locked or unlocked.
• The electronic key is on the instrument panel, luggage cover or floor or in the
glove box.
●Do not leave the electronic key on top of the instrument panel or near the door
pockets when exiting the vehicle. Depending on the radio wave reception con-
ditions, it may be detected by the antenna outside the cabin and the door will
become lockable from the outside, possibly trapping the electronic key inside
the vehicle.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone. However, only the doors detecting the elec-
tronic key can be used to unlock the vehicle.
●The doors may lock or unlock if the electronic key is within the effective range
and a large amount of water splashes on the door handle, such as in the rain or
in a car wash. The doors will automatically be locked after approximately 30
seconds if a door is not opened and closed.
●If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
entry function. (Use the wireless remote control to unlock the doors.)
RX350_270_EE_48D77E.book 38 ページ ２０１４年１月２４日　金曜日　午前１０時４分

39
1-2. Opening, closing and locking the doors
1
Before driving
RX350/270_EE
■Notes for locking the doors
●Touching the door lock sensor while wearing gloves may delay or prevent lock
operation. Remove the gloves and touch the lock sensor again.
●If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. Place the key in a position 2 m
(6 ft.) or more separate from the vehicle while the vehicle is being washed. (Take
care to ensure that the key is not stolen.)
●If the electronic key is inside the vehicle and a door handle becomes wet during
a car wash, a message may be shown on the multi-information display and a
buzzer will sound outside the vehicle. To turn off the alarm, lock all the doors.
●The lock sensor may not work properly if it comes into contact with ice, snow,
mud, etc. Clean the lock sensor and attempt to operate it again, or use the lock
sensor on the lower part of the door handle.
●Fingernails may scrape against the door during operation of the door handle.
Be careful not to injure fingernails or damage the surface of the door.
■Notes for the unlocking function
●Gripping the door handle when wearing a glove may not unlock the door.
●A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the original
position and check that the doors unlock before pulling the door handle again.
●If there is another electronic key in the detection area, it may take slightly longer
to unlock the doors after the door handle is gripped.
■When the vehicle is not driven for extended periods
●To prevent theft of the vehicle, do not leave the electronic key within 2 m (6 ft.)
of the vehicle.
●The smart entry & start system can be deactivated in advance. (→P. 622)
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.
Depending on the position and holding condition of the electronic key, the key may
not be detected correctly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention function may not operate.)
