2014 Lexus IS300h Is 300h

585
Index
IS300h_EE(OM53C61E)
What to do if...
(Troubleshooting)................................586
Alphabetical index.................................590
For vehicles with a navigation or multimedia system, refer to
“NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL” for information regarding the equipment listed below.
•Navigation system
• Audio/video system• Lexus parking assist-sensor
• Lexus parking assist monitor
IS300h_EE_OM53C61E.book 585 ページ ２０１４年５月２０日　火曜日　午後５時４０分

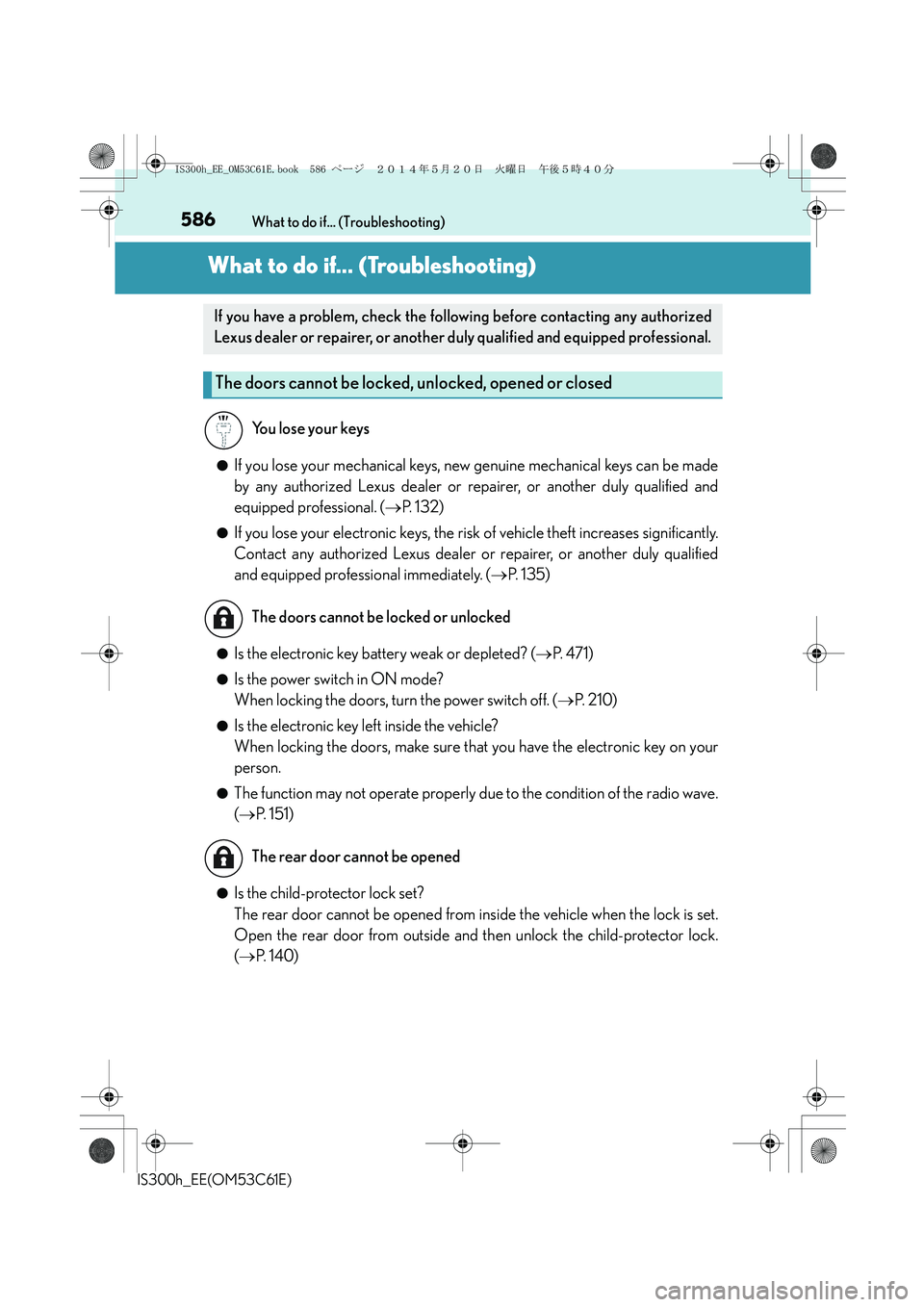

586
IS300h_EE(OM53C61E)What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be made
by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional. (→P. 1 3 2 )
●If you lose your electronic keys, the risk of vehicle theft increases significantly.
Contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional immediately. (→P. 1 3 5 )
●Is the electronic key battery weak or depleted? (→P. 4 7 1 )
●Is the power switch in ON mode?
When locking the doors, turn the power switch off. (→P. 2 1 0 )
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on your
person.
●The function may not operate properly due to the condition of the radio wave.
(→P. 151)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is set.
Open the rear door from outside and then unlock the child-protector lock.
(→P. 1 4 0 )
If you have a problem, check the following before contacting any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened
IS300h_EE_OM53C61E.book 586 ページ ２０１４年５月２０日　火曜日　午後５時４０分

587What to do if... (Troubleshooting)
IS300h_EE(OM53C61E)
●The function to prevent the electronic key from being left inside the trunk will
operate and you can open the trunk as usual. Take the key out from the trunk.
(→P. 1 4 6 )
●Did you press the power switch while firmly depressing the brake pedal?
(→P. 2 0 9 )
●Is the shift lever in P? (→P. 211)
●Is the electronic key anywhere detectable inside the vehicle? (→P. 1 4 9 )
●Is the steering wheel unlocked? (→P. 212)
●Is the electronic key battery weak or depleted?
In this case, the hybrid system can be started in a temporary way. (→P. 5 4 5 )
●Is the 12-volt battery discharged? (→P. 5 4 7 )
●Is the power switch in ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
power switch in ON mode. (→P. 5 4 3 )
●It is locked automatically to prevent theft of the vehicle. (→P. 212) The trunk lid is closed with the electronic key left inside
If you think something is wrong
The hybrid system does not start
The shift lever cannot be shifted from P even if you depress the brake
pedal
The steering wheel cannot be turned after the hybrid system is stopped
IS300h_EE_OM53C61E.book 587 ページ ２０１４年５月２０日　火曜日　午後５時４０分

588What to do if... (Troubleshooting)
IS300h_EE(OM53C61E)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. (→P. 1 8 4 )
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or ON mode (the hybrid system is not operating) for a period of time.
(→P. 211)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (→P. 505)
●The parking brake indicator is on
Is the parking brake released? (→P. 2 2 4 )
Depending on the situation, other types of warning buzzer may also sound.
(→P. 503, 509)

●Did anyone inside the vehicle open a door or anything move inside the vehicle
during setting the alarm?
The sensor detects them and the alarm sounds. (→P. 9 6 )
To stop the alarm, turn the power switch to ON mode or start the hybrid system.The windows do not open or close by operating the power window
switches
The power switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and the horn sounds (if equipped)
IS300h_EE_OM53C61E.book 588 ページ ２０１４年５月２０日　火曜日　午後５時４０分

589What to do if... (Troubleshooting)
IS300h_EE(OM53C61E)
●Is the message displayed on the multi-information display?
Check the message on the multi-information display. (→P. 509)
●When a warning light turns on or a warning message is displayed, refer to
P. 503, 509.
●Vehicles with an emergency tire puncture repair kit
Stop the vehicle in a safe place and repair the flat tire temporarily with the
emergency tire puncture repair kit. (→P. 5 2 6 )
●Vehicles with run-flat tires
Slow down and drive with extra caution. Take your vehicle to the nearest
Lexus dealer or authorized tire dealer to have the flat tire replaced.
(→P. 5 4 0 )
●Try the procedure for when the vehicle becomes stuck in mud, dirt, or snow.
(→P. 5 5 6 ) A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck
IS300h_EE_OM53C61E.book 589 ページ ２０１４年５月２０日　火曜日　午後５時４０分

590
IS300h_EE(OM53C61E)Alphabetical index
Alphabetical index
A/C ........................................................... 398
Air conditioning filter........................469
Automatic air conditioning
system ................................................. 398
S-FLOW mode................................. 400
Blower customization .................... 405
AAC disc .................................................. 341
ABS (Anti-lock Brake System) .......286
Function ..................................................286
Warning light ...................................... 504
Accent color .............................................. 117
Adaptive Variable Suspension
system .................................................... 287
Air conditioning filter .......................... 469
Air conditioning system .................... 398
Air conditioning filter........................469
Automatic air conditioning
system ................................................. 398
S-FLOW mode................................. 400
Blower customization .................... 405Airbags ........................................................ 43
Airbag manual on-off system......... 54
Airbag operating conditions ...........49
Airbag precautions for
your child .............................................. 45
Correct driving posture.................... 36
Curtain shield airbag operating
conditions ..............................................49
Curtain shield airbag
precautions ........................................... 47
General airbag precautions ........... 45
Locations of airbags ............................43
Modification and disposal of
airbags.................................................... 48
Side airbag operating
conditions ..............................................49
Side airbag precautions.................... 45
Side and curtain shield airbags
operating conditions ........................49
Side and curtain shield airbags
precautions .......................................... 45
SRS airbags ..............................................43
SRS warning light .............................. 504
A
IS300h_EE_OM53C61E.book 590 ページ ２０１４年５月２０日　火曜日　午後５時４０分

591Alphabetical index
IS300h_EE(OM53C61E)
Airbag manual on-off system ............. 54
Alarm ............................................................ 96
Anchor brackets ...................................... 69
Antennas (smart entry &
start system) ......................................... 149
Anti-lock Brake System (ABS) .......286
Function ..................................................286
Warning light ...................................... 504
Approach warning ............................... 254
Armrest ..................................................... 422
ASC (Active Sound Control).......... 225
Assist grips .............................................. 424
Audio input .............................................. 323
Audio system ........................................... 316
Audio CD player .................................341
Audio input ........................................... 323
AUX port/
USB port ............................................ 323
Bluetooth
® audio ..............................365
iPod...........................................................348
Optimal use ............................................331
Portable music player......................356
Radio ........................................................339
Steering wheel audio switch ........ 322
USB memory........................................ 351Automatic headlight leveling
system ................................................... 228
Warning light.......................................505
Automatic High Beam ...................... 229
Automatic light control system ...... 226
AUX port................................................. 323
Average fuel economy ......................... 116
Average vehicle speed ......................... 116
Back-up light
Replacing light bulb ......................... 485
Wattage ................................................. 570
Battery (12-volt battery) .....................447
If the 12-volt battery is
discharged ........................................ 547
Preparing and checking
before winter........................................ 311
Warning light....................................... 503
Battery (traction battery) ..................... 83
Blind Spot Monitor (BSM) .............. 299
Blower customization......................... 405
Bluetooth
®
Audio system....................................... 365
Hands-free system
(for cellular phone) ....................... 367
Bottle holders...........................................415
B
IS300h_EE_OM53C61E.book 591 ページ ２０１４年５月２０日　火曜日　午後５時４０分

592Alphabetical index
IS300h_EE(OM53C61E)
Brake
Fluid .......................................................... 567
Parking brake ...................................... 224
Regenerative braking ...........................81
Warning light ...................................... 503
Brake assist .............................................286
Break-in tips ............................................ 193
Brightness control
Instrument panel light control..........112
BSM (Blind Spot Monitor) ................ 299
Card key.................................................... 130
Care ............................................... 426, 430
Aluminum wheels .............................. 427
Exterior.................................................... 426
Interior .....................................................430
Seat belts..................................................431
Cargo hooks .............................................417
Caution label .............................................83
CD player ................................................. 341
Chains ........................................................ 312Child restraint system............................ 60
Baby seats, definition............................ 61
Baby seats, installation ........................70
Child seats, definition ........................... 61
Child seats, installation .......................70
Installing CRS with ISOFIX
rigid anchors ........................................ 73
Installing CRS with seat belts ..........70
Installing CRS with top strap ........... 74
Junior seats, definition .......................... 61
Junior seats, installation ...................... 72
Child safety ................................................ 59
12-volt battery
precautions .......................... 449, 550
Airbag precautions ............................. 45
Child restraint system ........................ 60
How your child should
wear the seat belt.............................. 40
Installing child restraints .................... 69
Moon roof precautions ....................190
Power window lock switch ............ 184
Power window precautions...........186
Rear door child-protectors ............140
Removed electronic key
battery precautions........................473
Seat belt precautions........................... 42
Seat heater precautions ................. 409
Trunk precautions .............................. 147
C
IS300h_EE_OM53C61E.book 592 ページ ２０１４年５月２０日　火曜日　午後５時４０分
