4827-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)
■Front turn signal lights (vehicles with LED headlights)
For the left side only: Pinch the
clip to remove the washer fluid
filler opening.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.
After installing the light bulb, turn on
the front turn signal light to visually
check that there is no light leaking
from the bulb base.
After replacing the left side bulb, install the washer fluid filler opening to its
original position.
1
2
3
4
5
IS300h_EE_OM53C61E.book 482 ページ ２０１４年５月２０日　火曜日　午後５時４０分

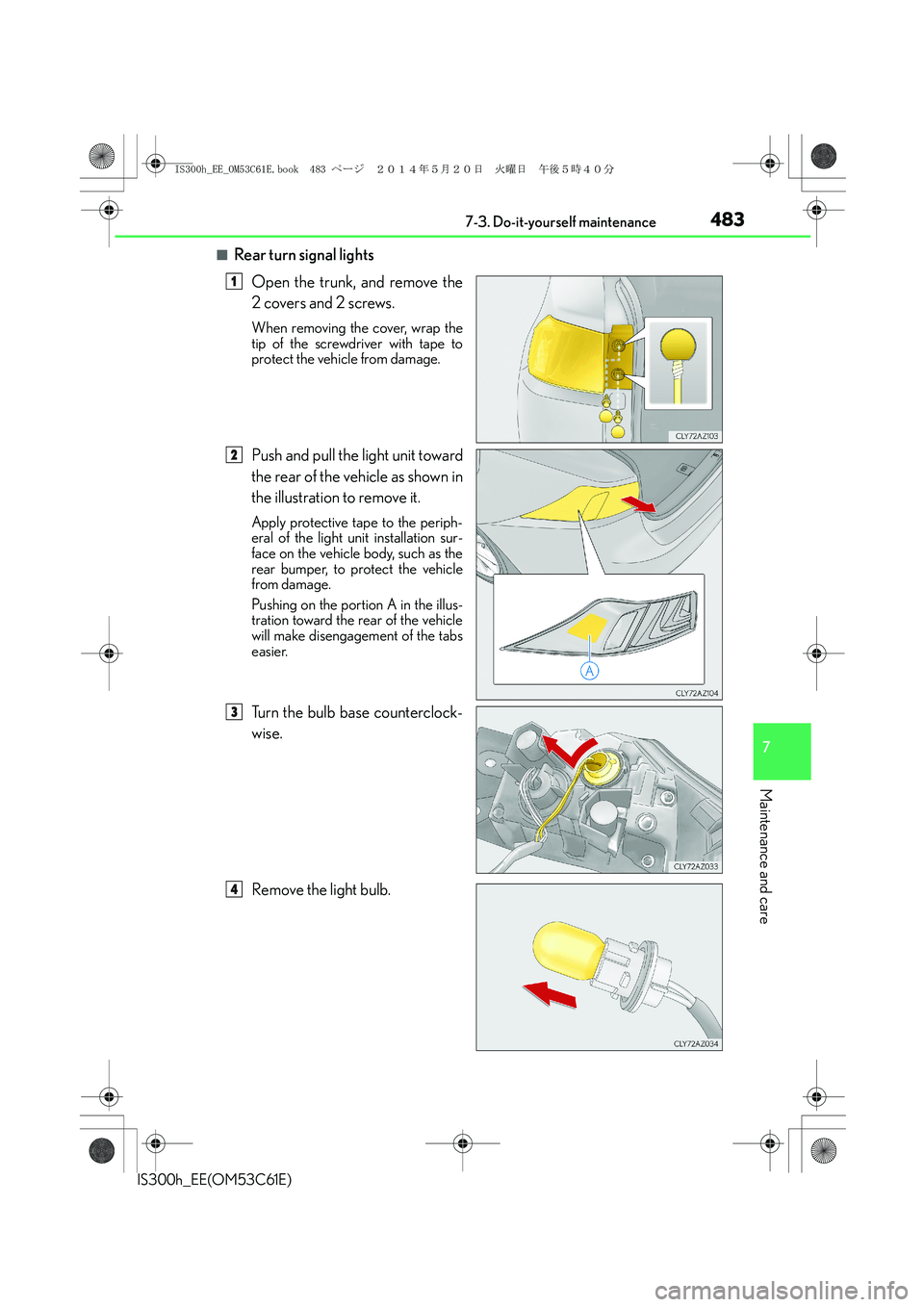

4837-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53C61E)
■Rear turn signal lights
Open the trunk, and remove the
2 covers and 2 screws.
When removing the cover, wrap the
tip of the screwdriver with tape to
protect the vehicle from damage.
Push and pull the light unit toward
the rear of the vehicle as shown in
the illustration to remove it.
Apply protective tape to the periph-
eral of the light unit installation sur-
face on the vehicle body, such as the
rear bumper, to protect the vehicle
from damage.
Pushing on the portion A in the illus-
tration toward the rear of the vehicle
will make disengagement of the tabs
easier.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
1
2
3
4
IS300h_EE_OM53C61E.book 483 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4847-3. Do-it-yourself maintenance
IS300h_EE(OM53C61E)
Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.
After installing the light bulb, turn on
the rear turn signal light to visually
check that there is no light leaking
from the bulb base.
Align the tabs and push the light
unit toward the front of the vehicle
to install it.
Remove the protective tape applied
to the peripheral of the light unit
installation surface on the vehicle
body.
Install the 2 screws and 2 covers.
5
6
7
IS300h_EE_OM53C61E.book 484 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4857-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53C61E)
■Back-up light
Open the trunk, remove the 3
clips on the side which the bulb is
to be replaced and pull back the
trunk lid cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
Pull out the connector carefully,
ensuring that excessive pulling load is
not applied to the wire harness.
Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.
After installing the light bulb, turn on
the back-up light to visually check
that there is no light leaking from the
bulb base.
Reinstall the trunk lid cover with the 3 clips.
To install the clips, simply push them in.
1
2
3
4
5
IS300h_EE_OM53C61E.book 485 ページ ２０１４年５月２０日　火曜日　午後５時４０分

4877-3. Do-it-yourself maintenance
7
Maintenance and care
IS300h_EE(OM53C61E)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.
When inserting the socket, align the
marks printed on the light body and
the socket.
5
6
7
IS300h_EE_OM53C61E.book 487 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5298-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53C61E)
Take out the repair kit from the tool box.
Remove the valve cap from the valve
of the punctured tire.
Remove the protective film from the
bottle and extend the hose. Remove
the air release cap from the hose.
Attach the sticker enclosed with the bot-
tle on the specified locations. (See step
9. )
You will use the air release cap again.
Therefore keep it in a safe place.
Connect the hose to the valve.
Screw the end of the hose clockwise as
far as possible.
Emergency repair method
1
2
3
4
IS300h_EE_OM53C61E.book 529 ページ ２０１４年５月２０日　火曜日　午後５時４０分

5448-2. Steps to take in an emergency
IS300h_EE(OM53C61E)
■Doors
Use the mechanical key (→P. 131) in
order to perform the following oper-
ations:
Locks all the doors
Closes the windows and moon
roof (turn and hold)
*
Unlocks all the doors
Opens the windows and moon roof (turn and hold)
*
*
: This setting must be customized at any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
■Tr u n k
Turn the mechanical key clockwise
to open.
If the electronic key does not operate properly
If communication between the electronic key and vehicle is interrupted (→P.
151) or the electronic key cannot be used because the battery is depleted, the
smart entry & start system and wireless remote control cannot be used. In
such cases, the doors and trunk can be opened and the hybrid system can be
started by following the procedure below.
Locking and unlocking the doors, unlocking the trunk and key linked
functions
1
2
3
4
IS300h_EE_OM53C61E.book 544 ページ ２０１４年５月２０日　火曜日　午後５時４０分

593Alphabetical index
IS300h_EE(OM53C61E)
Child-protectors ................................... 140
Cleaning ....................................... 426, 430
Aluminum wheels .............................. 427
Exterior.................................................... 426
Interior .....................................................430
Seat belts..................................................431
Clock .........................................................420
Coat hooks .............................................. 424
Condenser ............................................. 446
Console box ............................................ 414
Coolant ..................................................... 444
Capacity ................................................ 565
Checking ............................................... 444
Preparing and checking
before winter ....................................... 311
Cooling system...................................... 444
Engine overheating ..........................552
Hybrid system overheating ..........552
Cruise control
Cruise control ..................................... 245
Dynamic radar cruise control ..... 249
Cup holders ............................................. 415
Current fuel consumption.................... 116
Curtain shield airbags ........................... 43
Customizable features ....................... 574DAB (Digital Audio Broadcast) ..... 339
Daytime running light system ..........227
Defogger
Front windshield................................. 404
Outside rear view mirrors ............ 404
Rear window........................................ 404
Differential............................................... 567
Digital Audio Broadcast (DAB) ..... 339
Dimensions ............................................. 560
Display
Drive information...................................116
Dynamic radar cruise control ..... 249
LDA (Lane Departure Alert) .......262
Multi-information display...................115
Warning message ............................509
Distance ...................................................... 117
Do-it-yourself maintenance ............. 435
Door courtesy lights
Location ..................................................... 411
Wattage ................................................. 570
Door lock
Doors......................................................... 136
Smart entry & start system ............. 149
Wireless remote control ................. 130D
