4-3. Do-it-yourself maintenance
IS250C/350C_U■
Engine compartment (type B fuse box)
FuseAmpereCircuit
1SPARE30 ASpare fuse
2SPARE25 ASpare fuse
3SPARE10 ASpare fuse
4FR CTRL-B25 AHeadlight high beam, HORN
5A/F15 AExhaust system
6ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
7ALT-S7. 5 ACharging system
8TEL10 ALexus Enform
9STR LOCK25 ASteering lock system
10H-LP CLN30 AHeadlight cleaner
11A/C COMP7. 5 AAir conditioning system
12DEICER25 AWindshield wiper de-icer
13FR CTRL-AM30 AWASHER, FR TAIL, FR FOG

466
4-3. Do-it-yourself maintenance
IS250C/350C_U

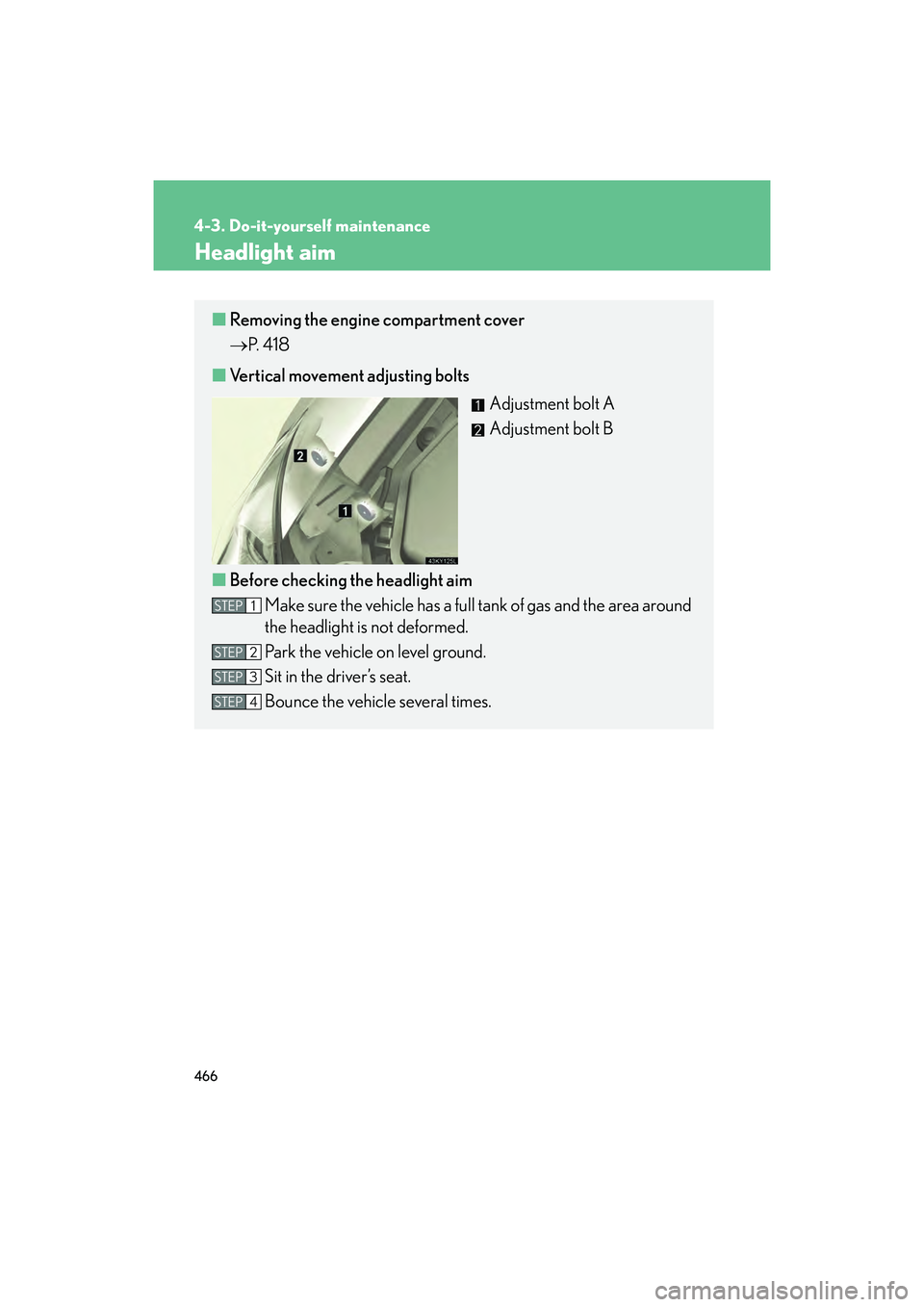

Headlight aim
■Removing the engine compartment cover
→ P. 4 1 8
■ Vertical movement adjusting bolts
Adjustment bolt A
Adjustment bolt B
■ Before checking the headlight aim
Make sure the vehicle has a full tank of gas and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
STEP1
STEP2
STEP3
STEP4

468
4-3. Do-it-yourself maintenance
IS250C/350C_U
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Preparing a replacement light bulb
Check the wattage of the light bulb being replaced. ( →P. 568)
■ Removing the engine compartment cover
→ P. 4 1 8
■ Front bulb locations
Parking lights (vehicles with
halogen headlights)
Headlight high beam
(vehicles with discharge headlights)
Headlight high beam and daytime
running lights (vehicles with
halogen headlights)

When trouble arises5
481
IS250C/350C_U
5-1. Essential informationEmergency flashers.............. 482
If your vehicle needs to be towed................................ 483
If you think something is wrong ...................................... 489
Fuel pump shut off system.... 490 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... .................................. 491
If a warning message is displayed................................ 500
If you have a flat tire (vehicles with standard
tires) ......................................... 513
If you have a flat tire (vehicles with run-flat
tires) ........................................ 522
If the engine will not start .... 524
If the shift lever cannot be shifted from P ....................... 526
If you lose your keys .............. 527
If the electronic key does not operate properly.......... 528
If the vehicle battery is discharged ............................ 532
If your vehicle overheats ..... 536
If the vehicle becomes stuck........................................ 539
If the retractable hardtop does not close ...................... 540
If your vehicle has to be stopped in an
emergency ............................ 550

482
IS250C/350C_U
5-1. Essential information
Emergency flashers
NOTICE
■To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the engine is
not running.
Use the emergency flashers if the vehicle malfunctions or is involved in an
accident.
Press the switch to flash all the
turn signal lights. To turn them
off, press the switch once again.

5
When trouble arises
483
5-1. Essential information
IS250C/350C_U
If your vehicle needs to be towed
Before towingThe following may indicate a problem with your transmission. Contact
your Lexus dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
eyelet(s). This should only be attempted on hard, surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steering and brakes must be in good condi-
tion. Towing eyelets
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing se rvice, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towing, and abide by all state/provincial
and local laws.
If towing from the rear, the vehicle’s front wheels and axles must be in good
condition. ( →P. 4 8 7 )
If they are damaged, use a towing dolly or flat bed truck.

484
5-1. Essential information
IS250C/350C_U
■Emergency towing procedureRelease the parking brake.
Shift the shift lever to N.
Put the “ENGINE START STOP” switch in ACCESSORY mode or IGNI-
TION ON mode.
CAUTION
■Caution while towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelets and the cables or chains. Always be cautious of the
surroundings and other vehicles while towing.
●If the engine is not running, the power assist for the brakes and steering will not
function, making steering and braking more difficult.
NOTICE
■To prevent causing serious damage to the transmission
Never tow this vehicle from the front with the rear wheels on the ground.
This may cause serious damage to the transmission.
STEP1
STEP2
STEP3

488
5-1. Essential information
IS250C/350C_U
Using a flat bed truckIf your Lexus is transported by a
flat bed truck, it should be tied
down at the locations shown in the
illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie downs
or the vehicle may be damaged.
NOTICE
■To prevent causing serious damage to the transmission
Never tow this vehicle from the front with the rear wheels on the ground.
■To prevent damaging the vehicle
●Do not tow the vehicle from the rear with the “ENGINE START STOP” switch
OFF.
The steering lock mechanism is not strong enough to hold the front wheel
straight.
●When raising the vehicle from the rear, ensure adequate ground clearance for
towing at the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed from the rear.
