2014 Lexus IS250C steering

5
When trouble arises
501
5-2. Steps to take in an emergency
IS250C/350C_U
Have the vehicle inspected by your Lexus dealer immediately.
A buzzer sounds and a message is shown. Failure to investigate the cause
of the following messages may lead to the system operating abnormally
and possibly cause an accident. Have the vehicle inspected by your
Lexus dealer immediately.
MessageDetails
(Flashing)
Indicates a malfunction in the steering lock system.
(If equipped)
Indicates a malfunction in the headlight leveling sys-
tem.
(If equipped)
Indicates a malfunction in the pre-collision system.

512
5-2. Steps to take in an emergency
IS250C/350C_U
*: If the engine does not start when the electronic key is inside the vehicle, theelectronic key battery may be depleted or there may be difficulties receiving the
signal from the key. ( →P. 36)
Once
Indicates that a
door has been
opened or closed
and the “ENGINE
START STOP”
switch has been
switched twice to
ACCESSORY
mode from OFF.
Press the
“ENGINE START
STOP” switch
while applying the
brakes.

(Flashing)
Indicates that the
steering lock has
not released
within 3 seconds
of pressing the
“ENGINE START
STOP” switch.Press the
“ENGINE START
STOP” switch
again while turn-
ing the steering
wheel with the
brake pedal
depressed.
OnceIndicates that the
electronic key
does not operate
properly.
→P. 5 3 0

Interior
buzzerExterior buzzerMessageDetailsCorrection
procedure

5
When trouble arises
525
5-2. Steps to take in an emergency
IS250C/350C_U

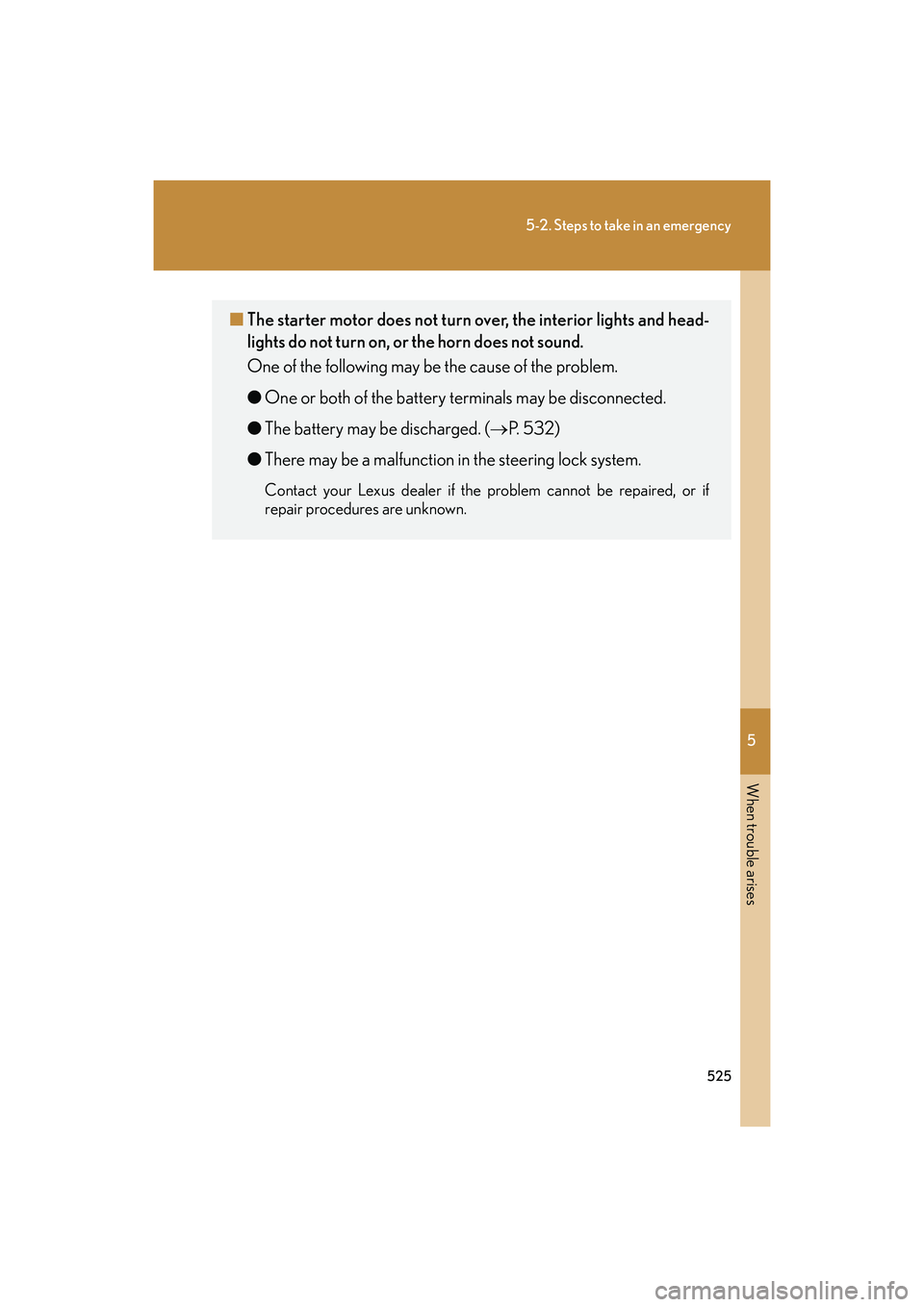

■The starter motor does not turn ov er, the interior lights and head-
lights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( →P. 5 3 2 )
● There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if
repair procedures are unknown.

550
5-2. Steps to take in an emergency
IS250C/350C_U
If your vehicle has to be stopped in an emergency
CAUTION
■If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake pedal
harder to depress and the steering wheel heavier to turn. Decelerate as much as
possible before turning off the engine.
Only in an emergency, such as if it becomes impossible to stop the vehicle
in the normal way, stop the vehicle using the following procedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N Keep depressing the brake pedal with both feet to reduce vehi-
cle speed as much as possible.
Stop the engine by pressing and
holding the “ENGINE START
STOP” switch for 2 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
STEP1
STEP2
STEP3
STEP4
STEP3
Press and hold for 2 seconds or more,
or press briefly 3 times or more
STEP4
STEP5

563
6-1. Specifications
6
Vehicle specifications
IS250C/350C_U
Steering
Tires and wheelsType A
Free playLess than 1.2 in. (30 mm)
Ti r e s i z e
Front tires: 225/45R17 90W
Rear tires: 245/45R17 95W
Spare tire: T125/70D17 98M
Front and rear tire inflation pres-
sure
(Recommended cold tire inflation
pressure)
Driving under normal conditions Front:
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)*
Rear:
38 psi (260 kPa, 2.6 kgf/cm
2 or bar)*
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
*: When driving at high speeds above 100 mph (160 km/h), in countries where such speeds
are permitted by law, add 4.5 psi (30 kPa, 0.3
kgf/cm
2 or bar) to the front tires and rear
tires. Never exceed the maximum cold tire
inflation pressure indicated on the tire side-
wall.
Wheel size17 × 8J, 17 × 4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

579
6-1. Specifications
6
Vehicle specifications
IS250C/350C_U■
Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire's resistance to the generation of heat and its ability to dissipate
heat when tested under controlled conditions on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate
and reduce tire life, and excessive temperature can lead to sudden tire fail-
ure.
The grade C corresponds to a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety Standard No. 139.
Grades B and A represent higher levels of performance on the laboratory
test wheel than the minimum required by law.
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine

588
6-2. Customization
IS250C/350C_U
Steering
wheel
(
→P. 76 )
Auto tilt-away functionOnOff
Power win-
dows
(
→P. 8 2 )
Wireless remote control
linked operationOffOn
Retractable
hardtop
(
→P. 9 0 )
Retractable hardtop
operation control linked
to the intuitive parking
assist
OnOff
Automatic
light control
system
(
→P. 1 76 )
Light sensor sensitivityLevel 3Level 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Lights
(
→P. 1 7 8 )
Daytime running light sys-
tem (U.S.A. only)OnOff
Windshield
wipers and
washer
(
→P. 1 8 2 )
Switching operation when
the vehicle is stationaryOnOff
Drip prevention functionOnOff
Ti m e e l a p s e d b e f o r e t h e
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
ItemFunctionDefault settingCustomizedsetting

608
IS250C/350C_U
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
ABSAnti-lock Brake System
AI-SHIFTArtificial Intelligence Shift
ALRAutomatic Locking Retractor
CRSChild Restraint System
DISPDisplay
ECTElectronic Controlled Transmission
ECUElectronic Control Unit
EDREvent Data Recorder
ELREmergency Locking Retractor
EPSElectric Power Steering
ETCSElectronic Throttle Control System
GAWRGross Axle Weight Rating
I/MEmission inspection and maintenance
LATCHLower Anchors and Tethers for Children
LEDLight Emitting Diode
MMTMethylcyclopentadienyl Manganese Tricarbonyl
M + SMud and Snow
MTBEMethyl Tertiary Butyl Ether
OBDOn Board Diagnostics
PCSPre-Collision System
SRSSupplemental Restraint System
TINTire Identification Number
TPMSTire Pressure Warning System
TRACTr a c t i o n C o n t r o l
VDIMVehicle Dynamics Integrated Management
