2014 Lexus IS F odometer

154
IS F_U
2-2. Instrument cluster
Gauges and meters
The units used on the speedometer and the tachometer gauge display may
differ depending on the model/type.

The following gauges, meters and display illuminate when the
“ENGINE START STOP” switch is in IGNITION ON mode.Engine coolant temperature gauge
Displays the engine coolant temperature. If the temperature is too high,
the display will flash.
Engine oil temperature gauge
Displays the engine oil temperature. If the temperature is too high, the dis-
play will flash.
Odometer and trip meter
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since the meter was last reset. Trip meters “A” and “B” can be
used to record and display different distances indepen-
dently.
Multi-information display
→ P. 1 6 1

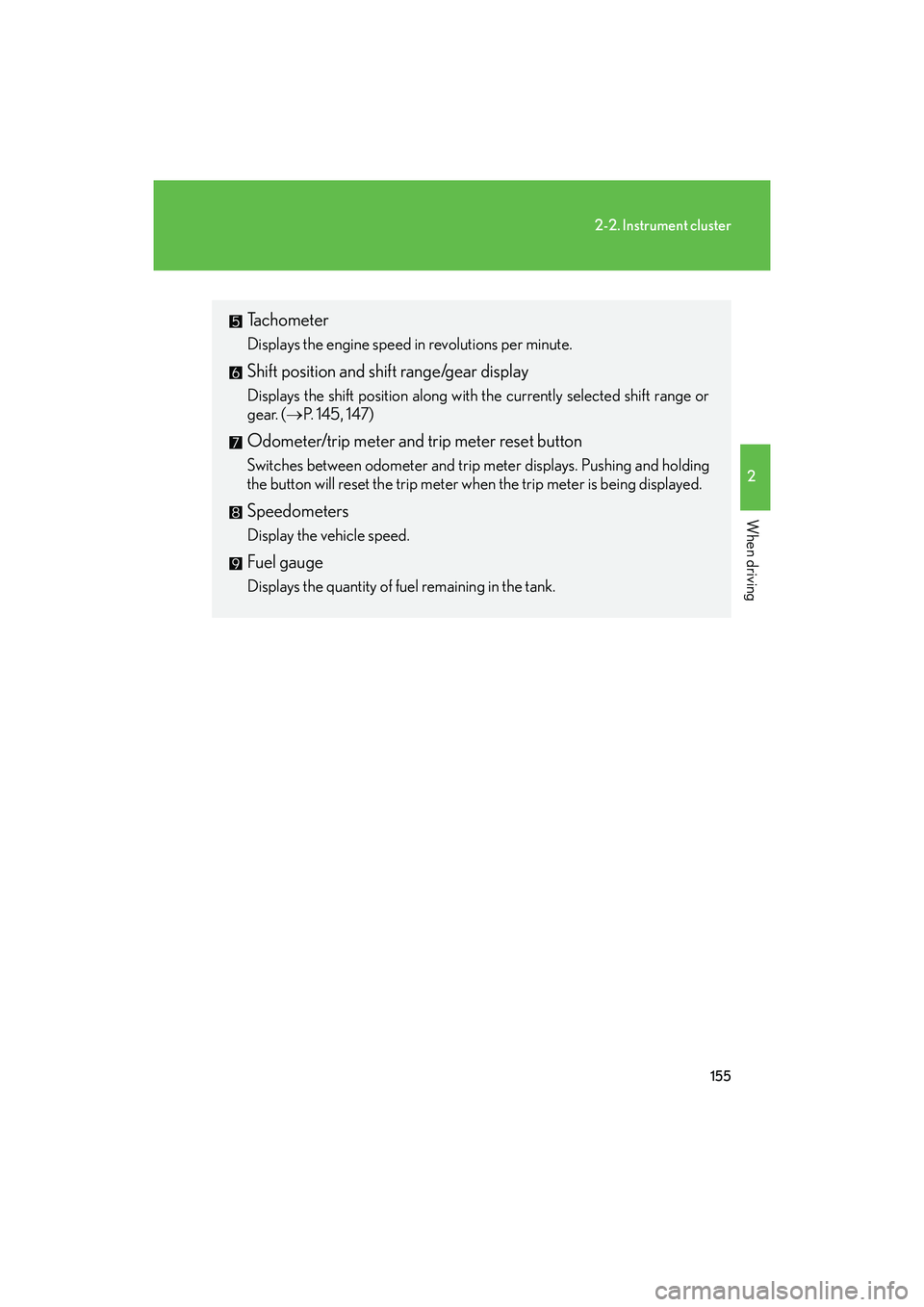

155
2-2. Instrument cluster
2
When driving
IS F_U
Tachometer
Displays the engine speed in revolutions per minute.
Shift position and shift range/gear display
Displays the shift position along with the currently selected shift range or
gear. (→P. 145, 147)
Odometer/trip meter and trip meter reset button
Switches between odometer and trip meter displays. Pushing and holding
the button will reset the trip meter when the trip meter is being displayed.
Speedometers
Display the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.

156
2-2. Instrument cluster
IS F_U
Instrument panel light controlThe brightness of the instrument panel lights can be adjusted. Darker
Brighter
■Changing units for the digital speedometer
Units for the digital speedometer can be changed between km/h and mph by push-
ing and holding the odometer/trip meter reset button while the odometer is dis-
played. At this time, all the units for the multi-information display will also change.

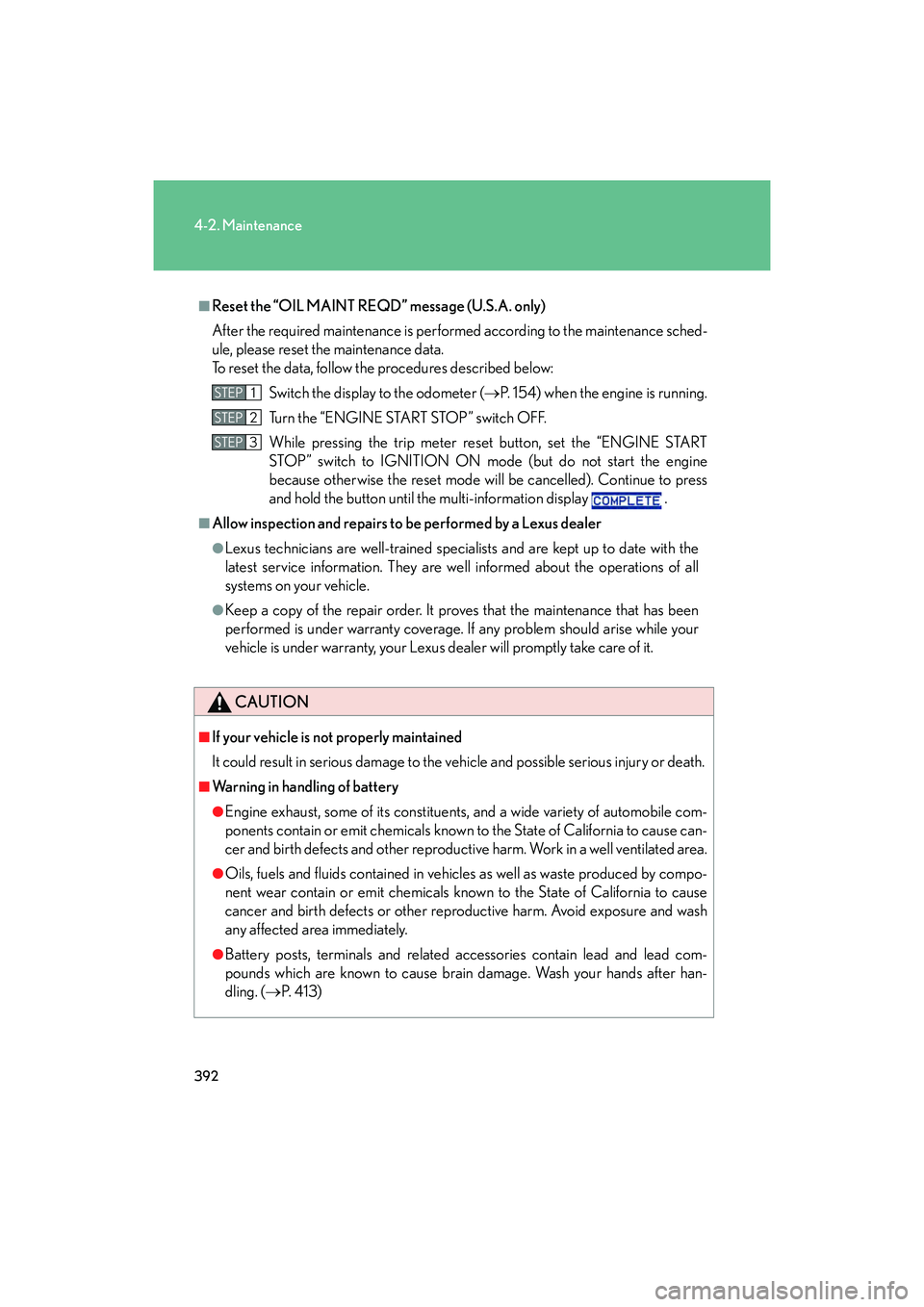

392
4-2. Maintenance
IS F_U
■Reset the “OIL MAINT REQD” message (U.S.A. only)
After the required maintenance is performed according to the maintenance sched-
ule, please reset the maintenance data.
To reset the data, follow the procedures described below:Switch the display to the odometer ( →P. 154) when the engine is running.
Turn the “ENGINE START STOP” switch OFF.
While pressing the trip meter reset button, set the “ENGINE START
STOP” switch to IGNITION ON mode (but do not start the engine
because otherwise the reset mode will be cancelled). Continue to press
and hold the button until the multi-information display .
■Allow inspection and repairs to be performed by a Lexus dealer
●Lexus technicians are well-trained specialists and are kept up to date with the
latest service information. They are well informed about the operations of all
systems on your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has been
performed is under warranty coverage. If any problem should arise while your
vehicle is under warranty, your Lexus dealer will promptly take care of it.
CAUTION
■If your vehicle is not properly maintained
It could result in serious damage to the vehicle and possible serious injury or death.
■Warning in handling of battery
●Engine exhaust, some of its constituents, and a wide variety of automobile com-
ponents contain or emit chemicals known to the State of California to cause can-
cer and birth defects and other reproductive harm. Work in a well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by compo-
nent wear contain or emit chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm. Avoid exposure and wash
any affected area immediately.
●Battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after han-
dling. (→P. 4 1 3 )
STEP1
STEP2
STEP3

575
Alphabetical index
IS F_U
MaintenanceDo-it-yourself maintenance ......... 397
General maintenance ..................... 393
Maintenance data .............................. 518
Maintenance requirements ............ 391
Meter
Instrument panel light control .......156
Meters ....................................................... 154
Micro dust and pollen filter*............ 228
Mirrors Inside rear view mirror ....................... 74
Side mirror heater ..............................232
Side mirrors..............................................76
Vanity mirrors ..................................... 346
Moon roof ....................................................81
MP3 disc* ................................................252
Multi-information display..................... 161
Noise from under vehicle ...................... 19
Odometer ................................................. 154
Oil Engine oil ...............................................406
“OIL MAINT REQD”
message reset .................................... 392
Opener
Fuel filler door ........................................ 85
Hood .......................................................400
Trunk ............................................................. 51
Outer foot lights
Outer foot lights................................. 334
Wattage ................................................. 528 Outside rear view mirrors
Adjusting and folding.......................... 76
Mirror position memory ....................56
Outside temperature display ........... 162
Overhead console ................................ 341
Overhead courtesy lights
Overhead courtesy lights ..............334
Wattage ................................................. 528
Overheating, Engine.............................. 511
Parking assist sensors*........................ 195
Parking brake .......................................... 152
Parking lights Replacing light bulbs ........................454
Switch........................................................ 166
Wattage ................................................. 528
PCS ............................................................ 207
Personal lights Switch.......................................................336
Power outlet............................................353
Power windows ........................................ 78
Pre-collision system............................. 207M
N
O
P
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
