2014 Lexus IS F brake light

1
2
3
4
5
6
7
3
IS F_U
2-1. Driving proceduresDriving the vehicle ........................ 128
Engine (ignition) switch .............. 138
Automatic transmission.............. 142
Turn signal lever .............................. 151
Parking brake ................................. 152
Horn.................................................... 153
2-2. Instrument cluster Gauges and meters ..................... 154
Indicators and warning lights................................................. 158
Multi-information display............. 161
2-3. Operating the lights and windshield wipers
Headlight switch ............................ 166
Fog light switch .............................. 170
Windshield wipers and washer.............................................. 172
Headlight cleaner switch ........... 176
2-4. Using other driving systems Cruise control ................................. 177
Dynamic radar cruise control.............................................. 181
Intuitive parking assist ................. 195
Driving assist systems.................. 201
PCS (Pre-Collision System) ........... 207 2-5. Driving information
Cargo and luggage ...................... 214
Vehicle load limits.......................... 217
Winter driving tips ........................ 218
Trailer towing ................................. 220
Dinghy towing ................................ 221
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ............................................ 224
Rear window and outside rear view
mirror defoggers ....................... 232
Windshield wiper de-icer ......... 233
3-2. Using the audio system Audio system type ....................... 234
Using the radio.............................. 237
Using the CD player................... 245
Playing back MP3 and WMA discs.................................. 252
Operating an iPod....................... 260
Operating a USB memory....... 268
Optimal use of the audio system ............................................ 277
Using the AUX port ................... 279
Using the steering wheel audio switches ............................. 281
2When driving
3Interior features

IS F_U
14
Multi-information display P. 161
Pictorial indexInstrument panel
Headlight switch Turn signal lever Fog light switch P. 166
P. 151
P. 170
Paddle shift switches P. 145, 147
Gauges and meters P. 154
Windshield wiper and washer switch P. 172
Engine (ignition) switch P. 138
Trunk opener main switch P. 51
Glove box P. 339
Tilt and telescopic steering control switch P. 72
Parking brake pedal P. 152
Hood release lever P. 400
Horn P. 153

When driving2
127
IS F_U
2-1. Driving proceduresDriving the vehicle.................. 128
Engine (ignition) switch ......... 138
Automatic transmission ........ 142
Turn signal lever ........................ 151
Parking brake ........................... 152
Horn ............................................ 153
2-2. Instrument cluster Gauges and meters ................ 154
Indicators and warning lights ......................................... 158
Multi-information display ...... 161 2-3. Operating the lights and
windshield wipers
Headlight switch ..................... 166
Fog light switch ........................ 170
Windshield wipers and washer ...................................... 172
Headlight cleaner switch ...... 176
2-4. Using other driving systems
Cruise control........................... 177
Dynamic radar cruise control ...................................... 181
Intuitive parking assist ........... 195
Driving assist systems ............ 201
PCS (Pre-Collision System) ...... 207
2-5. Driving information Cargo and luggage ................ 214
Vehicle load limits ................... 217
Winter driving tips .................. 218
Trailer towing .......................... 220
Dinghy towing.......................... 221

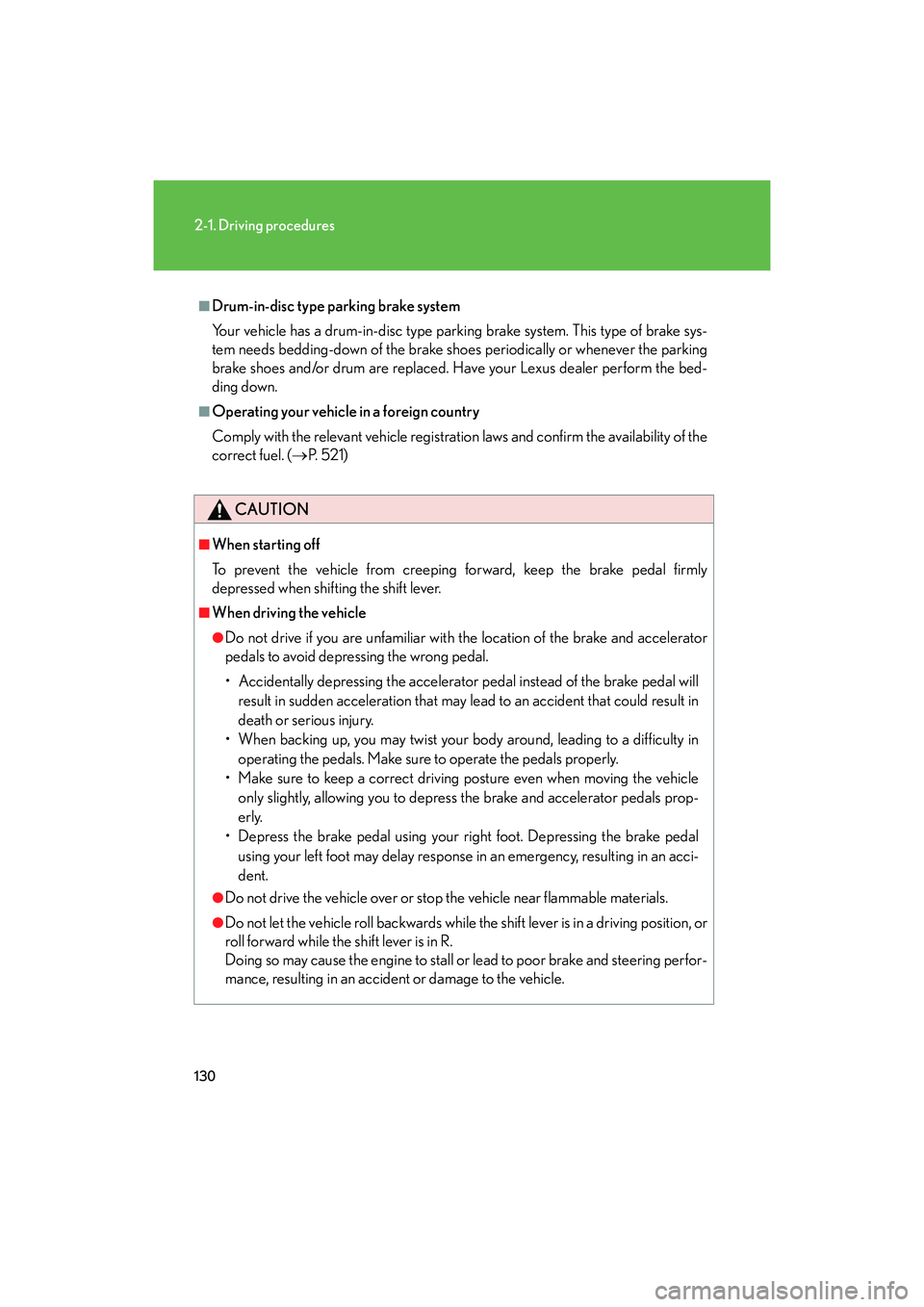

130
2-1. Driving procedures
IS F_U
■Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system. This type of brake sys-
tem needs bedding-down of the brake shoes periodically or whenever the parking
brake shoes and/or drum are replaced. Have your Lexus dealer perform the bed-
ding down.
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability of the
correct fuel. (→P. 5 2 1 )
CAUTION
■When starting off
To prevent the vehicle from creeping forward, keep the brake pedal firmly
depressed when shifting the shift lever.
■When driving the vehicle
●Do not drive if you are unfamiliar with the location of the brake and accelerator
pedals to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake pedal will
result in sudden acceleration that may lead to an accident that could result in
death or serious injury.
• When backing up, you may twist your body around, leading to a difficulty in operating the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the vehicle only slightly, allowing you to depress the brake and accelerator pedals prop-
erly.
• Depress the brake pedal using your right foot. Depressing the brake pedal
using your left foot may delay response in an emergency, resulting in an acci-
dent.
●Do not drive the vehicle over or stop the vehicle near flammable materials.
●Do not let the vehicle roll backwards while the shift lever is in a driving position, or
roll forward while the shift lever is in R.
Doing so may cause the engine to stall or lead to poor brake and steering perfor-
mance, resulting in an accident or damage to the vehicle.

132
2-1. Driving procedures
IS F_U
CAUTION
●Do not drive in excess of the speed limit. Even if the legal speed limit permits it, do
not drive over 85 mph (140 km/h) unless your vehicle has high-speed capability
tires. Driving over 85 mph (140 km/h) may result in tire failure, loss of control and
possible injury. Be sure to consult a tire dealer to determine whether the tires on
your vehicle are high-speed capability tires or not before driving at such speeds.
■When driving on slippery road surfaces
●Sudden braking, acceleration and steering may cause tire slippage and reduce
your ability to control the vehicle, resulting in an accident.
●Sudden changes in engine speed, such as engine braking caused by up-shifting
or down-shifting, may cause the vehicle to skid, resulting in an accident.
●After driving through a puddle, lightly depress the brake pedal to make sure that
the brakes are functioning properly. Wet brake pads may prevent the brakes from
functioning properly. If the brakes on only one side are wet and not functioning
properly, steering control may be affected, resulting in an accident.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
■If you hear a squealing or scraping noise (brake pad wear limit indicators)
Have your Lexus dealer check and replace the brake pads as soon as possible.
Rotor damage can result if the pads are not replaced when needed.
Moderate levels of brake pad and disc wear allow enhanced front braking power.
As a result, the discs may wear more quickly than conventional brake discs. There-
fore, when replacing the brake pads, Lexus recommends that you also have the
thickness of the discs measured.
It is dangerous to drive the vehicle when the wear limits of the brake pads and/or
those of the brake discs are exceeded.

134
2-1. Driving procedures
IS F_U
CAUTION
■When the vehicle is parked
●Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in the vehi-
cle when it is in the sun.
Doing so may result in the following.
• Gas may leak from a cigarette lighter or spray can, and may lead to a fire.
• The temperature inside the vehicle may cause the plastic lenses and plasticmaterial of eye glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the interior of the vehicle, and may also cause a short circuit in the vehicle's electrical com-
ponents.
●Always apply the parking brake, shift the shift lever to P, stop the engine and lock
the vehicle.
Do not leave the vehicle unattended while the engine is running.
●Do not touch the exhaust pipes or rear bumper exhaust diffusers while the engine
is running or immediately after turning the engine off.
Doing so may cause burns.
●Do not leave the engine running in an area with snow build-up, or where it is
snowing. If snowbanks build up around the vehicle while the engine is running,
exhaust gases may collect and enter the vehicle. This may lead to death or a seri-
ous health hazard.
■Exhaust gases
Exhaust gases include harmful carbon monoxi de (CO) that is colorless and odor-
less. Inhaling exhaust gases may lead to death or a serious health hazard.
●If the vehicle is in a poorly ventilated area, stop the engine. In a closed area, such
as a garage, exhaust gases may collect and enter the vehicle. This may lead to
death or a serious health hazard.
●The exhaust should be checked occasionally. If there is a hole or crack caused by
corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehi-
cle inspected and repaired by your Lexus dealer. Failure to do so may allow
exhaust gases to enter the vehicle, resulting in death or a serious health hazard.

168
2-3. Operating the lights and windshield wipers
IS F_U
Turning on the high beam headlightsWith the headlights on, push the
lever forward to turn on the high
beams.
Pull the lever back to the center
position to turn the high beams off.
Pull the lever toward you to turn
on the high beams.
Release to turn them off. You can
flash the high beams with the head-
lights on or off.
■Daytime running light system
●To make your vehicle more visible to other drivers, the parking light turn on
automatically (at a increased intensity) whenever the engine is started and the
parking brake is released. Daytime running lights are not designed for use at
night.
●Compared to turning on the headlights, the daytime running light system offers
greater durability and consumes less electricity, so it can help improve fuel
economy.
■Headlight control sensorThe sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.

194
2-4. Using other driving systems
IS F_U
CAUTION
■Conditions under which the vehicle-to-vehicle distance control may not function
correctly
Apply the brakes as necessary in the following conditions as the radar sensor may
not be able to correctly detect vehicles ahead, and a fatal or serious accident may
result:
●When water or snow thrown up by the surrounding vehicles hinders the function-
ing of the sensor
●When your vehicle is pointing upwards (caused by a heavy load in the trunk etc.)
●When the road curves or when the lanes are narrow
●When steering wheel operation or your position in the lane is unstable
●When the vehicle ahead of you decelerates suddenly
■Handling the radar sensor
Observe the following to ensure the cruise control system can function effectively.
Otherwise, the system may not function correctly and could result in an accident.
●Keep the sensor and grille cover clean at all times.
Clean the sensor and grille cover with a soft cloth so you do not mark or damage
them.
●Do not subject the sensor or surrounding area to a strong impact.
If the sensor moves even slightly off position, the system may malfunction. If the
sensor or surrounding area is subject to a strong impact, always have the area
inspected and adjusted by a Lexus dealer.
●Do not disassemble the sensor.
●Do not attach accessories or stickers to the sensor, grille cover or surrounding
area.
●Do not modify or paint the sensor and grille.
●Do not replace them with non-genuine parts.
