2014 Lexus GX460 automatic transmission fluid

448
GX 460 _O M_ OM6 0K 80 U_ (U)6-3. Do-it-yourself maintenance
Headlight aim
(
→ P. 484)• Phillips-head screwdriver
Light bulbs
(→ P. 4 8 6 )
• Bulb with same number and wattage rating as original
• Phillips-head screwdriver•Flathead screwdriver
•Wrench
Power steering fluid
level ( →P. 4 5 9 )• Automatic transmission fluid DEXRON® II or III
• Rag or paper towel•Clean funnel
Radiator and con-
denser ( →P. 4 5 7 )
Tire inflation pres-
sure ( →P. 4 7 1 )• Tire pressure gauge• Compressed air source
Wa s h e r f l u i d
(→ P. 4 6 3 )• Water or washer fluid containing antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)
ItemsParts and tools
GX460_OM_OM60K80U_(U).book Page 448 Wednesday, July 3, 2013 11:40 AM

GX 460 _O M_ OM6 0K 80 U_ (U)
4596-3. Do-it-yourself maintenance
6
Maintenance and care
■Fluid level
The fluid level should be within the appropriate range.Full (when cold)
Add fluid (when cold)
Full (when hot)
Add fluid (when hot)
Hot: The vehicles has been driven around 50 mph (80 km/h) for 20 min- utes, or slightly longer in frigid temperatures.
(Fluid temperature, 140 °F - 175 °F [60 °C - 80 °C]).
Cold: The engine has not been run for about 5 hours. (Room temperature, 50 °F - 85 °F [10 °C - 30 °C]).
■Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
Clean all dirt off the reservoir.
Remove the cap by turning it counterclockwise.
Wipe the dipstick clean.
Reinstall the cap and remove it again.
Check the fluid level.
Power steering fluid
1
2
3
4
Fluid typeAutomatic transmission fluid DEXRON® II or III
ItemsRag or paper, clean funnel (only for adding fluid)
1
2
3
4
5
GX460_OM_OM60K80U_(U).book Page 459 Wednesday, July 3, 2013 11:40 AM

507
GX 460 _O M_ OM6 0K 80 U_ (U)
7
When trouble arises
7-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer
sounds
Calmly perform the following actions if any of the warning lights comes on or
flashes. If a light comes on or flashes, but then goes off, this does not necessar-
ily indicate a malfunction in the system. However, if this continues to occur,
have the vehicle inspected by your Lexus dealer.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
(U.S.A.)
(Canada)
Brake system warning light (warning buzzer) Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning.
→ Immediately stop the vehicle in a safe place and contact your
Lexus dealer. Continuing to drive the vehicle may be dangerous.
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
→ Immediately stop the vehicle in a safe place and contact your
Lexus dealer.
(U.S.A.)
(Canada)
Malfunction indicator lamp Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system
→ Have the vehicle inspected by your Lexus dealer immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pr etensioner system
→ Have the vehicle inspected by your Lexus dealer immediately.
(U.S.A.)
(Canada)
ABS warning light Indicates a malfunction in:
•The ABS; or
• The brake assist system
→ Have the vehicle inspected by your Lexus dealer immediately.
GX460_OM_OM60K80U_(U).book Page 507 Wednesday, July 3, 2013 11:40 AM

5197-2. Steps to take in an emergency
GX 460 _O M_ OM6 0K 80 U_ (U)
7
When trouble arises
Indicates that the automatic transmission fluid tempera-
ture is too high A buzzer also sounds.
→ Immediately stop the vehicle in a safe place, shift the
shift lever to P and wait until the warning message
and light go off. If the warning message and light go
off, you may start the vehicle again.
If the warning message and light do not go off, con-
tact your Lexus dealer.
Indicates a malfunction in the automatic transmission
system
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates that the moon roof is not fully closed (with the
engine switch off, and the driver’s door open) A buzzer also sounds.
→ Close the moon roof.
Indicates that engine oil level is low
A buzzer also sounds.
→ Check the level of engine oil, and add if necessary.
Indicates a malfunction in:
• The LED headlight system;
• The automatic headlight leveling system; or
• The Automatic High Beam system (if equipped)
A buzzer also sounds.
→ Have the vehicle inspected by your Lexus dealer.
Indicates that the washer fluid level is low
→Add washer fluid.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
GX460_OM_OM60K80U_(U).book Page 519 Wednesday, July 3, 2013 11:40 AM

560
GX 460 _O M_ OM6 0K 80 U_ (U)8-1. Specifications
*: The fluid capacity is a reference quantity. If replacement is necessary, contact your
Lexus dealer.
*: Your Lexus vehicle is filled with “Toyota Genuine Transfer Gear oil LF” at the factory.Use Lexus approved “Toyota Genuine Transfer Gear oil LF” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.

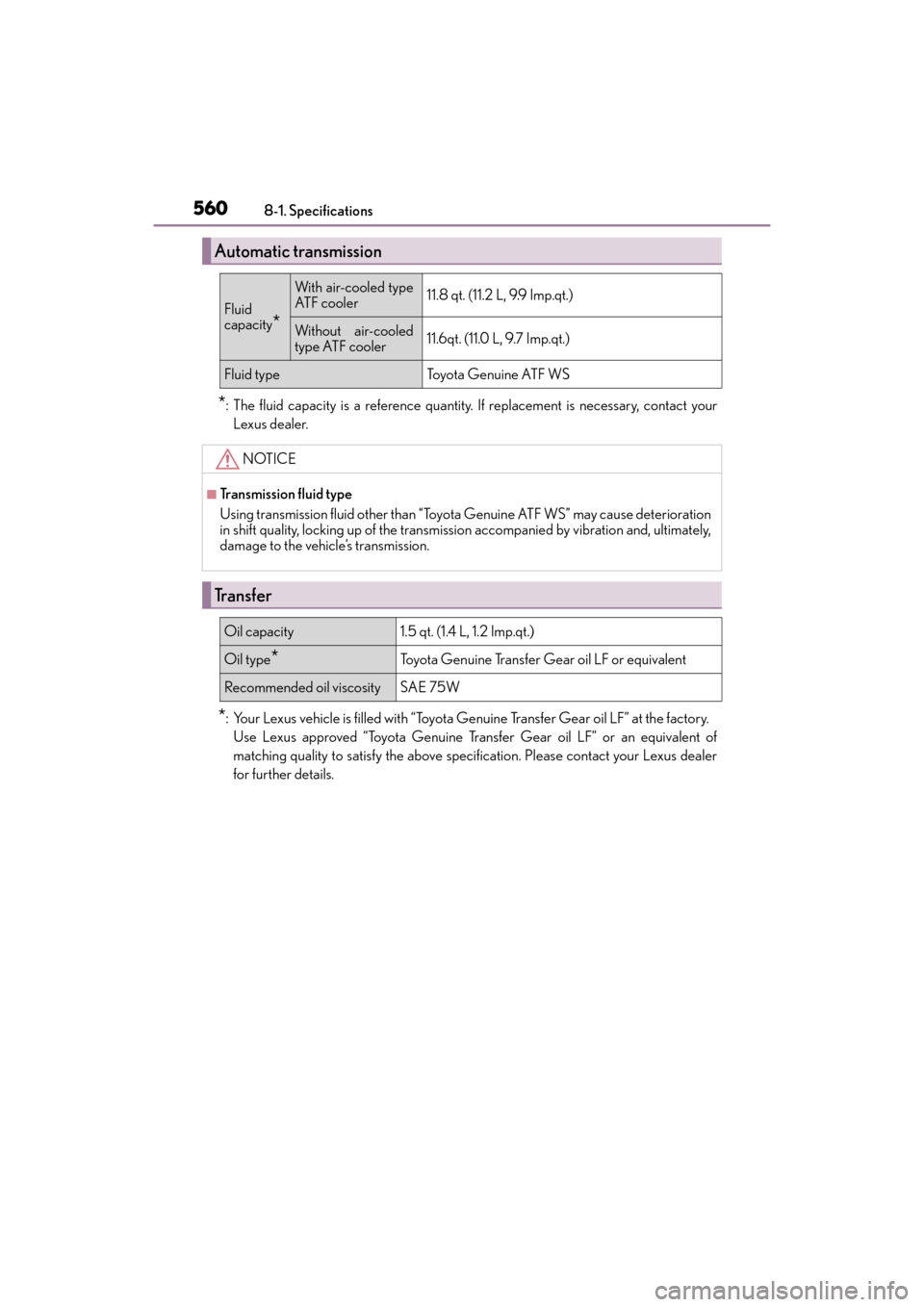

Automatic transmission
Fluid
capacity*
With air-cooled type
ATF cooler11.8 qt. (11.2 L, 9.9 Imp.qt.)
Without air-cooled
type ATF cooler11.6qt. (11.0 L, 9.7 Imp.qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration
in shift quality, locking up of the transmission accompanied by vibration and, ultimately,
damage to the vehicle’s transmission.
Tr a n s f e r
Oil capacity1.5 qt. (1.4 L, 1.2 Imp.qt.)
Oil type*Toyota Genuine Transfer Gear oil LF or equivalent
Recommended oil viscositySAE 75W
GX460_OM_OM60K80U_(U).book Page 560 Wednesday, July 3, 2013 11:40 AM

562
GX 460 _O M_ OM6 0K 80 U_ (U)8-1. Specifications
Steering
Free playLess than 1.18 in. (30 mm)
Power steering fluid typeAutomatic transmission fluid DEXRON® II or III
Tires and wheels
Ti r e s i z eP265/60R18 109H
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spare tire
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Wheel size18
× 7 1 /2J
Wheel nut torque83 ft•lbf (112 N•m, 11.4 kgf•m)
GX460_OM_OM60K80U_(U).book Page 562 Wednesday, July 3, 2013 11:40 AM
