2014 Lexus GX460 remote control

GX 460 _O M_ OM6 0K 80 U_ (U)
973-2. Opening, closing and locking the doors and trunk
3
Operation of each component
■Changing the door unlock function setting
It is possible to set which doors the entry function unlocks using the wireless remote con-
trol. Turn the engine switch off.
When the indicator light on the key su rface is not on, press and hold or
for approximately 5 seconds while pressing and holding .
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release th e buttons, wait for at least 5 seconds, and
repeat step .)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open and close a door once after the settings have been changed. (If
a door is not opened within 60 seconds af ter is pressed, the doors will be locked
again and the alarm will automatically be set.)
In a case that the alarm is triggered, immediately stop the alarm. ( →P. 6 8 )
1
2
2
Multi-information
displayUnlocking functionBeep
Holding the driver’s door handle
unlocks only the driver’s door.
Exterior: Beeps 3 times
Interior: Pings once
Holding a passenger’s door han-
dle unlocks all the doors.
Holding a door handle unlocks
all the doors.Exterior: Beeps twice
Interior: Pings once
GX460_OM_OM60K80U_(U).book Page 97 Wednesday, July 3, 2013 11:40 AM

98
GX 460 _O M_ OM6 0K 80 U_ (U)3-2. Opening, closing and locking the doors and trunk
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system may
not operate.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (
→P. 5 4 3 )
■Conditions affecting the operation of the smart access system with push-button start
or wireless remote control
→P. 110
■Customization
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features: →P. 5 7 8 )
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door open ing and an occupant being thrown out of the
vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed and locked.
●Do not pull the inside handle of the doors while driving.
Be especially careful for the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.
●Set the rear door child-protector locks when children are seated in the rear seats.
GX460_OM_OM60K80U_(U).book Page 98 Wednesday, July 3, 2013 11:40 AM

99
GX 460 _O M_ OM6 0K 80 U_ (U)3-2. Opening, closing and locking the doors and trunk
3
Operation of each component
Back door
◆Smart access system with push-button start
Carry the electronic key to enable this function.
Locks the all doors
Unlocks the all doors
The doors cannot be unlocked for 3
seconds after the doors are locked.
◆Wireless remote control
→P. 9 2
◆Door lock switch
Locks all the doors
Unlocks all the doors
The back door can be locked/unlocked and opened by the following proce-
dures.
Locking and unlocking the ba ck door from the outside
1
2
Locking and unlocking the back door from the inside
1
2
GX460_OM_OM60K80U_(U).book Page 99 Wednesday, July 3, 2013 11:40 AM

104
GX 460 _O M_ OM6 0K 80 U_ (U)3-2. Opening, closing and locking the doors and trunk
Glass hatch
◆Glass hatch opener
Press the button to pop up the
glass hatch.
Raise
The glass hatch cannot be opened
when the back door is locked.
Unlock the back door to open the
glass hatch. (→ P. 9 9 )
◆Smart access system with push-button start
While carrying the electronic key,
press the button to pop up the
glass hatch.
Raise
The glass hatch can be opened even
when the back door is locked.
◆Wireless remote control
Press and hold the button to open
the glass hatch. The glass hatch will
pop up.
The glass hatch can be opened using the glass hatch opener or wireless
remote control.
Opening the glass hatch
1
2
1
2
GX460_OM_OM60K80U_(U).book Page 104 Wednesday, July 3, 2013 11:40 AM

GX 460 _O M_ OM6 0K 80 U_ (U)

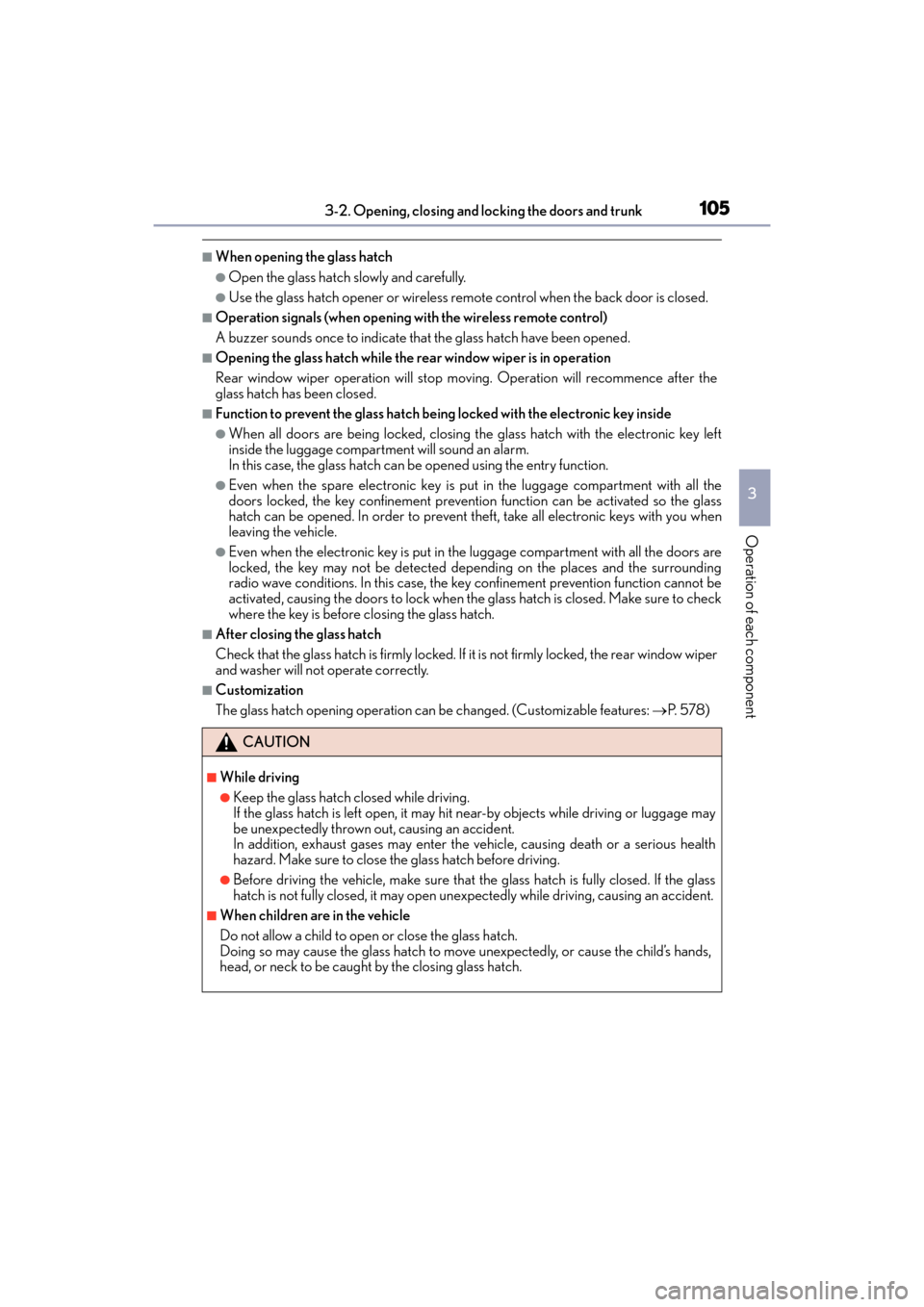

1053-2. Opening, closing and locking the doors and trunk
3
Operation of each component
■When opening the glass hatch
●Open the glass hatch slowly and carefully.
●Use the glass hatch opener or wireless remote control when the back door is closed.
■Operation signals (when opening with the wireless remote control)
A buzzer sounds once to indicate that the glass hatch have been opened.
■Opening the glass hatch while the rear window wiper is in operation
Rear window wiper operation will stop moving. Operation will recommence after the
glass hatch has been closed.
■Function to prevent the glass hatch being locked with the electronic key inside
●When all doors are being locked, closing th e glass hatch with the electronic key left
inside the luggage compartment will sound an alarm.
In this case, the glass hatch can be opened using the entry function.
●Even when the spare electronic key is put in the luggage compartment with all the
doors locked, the key confinement prevention function can be activated so the glass
hatch can be opened. In order to prevent theft, take all electronic keys with you when
leaving the vehicle.
●Even when the electronic key is put in the luggage compartment with all the doors are
locked, the key may not be detected depending on the places and the surrounding
radio wave conditions. In this case, the key confinement prevention function cannot be
activated, causing the doors to lock when the glass hatch is closed. Make sure to check
where the key is before closing the glass hatch.
■After closing the glass hatch
Check that the glass hatch is firmly locked. If it is not firmly locked, the rear window wiper
and washer will not operate correctly.
■Customization
The glass hatch opening operation can be changed. (Customizable features: →P. 5 7 8 )
CAUTION
■While driving
●Keep the glass hatch closed while driving.
If the glass hatch is left open, it may hit near-by objects while driving or luggage may
be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the ve hicle, causing death or a serious health
hazard. Make sure to close the glass hatch before driving.
●Before driving the vehicle, make sure that the glass hatch is fully closed. If the glass
hatch is not fully closed, it may open unexpectedly while driving, causing an accident.
■When children are in the vehicle
Do not allow a child to open or close the glass hatch.
Doing so may cause the glass hatch to move unexpectedly, or cause the child’s hands,
head, or neck to be caught by the closing glass hatch.
GX460_OM_OM60K80U_(U).book Page 105 Wednesday, July 3, 2013 11:40 AM

110
GX 460 _O M_ OM6 0K 80 U_ (U)3-2. Opening, closing and locking the doors and trunk
■Battery-saving function
The battery-saving function will be activated in order to prevent the electronic key bat-
tery and the vehicle battery from being discha
rged while the vehicle is not in operation
for a long time.
●In the following situations, the smart access system with push-button start may take
some time to unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of the outside
of the vehicle for 10 minutes or longer.
• The smart access system with push-button start has not been used for 5 days or
longer.
●If the smart access system with push-button start has not been used for 14 days or
longer, the doors cannot be unlocked at any doors except the driver’s door. In this case,
take hold of the driver’s door handle, or use the wireless remote control or the mechan-
ical key, to unlock the doors.
■Conditions affecting operation
The smart access system with push-button start uses weak radio waves. In the following
situations, the communication between the electronic key and the vehicle may be
affected, preventing the smart access system with push-button start, wireless remote
control and engine immobilizer system from operating properly.
(Ways of coping: →P. 5 4 3 )
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display, airport or
other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wireless com-
munication device
●When the electronic key is in contact with , or is covered by the following metallic
objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
•Hand warmers made of metal
• Media such as CDs and DVDs
●When other wireless keys (that emit radio waves) are being used nearby
●When carrying the electronic key together with the following devices that emit radio
waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or me tallic objects are attached to the rear win-
dow
GX460_OM_OM60K80U_(U).book Page 110 Wednesday, July 3, 2013 11:40 AM

GX 460 _O M_ OM6 0K 80 U_ (U)
1113-2. Opening, closing and locking the doors and trunk
3
Operation of each component
■Note for the entry function
●Even when the electronic key is within the effective range (detection areas), the system
may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near the
ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear
bumper center when the glass hatch is opened.
• The electronic key is on the instrument panel, luggage cover or floor, or in the door pockets or glove box when the engine is started or engine switch modes are
changed.
●Do not leave the electronic key on top of the instrument panel or near the door pockets
when exiting the vehicle. Depending on the radio wave reception conditions, it may be
detected by the antenna outside the cabin and the doors will become lockable from the
outside, possibly trapping the electronic key inside the vehicle.
●As long as the electronic key is within th e effective range, the doors may be locked or
unlocked by anyone. However, only the doors detecting the electronic key can be used
to unlock the vehicle.
●Even if the electronic key is not inside the vehicle, it may be possible to start the engine
if the electronic key is near the window.
●The doors may lock or unlock if a large amou nt of water splashes on the door handle,
such as in the rain or in a car wash, when th e electronic key is within the effective range.
(The doors will automatically be locked after approximately 60 seconds if the doors
are not opened and closed.)
●If the wireless remote control is used to lock the doors when the electronic key is near
the vehicle, there is a possibility that the door may not be unlocked by the entry func-
tion. (Use the wireless remote control to unlock the doors.)
●Touching the door lock sensor while wearing gloves may prevent lock operation.
●If the door handle becomes wet while the electronic key is within the effective range,
the door may lock and unlock repeatedly. Place the electronic key in a location 6 ft. (2
m) or more away from the vehicle. (Take care to ensure that the key is not stolen.)
●If the electronic key is inside the vehicle and a door handle becomes wet during a car
wash, a message may be shown on the multi-information display and a buzzer will
sound outside the vehicle. To turn off the alarm, lock all the doors.
●The lock sensor may not work properly if it comes into contact with ice, snow, mud, etc.
Clean the lock sensor and attempt to operate it again, or use the lock sensor on the
lower part of the door handle.
●Fingernails may scrape against the door during operation of the door handle.
Be careful not to injure fingernails or damage the surface of the door.
●A sudden approach to the effective range or door handle may prevent the doors from
being unlocked. In this case, return the door handle to the original position and check
that the doors unlock before pulling the door handle again.
●Unlocking the vehicle may take more time if another electronic key is within the effec-
tive range.
GX460_OM_OM60K80U_(U).book Page 111 Wednesday, July 3, 2013 11:40 AM

112
GX 460 _O M_ OM6 0K 80 U_ (U)3-2. Opening, closing and locking the doors and trunk
■When the vehicle is not driven for extended periods
●To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of the
vehicle.
●The smart access system with push-button start can be deactivated in advance.
(
→ P. 5 7 8 )
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the elec-
tronic key too close to the vehicle when operating the system from the outside of the
vehicle.
Depending on the position and holding condit ion of the electronic key, the key may not
be detected correctly and the system may not operate properly. (The alarm may go off
accidentally, or the door lock prevention function may not operate.)
■If the smart access system with push-b utton start does not operate properly
●Locking and unlocking the doors: Use the mechanical key. ( →P. 5 4 3 )
●Starting the engine: →P. 5 4 4
■Customization
Settings (e. g. smart access system with push-button start) can be changed.
(Customizable features: →P. 5 7 8 )
■If the smart access system with push-button start has been deactivated in a customized
setting
●Locking and unlocking the doors:
Use the wireless remote control or mechanical key. ( →P. 9 2 , 5 4 3 )
●Starting the engine and changing engine switch modes: →P. 5 4 4
●Stopping the engine: →P. 1 8 2
GX460_OM_OM60K80U_(U).book Page 112 Wednesday, July 3, 2013 11:40 AM
