2014 Lexus GX460 engine

497
GX 460 _O M_ OM6 0K 80 U_ (U)
7When trouble arises
7-1. Essential informationEmergency flashers .................. 498
If your vehicle has to be stopped in an emergency .... 499
7-2. Steps to take in an emergency If your vehicle needs to be towed ............................... 500
If you think something is wrong .......................................... 505
Fuel pump shut off system ......506
If a warning light turns on or a warning buzzer
sounds.......................................... 507
If a warning message is displayed...................................... 514
If you have a flat tire................... 527
If the engine will not start ........540
If the shift lever cannot be shifted from P............................ 542
If the electronic key does not operate properly ............. 543
If the vehicle battery is discharged ................................. 545
If your vehicle overheats .........548
If the vehicle becomes stuck .............................................. 551
GX460_OM_OM60K80U_(U).book Page 497 Wednesday, July 3, 2013 11:40 AM

498
GX 460 _O M_ OM6 0K 80 U_ (U)7-1. Essential information
Emergency flashers
Press the switch.
All the turn signals will flash.
To turn them off, press the switch once
again.
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not operating, the
battery may discharge.
The emergency flashers are used to warn other drivers when the vehicle has
to be stopped in the road due to a breakdown, etc.
GX460_OM_OM60K80U_(U).book Page 498 Wednesday, July 3, 2013 11:40 AM

499
GX 460 _O M_ OM6 0K 80 U_ (U)
7
When trouble arises
7-1. Essential information
If your vehicle has to be stopped in an emergency
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort required to
slow the vehicle.
Shift the shift lever to N.
XIf the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
XIf the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle speed as
much as possible.
To stop the engine, press and hold
the engine switch for 2 consecutive
seconds or more, or press it briefly 3
times or more in succession.
Stop the vehicle in a safe place by the road.
Only in an emergency, such as if it becomes impossible to stop the vehicle in
the normal way, stop the vehicle using the following procedure:
1
2
3
4
3
Press and hold for 2 seconds or more,
or press briefly 3 times or more
4
CAUTION
■If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lo st, making the brake pedal
harder to depress and the steering wheel heavier to turn. Decelerate as much as possi-
ble before turning off the engine.
5
GX460_OM_OM60K80U_(U).book Page 499 Wednesday, July 3, 2013 11:40 AM

500
GX 460 _O M_ OM6 0K 80 U_ (U)7-2. Steps to take in an emergency
If your vehicle needs to be towed
The following may indicate a problem with your transmission. Contact your
Lexus dealer before towing.
●The engine is running but the vehicle will not move.
●The vehicle makes an abnormal sound.
If a tow truck is not available in an emergency, your vehicle may be temporarily
towed using an elastic towing rope secured to the emergency towing hooks. This
should only be attempted on hard surfaced roads for short distances at low
speeds.
A driver must be in the vehicle to steer and operate the brakes. The vehicle’s
wheels, drive train, axles, steering and brakes must be in good condition.
XTowing hook
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing service, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towing , and abide by all state/provincial and
local laws.
Before towing
Emergency towing
GX460_OM_OM60K80U_(U).book Page 500 Wednesday, July 3, 2013 11:40 AM

5027-2. Steps to take in an emergency
GX 460 _O M_ OM6 0K 80 U_ (U)
If your Lexus is transported by a flat bed
truck, it should be tied down at the
locations shown in the illustration.
If you use chains or cables to tie down
your vehicle, the angles shaded in black
must be 45°.
Do not overly tighten the tie downs or
the vehicle may be damaged.
■Before emergency towing The engine switch must be in the ACCESSORY mode (engine off) or IGNITION ON
mode (engine running).
Put the four-wheel drive control switch in H4 and push the center differential lock/
unlock switch to unlock the center differential. ( →P. 3 3 2 )
Vehicles with the rear height control air suspension: Put the vehicle height in the N
mode and press the height control OFF button to turn off the rear height control air
suspension. ( →P. 3 2 7 )
Shift the shift lever in N.
Release the parking brake.
Using a flat bed truck
1
2
3
4
5
GX460_OM_OM60K80U_(U).book Page 502 Wednesday, July 3, 2013 11:40 AM

5037-2. Steps to take in an emergency
GX 460 _O M_ OM6 0K 80 U_ (U)
7
When trouble arises
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Caution while towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive stress on the
emergency towing hook and the elastic towing rope. Always be cautious of the sur-
roundings and other vehicles while towing.
●Do not turn the engine switch off.
Doing so will lock the steerin g wheel and prevent operatio n, possibly causing an acci-
dent and resulting in death or serious injury.
●If the engine is not running, the power assi st for the brakes and steering will not func-
tion, making steering and braking more difficult.
GX460_OM_OM60K80U_(U).book Page 503 Wednesday, July 3, 2013 11:40 AM

505
GX 460 _O M_ OM6 0K 80 U_ (U)
7
When trouble arises
7-2. Steps to take in an emergency

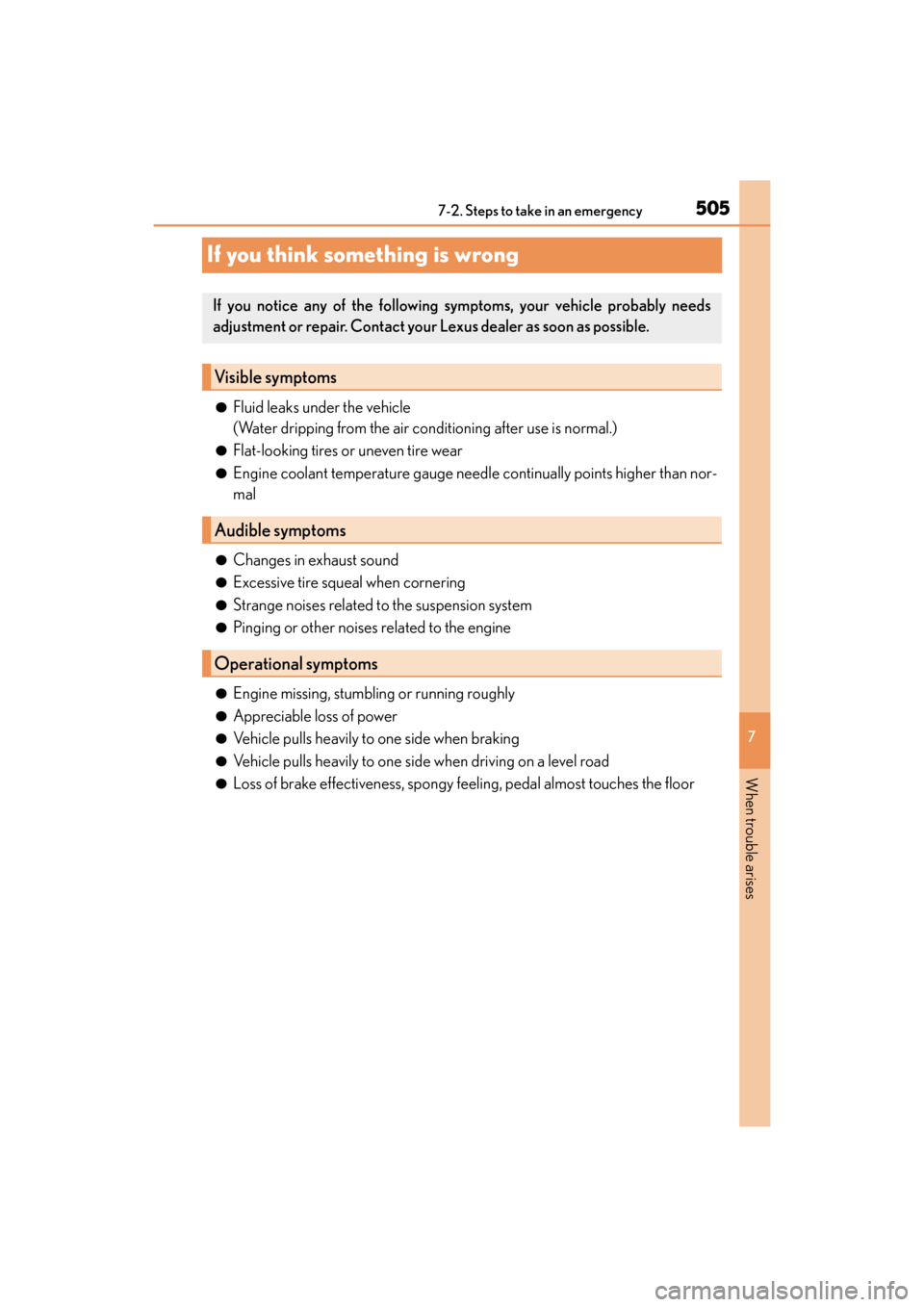

If you think something is wrong
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
●Flat-looking tires or uneven tire wear
●Engine coolant temperature gauge needle continually points higher than nor-
mal
●Changes in exhaust sound
●Excessive tire squeal when cornering
●Strange noises related to the suspension system
●Pinging or other noises related to the engine
●Engine missing, stumbling or running roughly
●Appreciable loss of power
●Vehicle pulls heavily to one side when braking
●Vehicle pulls heavily to one side when driving on a level road
●Loss of brake effectiveness, spongy feeling, pedal almost touches the floor
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms
GX460_OM_OM60K80U_(U).book Page 505 Wednesday, July 3, 2013 11:40 AM

506
GX 460 _O M_ OM6 0K 80 U_ (U)7-2. Steps to take in an emergency
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is activated.
Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.
To minimize the risk of fuel leakage when the engine stalls or when an airbag
inflates upon collision, the fuel pump sh ut off system stops the supply of fuel to
the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been damaged and
is in need of repair. Do not restart the engine.
1
2
GX460_OM_OM60K80U_(U).book Page 506 Wednesday, July 3, 2013 11:40 AM
