2014 Lexus GS450h seat memory

TABLE OF CONTENTS2
GS450h_OM_OM30D52U_(U)
For your information ................................... 8
Reading this manual...................................14
How to search ..............................................15
Pictorial index ...............................................16
1-1. For safe useBefore driving................................. 28
For safety drive............................... 30
Seat belts .......................................... 32
SRS airbags ..................................... 38
Front passenger occupant classification system.................. 49
Safety information for children ................................... 56
Child restraint systems ................57
Installing child restraints............... 61
Exhaust gas precautions.............. 71
1-2. Hybrid system Hybrid system features................72
Hybrid system precautions........ 76
1-3. Theft deterrent system Immobilizer system ........................81
Alarm ................................................. 83 2. Instrument cluster
Warning lights and indicators .............................. 86
Gauges and meters .......................91
Multi-information display .......... 96
Head-up display .......................... 104
Energy monitor/ consumption screen ...................111
3-1. Key information Keys ...................................................120
3-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .............123
Wireless remote control ...........136
Doors ................................................139
Trunk..................................................143
3-3. Adjusting the seats Front seats...................................... 150
Driving position memory.......... 152
Head restraints ............................ 158
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................... 161
Inside rear view mirror .............. 162
Outside rear view mirrors........164
1For safety and security
2Instrument cluster
3Operation of
each component
GS450h_OM_OM30D52U_(U).book Page 2 Monday, July 29, 2013 12:07 PM

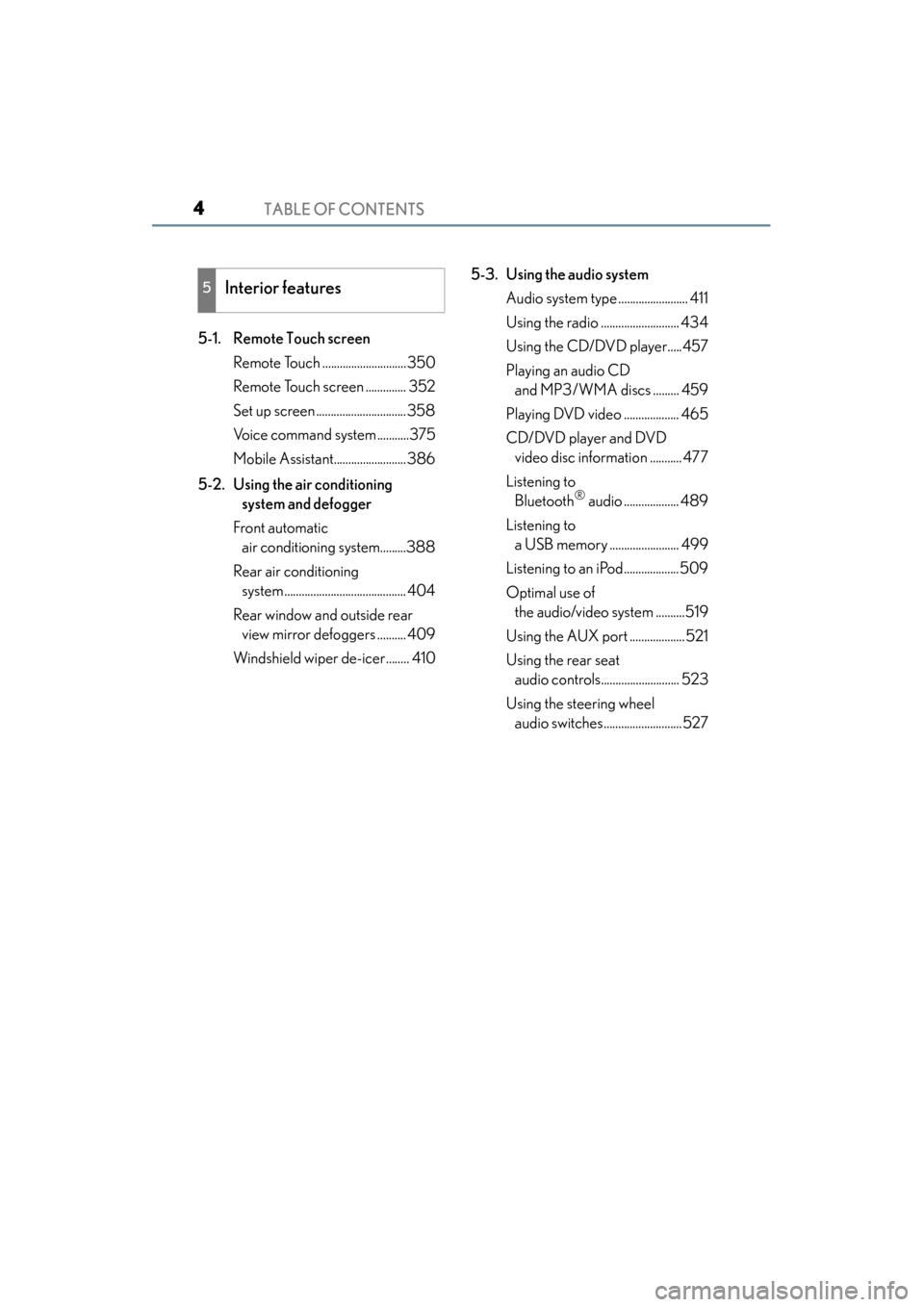

TABLE OF CONTENTS4
GS450h_OM_OM30D52U_(U)
5-1. Remote Touch screenRemote Touch .............................350
Remote Touch screen .............. 352
Set up screen ............................... 358
Voice command system ...........375
Mobile Assistant.........................386
5-2. Using the air conditioning system and defogger
Front automatic air conditioning system.........388
Rear air conditioning system .......................................... 404
Rear window and outside rear view mirror defoggers .......... 409
Windshield wiper de-icer........ 410 5-3. Using the audio system
Audio system type ........................ 411
Using the radio ........................... 434
Using the CD/DVD player.....457
Playing an audio CD and MP3/WMA discs ......... 459
Playing DVD video ................... 465
CD/DVD player and DVD video disc information ........... 477
Listening to Bluetooth
® audio ................... 489
Listening to a USB memory ........................ 499
Listening to an iPod...................509
Optimal use of the audio/video system ..........519
Using the AUX port ................... 521
Using the rear seat audio controls........................... 523
Using the steering wheel audio switches...........................527
5Interior features
GS450h_OM_OM30D52U_(U).book Page 4 Monday, July 29, 2013 12:07 PM

119
GS450h_OM_OM30D52U_(U)
3
Operation of
each component
3-1. Key information
Keys .................................................. 120
3-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start ............ 123
Wireless remote control .......... 136
Doors ............................................... 139
Trunk ................................................. 143
3-3. Adjusting the seats Front seats...................................... 150
Driving position memory ..........152
Head restraints ............................ 158
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................... 161
Inside rear view mirror...............162
Outside rear view mirrors ....... 164
3-5. Opening, closing the windows and moon roof
Power windows ............................. 167
Moon roof .......................................170
GS450h_OM_OM30D52U_(U).book Page 119 Monday, July 29, 2013 12:07 PM

152
GS450h_OM_OM30D52U_(U)
3-3. Adjusting the seats

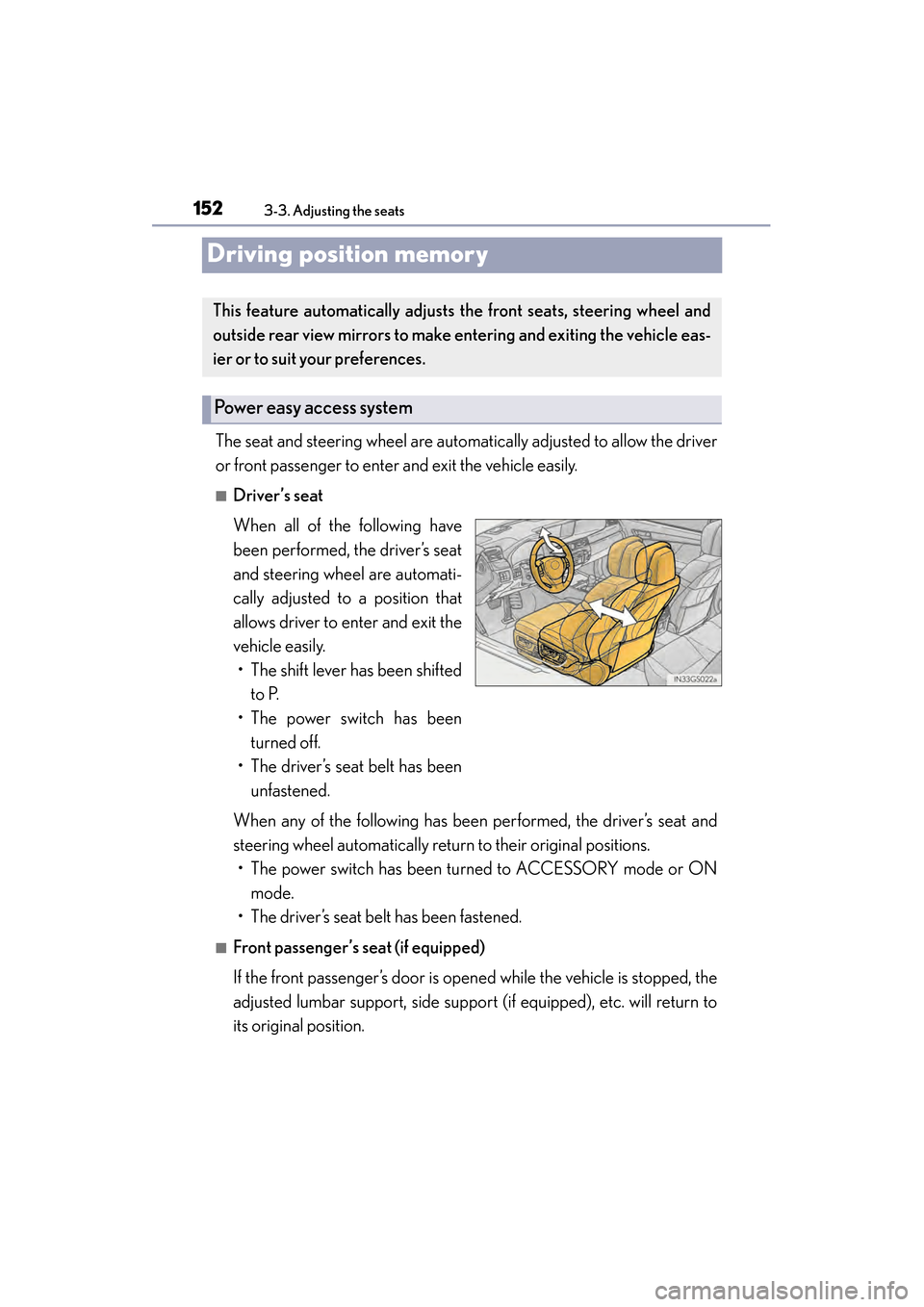

Driving position memory
The seat and steering wheel are automatically adjusted to allow the driver
or front passenger to enter and exit the vehicle easily.
■Driver’s seat
When all of the following have
been performed, the driver’s seat
and steering wheel are automati-
cally adjusted to a position that
allows driver to enter and exit the
vehicle easily.• The shift lever has been shifted to P.
• The power switch has been turned off.
• The driver’s seat belt has been unfastened.
When any of the following has been performed, the driver’s seat and
steering wheel automatically return to their original positions. • The power switch has been turned to ACCESSORY mode or ON mode.
• The driver’s seat belt has been fastened.
■Front passenger’s seat (if equipped)
If the front passenger’s door is open ed while the vehicle is stopped, the
adjusted lumbar support, side support (if equipped), etc. will return to
its original position.
This feature automatically adjusts the front seats, steering wheel and
outside rear view mirrors to make entering and exiting the vehicle eas-
ier or to suit your preferences.
Power easy access system
GS450h_OM_OM30D52U_(U).book Page 152 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
1533-3. Adjusting the seats
3
Operation of each component
■Operation of the power easy access system
When exiting the vehicle, the power easy access system may not operate if the seat
is already close to the rearmost position, etc.
■Customization
The seat movement amount settings of the power easy access system can be cus-
tomized. (Customizable features: →P. 8 3 3 )
Your preferred driving position (the position of the driver’s seat, steering
wheel and outside rear view mirrors) can be recorded and recalled by
pressing a button.
Three different driving positions can be recorded into memory.
■Recording procedure
Check that the shift lever is in P.
Turn the power switch to ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view mirrors
to the desired positions.
While pressing the “SET” but-
ton, or within 3 seconds after
the “SET” button is pressed,
press button “1”, “2” or “3” until
the buzzer sounds.
If the selected button has already
been preset, the previously
recorded position will be overwrit-
ten.
Vehicles with the driving position memory for the front passenger’s
seat: To record the position of the front passenger’s seat, adjust the front
passenger’s seat to the desired position and perform step using the
buttons on the front passenger’s side.
Driving position memory
1
2
3
4
4
GS450h_OM_OM30D52U_(U).book Page 153 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
1553-3. Adjusting the seats
3
Operation of each component
■Operating the driving position memory after turning the power switch off
Driver’s seat:
Recorded seat positions can be activated up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is closed again.
Front passenger’s seat:
Recorded seat positions can be activated up to 180 seconds after the front passen-
ger’s door is opened.
■In order to correctly use the driving position memory function
If a seat position is already in the furthest possible position and the seat is operated in
the same direction, the recorded position may be slightly different when it is recalled.
Each electronic key can be registered to recall your preferred driving
position.
■Registering procedure
Record your driving position to button “1”, “2” or “3” before performing
the following:
Carry only the key you want to register, and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be
recorded properly.
Check that the shift lever is in P.
Turn the power switch to ON mode.
Recall the driving position that you want to record.
Memory recall function (driver’s side only)
1
2
3
GS450h_OM_OM30D52U_(U).book Page 155 Monday, July 29, 2013 12:07 PM

GS450h_OM_OM30D52U_(U)
1573-3. Adjusting the seats
3
Operation of each component
■Cancelation procedure
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be can-
celed properly.Turn the power switch to ON mode.
While pressing the “SET” button, press and hold the door lock switch
(either lock or unlock) until the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for
approximately 3 seconds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being car-
ried.
●If a door other than the driver’s door is unlocked with the smart access system with
push-button start, the driving position cannot be recalled. In this case, press the
driving position button which has been set.
■Customization
The unlock door settings of the memory recall function can be customized.
(Customizable features: → P. 8 3 3 )
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.
1
2
GS450h_OM_OM30D52U_(U).book Page 157 Monday, July 29, 2013 12:07 PM

1613-4. Adjusting the steering wheel and mirrors
3
Operation of each component
GS450h_OM_OM30D52U_(U)
Steering wheel
Operating the switch moves the steering wheel in the following directions:
Up
Down
Toward the driver
Away from the driver
■The steering wheel can be adjusted when
The power switch is in ACCESSORY or ON mode
*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of power switch mode.
■Automatic adjustment of the steering position
A desired steering position can be entered to memory and recalled automatically by
the driving position memory system. ( →P. 1 5 2 )
■Power easy access system
The steering wheel and driver’s seat move in accordance with power switch mode
and the driver’s seat belt condition. ( →P. 1 5 2 )
Adjustment procedure
1
2
3
4
CAUTION
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.
GS450h_OM_OM30D52U_(U).book Page 161 Monday, July 29, 2013 12:07 PM
