2014 Lexus GS350 key

749
GS350_OM_OM30D41U_(U)
7
When trouble arises
7-2. Steps to take in an emergency

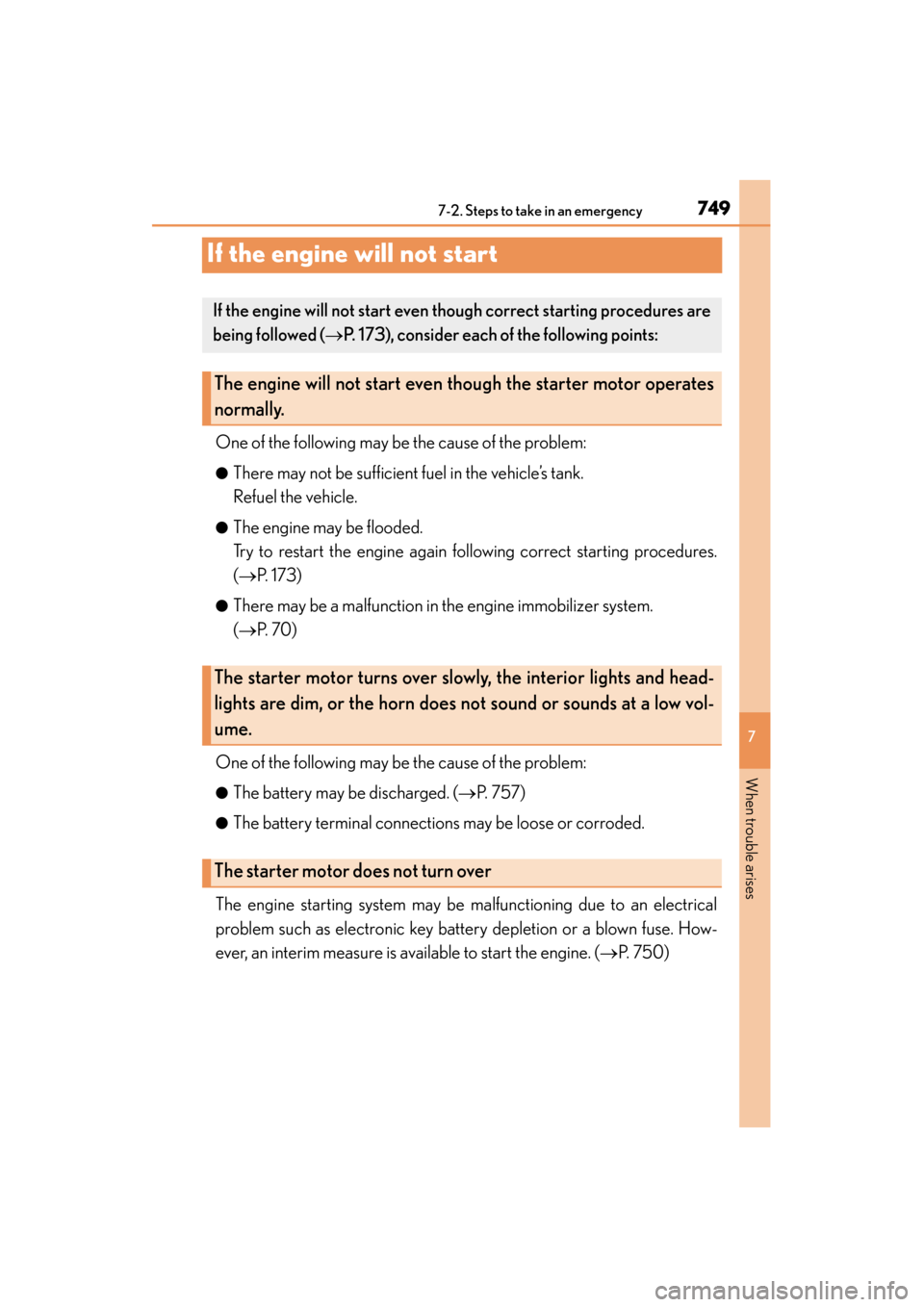

If the engine will not start
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●The engine may be flooded.
Try to restart the engine again following correct starting procedures.
(→ P. 1 7 3 )
●There may be a malfunction in the engine immobilizer system.
(→P. 7 0 )
One of the following may be the cause of the problem:
●The battery may be discharged. ( →P. 7 5 7 )
●The battery terminal connections may be loose or corroded.
The engine starting system may be malfunctioning due to an electrical
problem such as electronic key battery depletion or a blown fuse. How-
ever, an interim measure is available to start the engine. ( →P. 7 5 0 )
If the engine will not start even though correct starting procedures are
being followed ( →P. 173), consider each of the following points:
The engine will not start even though the starter motor operates
normally.
The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low vol-
ume.
The starter motor does not turn over
GS350_OM_OM30D41U_(U).book Page 749 Monday, July 29, 2013 2:22 PM

754
GS350_OM_OM30D41U_(U)
7-2. Steps to take in an emergency
If the electronic key does not operate properly
■Doors
Use the mechanical key
(→P. 100) in order to perform
the following operations:
Locks all the doors
Closes the windows and moon
roof
* (turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver’s door. Turning the key
once again within 5 seconds
unlocks the other doors.
Opens the windows and moon
roof
* (turn and hold)
*: This setting must be customized at your Lexus dealer.
If communication between the electronic key and vehicle is inter-
rupted ( →P. 110) or the electronic key cannot be used because the bat-
tery is depleted, the smart access sy stem with push-button start and
wireless remote control cannot be used. In such cases, the doors and
trunk can be opened and the engine can be started by following the
procedure below.
Locking and unlocking the doors, unlocking the trunk and key
linked functions
1
2
3
4
GS350_OM_OM30D41U_(U).book Page 754 Monday, July 29, 2013 2:22 PM

7557-2. Steps to take in an emergency
GS350_OM_OM30D41U_(U)
7
When trouble arises
■Tr u n k
Turn the mechanical key clock-
wise to open.
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of
the electronic key to the engine
switch.
The engine switch will turn to IGNI-
TION ON mode.
When the smart access system with
push-button start is deactivated in
customization setting, the engine
switch will turn to ACCESSORY
mode.
Firmly depress the brake pedal and check that is shown on the
multi-information display.
Press the engine switch.
In the event that the engine still cannot be started, contact your Lexus
dealer.
Starting the engine
1
2
3
4
GS350_OM_OM30D41U_(U).book Page 755 Monday, July 29, 2013 2:22 PM

7567-2. Steps to take in an emergency
GS350_OM_OM30D41U_(U)
■Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when stop-
ping the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the elec-
tronic key battery be replaced immediately when the battery is depleted. (→P. 6 5 9 )
■Changing engine switch modes
Release the brake pedal and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is
pressed.( →P. 1 74 )
■When the electronic key does not work properly
●Make sure that the smart access system with push-button start has not been deac-
tivated in the customization setting. If it is off, turn the function on.
(Customizable features: →P. 7 9 3 )
●Check if battery-saving mode is set. If it is set, cancel the function. ( →P. 1 0 9 )
3
GS350_OM_OM30D41U_(U).book Page 756 Monday, July 29, 2013 2:22 PM

7597-2. Steps to take in an emergency
GS350_OM_OM30D41U_(U)
7
When trouble arises
■When recharging or replacing the battery
●Make sure that the key is not inside the vehicle when recharging or replacing the
battery. The key may be locked in the vehicle if the alarm is activated. (→P. 7 3 )
●In some cases, it may not be possible to unlock the doors using the smart access
system with push-button start when the battery is discharged. Use the wireless
remote control or the mechanical key to lock or unlock the doors.
●The engine may not start on the first attempt after the battery has recharged but
will start normally after the second attempt. This is not a malfunction.
●The engine switch mode is memorized by the vehicle. When the battery is recon-
nected, the system will return to the mode it was in before the battery was dis-
charged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery:
●Make sure each jumper cable is connected to the correct terminal and that it is
not unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cable connected to the “+” terminal to
come into contact with any other parts or metal surfaces in the area, such as
brackets or unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come into contact with
each other.
●Do not smoke, use matches, cigarette lighters or allow open flame near the bat-
tery.
GS350_OM_OM30D41U_(U).book Page 759 Monday, July 29, 2013 2:22 PM

796
GS350_OM_OM30D41U_(U)
8-2. Customization
Door lock
(→ P. 1 1 9 ,
754)
Unlocking on second key
turn (Allows all doors to be
unlocked by turning the
mechanical key twice in
the driver’s door)
On
(Driver’s door
unlocked in
one step, all doors
unlocked in two steps)
Off
(All doors
unlocked in one step)
O—O
Speed linked door locking
functionOffOnO—O
Shift position linked door
locking functionOnOffO—O
Shift position linked door
unlocking functionOnOffO—O
Driver’s door linked door
unlocking functionOffOnO—O
Locking/unlocking of the
trunk when all doors are
locked/unlocked
OnOff——O
Smart
access
system with
push-button
start
(→ P. 1 0 3 )
and
wireless
remote
control
( → P. 1 1 6 )
Operation signal
(Buzzers)5
Off
O—O
1 to 7
Operation signal
(Emergency flashers)OnOffO—O
Time elapsed before auto-
matic door lock function is
activated if a door is not
opened after being
unlocked
60
seconds
Off
O—O
30
seconds
120
seconds
Open door reminder
buzzer (When locking the
vehicle)
OnOff——O
ItemFunctionDefault settingCustom-
ized setting123
GS350_OM_OM30D41U_(U).book Page 796 Monday, July 29, 2013 2:22 PM

798
GS350_OM_OM30D41U_(U)
8-2. Customization
Po we r
windows
(→ P. 1 4 7 )
and moon
roof
( → P. 1 5 0 )
Mechanical key linked
operationOffOn——O
Wireless remote control
linked operationOff
On
(Open only)
——O
Buzzer sounds if operated
using wireless remote con-
trol
OnOff——O
Tu r n s i g n a l
lever
(→ P. 1 8 6 )
The number of times the
turn signal lights flash auto-
matically when the turn sig-
nal lever is moved to the
first position during a lane
change
(After flashing the turn sig-
nal lights when turning left
or right while this function
is off and the turn signal
lever is moved to the first
position in direction of the
flashing light, the turn sig-
nal lights can be selected
to be flashing or off.)
3
5
——O
7
Off
(the turn
signal lights keep flash- ing if the
turn signal lever is
moved to the first
position in
direction of flashing light)
Off
(the turn
signal lights will be off if the turn
signal lever
is moved to the first
position in
direction of flashing light)
ItemFunctionDefaultsettingCustom-
ized setting123
GS350_OM_OM30D41U_(U).book Page 798 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
8018-2. Customization
8
Vehicle specifications
Illumination
(→ P. 5 6 1 )
Interior lights illumination
controlOnOff——O
Ti m e e l a p s e d b e f o r e t h e
interior lights turn off15 seconds
7. 5
seconds
O—O30
seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff——O
Footwell lightingOnOff——O
Outer foot lightsOnOff——O
Ti m e e l a p s e d b e f o r e t h e
outer foot lights turn off15 seconds
Off
O—O
7. 5
seconds
30
seconds
ItemFunctionDefault settingCustom-
ized setting123
GS350_OM_OM30D41U_(U).book Page 801 Monday, July 29, 2013 2:22 PM
