2014 Lexus GS350 horn

3
1
8 7
6
5
4
3
2
GS350_OM_OM30D41U_(U)
9
4-1. Before drivingDriving the vehicle ......................156
Cargo and luggage..................... 167
Vehicle load limits ........................ 170
Trailer towing .................................. 171
Dinghy towing ............................... 172
4-2. Driving procedures Engine (ign ition) switch ............. 173
Automatic transmission ........... 180
Turn signal lever ........................... 186
Parking brake ............................... 188
Horn ................................................... 191
4-3. Operating the lights and wipers
Headlight switch ..........................192
Fog light switch ............................. 197
Windshield wipers and washer ................................. 198
Headlight cleaner switch........ 205
4-4. Refueling Opening the fuel tank cap ..... 206 4-5. Using the driving support
systems
Cruise control ................................ 211
Dynamic radar cruise control..............................215
LKA (Lane-Keeping Assist) .......... 230
Intuitive parking assist .............. 240
Rear view monito r system ...... 253
Driving mode select switch ... 264
Driving assist systems .............. 269
Hill-start assist control .............. 277
PCS (Pre-Collision System) ..........279
BSM (Blind Spot Monitor) ............. 288
• The Blind Spot Monitor function .................................... 292
• The Rear Cross Traffic Alert function ........................ 295
Lexus night view ......................... 298
4-6. Driving tips Winter driving tips ..................... 304
4Driving

155
GS350_OM_OM30D41U_(U)
Driving4
4-1. Before driving Driving the vehicle ...................... 156
Cargo and luggage .....................167
Vehicle load limits ....................... 170
Trailer towing ................................... 171
Dinghy towing................................172
4-2. Driving procedures Engine (ignition) switch .............173
Automatic transmission ............180
Turn signal lever ........................... 186
Parking brake ................................188
Horn................................................... 191
4-3. Operating the lights and wipers
Headlight switch .......................... 192
Fog light switch..............................197
Windshield wipers and washer ..................................198
Headlight cleaner switch ....... 205
4-4. Refueling Opening the fuel tank cap..... 206 4-5. Using the driving support
systems
Cruise control ................................ 211
Dynamic radar cruise control ............................. 215
LKA (Lane-Keeping Assist) ..........230
Intuitive parking assist .............. 240
Rear view monitor system ...... 253
Driving mode select switch ... 264
Driving assist systems............... 269
Hill-start assist control ..............277
PCS (Pre-Collision System).......... 279
BSM (Blind Spot Moni tor)..............288
• The Blind Spot Monitor function .................................... 292
• The Rear Cross Traffic Alert function......................... 295
Lexus night view ......................... 298
4-6. Driving tips Winter driving tips .....................304

191
GS350_OM_OM30D41U_(U)4-2. Driving procedures
4
Driving
Horn
To sound the horn, press on or close
to the mark.

250
GS350_OM_OM30D41U_(U)
4-5. Using the driving support systems
■Intuitive parking assist display
When an obstacle is detected while the rear view monitor system, is in use, the warn-
ing indicator will appear in the top right of the screen even if the display setting has
been set to off.
■Sensor detection information
●The sensor’s detection areas are limited to the areas around the vehicle’s bumpers.
●Certain vehicle conditions and the surrounding environment may affect the ability
of the sensor to correctly detect obstacles. Particular instances where this may
occur are listed below.
• There is dirt, snow or ice on the sensor. (Wiping the sensors will resolve this problem.)
• The sensor is frozen. (Thawing the area will resolve this problem.) In especially cold weather, if a sensor is frozen the screen may show an abnor-
mal display, or obstacle s may not be detected.
• The sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass.
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines, air brakes of large vehicles, or other loud noises producing ultrasonic waves.
• There is another vehicle equipped with parking assist sensors in the vicinity.
• The sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or wireless antenna.
• Towing eyelets are installed.
• The bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In harsh sunlight or intense cold weather.
• The area directly under th e bumpers is not detected.
• If obstacles draw too close to the sensor.
• A non-genuine Lexus suspension (low ered suspension etc.) is installed.
• People may not be detected if they are wearing certain types of clothing.
In addition to the examples above, there are instances in which, because of their
shape, signs and other objects may be judged by the se nsor to be closer than they
are.

GS350_OM_OM30D41U_(U)
6656-3. Do-it-yourself maintenance
6
Maintenance and care

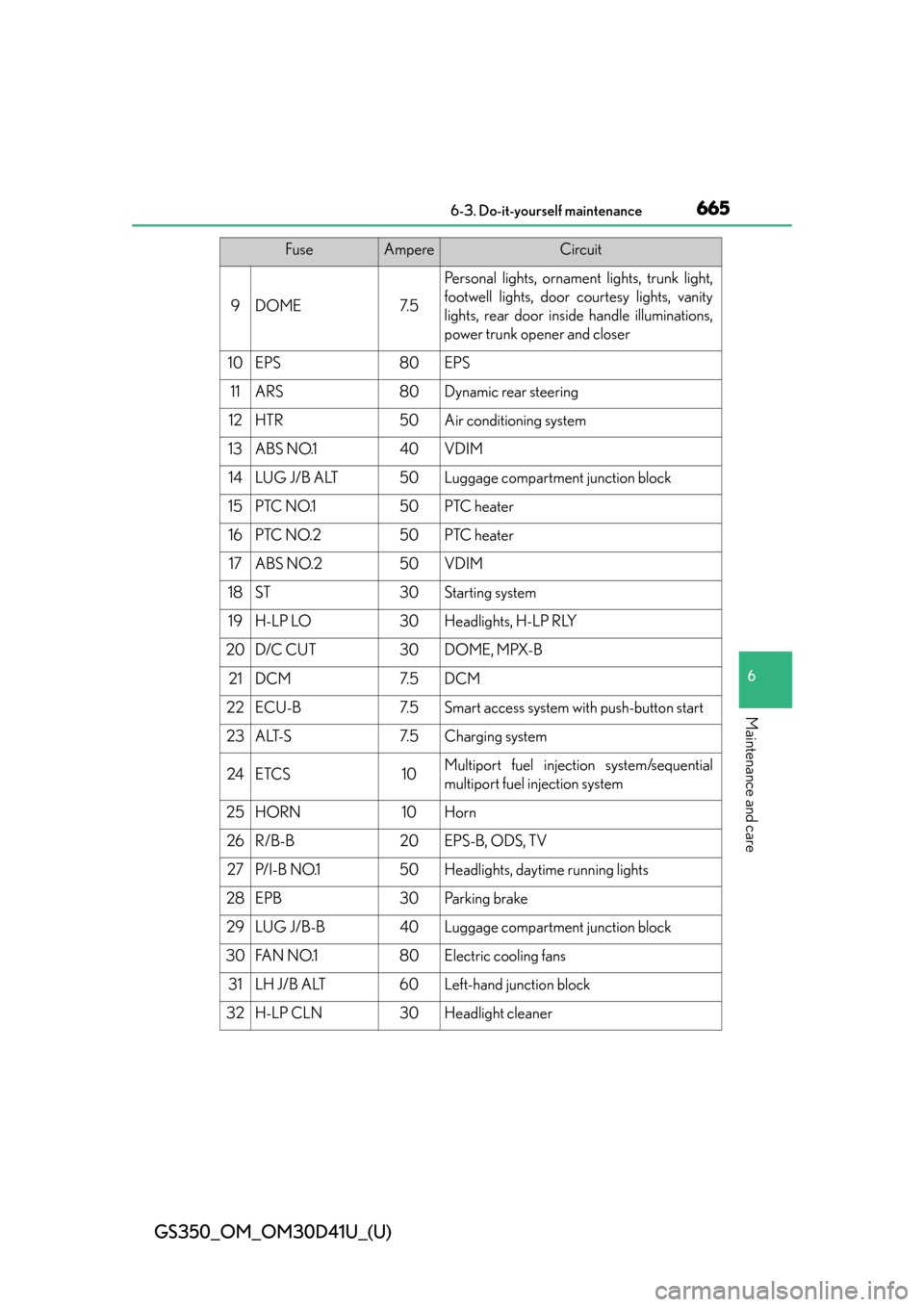

9DOME7. 5
Personal lights, ornament lights, trunk light,
footwell lights, door courtesy lights, vanity
lights, rear door inside handle illuminations,
power trunk opener and closer
10EPS80EPS
11ARS80Dynamic rear steering
12HTR50Air conditioning system
13ABS NO.140VDIM
14LUG J/B ALT50Luggage compartment junction block
15PTC NO.150PTC heater
16PTC NO.250PTC heater
17ABS NO.250VDIM
18ST30Starting system
19H-LP LO30Headlights, H-LP RLY
20D/C CUT30DOME, MPX-B
21DCM7. 5DCM
22ECU-B7. 5Smart access system with push-button start
23ALT-S7. 5Charging system
24ETCS10Multiport fuel injection system/sequential
multiport fuel injection system
25HORN10Horn
26R/B-B20EPS-B, ODS, TV
27P/ I - B N O.150Headlights, daytime running lights
28EPB30Parking brake
29LUG J/B-B40Luggage compartment junction block
30FAN NO.180Electric cooling fans
31LH J/B ALT60Left-hand junction block
32H-LP CLN30Headlight cleaner
FuseAmpereCircuit

749
GS350_OM_OM30D41U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If the engine will not start
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
●The engine may be flooded.
Try to restart the engine again foll owing correct starting procedures.
( P. 173)
●There may be a malfunction in the engine immobilizer system.
( P. 7 0 )
One of the following may be the cause of the problem:
●The battery may be discharged. ( P. 7 5 7 )
●The battery terminal connections may be loose or corroded.
The engine starting system may be malfunctioning due to an electrical
problem such as electronic key battery depletion or a blown fuse. How-
ever, an interim measure is available to start the engine. ( P. 750)
If the engine will not start even though correct starting procedures are
being followed ( P. 173), consider each of the following points:
The engine will not start even though the starter motor operates
normally.
The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low vol-
ume.
The starter motor does not turn over

7507-2. Steps to take in an emergency
GS350_OM_OM30D41U_(U)One of the following may be the cause of the problem:
●One or both of the battery terminals may be disconnected.
●The battery may be discharged. (
P. 7 5 7 )
●There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if repair proce-
dures are unknown.
When the engine does not start, the following steps can be used as an
interim measure to start th e engine if the engine switch is functioning nor-
mally:
Set the parking brake.
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while depress-
ing the brake pedal firmly.
Even if the engine can be started using the above steps, the system may be
malfunctioning. Have the vehicle inspected by your Lexus dealer.
The starter motor does not turn ov er, the interior lights and head-
lights do not turn on, or the horn does not sound.
Emergency start function
1
2
3
4

826What to do if... (Troubleshooting)
GS350_OM_OM30D41U_(U)
●Did anyone inside the vehicle open a door during setting the
alarm?
The sensor detects it and the alarm sounds. ( P. 7 2 )
To stop the alarm, turn the engi ne switch to IGNITION ON mode
or start the engine.
●Is the electronic key left insid e the vehicle or the moon roof
opened?
Check the message on the multi-information display.
( P. 7 1 9 )
●When a warning light turns on or a warning message is dis-
played, refer to P. 702, 712.
An alarm is activated and the horn sounds
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed
