Page 94 of 688
942. Instrument cluster
GS350_250_OM_OM30E16E_(EE)
Warning lights and indicators
◆Instrument cluster
The units used on the speedometer may differ depending on the target region.
◆Center panel
The warning lights and indicators on the instrument cluster, center
panel and outside rear view mirrors inform the driver of the status of
the vehicle’s various systems.
For the purpose of explanation, the following illustration displays all
warning lights and in dicators illuminated.
GS350_250_OM_OM30E16E_(EE).book Page 94 Tuesday, July 8, 2014 7:11 PM
Page 95 of 688
952. Instrument cluster
2
Instrument cluster
GS350_250_OM_OM30E16E_(EE)
◆Outside rear view mirrors (vehicles with BSM)
Warning lights inform the driver of malfunctions in the indicated vehicle’s
systems.
Warning lights
*1
Brake system warning light
( → P. 5 4 4 )*1, 2
(if equipped)
“PCS” warning light
(→ P. 5 4 6 )
*1Charging system warning
light ( →P. 545)*1Slip indicator
(→ P. 5 4 6 )
*1
Malfunction indicator
lamp ( →P. 545)*1, 2
(if equipped)
“AFS OFF” indicator
(→ P. 5 4 6 )
*1SRS warning light
(→ P. 545)*2Parking brake indicator
(→ P. 5 4 6 )
*1ABS warning light
(→ P. 545)*1Brake system warning light
(→ P. 5 4 6 )
*1Electric power steering
system warning light
(→ P. 5 4 6 )Open door warning light
(→ P. 5 4 7 )
GS350_250_OM_OM30E16E_(EE).book Page 95 Tuesday, July 8, 2014 7:11 PM
Page 97 of 688
972. Instrument cluster
2
Instrument cluster
GS350_250_OM_OM30E16E_(EE)
The indicators inform the driver of the operating state of the vehicle’s vari-
ous systems.
Indicators
Turn signal indicator
(→ P. 2 5 3 )
(if equipped)
LKA (Lane-Keeping
Assist) indicator
(→ P. 3 0 7 )
Tail light indicator
( → P. 259)
*1
(if equipped)
Lexus parking assist-sen-
sor indicator
Headlight high beam indi-
cator ( →P. 260)
*2
(if equipped)
“A F S O F F ” i n d i c a t o r
(→ P. 2 6 1 )
(if equipped)
Automatic High Beam
indicator ( →P. 2 6 4 )*2, 3Slip indicator
(→ P. 322, 328)
(if equipped)
Front fog light indicator
(→ P. 2 7 0 )*2VSC OFF indicator
(→ P. 3 2 3 )
Rear fog light indicator
( → P. 2 7 0 )
*2, 4
(if equipped)
“PCS” warning light
(→ P. 331)
Cruise control indicator
( → P. 2 8 5 ) Parking brake indicator
(
→ P. 2 5 5 )
(if equipped)
Radar cruise control indi-
cator ( →P. 2 8 9 )*5
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( →P. 3 4 1 )
Cruise control “SET” indi-
cator ( →P. 2 8 5 )
*2
“PASSENGER AIR BAG” indicator
(→ P. 5 6 )
sec_02.fm Page 97 Friday, July 11, 2014 7:00 PM
Page 98 of 688
982. Instrument cluster
GS350_250_OM_OM30E16E_(EE)
*1: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”
*2: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being performed. They will turn off after the engine
is on, or after a few seconds. There may be a malfunction in a system if the lights
do not come on, or turn off. Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
*3: The light flashes to indicate that the system is operating.
*4: The light comes on when the system is turned off. The light flashes faster than
usual to indicate that the system is operating.
*5: In order to confirm operation, the BSM outside rear view mirror indicators illumi-nate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the engine switch is in IGNITION ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine, this could mean that these systems are not available to
help protect you in an accident, which could result in death or serious injury. Have
the vehicle inspected by any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional immediately if this occurs.
GS350_250_OM_OM30E16E_(EE).book Page 98 Tuesday, July 8, 2014 7:11 PM
Page 121 of 688
121
3
Operation of
each component
GS350_250_OM_OM30E16E_(EE)
3-1. Key information
Keys ...................................................122
3-2. Opening, closing and locking the doors and trunk
Smart entry & start system....... 127
Wireless remote control .......... 155
Doors ................................................. 171
Trunk .................................................. 175
3-3. Adjusting the seats Front seats...................................... 182
Driving position memory ......... 186
Head restraints .............................192
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................. 195
Inside rear view mirror.............. 196
Outside rear view mirrors ....... 199
3-5. Opening, closing the windows and moon roof
Power windows ........................... 204
Moon roof .....................................208
GS350_250_OM_OM30E16E_(EE).book Page 121 Tuesday, July 8, 201 4 7:11 PM
Page 186 of 688
1863-3. Adjusting the seats
GS350_250_OM_OM30E16E_(EE)
Driving position memory
The seat and steering wheel are automatically adjusted to allow the driver
or front passenger to enter and exit the vehicle easily.
■Driver’s seat
When all of the following have
been performed, the driver’s seat
and steering wheel are automati-
cally adjusted to a position that
allows driver to enter and exit the
vehicle easily.• The shift lever has been shifted
to P.
• The engine switch has been turned off.
• The driver’s seat belt has been unfastened.
When any of the following has been performed, the driver’s seat and
steering wheel automatically return to their original positions. • The engine switch has been turned to ACCESSORY mode or IGNITION ON mode.
• The driver’s seat belt has been fastened.
■Front passenger’s seat (if equipped)
If the front passenger’s door is opened while the vehicle is stopped, the
adjusted lumbar support, ottoman (if equipped), etc. will return to its
original position.
This feature automatically adjusts the front seats, steering wheel and
outside rear view mirrors to make entering and exiting the vehicle eas-
ier or to suit your preferences.
Power easy access system
GS350_250_OM_OM30E16E_(EE).book Page 186 Tuesday, July 8, 201 4 7:11 PM

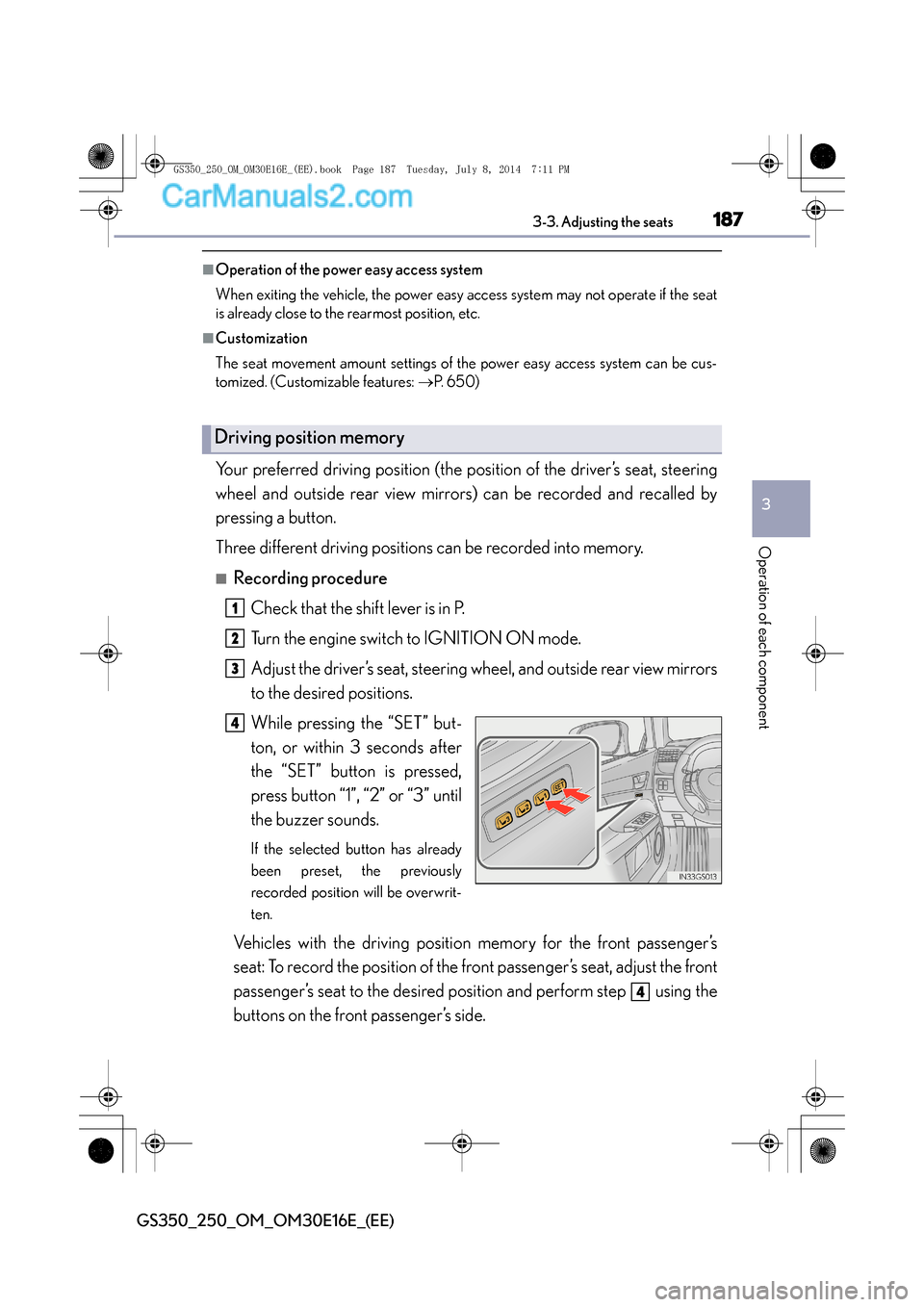

Page 187 of 688
1873-3. Adjusting the seats
3
Operation of each component
GS350_250_OM_OM30E16E_(EE)
■Operation of the power easy access system
When exiting the vehicle, the power easy access system may not operate if the seat
is already close to the rearmost position, etc.
■Customization
The seat movement amount settings of the power easy access system can be cus-
tomized. (Customizable features: →P. 6 5 0 )
Your preferred driving position (the position of the driver’s seat, steering
wheel and outside rear view mirrors) can be recorded and recalled by
pressing a button.
Three different driving positions can be recorded into memory.
■Recording procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Adjust the driver’s seat, steering wheel, and outside rear view mirrors
to the desired positions.
While pressing the “SET” but-
ton, or within 3 seconds after
the “SET” button is pressed,
press button “1”, “2” or “3” until
the buzzer sounds.
If the selected button has already
been preset, the previously
recorded position will be overwrit-
ten.
Vehicles with the driving position memory for the front passenger’s
seat: To record the position of the front passenger’s seat, adjust the front
passenger’s seat to the desired position and perform step using the
buttons on the front passenger’s side.
Driving position memory
1
2
3
4
4
GS350_250_OM_OM30E16E_(EE).book Page 187 Tuesday, July 8, 201 4 7:11 PM
Page 190 of 688
1903-3. Adjusting the seats
GS350_250_OM_OM30E16E_(EE)
While pressing the recalled
button, press and hold the
door lock switch (either lock or
unlock) until the buzzer
sounds.
If the button could not be regis-
tered, the buzzer sounds continu-
ously for approximately 3 seconds.
■Recall procedureCarry the electronic key that has been registered to the driving posi-
tion, and then unlock and open the driver’s door using the smart
entry & start system or wireless remote control.
The driving position will move to the recorded position (not including the
steering wheel). However, the seat will move to a position slightly behind the
recorded position in order to make entering the vehicle easier.
If the driving position is in a position that has already been recorded, the seat
and outside rear view mirrors will not move.
Turn the engine switch to ACCESSORY mode or IGNITION ON
mode, or fasten a seat belt.
The seat and steering wheel will move to the recorded position.
4
1
2
