891-2. Theft deterrent system
1
GS350_250_OM_OM30E16E_(EE)
For safety and security
●The intrusion sensor detects intruders or movement in the vehicle.
●The tilt sensor detects changes in vehicle inclination, such as when the
vehicle is towed away. (if equipped)
This system is designed to deter and prevent vehicle theft but does not
guarantee absolute security against all intrusions.
■Setting the intrusion sensor and tilt sensor
The intrusion sensor and tilt sensor will be set automatically when the
alarm is set. ( →P. 8 6 )
■Canceling the intrusion sensor and tilt sensor
If you are leaving pets or other moving things inside the vehicle, make
sure to stop the intrusion sensor and tilt sensor before setting the alarm,
as they will respond to movement inside the vehicle.
Turn the engine switch off.
Press the intrusion sensor and
tilt sensor cancel switch.
A message will be shown on the
multi-information display in the
instrument cluster.
Press the switch again to re-enable
the intrusion sensor and tilt sensor.
Intrusion sensor and tilt sensor
1
2
GS350_250_OM_OM30E16E_(EE).book Page 89 Tuesday, July 8, 2014 7:11 PM

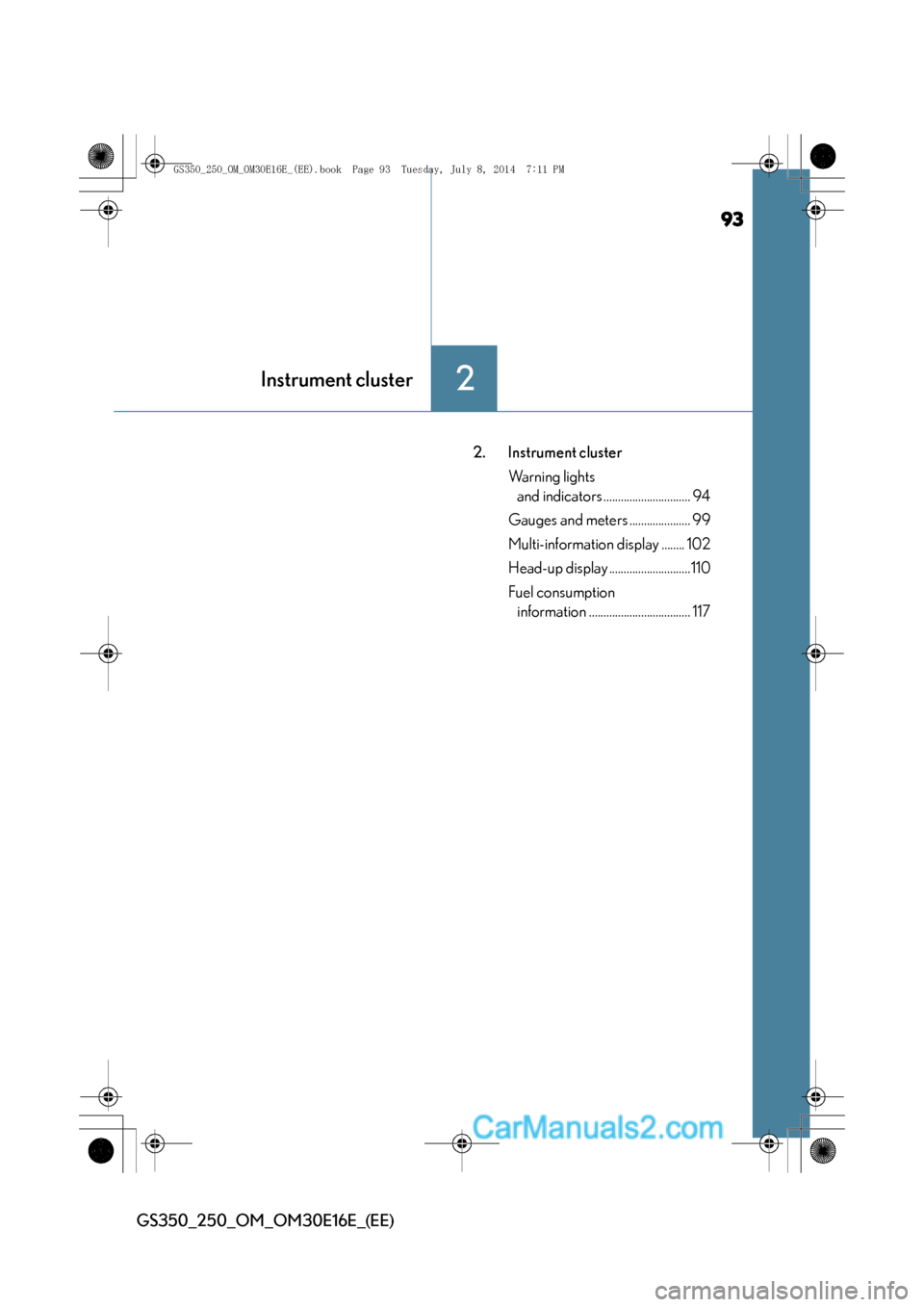

93
2Instrument cluster
GS350_250_OM_OM30E16E_(EE)
2. Instrument clusterWarning lights and indicators .............................. 94
Gauges and meters ..................... 99
Multi-information display ........ 102
Head-up display ............................110
Fuel consumption information ................................... 117
GS350_250_OM_OM30E16E_(EE).book Page 93 Tuesday, July 8, 2014 7:11 PM

942. Instrument cluster
GS350_250_OM_OM30E16E_(EE)
Warning lights and indicators
◆Instrument cluster
The units used on the speedometer may differ depending on the target region.
◆Center panel
The warning lights and indicators on the instrument cluster, center
panel and outside rear view mirrors inform the driver of the status of
the vehicle’s various systems.
For the purpose of explanation, the following illustration displays all
warning lights and in dicators illuminated.
GS350_250_OM_OM30E16E_(EE).book Page 94 Tuesday, July 8, 2014 7:11 PM

99
2
2. Instrument cluster
Instrument cluster
GS350_250_OM_OM30E16E_(EE)
Gauges and meters
The units used on the speedometer may differ depending on the target region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
ECO lamp and SPORT lamp
Changes colors or brightness according to driving mode or way of driving
(
→ P. 1 0 1 )
Multi-information display
Presents the driver with a variety of driving-related data ( →P. 1 0 2 )
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position and shift range
Displays the selected shift position or selected shift range ( →P. 2 4 4 )
1
2
3
4
5
6
7
GS350_250_OM_OM30E16E_(EE).book Page 99 Tuesday, July 8, 2014 7:11 PM

1002. Instrument cluster
GS350_250_OM_OM30E16E_(EE)
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Tr i p m e t e r :
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the trip
meter.
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
Changing the display
8
Instrument panel light control
1
2
GS350_250_OM_OM30E16E_(EE).book Page 100 Tuesday, July 8, 201 4 7:11 PM

1012. Instrument cluster
2
Instrument cluster
GS350_250_OM_OM30E16E_(EE)
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be
adjusted individually. However, when the surroundings are bright (daytime, etc.),
turning on the tail lights will not change the instrument panel brightness.
■Limitation of brightness adjustment
The brightness of the instrument panel lights is automatically adjusted based on the
light sensor detecting how bright the surroundings are. However, if the instrument
panel brightness has been manually set to either the brightest or darkest setting, the
automatic adjustment will not be performed.
■ECO lamp and SPORT lamp
●When sport mode is selected, SPORT lamp (red) will illuminate.
●When all of the following conditions are satisfied and Eco-friendly driving, ECO
lamp (blue) will illuminate. (ECO lamp will become brighter the more Eco-friendly
driving you perform. Also, while the acceleration exceeds Zone of Eco driving,
ECO lamp turns off. [→P. 108] However, when Eco drive mode is selected, while
the acceleration exceeds Zone of Eco driving, ECO lamp does not turn off.):
• Driving with the shift lever in D
• Paddle shift switch is not operated.
• Either normal mode or Eco drive mode is selected.
• The vehicle speed is approximately 130 km/h (80 mph) or below.
■Customization
Settings (e.g. on/off operation of ECO lamp) can be changed.
(Customizable features: →P. 6 5 2 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( →P. 6 2 5 )
GS350_250_OM_OM30E16E_(EE).book Page 101 Tuesday, July 8, 201 4 7:11 PM

1022. Instrument cluster
GS350_250_OM_OM30E16E_(EE)
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
●Eco Driving Indicator (→P. 103)
●Outside temperature display
(→ P. 103)
●Trip information ( →P. 103)
Displays driving range, fuel consump-
tion and other cruising related infor-
mation
●
Tire inflation pressure (if equipped) ( →P. 105)
●Drive monitor ( →P. 105)
●Lexus parking assist-sensor display*1, 2 (if equipped)
●Dynamic radar cruise control display*1 (if equipped) ( →P. 2 8 9 )
●LKA (Lane-Keeping Assist) display*1 (if equipped) ( →P. 305)
●Warning messages ( →P. 5 5 2 )
Automatically displayed when a malfunction occurs in one of the vehicle’s sys-
tems. Display can be switched by pressing the “DISP” button. ( →P. 1 0 3 )
*1: Automatically displayed when the system is used. Display can be switched by
pressing the “DISP” button. ( →P. 1 0 3 )
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”
Display contents
GS350_250_OM_OM30E16E_(EE).book Page 102 Tuesday, July 8, 201 4 7:11 PM

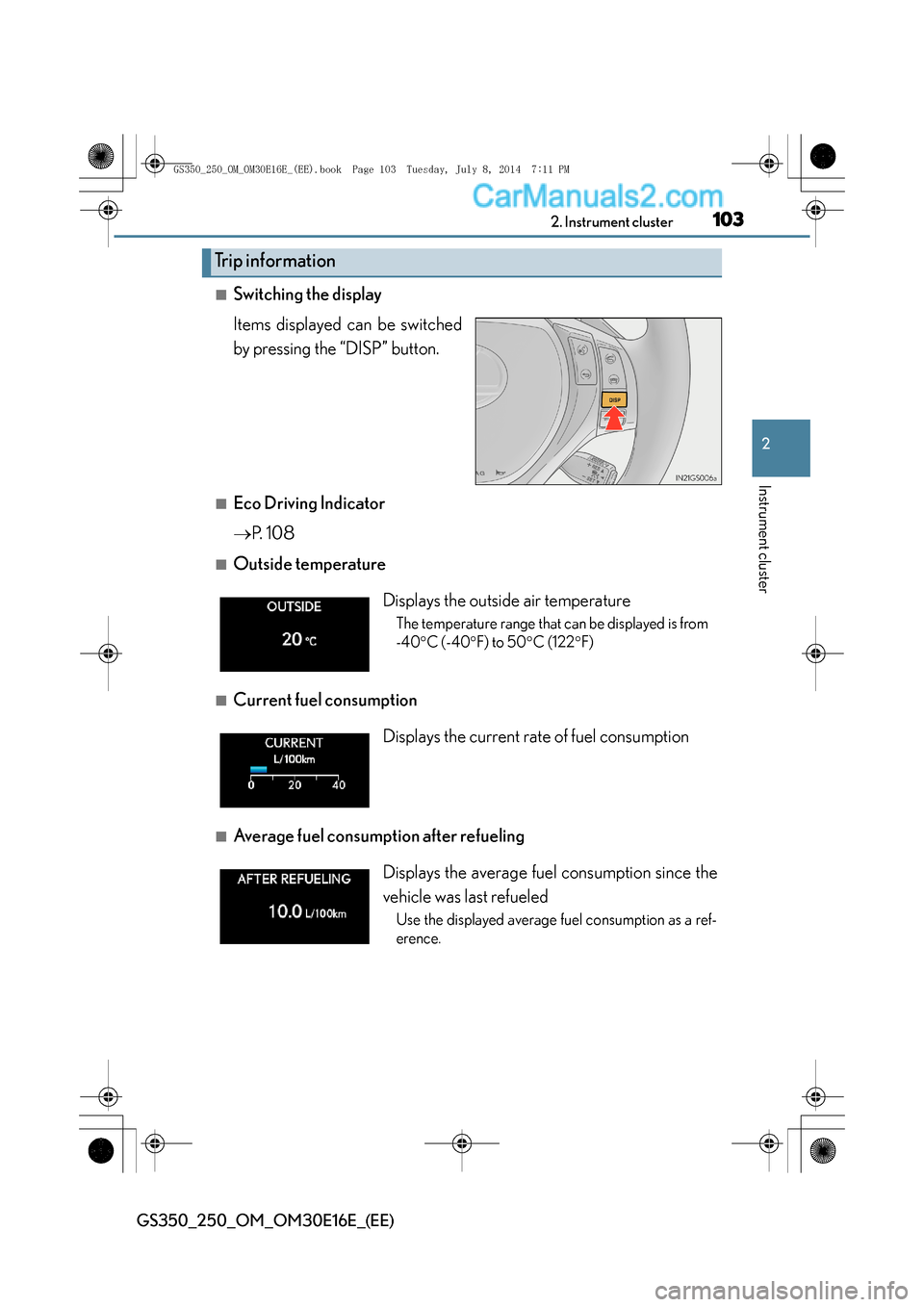

1032. Instrument cluster
2
Instrument cluster
GS350_250_OM_OM30E16E_(EE)
■Switching the display
Items displayed can be switched
by pressing the “DISP” button.
■Eco Driving Indicator
→P. 1 0 8
■Outside temperature
■Current fuel consumption
■Average fuel consumpt ion after refueling
Trip information
Displays the outside air temperature
The temperature range that can be displayed is from
-40°C (-40 °F) to 50 °C (122 °F)
Displays the current rate of fuel consumption
Displays the average fuel consumption since the
vehicle was last refueled
Use the displayed average fuel consumption as a ref-
erence.
