3635-1. Remote Touch screen
5
Interior features
GS350_250_OM_OM30E16E_(EE)
XFor 12.3-inch display
“∧ •∨ ” button
Press this button to change map scale and scroll through lists.
Home button
Press this button to display the home screen.
Remote Touch knob
Move in the desired direction to select a function, letter and screen button.
Press the knob to enter the selected function, letter or screen button.
“MENU” button
Press this button to display the “Menu” screen.
“MAP/VOICE” button
Press this button to display the vehicle’s current position.
1
2
3
4
5
GS350_250_OM_OM30E16E_(EE).book Page 363 Tuesday, July 8, 201 4 7:11 PM

3645-1. Remote Touch screen
GS350_250_OM_OM30E16E_(EE)
■Using the Remote Touch knobSelect: Move the knob in the
desired direction.
Enter: Push the knob.
■Screen display during low temperatures
When the ambient temperature is extremely low, screen response may be delayed
even if the Remote Touch is operated.
1
2
CAUTION
■When using the Remote Touch
●Do not allow fingers, fingernails or hair to become caught in the Remote Touch as
this may cause an injury.
●Be careful when selecting the Remote Touch in extreme temperatures as it may
become very hot or cold due to the temperature inside the vehicle.
NOTICE
■To prevent damage to the Remote Touch
●Do not allow the Remote Touch to come into contact with food, liquid, stickers or
lit cigarettes as doing so may cause it to change color, emit a strange odor or stop
functioning.
●Do not subject the Remote Touch to excessive pressure or strong impact as the
knob may bend or break off.
●Do not allow coins, contact lenses or other such items to become caught in the
Remote Touch as this may cause it to stop functioning.
●Items of clothing may rip if they become caught on the Remote Touch knob.
●If your hand or any object is on the Remote Touch knob when the engine switch is
turned to ACCESSORY mode, the Remote Touch knob may not operate prop-
erly.
GS350_250_OM_OM30E16E_(EE).book Page 364 Tuesday, July 8, 201 4 7:11 PM

3655-1. Remote Touch screen
5
Interior features
GS350_250_OM_OM30E16E_(EE)
Press the “MENU” button on the Remote Touch to display the “Menu”
screen.
The display may differ depending on the type of the system.
12.3-inch display: When an interruption screen is being displayed on the side dis-
play, the “Menu” screen will be shown on the main display.
“Menu” screen
XFor 8-inch displayXFor 12.3-inch display
SwitchFunction
Select to operate the audio/visual system.*1
Select to display the air conditioning control screen. (→P. 3 7 1 )
Select to display the hands-free operation screen.*1
Select to display the “Information” screen.*1
Select to display the fuel consumption screen. ( →P. 118)
Select to display the “Setup” screen.*1
GS350_250_OM_OM30E16E_(EE).book Page 365 Tuesday, July 8, 201 4 7:11 PM

3665-1. Remote Touch screen
GS350_250_OM_OM30E16E_(EE)
*1: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’SMANUAL”.
*2: If equipped
or “Display”
Select to adjust the contrast and brightness of the screens, turn
the screen off, etc.
*1
Select to display the navigation screen.*1, 2
SwitchFunction
GS350_250_OM_OM30E16E_(EE).book Page 366 Tuesday, July 8, 201 4 7:11 PM

3675-1. Remote Touch screen
5
Interior features
GS350_250_OM_OM30E16E_(EE)
The 12.3-inch display has a display area which is 1.5 times wider than that
of the 8-inch display.
■Full screen display
The initial screen and “Menu” screen fill the entirety of the display area.
12.3-inch display operation
GS350_250_OM_OM30E16E_(EE).book Page 367 Tuesday, July 8, 201 4 7:11 PM

3685-1. Remote Touch screen
GS350_250_OM_OM30E16E_(EE)
■Split-screen display
Different information can be displayed on the left and right of the
screen. For example, air conditioning system or audio screens can be
displayed and operated while the fuel consumption information screen
is being displayed. The large screen on the left of the display is called
the main display, and the small screen to the right is called the side dis-
play.
GS350_250_OM_OM30E16E_(EE).book Page 368 Tuesday, July 8, 2014 7:11 PM

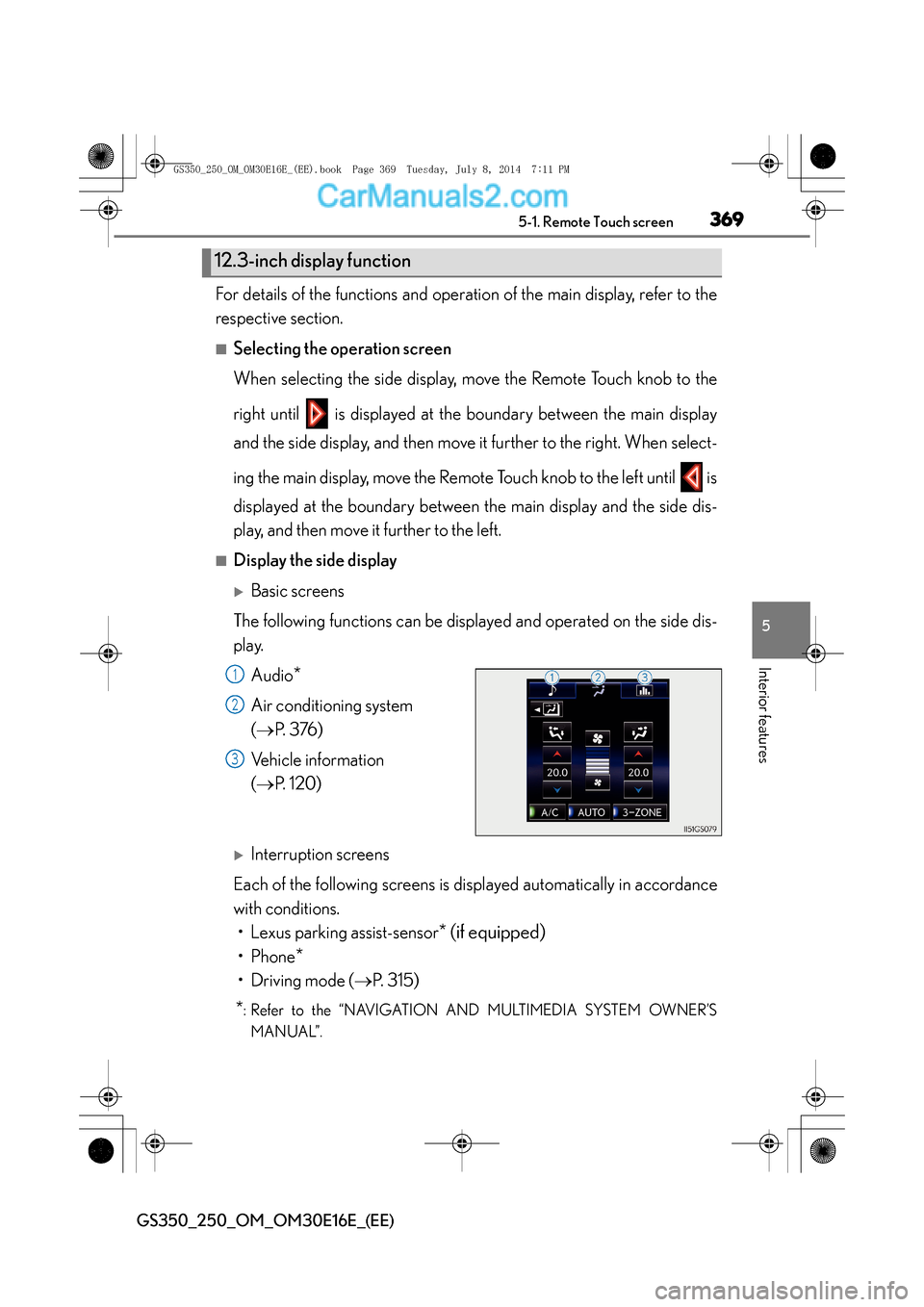

3695-1. Remote Touch screen
5
Interior features
GS350_250_OM_OM30E16E_(EE)
For details of the functions and operation of the main display, refer to the
respective section.
■Selecting the operation screen
When selecting the side display, move the Remote Touch knob to the
right until is displayed at the boundary between the main display
and the side display, and then move it further to the right. When select-
ing the main display, move the Remote Touch knob to the left until is
displayed at the boundary between the main display and the side dis-
play, and then move it further to the left.
■Display the side display
XBasic screens
The following functions can be displayed and operated on the side dis-
play. Audio
*
Air conditioning system
(→ P. 3 76 )
Vehicle information
( → P. 1 2 0 )
XInterruption screens
Each of the following screens is displayed automatically in accordance
with conditions. • Lexus parking assist-sensor
* (if equipped)
•Phone*
• Driving mode ( →P. 315)
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
12.3-inch display function
1
2
3
GS350_250_OM_OM30E16E_(EE).book Page 369 Tuesday, July 8, 201 4 7:11 PM

3705-1. Remote Touch screen
GS350_250_OM_OM30E16E_(EE)
■To display on the main display
Detailed information that is not shown on the side display can be set to
display on the main display.
Select , or .
