2014 Lexus ES350 display

17
ES350_QG_OM33A70U_(U)
■Changing the door unlock function setting
It is possible to set which doors the entry function unlocks using the wireless remote con-
trol.
Turn the “START STOP ENGINE” switch off.
When the indicator light on the key surface is not on, press and hold ,
or for approximately 5 seconds while pressing and holding .
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds, and
repeat step .)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open and close a door once after the settings have been changed. (If
a door is not opened within 60 seconds after is pressed, the doors will be locked
again and the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm. (P.1 8 )
1
2
2
Multi-information
displayUnlocking functionBeep
Holding the driver’s door han-
dle unlocks only the driver’s
door.
Exterior: Beeps 3 times
Interior: Pings once
Holding a passenger’s door
handle unlocks all the doors.
Holding a door handle unlocks
all the doors.Exterior: Beeps twice
Interior: Pings once
For details on what to do when the electronic key does not operate properly, see page 108.

24
ES350_QG_OM33A70U_(U)
Engine (Ignition) Switch
■Starting the engine
Check that the parking brake is set.
Check that the shift lever is set in P.
Firmly depress the brake pedal.
will be displayed on the
multi-information display. If it is not
displayed, the engine cannot be
started.
Press the “START STOP ENGINE”
switch.
The engine will crank until it starts or
for up to 30 seconds, whichever is
less.
Continue depressing the brake pedal
until the engine is completely started.
The engine can be started from any
“START STOP ENGINE” switch
mode.
Performing the following operations when carrying the electronic key on your person
starts the engine or changes “STA R T S TO P E N G I N E ” s w i t c h m o d e s .
1
2
3
4

25
ES350_QG_OM33A70U_(U)
■Stopping the engine
Stop the vehicle.
Shift the shift lever to P.
Set the parking brake.
Press the “START STOP ENGINE” switch.
Release the brake pedal and check that “POWER ON” on the multi-information dis-
play is off.
■Changing “START STOP ENGINE” switch modes
Modes can be changed by pressing the “START STOP ENGINE” switch with the brake
pedal released. (The mode changes each time the switch is pressed.)
Off
*
The emergency flashers can be used.
The multi-information display will not be
displayed.
ACCESSORY mode
Some electrical components such as the
audio system can be used.
“POWER ON” will be displayed on the
multi-information display.
IGNITION ON mode
All electrical components can be used.
“POWER ON” will be displayed on the
multi-information display.
*: If the shift lever is in a position other than
P when turning off the engine, the
“START STOP ENGINE” switch will be
turned to ACCESSORY mode, not to
off.
1
2
3
4
5

28
ES350_QG_OM33A70U_(U)
■Selecting gears in the S position
When the shift lever is in S, the shift lever can be operated as follows:
Upshifting
Downshifting
The selected shift range, from S1 to S6,
will be displayed in the meter.
The initial shift range in S mode is set
automatically to S5 or S4 according to
vehicle speed. However, the initial shift
range may be set to S3 if AI-SHIFT has
operated while the shift lever was in D.
1
2
■Shift ranges and their functions
Automatically selecting gears between 1 and 6 according to vehicle speed and driving
conditions. However, the gear is limited according to selected shift range.
You can choose from 6 levels of engine braking force.
A lower shift range will provide greater engine braking force than a higher shift range,
and the engine speed will also increase.

30
ES350_QG_OM33A70U_(U)
Multi-information Display
■Display contents
●Trip information
• Eco Driving Indicator Zone Display
• Outside temperature
• Current fuel consumption
• Average fuel consumption after refuel-
ing
• Average fuel consumption
• Average vehicle speed
• Driving range
•Elapsed time
• Tire inflation pressure (P. 4 9 )
●Drive monitor
• Outside temperature
• Average fuel consumption after refuel-
ing
• Driving range
●Intuitive parking assist display
* (if
equipped)
●Dynamic radar cruise control display
* (if
equipped)
●LDA (Lane Departure Alert) display
* (if
equipped)
●Wa r n i n g m e s s a g e s
*: Automatically displayed when the sys-
tem is used. Display can be switched by
pressing the “DISP” button.
The multi-information display presents the driver with a variety of driving-related data
including the current outside air temperature.

31
ES350_QG_OM33A70U_(U)
■Switching the display of trip information
Items displayed can be switched by press-
ing the “DISP” button.
If a problem is detected in any of the vehicle’s systems, a warning message is shown on the
multi-information display.

32
ES350_QG_OM33A70U_(U)
Eco Driving Indicator
Eco Driving Indicator Light
Eco Driving Indicator Light availability
can be customized. The default setting
is off.
During Eco-friendly acceleration (Eco
driving), Eco Driving Indicator Light
will turn on.
When the acceleration exceeds Zone
of Eco driving, or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator Zone Display
Zone of Eco driving
Eco driving ratio based on accelera-
tion
If the acceleration exceeds Zone of
Eco driving, the right side of Eco Driv-
ing Indicator Zone Display blinks.
Eco Driving Indicator will not operate in the
following conditions:
●The shift lever is anything other than D.
●Neither normal mode nor Eco drive
mode is selected.
●The vehicle speed is approximately 80
mph (130 km/h) or higher.1
2
3
4

41
ES350_QG_OM33A70U_(U)

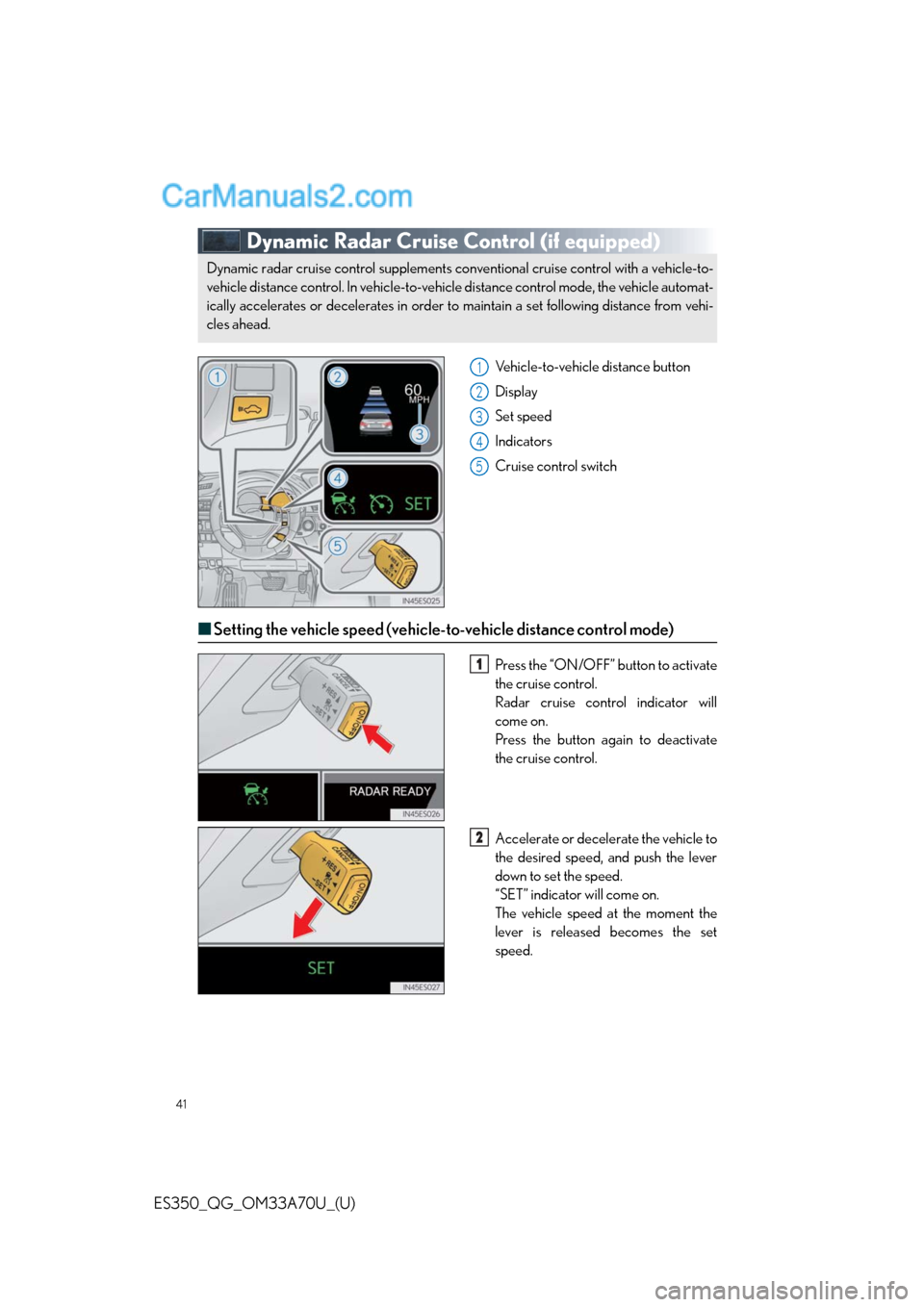

Dynamic Radar Cruise Control (if equipped)
Vehicle-to-vehicle distance button
Display
Set speed
Indicators
Cruise control switch
■Setting the vehicle speed (vehicle-to-vehicle distance control mode)
Press the “ON/OFF” button to activate
the cruise control.
Radar cruise control indicator will
come on.
Press the button again to deactivate
the cruise control.
Accelerate or decelerate the vehicle to
the desired speed, and push the lever
down to set the speed.
“SET” indicator will come on.
The vehicle speed at the moment the
lever is released becomes the set
speed.
Dynamic radar cruise control supplements conventional cruise control with a vehicle-to-
vehicle distance control. In vehicle-to-vehicle distance control mode, the vehicle automat-
ically accelerates or decelerates in order to maintain a set following distance from vehi-
cles ahead.
1
2
3
4
5
1
2
