2014 Lexus ES300h sensor

7807-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
Indicates that the Blind
Spot Monitor sensors or
the surrounding area on
the bumper is dirty or
covered with ice
Clean the sensor and its
surrounding area on the
bumper.
Indicates that the hybrid
system has overheatedThis message may be
displayed when driving
under severe operating
conditions. (For exam-
ple, when driving up a
long steep hill.)
Stop and check.
(→ P. 8 2 4 )
Indicates that remaining
fuel is approximately 2.6
gal. (9.7 L, 2.1 Imp.gal.) or
less
Refuel the vehicle.
Indicates that the “START
STOP ENGINE”
<“POWER”> switch is
turned off or turned to
ACCESSORY mode and
the driver’s door is
opened while the lights
are turned on
Turn the lights off.
Indicates that the driver’s
door was opened with the
shift position in any posi-
tion other than P
Shift the shift position to P.
Warning messageDetailsCorrection procedure
(If equipped)
(Hybrid vehicles)
(Flashes)
(Flashes)
(Hybrid vehicles)

7847-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supple-ment” for the maintenance interval applicable to your vehicle.
Warning messageDetailsCorrection procedure

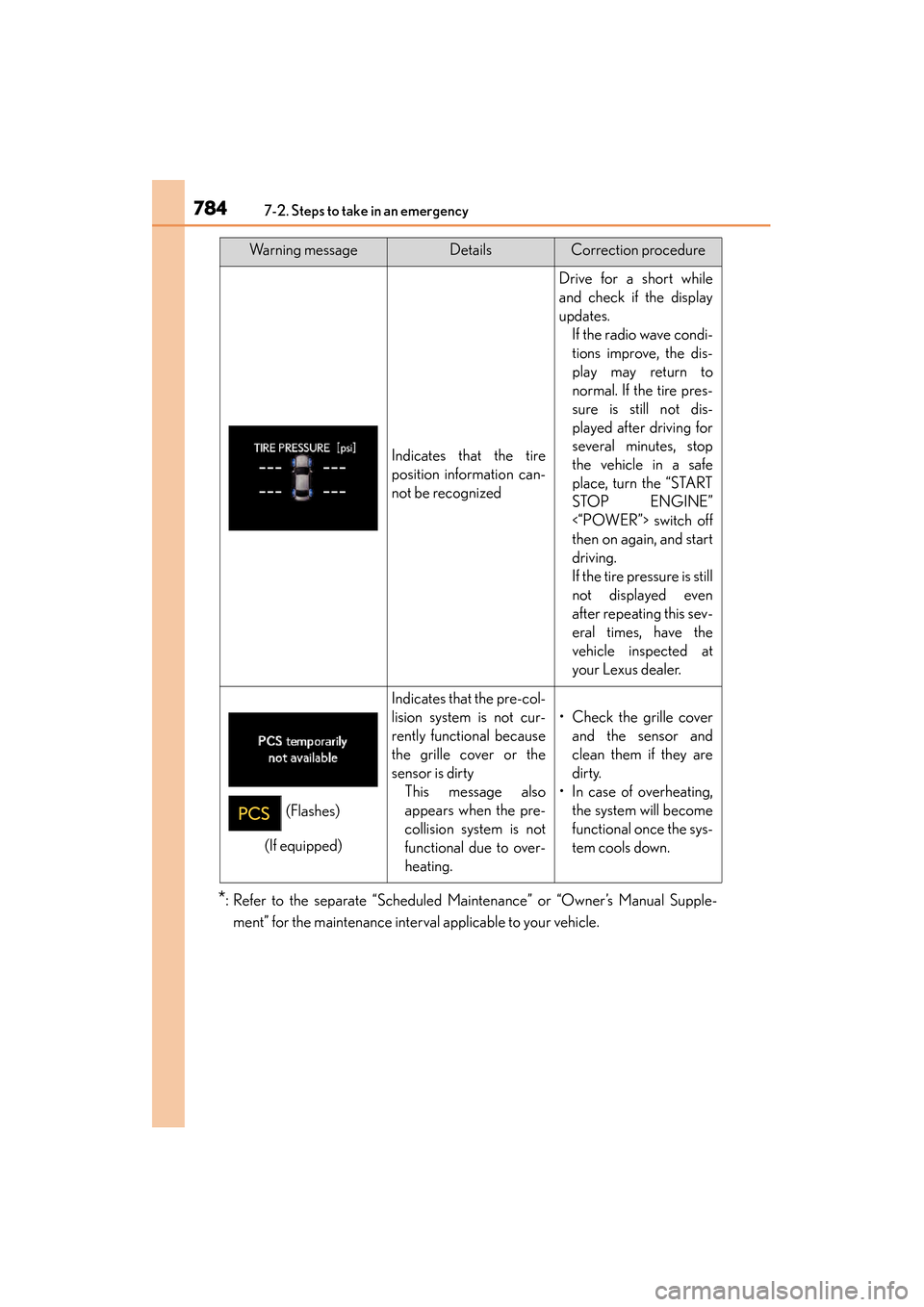

Indicates that the tire
position information can-
not be recognized
Drive for a short while
and check if the display
updates. If the radio wave condi-
tions improve, the dis-
play may return to
normal. If the tire pres-
sure is still not dis-
played after driving for
several minutes, stop
the vehicle in a safe
place, turn the “START
STOP ENGINE”
<“POWER”> switch off
then on again, and start
driving.
If the tire pressure is still
not displayed even
after repeating this sev-
eral times, have the
vehicle inspected at
your Lexus dealer.
Indicates that the pre-col-
lision system is not cur-
rently functional because
the grille cover or the
sensor is dirtyThis message also
appears when the pre-
collision system is not
functional due to over-
heating.
• Check the grille coverand the sensor and
clean them if they are
dirty.
• In case of overheating, the system will become
functional once the sys-
tem cools down.
(Flashes)
(If equipped)

870
ES350_300h_OM_OM33A60U_(U)
8-2. Customization
■Automatic light control system (→P. 2 2 8 )
■Lights ( →P. 228)
*:Except for Canada
FunctionDefault
settingCustom-
ized setting
“Headlamps-On Sensitiv-
ity”
(Adjust the sensitivity of the
ambient light sensor)
Standard-2 to 2O—O—OO
“Headlamps Auto-Off
Ti m e r ”
(Adjust the time
elapsed before the head-
lights automatically turn
off)
30 seconds
Off
O—O—OO60 seconds
90 seconds
Welcome light illumination
controlOnOff—————O
123456
FunctionDefault settingCustom-
ized setting
“Daytime Running Lights”
(Daytime running lights
can be disabled)
*
OnOffO—O—OO
123456

ES350_300h_OM_OM33A60U_(U)
8718-2. Customization
8
Vehicle specifications
■Intuitive parking assist* (→ P. 2 7 5 )
*: If equipped
■Automatic air condit ioning system (→P. 353, 365)
FunctionDefault
settingCustom-
ized setting
“Distance (Front)”
(Detection distance of the
front center sensor)
Fa rNearO—O——O
“Distance (Rear)”
(Detection distance of the
rear center sensor)
Fa rNearO—O——O
“Alert Volume”
(Alert volume can be
adjusted)
31 to 5O—O——O
“Display”
(when intuitive parking
assist is operating)All sensors displayedDisplay offO—O——O
123456
FunctionDefaultsettingCustom-
ized setting
“Efficient Ventilation
Mode”
(Switching between out-
side air and recirculated air
mode linked to “AUTO”
switch operation)
OnOff——O——O
“A u t o A / C M o d e ”
(A/C Auto switch opera-
tion)
OnOffO—O——O
“Smog Sensor Sensitivity”
(Exhaust gas sensor sensi-
tivity)
Standard-3 to 3O—O——O
123456

872
ES350_300h_OM_OM33A60U_(U)
8-2. Customization
■Illumination (→P. 6 1 1 )
FunctionDefault
settingCustom-
ized setting
Interior lights illumination
controlOnOff—————O
“Interior Lights Off Timer”
(Time elapsed before the
interior lights turn off)
15 seconds
Off
O—O—OO7. 5 s e c o n d s
30 seconds
Operation after the
“START STOP ENGINE”
<“POWER”> switch is
turned off
OnOff—————O
Operation when the doors
are unlockedOnOff—————O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff—————O
Footwell lightingOnOff—————O
Outer foot lightsOnOff—————O
“Exterior Lights Off Timer”
(Time elapsed before the
outer foot lights turn off)
15 seconds
Off
O—O—OO7. 5 s e c o n d s
30 seconds
“Ambient illumin. (instru-
ment panel)”
(Enable/disable operation
of the ornament lights on
the instrument panel)*
OnOff—O—OOO
Sensitivity of the ambient
light sensor used for dim-
ming the meter lights etc.
Standard-2 t o +2—————O
Sensitivity of the ambient
light sensor used for
brightening the meter
lights etc.
Standard-2 t o +2—————O
123456

896What to do if... (Troubleshooting)
ES350_300h_OM_OM33A60U_(U)●
The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(→
P. 76 2 )
●The parking brake indicator is on
Is the parking brake released? (→ P. 2 2 6 )
Depending on the situation, othe r types of warning buzzer may
also sound. ( →P. 759, 769)
●Did anyone inside the vehicle open a door during setting the
alarm?
The sensor detects it and the alarm sounds. ( →P. 8 6 )
To stop the alarm, turn the “START STOP ENGINE” <“POWER”>
switch to IGNITION ON mode or start the engine system>.
●Is the electronic key left inside the vehicle or the moon roof
opened?
Check the message on the multi-information display.
(→ P. 76 9 )
A warning buzzer sounds during driving
An alarm is activated
and the horn sounds
A warning buzzer sounds wh en leaving the vehicle

898Alphabetical index
ES350_300h_OM_OM33A60U_(U)
Alphabetical index
A/CAir conditioning filter .......................... 717
Automatic air conditioning system
*.................................. 353, 365
Humidity sensor ...................... 361, 374
Micro dust and pollen filter ............................................. 359, 371
ABS (Anti-lock Brake System) Function ................................................. 302
Warning light ...................................... 760
Air conditioning filter ............................ 717
Air conditioning system
*
Air conditioning filter .......................... 717
Automatic air conditioning system
*.................................. 353, 365
Humidity sensor ...................... 361, 374
Micro dust and pollen filter ............................................. 359, 371 Airbags
Airbag operating conditions .......... 46
Airbag precautions for your child ......................................... 41
Airbag warning light ........................ 760
Correct driving posture .................... 30
Curtain shield airbag operating conditions ....................... 46
Curtain shield airbag precautions .......................................... 43
Front passenger occupant classification system.........................50
General airbag precautions ............. 41
Locations of airbags............................ 38
Modification and disposal of airbags............................................... 45
Side airbag operating conditions ............................................. 46
Side airbag precautions ...................... 41
Side and curtain shield airbags operating conditions ....................... 46
Side and curtain shield
airbags precautions ........................... 41
SRS airbags ............................................. 38
Alarm ........................................................... 86 Warning buzzer ..................... 759, 769
Anchor brackets........................................ 61
Antennas (smart access system with push-button start) ..................... 127
Anti-lock Brake System (ABS)
Function .................................................. 302
Warning light ....................................... 760
Approach warning (dynamic radar cruise control)........................ 258
Armrest .................................................... 630
A

908Alphabetical index
ES350_300h_OM_OM33A60U_(U)
Parking assist sensors (intuitive parking assist) .................. 275
Parking brake
Operation .............................................. 226
Parking brake engaged warning buzzer ............................... 776
Parking brake engaged
warning message ........................... 776
Parking lights
Light switch ...........................................228
Replacing light bulbs ........................ 745
Welcome light illumination control ......................... 125
PCS (Pre-Collision System) Function ................................................... 310
PCS OFF switch ................................... 311
Warning light .........................................761
Warning message ........................ 771, 779, 784
Personal lights.......................................... 612
Power control unit ...................................76
Power control unit coolant Capacity ................................................ 839
Checking............................................... 689
Preparing and checking
before winter ................................... 330
Radiator ................................................... 691
Power easy access system .................156
Power outlets ......................................... 624
Power steering (Electric Power Steering system) ................................303
Warning light .........................................761
Warning message ............................. 772
“Power” switch.......................................208 Power trunk opener and closer ....... 147
Power windows
Door lock linked window operation ........................... 176
Jam protection function.................... 175
Operation................................................ 174
Window lock switch .......................... 174
Pre-Collision System (PCS)
Function ................................................... 310
PCS OFF switch ....................................311
Warning light ......................................... 761
Warning message........................ 771, 779, 784
Radar cruise control (dynamic radar cruise control).........................252
Radiator...................................................... 691
Radio
*.......................................... 385, 503
RBDS (Radio Broadcast
Data Systems)
*..................... 388, 506
RCTA (Rear Cross
Traffic Alert).......................................... 317
Rear personal lights .............................. 612
Rear side marker lights Light switch........................................... 228
Replacing light bulbs ....................... 745
Welcome light
illumination control.......................... 125
Rear door sunshades............................ 631
Rear sunshade Operation................................................631
Reverse operation feature ............ 632
P
R
