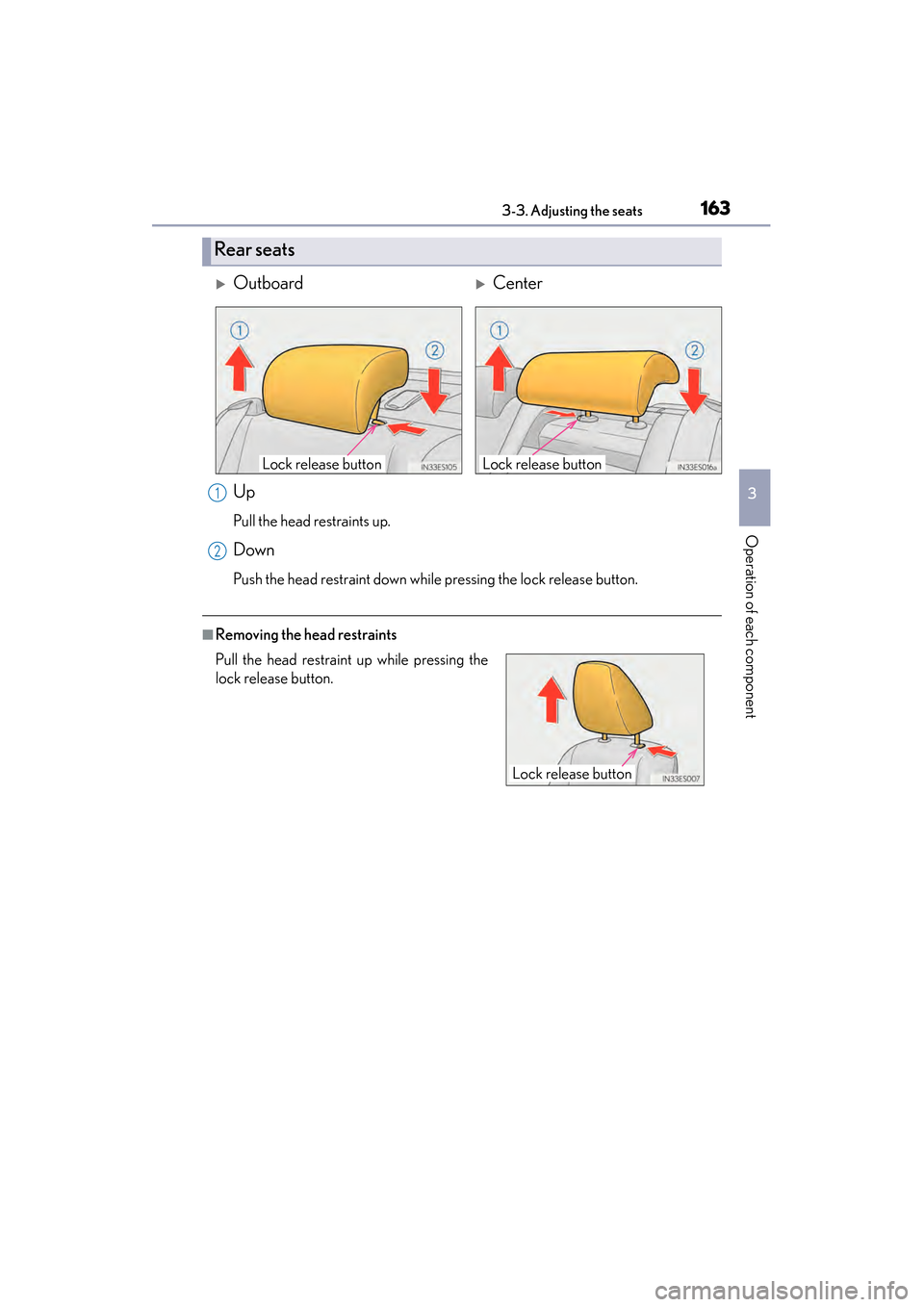

1633-3. Adjusting the seats
3
Operation of each component
Up
Pull the head restraints up.
Down
Push the head restraint down while pressing the lock release button.
■Removing the head restraints
Rear seats
XOutboardXCenter
Lock release buttonLock release button
Pull the head restraint up while pressing the
lock release button.
1
2
Lock release button

164
ES350_300h_OM_OM33A60U_(U)
3-3. Adjusting the seats
■Installing the head restraints
XFront seats
XRear seats
■Adjusting the height of the head restraints
■Adjusting the rear seat head restraint
Always raise the head restraint one level from the stowed position when using. Align the head restraint with the installation
holes and push it down to the lock position.
Press and hold the lock release button when
lowering the head restraint.
Align the head restraint with the installation
holes and push it down to the lowest lock
position while pressing the lock release but-
ton.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Lock release button
Lock release button

ES350_300h_OM_OM33A60U_(U)
1653-3. Adjusting the seats
3
Operation of each component
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure they are
locked in position.
●Do not drive with the head restraints removed.

1673-4. Adjusting the steering wheel and mirrors
3
Operation of each component
ES350_300h_OM_OM33A60U_(U)
■The power adjustment type steering wheel can be adjusted when
The “START STOP ENGINE” <“POWER”> switch is in ACCESSORY or
IGNITION ON mode
*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of“START STOP ENGINE” <“POWER”> switch mode.
■Automatic adjustment of the steering position (power adjustment type)
A desired steering position can be entered to memory and recalled automatically by
the driving position memory system. ( →P. 1 5 6 )
■Power easy access system (power adjustment type)
The steering wheel and driver’s seat move in accordance with “START STOP
ENGINE” <“POWER”> switch mode and the driver’s seat belt condition. ( →P. 1 5 6 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.
■After adjusting the steering wheel (manual adjustment type)
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an accident,
and resulting in death or serious injury.

174
ES350_300h_OM_OM33A60U_(U)
3-5. Opening, closing the windows and moon roof
Powe r w i n d ows
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:Closing
One-touch closing
*
Opening
One-touch opening
*
*
: To stop the window partway, operate the switch in the opposite direction.
Press the switch to lock the passen-
ger window switches.
Use this switch to prevent children
from accidentally opening or closing a
passenger window.
Opening and closing procedures
1
2
3
4
Window lock switch

176
ES350_300h_OM_OM33A60U_(U)
3-5. Opening, closing the windows and moon roof
■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key.*
(→ P. 8 1 0 )
●The power windows can be opened using the wireless remote control.* (→ P. 1 3 9 )
*: These settings must be customized at your Lexus dealer.
■When the 12-volt battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch after
reconnecting the battery.
■Power windows open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the
instrument cluster when the “START STOP ENGINE” <“POWER”> switch is turned
off and the driver’s door is opened with the power windows open.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: →P. 8 6 2 )
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Closing the windows
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in some
instances, even death.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the window fully closes.

ES350_300h_OM_OM33A60U_(U)
1793-5. Opening, closing the windows and moon roof
3
Operation of each component
■The moon roof can be operated when
The “START STOP ENGINE” <“POWER”> switch is in IGNITION ON
mode.
■Operating the moon roof after turning the engine off
The moon roof can be operated for approximately 45 seconds after the “START
STOP ENGINE” <“POWER”> switch is turned to ACCESSORY mode or turned
off. It cannot, however, be operated once either front door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while the moon roof is
closing or tilting down, travel is stopped and the moon roof opens slightly.
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will open
automatically when the moon roof is opened.
■Door lock linked moon roof operation
●The moon roof can be opened and closed using the mechanical key.* ( → P. 8 1 0 )
●The moon roof can be opened using the wireless remote control.* (→ P. 1 3 9 )
*: These settings must be customized at your Lexus dealer.

ES350_300h_OM_OM33A60U_(U)
1813-5. Opening, closing the windows and moon roof
3
Operation of each component
■Moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the
instrument cluster when the “START STOP ENGINE” <“POWER”> switch is turned
off and the driver’s door is opened with the moon roof open.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features: →P. 8 6 2 )
CAUTION
Observe the following precautions.
Failure to do so may cause death or serious injury.
■Opening the moon roof
●Do not allow any passengers to put their hands or heads outside the vehicle while
it is moving.
●Do not sit on top of the moon roof.
■Closing the moon roof
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when the moon roof is being operated.
●Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the moon roof fully closes.
