2. Instrument cluster
■Setting display automatic cancelation
In the following situations, setting display in which the settings can be changed
through the “DISP” button will automatically be turned off.
●When a warning message appears while the setting display is displayed
●When the vehicle begins to move while the setting display is displayed
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the “START
STOP ENGINE” <“POWER”> switch is turned to IGNITION ON mode. It
may also take a few minutes to display the tire inflation pressure after inflation pres-
sure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperature. The displayed values may also be
different from the values measured using a tire pressure gauge.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is character-
istic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Setting of available languages can be changed. (Customizable features →P. 8 6 2 )

ES350_300h_OM_OM33A60U_(U)
1092. Instrument cluster
2
Instrument cluster

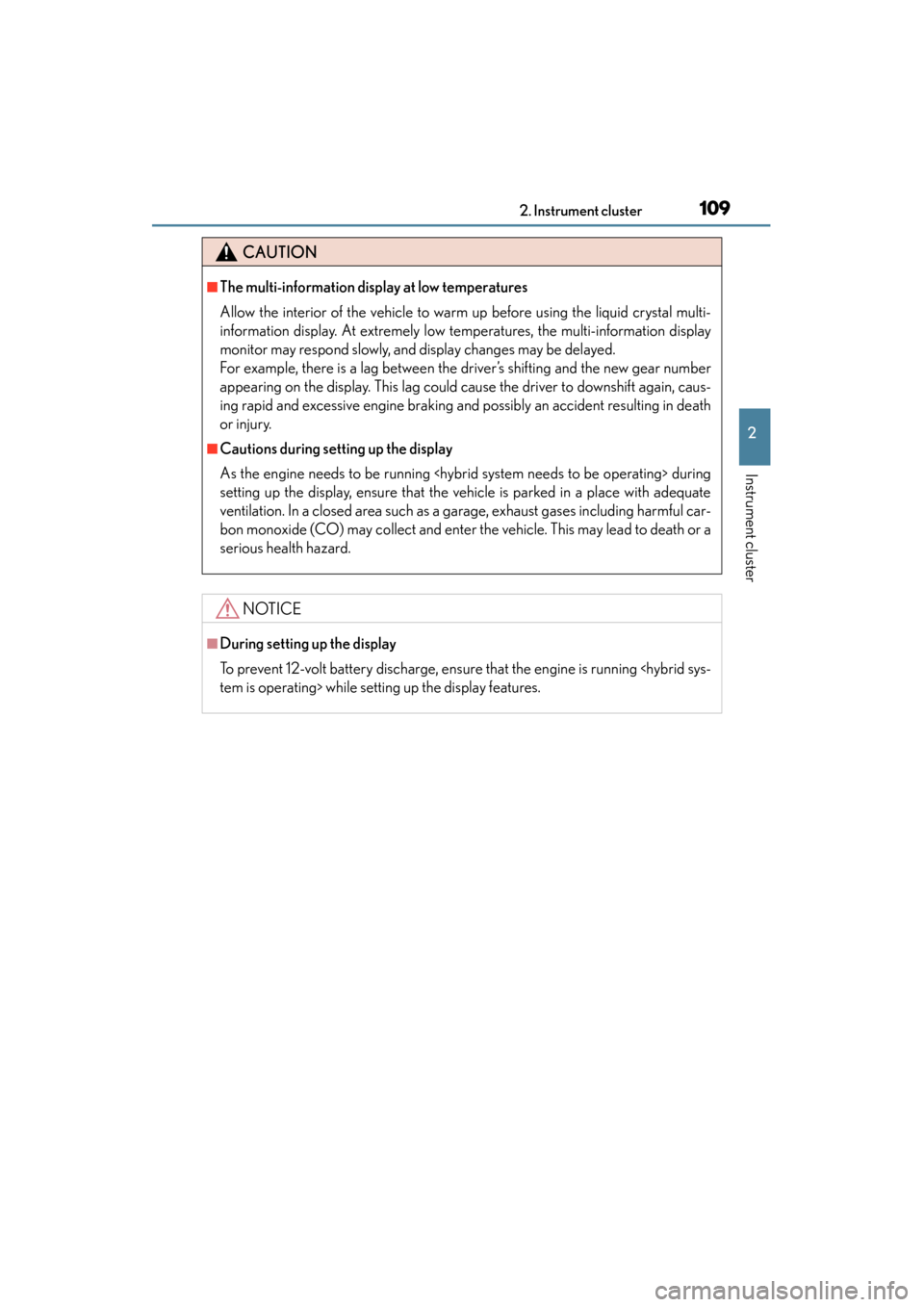

CAUTION
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal multi-
information display. At extremely low temperatures, the multi-information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, caus-
ing rapid and excessive engine braking and possibly an accident resulting in death
or injury.
■Cautions during setting up the display
As the engine needs to be running during
setting up the display, ensure that the vehicle is parked in a place with adequate
ventilation. In a closed area such as a garage, exhaust gases including harmful car-
bon monoxide (CO) may collect and enter the vehicle. This may lead to death or a
serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the engine is running tem is operating> while setting up the display features.

110
ES350_300h_OM_OM33A60U_(U)
2. Instrument cluster
Energy monitor/consumption screen
Navigation system screen or
Lexus Display Audio system
screen (if equipped)
Multi-information display
You can view the status of your vehicle on the multi-information display
and the navigation system screen or Lexus Display Audio system
screen.
1
2

ES350_300h_OM_OM33A60U_(U)
1112. Instrument cluster
2
Instrument cluster
XNavigation system
Remote Touch
*
“MENU” button
Remote Touch knob
*: For use of Remote Touch, refer to the “Navigation System Owner’s
Manual”.
XLexus Display Audio system
Lexus Display Audio controller
(→ P. 3 3 8 )
“MENU” button
Displaying the “MENU” screen
Lexus Display Audio controller
Turn or move the controller in the four
direction to select a function, number
and screen button.
Push the controller to enter the
selected function, number and screen
button.
Remote Touch/Lexus Display Audio controller (if equipped)
1
2
1
2

112
ES350_300h_OM_OM33A60U_(U)
2. Instrument cluster
■Navigation system screen or Lexus Display Audio system screen (if
equipped)
XVehicles with a navigation system
Press the “MENU” button on Remote Touch.
Select “Info/Apps” on the
“Menu” screen.
Select “Fuel Consumption” on
the “Information” screen.
If the “Energy Monitor” screen
is not displayed, select
“Energy”.
XVehicles with Lexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller.
Select “Car” on the “Menu”
screen.
If the “Energy Monitor” screen
is not displayed, select
“Energy”.
Energy monitor (hybrid vehicles)
1
2
3
1
2

ES350_300h_OM_OM33A60U_(U)
1132. Instrument cluster
2
Instrument cluster
■Multi-information display
Press the “DISP” button on the
steering wheel several times to
select the energy monitor display.

114
ES350_300h_OM_OM33A60U_(U)
2. Instrument cluster
Navigation system
screen/Lexus Display Audio system screen
Multi-information display
When the vehicle is pow-
ered by the electric motor
(traction motor)
XNavigation system
XLexus Display Audio
system
When the vehicle is pow-
ered by both the gasoline
engine and the electric
motor (traction motor)
XNavigation system
XLexus Display Audio
system
When the vehicle is pow-
ered by the gasoline engine
XNavigation system
XLexus Display Audio
system

ES350_300h_OM_OM33A60U_(U)
1152. Instrument cluster
2
Instrument cluster
When the vehicle is charg-
ing the hybrid battery
(traction battery)
XNavigation system
XLexus Display Audio
system
XNavigation system
XLexus Display Audio
system
When there is no energy
flow
XNavigation system
XLexus Display Audio
system
Navigation system
screen/Lexus Display Audio system screen
Multi-information display
