ES350_300h_OM_OM33A60U_(U)
1593-3. Adjusting the seats
3
Operation of each component
■Operating the driving position memory after turning the “START STOP ENGINE”
<“POWER”> switch off
Driver’s seat:
Recorded seat positions can be activated up to 180 seconds after the driver’s door is
opened and another 60 seconds after it is closed again.
Front passenger’s seat:
Recorded seat positions can be activated up to 180 seconds after the front passen-
ger’s door is opened.
■In order to correctly use the driving position memory function
If a seat position is already in the furthest possible position and the seat is operated in
the same direction, the recorded position may be slightly different when it is recalled.
Each electronic key can be registered to recall your preferred driving
position.
■Registering procedure
Record your driving position to button “1”, “2” or “3” before performing
the following:
Carry only the key you want to register, and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be
recorded properly.
Check that the shift lever is in P.
Turn the “START STOP ENGINE” <“POWER”> switch to IGNI-
TION ON mode.
Recall the driving position that you want to record.
Memory recall function (driver’s side only)
1
2
3

160
ES350_300h_OM_OM33A60U_(U)
3-3. Adjusting the seats
While pressing the recalled
button, press and hold the
door lock switch (either lock or
unlock) until the buzzer
sounds.
If the button could not be regis-
tered, the buzzer sounds continu-
ously for approximately 3 seconds.
■Recall procedureCarry the electronic key that has been registered to the driving posi-
tion, and then unlock and open the driver’s door using the smart
access system with push-button start or wireless remote control.
The driving position will move to the recorded position (not including the
steering wheel). However, the seat will move to a position slightly behind the
recorded position in order to make entering the vehicle easier.
If the driving position is in a position that has already been recorded, the seat
and outside rear view mirrors will not move.
Turn the “START STOP ENGINE” <“POWER”> switch to ACCES-
SORY mode or IGNITION ON mode, or fasten a seat belt.
The seat and steering wheel will move to the recorded position.
4
1
2

ES350_300h_OM_OM33A60U_(U)
1613-3. Adjusting the seats
3
Operation of each component
■Cancelation procedure
Carry only the key you want to cancel and then close the driver’s door.
If 2 or more keys are in the vehicle, the driving position cannot be can-
celed properly.Turn the “START STOP ENGINE” <“POWER”> switch to
IGNITION ON mode.
While pressing the “SET” button, press and hold the door lock switch
(either lock or unlock) until the buzzer sounds twice.
If the button could not be canceled, the buzzer sounds continuously for
approximately 3 seconds.
■Recalling the driving position using the memory recall function
●Different driving positions can be registered for each electronic key. Therefore, the
driving position that is recalled may be different depending on the key being car-
ried.
●If a door other than the driver’s door is unlocked with the smart access system with
push-button start, the driving position cannot be recalled. In this case, press the
driving position button which has been set.
■Customization
The unlock door settings of the memory recall function can be customized. (Cus-
tomizable features: →P. 8 6 2 )
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.
1
2

1693-4. Adjusting the steering wheel and mirrors
3
Operation of each component
ES350_300h_OM_OM33A60U_(U)
Responding to the level of brightness of the headlights of vehicles behind,
the reflected light is automatically reduced.
XWithout compass
Changing automatic anti-glare
function mode
ON
OFF
When the automatic anti-glare func-
tion is in ON mode, the indicator illu-
minates.
The function will set to ON mode
each time the “START STOP
ENGINE” <“POWER”> switch is
turned to IGNITION ON
mode.
Pressing the button turns the function
to OFF mode. (The indicator also
turns off.)
XWith compass
Turning automatic anti-glare
function mode on/off
When the automatic anti-glare func-
tion is in ON mode, the indicator illu-
minates.
The function will set to ON mode
each time the “START STOP
ENGINE” <“POWER”> switch is
turned to IGNITION ON
mode.
Anti-glare function
Indicator
1
2
Indicator

ES350_300h_OM_OM33A60U_(U)

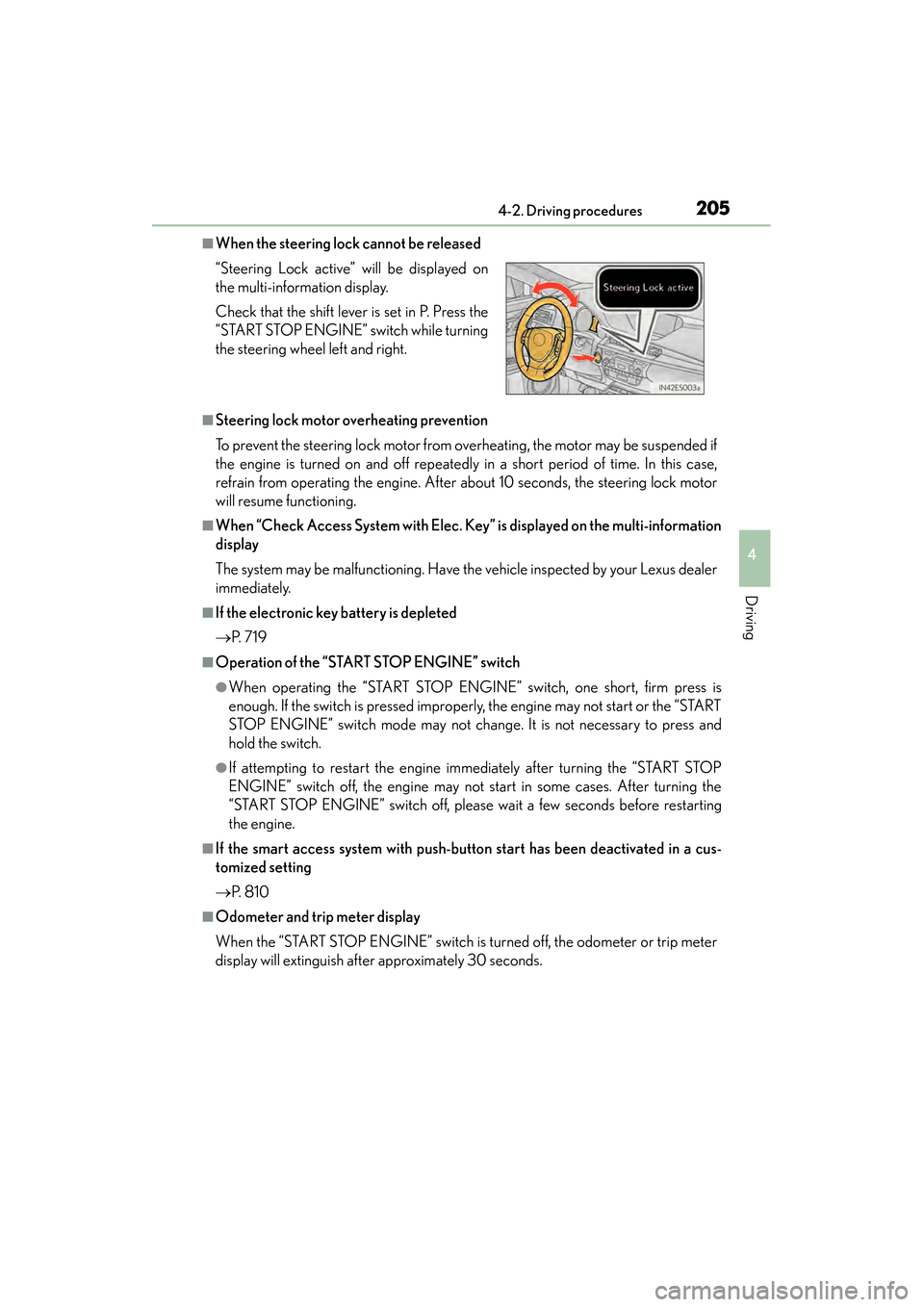

2054-2. Driving procedures
4
Driving
■When the steering lock cannot be released
■Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, the motor may be suspended if
the engine is turned on and off repeatedly in a short period of time. In this case,
refrain from operating the engine. After about 10 seconds, the steering lock motor
will resume functioning.
■When “Check Access System with Elec. Key” is displayed on the multi-information
display
The system may be malfunctioning. Have the vehicle inspected by your Lexus dealer
immediately.
■If the electronic key battery is depleted
→P. 7 1 9
■Operation of the “START STOP ENGINE” switch
●When operating the “START STOP ENGINE” switch, one short, firm press is
enough. If the switch is pressed improperly, the engine may not start or the “START
STOP ENGINE” switch mode may not change. It is not necessary to press and
hold the switch.
●If attempting to restart the engine immediately after turning the “START STOP
ENGINE” switch off, the engine may not start in some cases. After turning the
“START STOP ENGINE” switch off, please wait a few seconds before restarting
the engine.
■If the smart access system with push-button start has been deactivated in a cus-
tomized setting
→P. 8 1 0
■Odometer and trip meter display
When the “START STOP ENGINE” switch is turned off, the odometer or trip meter
display will extinguish after approximately 30 seconds. “Steering Lock active” will be displayed on
the multi-information display.
Check that the shift lever is set in P. Press the
“START STOP ENGINE” switch while turning
the steering wheel left and right.

ES350_300h_OM_OM33A60U_(U)
2554-5. Using the driving support systems
4
Driving
Pressing the button changes the
vehicle-to-vehicle distance as fol-
lows:Long
Medium
Short
The vehicle-to-vehicle distance is set
automatically to long mode when the
“START STOP ENGINE”
<“POWER”> switch is turned to IGNI-
TION ON mode.
If a vehicle is running ahead of you, the
preceding vehicle mark will also be
displayed.
Select a distance from the table below. Note that the distances shown cor-
respond to a vehicle speed of 50 mph (80 km/h). Vehicle-to-vehicle dis-
tance increases/decreases in accordance with vehicle speed.
Changing the vehicle-to-vehicle distance
Preceding
vehicle mark
1
2
3
Vehicle-to-vehicle distance settings
Distance optionsVehicle-to-vehicle distance
LongApproximately 160 ft. (50 m)
MediumApproximately 130 ft. (40 m)
ShortApproximately 100 ft. (30 m)

ES350_300h_OM_OM33A60U_(U)
2594-5. Using the driving support systems
4
Driving
When constant speed control mode is selected, your vehicle will maintain
a set speed without controlling the vehicle-to-vehicle distance. Select this
mode only when vehicle-to-vehicle distance control mode does not func-
tion correctly due to dirt etc.
Press the “ON/OFF” button to
activate the cruise control.
Radar cruise control indicator will
come on.
Press the button again to deactivate
the cruise control.
Switch to constant speed control
mode.
(Push the lever forward and hold for approximately 1 second.)
Cruise control indicator will come on.
When in constant speed control mode, to return to vehicle-to-vehicle distance
control mode, push the lever forward agai n and hold for approximately 1 second.
After the desired speed has been set, it is not possible to return to vehicle-to-vehi-
cle distance control mode.
If the “START STOP ENGINE” <“POWER”> switch is turned off and then turned
to IGNITION ON mode again, the vehicle will automatically return to
vehicle-to-vehicle distance control mode.
Adjusting the speed setting: →P. 2 4 9
Canceling and resuming the speed setting: →P. 2 4 9
Selecting conventional constant speed control mode
1
2

343
ES350_300h_OM_OM33A60U_(U)
5-1. Lexus Display Audio system
5
Interior features
Display settings
Turns off screen
The screen is turned off. To turn it on,
press the “AUDIO” or “MENU” but-
ton on the Lexus Display Audio con-
troller.
Changes to day mode
(→P. 343)
Adjusts screen contrast/bright-
ness ( →P. 3 4 4 )
Adjusts screen contrast/bright-
ness of rear view monitor camera
(→ P. 3 4 4 )
When the headlights are turned on, the screen dims.
However, the screen can be switched to day mode by selecting “Day
Mode”.
If the screen is set in day mode with the headlight switch turned on, this condition
is memorized even with the “START STOP ENGINE” <“POWER”> switch is
turned off.
You can adjust the contrast and brightness of the screen and also turn
the display off.
To display the “Display Settings” screen, press the “MENU” button on
the Lexus Display Audio controller and then select “Display” on the
“Menu” screen.
1
2
3
4
Changing between day mode and night mode
