3425-1. Lexus Display Audio system
ES350_300h_OM_OM33A60U_(U)
■When using the screen
●Under extremely cold conditions, the Lexus Display Audio controller may react
slowly.
●If the screen is cold, the display may be dark, or the system may seem to be operat-
ing slightly slower than normal.
●The screen may seem dark and hard to see when viewed through sunglasses.
Change your angle of viewing, adjust the display on the “Display Settings” screen
(→ P. 343) or remove your sunglasses.
CAUTION
■Using the Lexus Display Audio controller
●Do not allow fingers, fingernails or hair to become caught in the Lexus Display
Audio controller as this may cause an injury.
●Be careful when touching the Lexus Display Audio controller in extreme temper-
atures as it may become very hot or cold due to the temperature inside the vehi-
cle.
NOTICE
■To prevent the Lexus Display Audio controller malfunction
●Do not allow the Lexus Display Audio controller to come into contact with food,
liquid, stickers or lit cigarettes as doing so may cause it to change color, emit a
strange odor or stop functioning.
●Do not subject the Lexus Display Audio controller to excessive pressure or
strong impact as the controller may bend or break off.
●Do not allow coins, contact lenses or other such items to become caught in the
Lexus Display Audio controller as this may cause it to stop functioning.
●Items of clothing may rip if they become caught on the Lexus Display Audio con-
troller.
●If your hand or any object is on the Lexus Display Audio controller when the
“START STOP ENGINE” <“POWER”> switch is turned to ACCESSORY mode,
the Lexus Display Audio controller may not operate properly.

343
ES350_300h_OM_OM33A60U_(U)
5-1. Lexus Display Audio system
5
Interior features
Display settings
Turns off screen
The screen is turned off. To turn it on,
press the “AUDIO” or “MENU” but-
ton on the Lexus Display Audio con-
troller.
Changes to day mode
(→P. 343)
Adjusts screen contrast/bright-
ness ( →P. 3 4 4 )
Adjusts screen contrast/bright-
ness of rear view monitor camera
(→ P. 3 4 4 )
When the headlights are turned on, the screen dims.
However, the screen can be switched to day mode by selecting “Day
Mode”.
If the screen is set in day mode with the headlight switch turned on, this condition
is memorized even with the “START STOP ENGINE” <“POWER”> switch is
turned off.
You can adjust the contrast and brightness of the screen and also turn
the display off.
To display the “Display Settings” screen, press the “MENU” button on
the Lexus Display Audio controller and then select “Display” on the
“Menu” screen.
1
2
3
4
Changing between day mode and night mode

3445-1. Lexus Display Audio system
ES350_300h_OM_OM33A60U_(U)
Select “General” or “Camera” on the “Display Settings” screen.
Adjust the display as desired
using “+” or “-”.
Select “Contrast” or “Brightness”
using the “<<” or “>>”.
Select “OK”.
Adjusting the screen contrast/brightness
1
2
“-”“+”
“Contrast”WeakerStronger
“Brightness”DarkerBrighter
3

345
ES350_300h_OM_OM33A60U_(U)
5-1. Lexus Display Audio system
5
Interior features
Setup menu
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
You can change the Lexus Display Audio system to your desired set-
ting.
To display the “Setup” screen, press the “MENU” button on the Lexus
Display Audio controller and then select “Setup” on the “Menu”
screen.
ButtonPa g e
“General”P. 3 4 6
“Voice”P. 3 5 0
“Bluetooth*”P. 4 5 9
“Phone”P. 4 7 8
“A u d i o ”P. 3 4 9
“Vehicle”P. 3 4 8

3465-1. Lexus Display Audio system
ES350_300h_OM_OM33A60U_(U)
This screen is used for various settings.Display the “Setup” screen. ( →P. 345)
Select “General” on the “Setup” screen.
Select language ( →P. 3 4 7 )
Beep on/off
Select button color
Customize Startup Image
The initial screen displayed when the “START STOP ENGINE” <“POWER”>
switch is turned to ACCESSORY or IGNITION ON mode can be
changed to image 1, or image 2 which displays the vehicle screen.
Animation on/off
The animation effect for audio source selection screen, screen transitions, etc.
can be set to “On” or “Off”.
Personal data can be deleted. ( →P. 3 4 7 )
When you complete settings, select “Save”.
General settings
1
2
XPa g e 1XPa g e 2
1
2
3
4
5
6
3

ES350_300h_OM_OM33A60U_(U)
3475-1. Lexus Display Audio system
5
Interior features
■Selecting a languageSelect “Language” on the “General Settings” screen.
Select the desired language.
The selectable languages may dif-
fer depending on the model or
region.
■Delete personal dataSelect “Delete Personal Data” on the “General Settings” screen.
Select “Delete”.
Check carefully beforehand, as
data cannot be retrieved once
deleted.
A confirmation screen will be displayed. Select “Yes”.
The following personal data can be deleted or turned to their default
settings.
• Phonebook data
•Call history data
• Speed dial data
•Bluetooth
® devices data
• Phone sound settings
• Detailed Bluetooth
® settings
•Sound settings
• Preset switch data
• Last used radio station
1
2
1
2
3

3485-1. Lexus Display Audio system
ES350_300h_OM_OM33A60U_(U)
This screen is used for various vehicle settings.Display the “Setup” screen. ( →P. 345)
Select “Vehicle” on the “Setup” screen.
Vehicle customization settings
(→ P. 3 4 8 )
LEXUS park assist settings
∗
(→ P. 283)
■Vehicle customization settings
Various setting can be changed.
Select “Vehicle Customization” on the “Vehicle Settings” screen.
Refer to the list of settings that
can be changed for details.
(→ P. 863)
When you complete settings, select “Save”.
Ve h i c l e s e t t i n g s
1
2
∗: If equipped
1
2
1
2

ES350_300h_OM_OM33A60U_(U)
3495-1. Lexus Display Audio system
5
Interior features

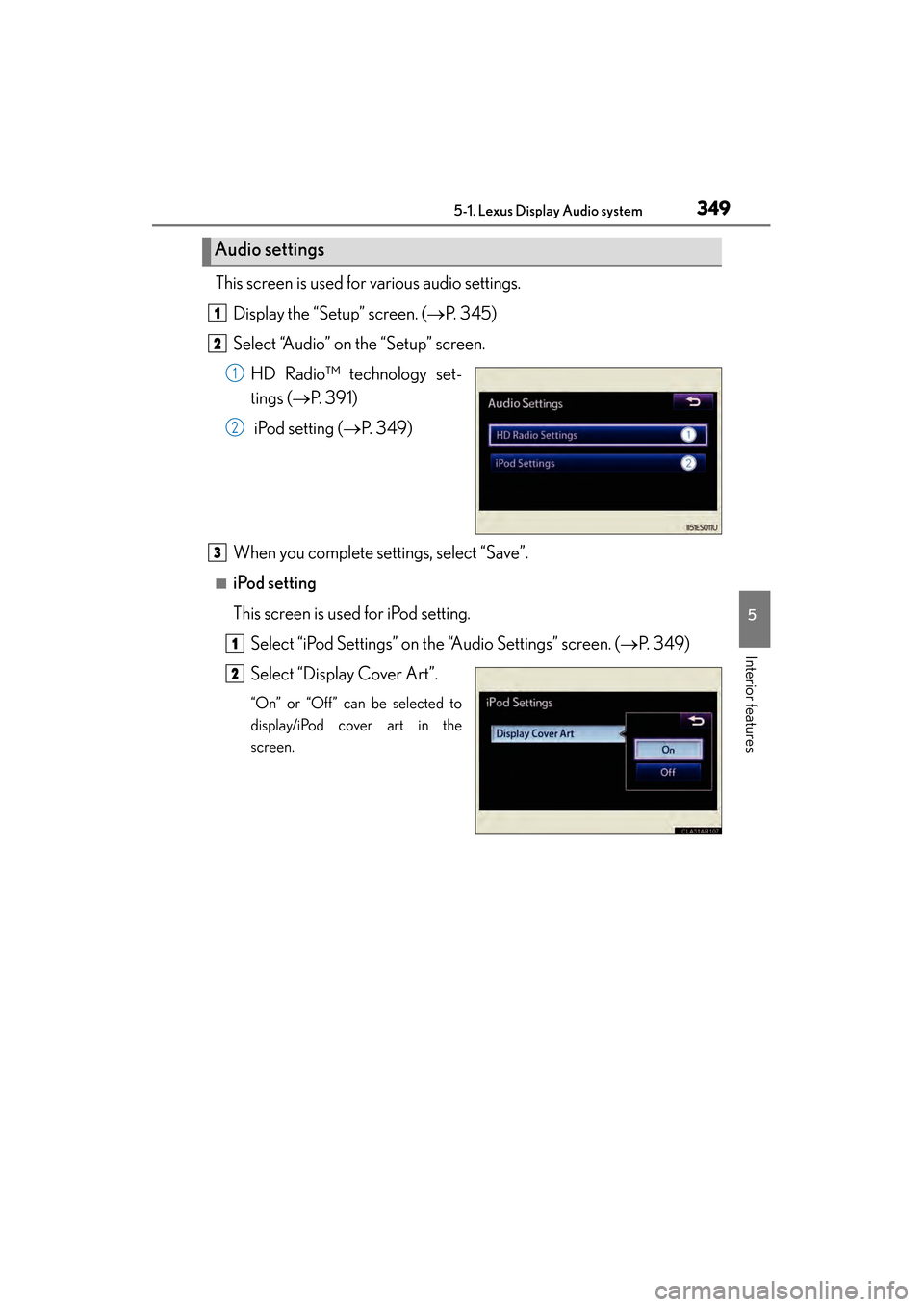

This screen is used for various audio settings.Display the “Setup” screen. ( →P. 345)
Select “Audio” on the “Setup” screen.
HD Radio™ technology set-
tings ( →P. 391)
iPod setting ( →P. 3 4 9 )
When you complete settings, select “Save”.
■iPod setting
This screen is used for iPod setting. Select “iPod Settings” on the “Audio Settings” screen. ( →P. 3 4 9 )
Select “Display Cover Art”.
“On” or “Off” can be selected to
display/iPod cover art in the
screen.
Audio settings
1
2
1
2
3
1
2
