2014 Lexus ES300h steering

7567-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
■Caution while towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelet and the cable or chain. Always be cautious of the
surroundings and other vehicles while towing.
●Gasoline vehicles: If the engine is not running, the power assist for the brakes and
steering will not function, making steering and braking more difficult.
Hybrid vehicles: If the hybrid system is off, the power assist for the brakes and
steering will not function, making steering and braking more difficult.
■Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing.
NOTICE
■To prevent causing serious damage to the transmission when towing using a
wheel-lift type truck
Never tow this vehicle from the rear with the front wheels on the ground. This may
cause serious damage to the transmission.
■To prevent damage to the vehicle when towing using a wheel-lift type truck
When raising the vehicle, ensure adequate ground clearance for towing at the
opposite end of the raised vehicle. Without adequate clearance, the vehicle could
be damaged while being towed.
■To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.

7617-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
7
When trouble arises
Electric power steering system warning light (warning buzzer)Indicates a malfunction in the EPS (Electric Power Steering)
system
(Flashes)
(If equipped)
Pre-collision system warning light Indicates a malfunction in the pre-collision system
The warning light will operate as follows, even when the system
is not malfunctioning:
• The light will flash quickly when the system is operating. (→ P. 3 1 0 )
• The light will turn on when the pre-collision system is dis- abled. ( →P. 3 1 1 )
• The light will flash when the system cannot temporarily be used. ( →P. 7 7 9 )
Slip indicator
Indicates a malfunction in:
• The VSC system;
•The TRAC system; or
• The hill-start assist control system (hybrid vehicles)
Gasoline vehicles:
The light will flash when the VSC or the TRAC is operating.
Hybrid vehicles:
The light will flash when the ABS, the VSC, the TRAC or the
hill-start assist control system is operating.
(Hybrid
vehicles)
Brake system warning light Indicates a malfunction in:
• The regenerative brake system; or
• The electronically controlled brake system
(If equipped)
Automatic headlight leveling system warning lightIndicates a malfunction in the automatic headlight leveling sys-
tem
Warning lightWarning light/Details

7657-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
7
When trouble arises
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural
air leaks and tire inflation pressure changes caused by temperature. In this case,
adjusting the tire inflation pressure will turn off the warning light (after a few minutes).
■When a tire is replaced with a spare tire
Vehicles with a compact spare tire: The compact spare tire is not equipped with a tire
pressure warning valve and transmitter. If a tire goes flat, the tire pressure warning
light will not turn off even though the flat tire has been replaced with the spare tire.
Vehicles with a full-size spare tire: The spare tire is also equipped with a tire pressure
warning valve and transmitter. The tire pressure warning light will turn on if the tire
inflation pressure of the spare tire is low. If a tire goes flat, the tire pressure warning
light will not turn off even though the flat tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function properly
→P. 7 0 7
■If the tire pressure warning light freque ntly comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute when
the “START STOP ENGINE” <“POWER”> switch is turned to IGNITION ON
mode, have it checked by your Lexus dealer.
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on and the warn-
ing buzzer may sound.
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an audio
sound.

7667-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
CAUTION
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact your Lexus dealer. The
vehicle will become extremely unstable during braking, and the ABS system may
fail, which could cause an accident resulting in death or serious injury.
■When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold firmly and
operate using more force than usual.
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a loss of
vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pres-
sure immediately.
●If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change
it with the spare tire and have the flat tire repaired by the nearest Lexus dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

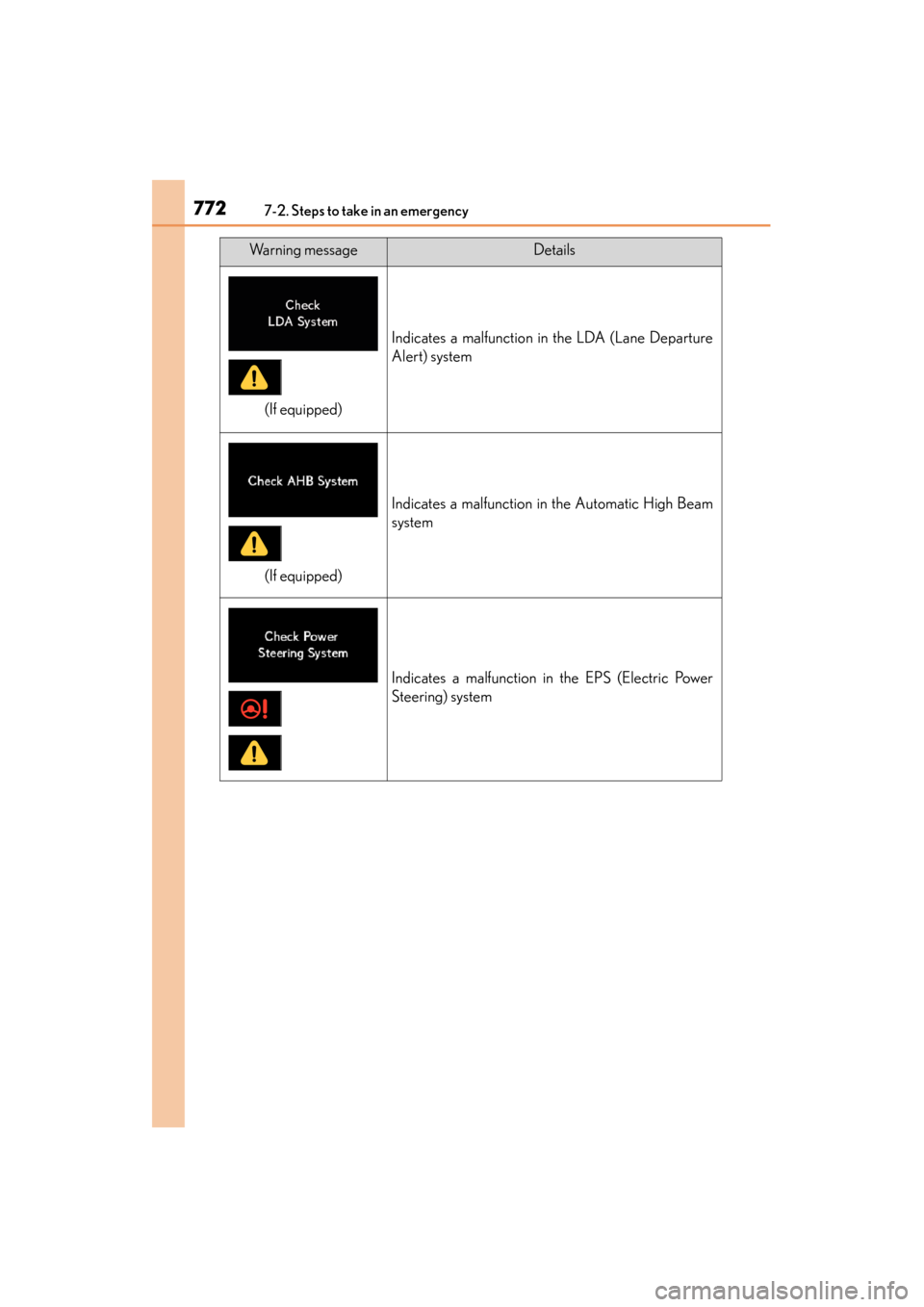

7727-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
Indicates a malfunction in the LDA (Lane Departure
Alert) system
Indicates a malfunction in the Automatic High Beam
system
Indicates a malfunction in the EPS (Electric Power
Steering) system
Warning messageDetails
(If equipped)
(If equipped)

7907-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
InteriorbuzzerExterior
buzzerWarning messageDetailsCorrection procedure
Once
XGasoline vehicles
XHybrid vehicles
The driver’s door
was opened and
closed with the
“START STOP
ENGINE”
<“POWER”> switch
turned off and then
the “START STOP
ENGINE”
<“POWER”> switch
was put in ACCES-
SORY mode twice
without the engine

being started.
Press the
“START
STOP
ENGINE”
<“POWER”>
switch while
depressing
the brake
pedal.
During an engine

starting procedure
in the event that the
electronic key was
not functioning
properly ( →P. 811),
the “START STOP
ENGINE”
<“POWER”> switch
was touched with
the electronic key.
Press the
“START
STOP
ENGINE”
<“POWER”>
switch within
10 seconds
of the buzzer
sounding.
Once
The steering lock
could not be
released within 3
seconds of the
“START STOP
ENGINE”
<“POWER”> switch
being pressed.
Press the
“START
STOP
ENGINE”
<“POWER”>
switch while
depressing
the brake
pedal and
moving the
steering
wheel left
and right.
(Flashes)
(Flashes)
(Flashes)

8037-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
7
When trouble arises
CAUTION
■When using the compact spare tire
●Remember that the compact spare tire provided is specifically designed for use
with your vehicle. Do not use your compact spare tire on another vehicle.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting opera-
tions that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may
not operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire
is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to
observe this precaution may lead to an accident causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their stor-
age location to reduce the possibility of personal injury during a collision or sudden
braking.
• ABS & Brake assist
•VSC
•TRAC
•Cruise control
• Dynamic radar cruise control (if equipped)
• PCS (if equipped)
•EPS • LDA (Lane Departure Alert)
(if equipped)
• Rear view monitor system (if equipped)
• Intuitive parking assist (if equipped)
• Navigation system (if equipped)

8067-2. Steps to take in an emergency
ES350_300h_OM_OM33A60U_(U)
One of the following may be the cause of the problem:
●One or both of the 12-volt battery terminals may be disconnected.
●The 12-volt battery may be discharged. (→P. 813)
●There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if repair proce-
dures are unknown.
When the engine does not start, the following steps can be used as an
interim measure to start the engine if the “START STOP ENGINE” switch
is functioning normally:
Set the parking brake.
Shift the shift lever to P.
Turn the “START STOP ENGINE” switch to ACCESSORY mode.
Press and hold the “START STOP ENGINE” switch for about 15 sec-
onds while depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system may be
malfunctioning. Have the vehicle inspected by your Lexus dealer.
The starter motor does not turn over, the interior lights and head-
lights do not turn on, or the horn does not sound.
Emergency start function
1
2
3
4
