2014 Lancia Ypsilon technical specifications

REFUELLINGPetrol versions 0.9 TwinAir 85 HP 1.2 8V 69 HPRecommended fuels and
original lubricants
Fuel tank capacity (litres): 40 40
Unleaded petrol not less
than 95 R.O.N. (EN 228
specification) including a reserve of
(litres):5÷7 5÷7
Engine cooling system
(litres):5,3 4,950-50 mixture of water
and PARAFLU
UP
(*)
Engine sump (litres): 2,8 2,5
SELENIA K P.E.
Engine sump and filter
(litres):3,2 2,8
Gearbox casing/
differential (litres):1,65 1,65TUTELA TRANSMIS
GEARFORCE
Hydraulic brake circuit
(litres):0,55 0,55 TUTELA TOP 4
Windscreen and rear win-
dow washer fluid reservoir
(litres):2,55 2,5Mixture of water and
TUTELA PROFES-
SIONAL SC35(*) For particularly harsh climate conditions, a mixture of 60%
UP
and 40% demineralised water is recommended.
258
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
SION

Diesel versions 1.3 16V MultiJetRecommended fuels and original
lubricants
Fuel tank capacity (litres): 40
Diesel for motor vehicles (EN 590
specification)
including a reserve of (litres): 5 ÷ 7
Engine cooling system (litres): 6,3550-50 mixture of water and
UP
(*)
Engine sump (litres): 2,8
SELENIA WR P.E.
Engine sump and filter (litres): 3,0
Gearbox casing/differential (litres): 1,65TUTELA TRANSMISSION
Hydraulic brake circuit (litres): 0,55 TUTELA TOP 4
Windscreen and rear window washer
fluid reservoir (litres):2,5Mixture of water and TUTELA
PROFESSIONAL SC35(*) For particularly harsh climate conditions, a mixture of 60%
UP
and 40% demineralised water is recommended.
259GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
GEARFORCE PARAFLU

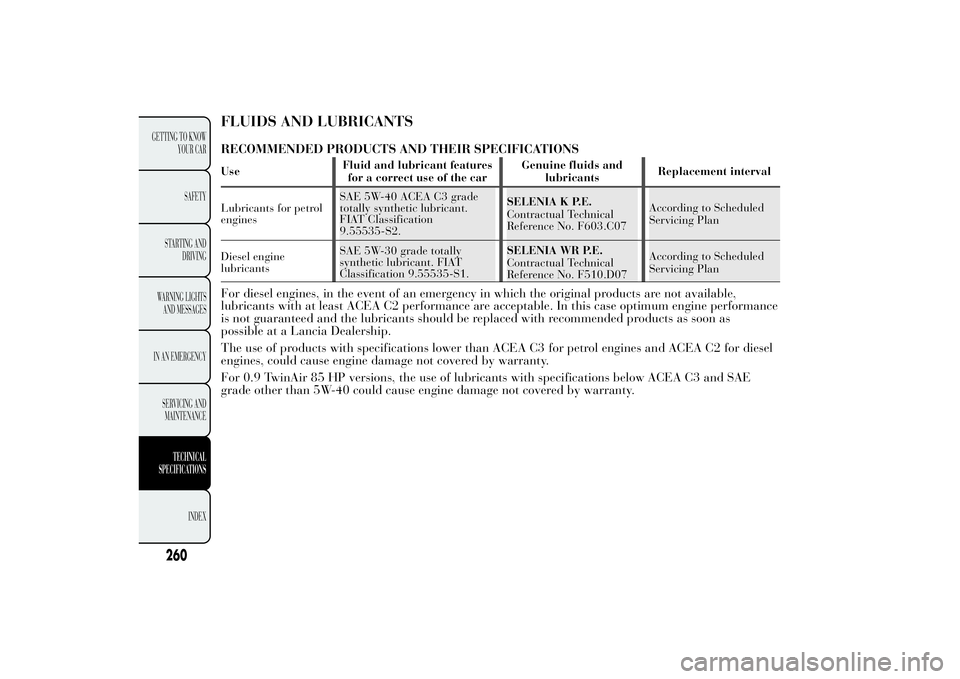

FLUIDS AND LUBRICANTSRECOMMENDED PRODUCTS AND THEIR SPECIFICATIONSUseFluid and lubricant features
for a correct use of the carGenuine fluids and
lubricantsReplacement interval
Lubricants for petrol
enginesSAE 5W-40 ACEA C3 grade
totally synthetic lubricant.
FIAT Classification
9.55535-S2.SELENIA K P.E.
Contractual Technical
Reference No. F603.C07According to Scheduled
Servicing Plan
Diesel engine
lubricantsSAE 5W-30 grade totally
synthetic lubricant. FIAT
Classification 9.55535-S1.SELENIA WR P.E.
Contractual Technical
Reference No. F510.D07According to Scheduled
Servicing PlanFor diesel engines, in the event of an emergency in which the original products are not available,
lubricants with at least ACEA C2 performance are acceptable. In this case optimum engine performance
is not guaranteed and the lubricants should be replaced with recommended products as soon as
possible at a Lancia Dealership.
The use of products with specifications lower than ACEA C3 for petrol engines and ACEA C2 for diesel
engines, could cause engine damage not covered by warranty.
For 0.9 TwinAir 85 HP versions, the use of lubricants with specifications below ACEA C3 and SAE
grade other than 5W-40 could cause engine damage not covered by warranty.
260
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

UseFluid and lubricant features
for a correct use of the carGenuine fluids and
lubricantsApplications
Lubricants and
greases for motion
transmissionSAE 75W grade synthetic
lubricant. FIAT Classification
9.55550-MZ6TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Mechanical gearbox and
differential
Molybdenum disulphide grease,
for use at high temperatures.
Consistency NL.G.I. 1-2. FIAT
Classification 9.55580TUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Grease for constant velocity
joints with low friction
coefficient. Consistency NL.G.I.
0-1. FIAT Classification
9.55580TUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential side constant
velocity joints
Brake fluidSynthetic fluid for brake and
clutch systems. Exceeds
specifications: FMVSS no. 116
DOT 4, ISO 4925 SAE J1704
FIAT Classification 9.55597TUTELA TOP 4
Contractual Technical
Reference No. F001.A93Hydraulic brakes and
hydraulic clutch controls
261GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

UseFluid and lubricant features
for a correct use of the carGenuine fluids and
lubricantsApplications
Protective agent for
radiatorsRed protective agent with
antifreeze action, based on
inhibited monoethylene glycol
with organic formula. Exceeds
CUNA NC 956-16, ASTM D
3306 specifications. FIAT
Classification 9.55523PARAFLU
UP
(*)
Contractual Technical
Reference No. F101.M01Cooling circuit usage
percentage: 50% water
50% PARAFLU
UP
(**)
Diesel fuel additiveAdditive for diesel with
antifreeze and protective action
for diesel engines.TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with the
diesel (25 cc per 10 litres)
Windscreen/rear
window washer fluidMixture of spirits and
surfactants. Exceeds CUNA NC
956-11 specifications. FIAT
Classification 9.55522TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in
windscreen/rear window
washer/wiper systems(*) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(**) For particularly harsh climate conditions, a mixture of 60%PARAFLU
UP
and 40% demineralised water is recommended.
262
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FUEL CONSUMPTIONThe fuel consumption figures given in the table below are determined on the basis of the type-approval
tests laid down by specific European Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒extra-urban cycle: frequent accelerating in all gears, simulating extraurban use of the car: speed
varies between 0 and 120 km/h;
❒combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle
and 63% of the extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition
of the car, trim level/equipment/accessories, use of the climate control, car load, presence of roof racks
and other situations that adversely affect the aerodynamics or wind resistance lead to different fuel
consumption figures than those measured.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
km)(*)Versions with long gear ratios (for versions/markets, where applicable)
(**)Versions with short gear ratios and Start&Stop (for versions/markets, where applicable)
263GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX
(* *)Versions with short gear ratios Start&Stop (for versions/markets, where applicable)* without Versions Urban Extra-urban Combined
0.9 TwinAir 85 HP5.0 3.8 4.2
1.2 8V 69 HP
(*)
6.4 4.1 4 9
1.2 8V 69 HP
(**)
6.4 4.3 5.1
1.2 8V 69
(***)
6 7 4.3 5.2
1.3 16V MultiJet4.7 3.2 3.8 HP

..
IMPORTANT The fuel consumption will get more regular only after having driven the first 3000 km.
(litres/100

CO
2EMISSIONS
The CO
2emission levels given in the following tables refer to combined consumption.
(*)Versions with long gear ratios (for versions/markets, where applicable)
(**)Versions with short gear ratios and Start&Stop (for versions/markets, where applicable)
264
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
(* *)Versions with short gear ratios Start&Stop (for versions/markets, where applicable)* without Versions CO
2emissions according to the current European directive (g/km)
0.9 TwinAir 85 HP99
1.2 8V 69 HP
(*)
115
1.2 8V 69 HP
(**)
118
1.28V69
(***)
120
1.3 16v MultiJet99 HP

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS LIFELancia has been committed for many years to safeguarding the environment through the constant
improvement of its production processes and manufacturing products that are increasingly "eco-
compatible". To assure customers of the best possible service in terms of respecting environmental laws
and in response to European Directive 2000/53/EC governing vehicles at the end of their life, Lancia
is offering their customers the opportunity of handing over their vehicle (*) at the end of its life without
incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should
not incur any expenses as a result of it having a zero or negative market value. In all European Union
countries, until 1st January 2007, only vehicles registered after 1st July 2002 were collected free of
charge, while since 2007 collection has been free of charge irrespective of the year of registration as long
as the vehicle contains its basic components (in particular, the engine and bodywork) and has no
additional waste.
To hand your vehicle over at the end of its life without extra cost, go to one of our Lancia dealerships or
authorised collection and scrapping centres. These centres have been carefully chosen to offer high
quality service for the collection, treatment and recycling of unused vehicles with respect to the
environment.
You can find further information on these collection and scrapping centres either from a Lancia
Dealership or by calling the freephone number 00800 526242 00 or on the Lancia website.
(*) Vehicle for transporting passengers with a maximum of nine seats and a total permitted weight of
3.5 t
