the ignition switch is turned to the ON
position and may stay on for as long
as four seconds.
If the “Anti-Lock Brake Warning
Light” remains on or comes on while
driving, it indicates that the anti-lock
portion of the brake system is not
functioning and that service is re-
quired. However, the conventional
brake system will continue to operate
normally if the “Brake Warning
Light” is not on.
If the “Anti-Lock Brake Warning
Light” is on, the brake system should
be serviced as soon as possible to re-
store the benefits of anti-lock brakes.
If the “Anti-Lock Brake Warning
Light” does not come on when the
ignition switch is turned to the ON
position, have the bulb repaired as
soon as possible.
If both the “Brake Warning Light”
and the “Anti-Lock Brake Warning
Light” remain on, the ABS and Elec-
tronic Brake Force Distribution
(EBD) systems are not functioning.
Immediate repair to the ABS system isrequired. Consult with your autho-
rized dealer service center as soon as
possible.
ELECTRONIC BRAKE
CONTROL SYSTEM (for
versions/markets, where
provided)
Your vehicle is equipped with an ad-
vanced electronic brake control sys-
tem that includes the Traction Control
System (TCS), Brake Assist System
(BAS) and Electronic Stability Con-
trol (ESC), Trailer Sway Control
(TSC), and Hill Start Assist (HSA).
These systems complement the Anti-
Lock Brake System (ABS) by opti-
mizing the vehicle braking capability
during emergency braking maneu-
vers.
TRACTION CONTROL
SYSTEM (TCS) (for
versions/markets, where
provided)
The Traction Control System (TCS)
monitors the amount of wheel spin of
each of the driven wheels. If wheelspin is detected, brake pressure is ap-
plied to the slipping wheel(s) and en-
gine power is reduced, to provide en-
hanced acceleration and stability. A
feature of the TCS functions similarly
to a limited-slip differential, and con-
trols the wheel spin across a driven
axle. If one wheel on a driven axle is
spinning faster than the other, the sys-
tem will apply the brake of the spin-
ning wheel. This will allow more en-
gine torque to be applied to the wheel
that is not spinning. This feature re-
mains active even if the ESC is in the
“Partial Off” mode.
The “ESC Activation/Malfunction In-
dicator Light” (in the instrument
cluster) will start to flash as soon as
the tires lose traction and the wheels
begin to spin. This indicates that the
TCS is active. If the indicator light
flashes during acceleration, ease up
on the accelerator and apply as little
throttle as possible. Be sure to adapt
your speed and driving to the prevail-
ing road conditions, and do not switch
off the ESC or TCS.
248

Tread Wear Indicators
Tread wear indicators are in the origi-
nal equipment tires to help you in
determining when your tires should
be replaced.
These indicators are molded into the
bottom of the tread grooves. They will
appear as bands when the tread depth
becomes 2 mm. When the tread is
worn to the tread wear indicators, the
tire should be replaced. Refer to “Re-
placement Tires” in this section for
further information.
Life Of Tire
The service life of a tire is dependent
upon varying factors including, but
not limited to:
Driving style
Tire pressure
Distance driven
Performance tires, tires with aspeed rating of V or higher, and
summer tires typically have a re-
duced tread life. Rotation of these
tires per the vehicle maintenance
schedule is highly recommended.
WARNING!
Tires and the spare tire should be
replaced after six years, regardless
of the remaining tread. Failure to
follow this warning can result in
sudden tire failure. You could lose
control and have a collision result-
ing in serious injury or death. Keep dismounted tires in a cool, dry
place with as little exposure to light as
possible. Protect tires from contact
with oil, grease, and gasoline.
Replacement Tires
The tires on your new vehicle provide
a balance of many characteristics.
They should be inspected regularly
for wear and correct cold tire inflation
pressure. The manufacturer strongly
recommends that you use tires
equivalent to the originals in size,
quality and performance when re-
placement is needed. Refer to the
paragraph on “Tread Wear Indica-
tors”. Refer to the Tire and Loading
Information placard or the Vehicle
Certification Label for the size desig-
nation of your tire. The Load Index
and Speed Symbol for your tire will be
found on the original equipment tire
sidewall. See the Tire Sizing Chart
example found in the Tire Safety In-
formation section of this manual for
more information relating to the Load
Index and Speed Symbol of a tire.
1—WornTire
2 — New Tire
264

ONBOARD DIAGNOSTIC
SYSTEM — OBD II
Your vehicle is equipped with a so-
phisticated Onboard Diagnostic sys-
tem called OBD II. This system moni-
tors the performance of the emissions,
engine, and automatic transmission
control systems. When these systems
are operating properly, your vehicle
will provide excellent performance
and fuel economy, as well as engine
emissions well within current govern-
ment regulations.
If any of these systems require service,
the OBD II system will turn on the
“Malfunction Indicator Light (MIL).”
It will also store diagnostic codes and
other information to assist your ser-
vice technician in making repairs. Al-
though your vehicle will usually be
drivable and not need towing, see
your authorized dealer for service as
soon as possible.
CAUTION!
Prolonged driving with the MILon could cause further damage to
the emission control system. It
could also affect fuel economy
and driveability. The vehicle
must be serviced before any emis-
sions tests can be performed.
If the MIL is flashing while the engine is running, severe catalytic
converter damage and power loss
will soon occur. Immediate ser-
vice is required.
REPLACEMENT PARTS
Use of genuine parts for normal/
scheduled maintenance and repairs is
highly recommended to ensure the de-
signed performance. Damage or fail-
ures caused by the use of parts which
are not quality-equivalent to genuine
parts for maintenance and repairs will
not be covered by the manufacturer’s
warranty.
MAINTENANCE
PROCEDURES
The pages that follow contain the re-
quired maintenance services deter-
mined by the engineers who designed
your vehicle.
Besides those maintenance items
specified in the fixed maintenance
schedule, there are other components
which may require servicing or re-
placement in the future.
CAUTION!
Failure to properly maintain your vehicle or perform repairs and
service when necessary could re-
sult in more costly repairs, dam-
age to other components or nega-
tively impact vehicle
performance. Immediately have
potential malfunctions examined
by an authorized dealership or
qualified repair center.
(Continued)
307

MAINTENANCE
SCHEDULE
MAINTENANCE
SCHEDULE – GASOLINE
ENGINE
The Scheduled Maintenance services
listed in this manual must be done at
the times or mileages specified to pro-
tect your vehicle warranty and ensure
the best vehicle performance and reli-
ability. More frequent maintenance
may be needed for vehicles in severe
operating conditions, such as dusty
areas and very short trip driving. In-
spection and service should also be
done anytime a malfunction is sus-
pected.The oil change indicator system will
remind you that it is time to take your
vehicle in for scheduled maintenance.
On Electronic Vehicle Information
Center (EVIC) equipped vehicles “Oil
Change Required” will be displayed
in the EVIC and a single chime will
sound, indicating that an oil change is
necessary.
NOTE:
The oil change indicator mes-
sage will not monitor the time
since the last oil change. Change
your vehicles oil if it has been 12
months since your last oil
change even if the oil change in-
dicator message is NOT illumi-
nated. Under no circumstances should
oil change intervals exceed
12,000 km or 12 months, which-
ever comes first.
Rotate the tires at the first sign of irregular wear.
Your authorized dealer will reset the
oil change indicator message after
completing the scheduled oil change.
CAUTION!
Failure to perform the required
maintenance items may result in
damage to the vehicle.
Thousands Of Kilometers 24 48 72 96 120 144 168 192 Months 12 24 36 48 60 72 84 96
Change the engine oil and replace oil filter. (**)
Inspect and replace PCV valve if necessary.
Check battery charge status and possibly recharge.
Check tire condition/wear and adjust pressure, if necessary.
340

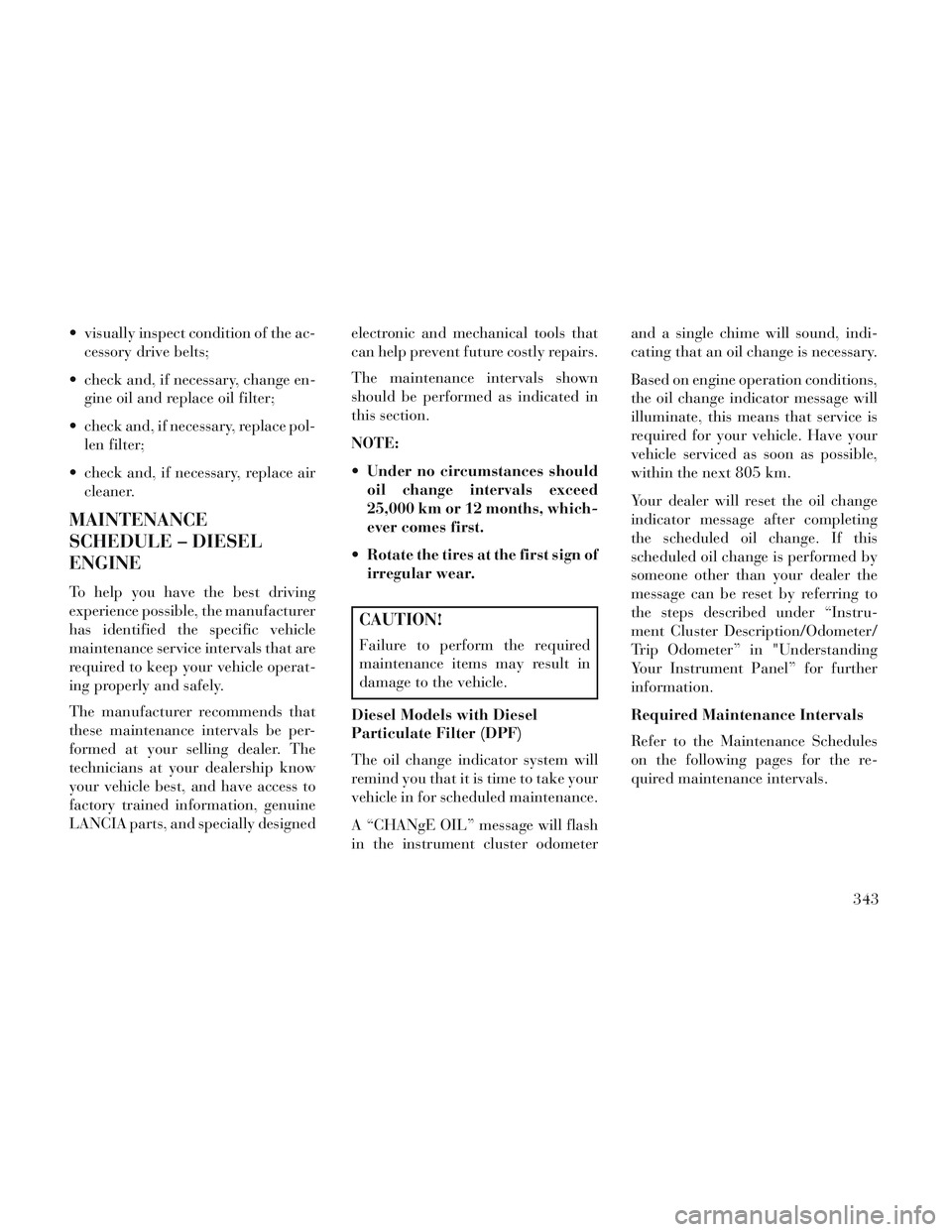

visually inspect condition of the ac-cessory drive belts;
check and, if necessary, change en- gine oil and replace oil filter;
check and, if necessary, replace pol- len filter;
check and, if necessary, replace air cleaner.
MAINTENANCE
SCHEDULE – DIESEL
ENGINE
To help you have the best driving
experience possible, the manufacturer
has identified the specific vehicle
maintenance service intervals that are
required to keep your vehicle operat-
ing properly and safely.
The manufacturer recommends that
these maintenance intervals be per-
formed at your selling dealer. The
technicians at your dealership know
your vehicle best, and have access to
factory trained information, genuine
LANCIA parts, and specially designed electronic and mechanical tools that
can help prevent future costly repairs.
The maintenance intervals shown
should be performed as indicated in
this section.
NOTE:
Under no circumstances should
oil change intervals exceed
25,000 km or 12 months, which-
ever comes first.
Rotate the tires at the first sign of irregular wear.
CAUTION!
Failure to perform the required
maintenance items may result in
damage to the vehicle.
Diesel Models with Diesel
Particulate Filter (DPF)
The oil change indicator system will
remind you that it is time to take your
vehicle in for scheduled maintenance.
A “CHANgE OIL” message will flash
in the instrument cluster odometer and a single chime will sound, indi-
cating that an oil change is necessary.
Based on engine operation conditions,
the oil change indicator message will
illuminate, this means that service is
required for your vehicle. Have your
vehicle serviced as soon as possible,
within the next 805 km.
Your dealer will reset the oil change
indicator message after completing
the scheduled oil change. If this
scheduled oil change is performed by
someone other than your dealer the
message can be reset by referring to
the steps described under “Instru-
ment Cluster Description/Odometer/
Trip Odometer” in "Understanding
Your Instrument Panel” for further
information.
Required Maintenance Intervals
Refer to the Maintenance Schedules
on the following pages for the re-
quired maintenance intervals.
343

Headlight Switch..........129
High Beam Indicator.......172
High Beam/Low Beam Select. .131
Interior................129
License................333
Low Fuel...............182
Malfunction Indicator
(Check Engine)
...........174
Park..............129, 331
Passing................132
Reading................145
Rear Fog.............. .178
Seat Belt Reminder........177
Security Alarm (Theft Alarm). .176
Service................330
Service Engine Soon (Malfunction
Indicator)
..............174
Side Repeater............332
SmartBeams.............132
Theft Alarm (Security Alarm). .176
Tire Pressure Monitoring
(TPMS)
................173
Traction Control..........251
Turn Signal.......71, 331, 332
Wait to Start.............182
Warning (Instrument Cluster
Description)
.............172
Loading Vehicle.............156
Tires..................256
Locks.....................22
Automatic Door...........24
Door...................22
Steering Wheel............15
Lubrication, Body...........313
Luggage Rack (Roof Rack).....161
Lug Nuts.................287
Maintenance Free Battery......311
Maintenance Procedures.......307
Maintenance Schedule.....340, 343
Malfunction Indicator Light
(Check Engine)
...........174
Map/Reading Lights..........145
Memory Feature (Memory Seat). .125
Memory Seat............83, 125
Methanol.................273
Methanol Fuel............. .273
Mini-Trip Computer..........185
Mirrors....................82
Automatic Dimming........82
Electric Remote...........83
Exterior Folding...........83
Heated.................83
Memory................125
Outside.................82
Rearview................82
Vanity..................84
Mode
Fuel Saver
............. .184
Modifications/Alterations, Vehicle...7
Monitor, Tire Pressure System. . .266
Multi-Function Control Lever. . . .131
Navigation System
(Uconnect® gps)
.......143, 193
New Vehicle Break-In Period.....68
Occupant Restraints.....35, 50, 53
Occupant Restraints(Sedan)
............49, 50, 52
Octane Rating, Gasoline(Fuel)
............. .272, 334
Odometer.................172
Oil Change Indicator. .173, 184, 343
Oil Change Indicator,
Reset
...........173, 184, 343
Oil, Engine............308, 334
Capacity.............. .333
Change Interval.......184, 308
Checking...............308
Disposal...............309
Filter..............309, 334
Filter Disposal...........309
Recommendation......308, 333
Synthetic.............. .309
Viscosity...............333
352

Rear Seat................36
Seats....................111
Adjustment..........111, 114
Fold in Floor (Stow `n Go). . .117
Heated................113
Memory................125
Power.................111
Reclining...............115
Stow `n Go (Fold in Floor). . .117
Security Alarm (Theft Alarm)....16
Selection of Coolant
(Antifreeze)
..........316, 334
Sentry Key (Immobilizer).......15
Sentry Key Programming.......16
Sentry Key Replacement........16
Service Engine Soon Light(Malfunction Indicator)
......174
Settings, Personal............189
Shift Lever Override..........300
Shoulder Belts...............36
Side Airbag.................52
Side Repeater Lights..........332
Signals, Turn.......71, 131, 172,
331, 332
Sliding Door................29
SmartBeams.............. .132
Snow Chains (Tire Chains).....265
Snow Tires................261
Sound Systems..............193
Sound Systems (Radio)........193
Spare Tire.........262, 263, 288
Spark Plugs................334
Specifications
Fuel (Gasoline)
...........334
Oil.................. .334
Speed Control (Cruise Control). . .136
Speedometer...............176
Starting................. .231
Automatic Transmission.....231
Cold Weather............233
Engine Fails to Start.......233
Starting and Operating........231
Starting Procedures..........231
Starting Procedures (Diesel
Engines)
................234
SteeringPower
.............244, 245
Tilt Column.............135
Wheel Lock..............15
Wheel, Tilt............. .135
Steering Wheel Audio Controls. . .217
Steering Wheel Mounted Sound
System Controls
...........217
Storage.................. .330
Storage Bin................153
Storage, Vehicle.........225, 330
Storing Your Vehicle..........330
Stow `n Go (Fold in Floor) Seats. .117
Sunglasses Storage...........145
Supplemental Restraint System -
Airbag
..................46
Sway Control, Trailer.........251
Synthetic Engine Oil..........309
System, Navigation(Uconnect® gps)
...........193
Tachometer................172
Telescoping Steering Column. . . .135
Temperature Control, Automatic(ATC)
..................219
Temperature Gauge, EngineCoolant
.............178, 286
Tilt Steering Column..........135
Tire and Loading InformationPlacard
.................256
Tire Markings............. .252
Tires..................71, 258
Aging (Life of Tires).......264
Air Pressure.............258
Chains.................265
Changing.............. .287
Compact Spare...........262
General Information.......258
High Speed.............260
Inflation Pressures.........259
Jacking............287, 291
Life of Tires.............264
354

Load Capacity........256, 257
Pressure Monitor System
(TPMS)
................266
Pressure Warning Light.....173
Radial.................260
Replacement.............264
Rotation...............266
Safety.............252, 258
Sizes..................253
Snow Tires..............261
Spare Tire..............288
Spinning.............. .263
Tread Wear Indicators......264
Tire Safety Information........252
Tongue Weight/Trailer Weight. . .278
Towing.................. .276
Disabled Vehicle..........299
Guide.................278
Recreational.............284
Weight.................278
Traction..................242
Traction Control.............248
Traction Control Switch........248
Trailer Sway Control (TSC).....251
Trailer Towing..............276
Cooling System Tips.......283
Hitches................283
Minimum Requirements.....279
Trailer and Tongue Weight. . .278
Wiring.................280
Trailer Towing Guide.........278
Trailer Weight..............278
Transmission.............. .320
Automatic..........236, 320
Fluid..................320
Transmitter Battery Service
(Remote Keyless Entry)
.......21
Transmitter, Remote Keyless Entry(RKE)
...................18
Transporting Pets.............68
Tread Wear Indicators.........264
Trip Odometer............. .172
Turbo Cool Down............235
Turn Signals. . . .131, 172, 331, 332
UCI Connector..............193
Uconnect® (Hands-Free Phone). . .89
Umbrella Holder............154
Universal Consumer Interface (UCI)
Connector
.............. .193
Upholstery Care.............323
Vanity Mirrors...............84
Variance, Compass...........187
Vehicle Identification Number
(VIN)
....................7
Vehicle Loading.............257
Vehicle Modifications/Alterations...7
Vehicle Storage..........225, 330
Voice Recognition System (VR). . .107
Wait to Start Light...........182
Warning Flasher, Hazard.......286
Warning Lights (Instrument ClusterDescription)
............. .172
Warnings and Cautions..........7
Washer
Adding Fluid
............314
Washers, Headlight...........163
Washing Vehicle.............321
WaterDriving Through
..........243
Wheel and Wheel Trim........322
Wheel and Wheel Trim Care.....322
Wind Buffeting...........29, 148
Window Fogging............225
Windows...................26
Power..................26
Windshield Defroster..........69
Windshield Washers..........314
Windshield Wiper Blades.......314
Wiper Blade Replacement......314
355
