Features of your vehicle
✽

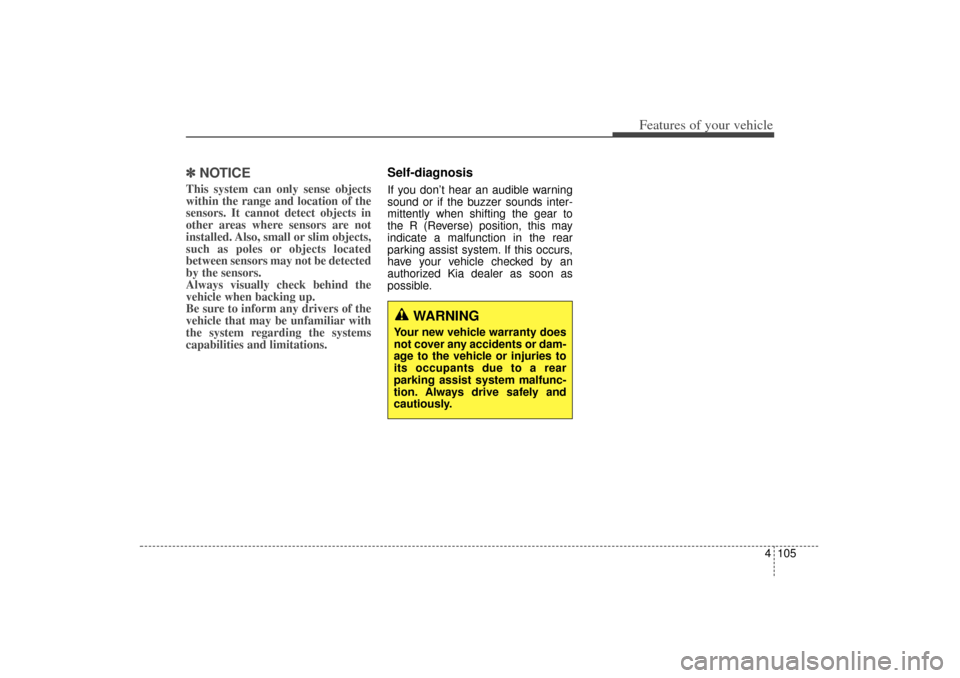

✽NOTICEThis system can only sense objects
within the range and location of the
sensors. It cannot detect objects in
other areas where sensors are not
installed. Also, small or slim objects,
such as poles or objects located
between sensors may not be detected
by the sensors.
Always visually check behind the
vehicle when backing up.
Be sure to inform any drivers of the
vehicle that may be unfamiliar with
the system regarding the systems
capabilities and limitations.
Self-diagnosisIf you don’t hear an audible warning
sound or if the buzzer sounds inter-
mittently when shifting the gear to
the R (Reverse) position, this may
indicate a malfunction in the rear
parking assist system. If this occurs,
have your vehicle checked by an
authorized Kia dealer as soon as
possible.
WARNING
Your new vehicle warranty does
not cover any accidents or dam-
age to the vehicle or injuries to
its occupants due to a rear
parking assist system malfunc-
tion. Always drive safely and
cautiously.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:50 PM Page 105

Features of your vehicle110

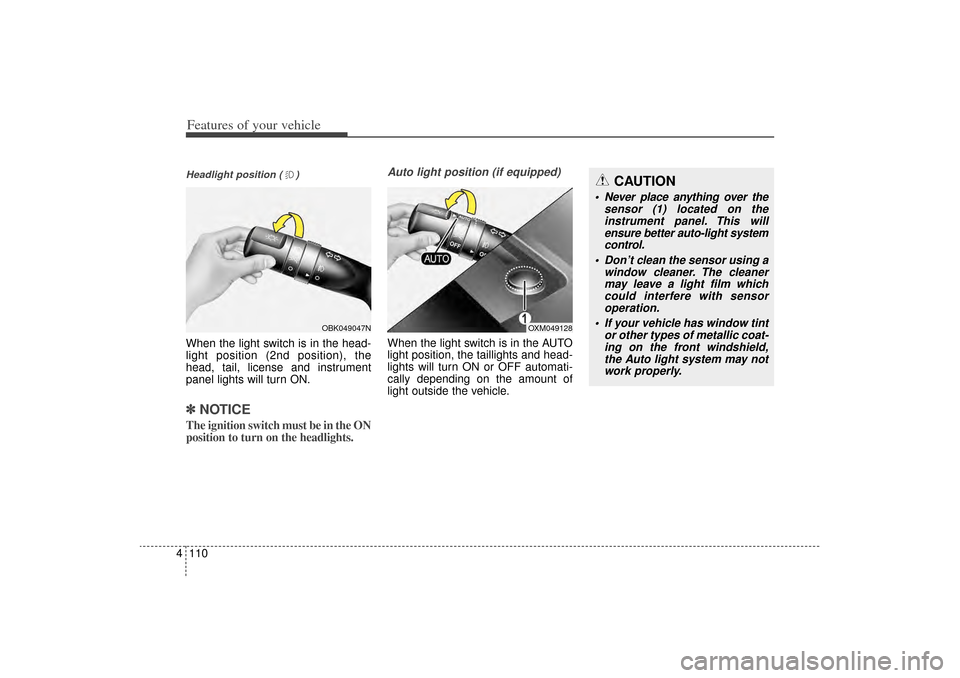

4Headlight position ( )When the light switch is in the head-
light position (2nd position), the
head, tail, license and instrument
panel lights will turn ON.✽ ✽
NOTICEThe ignition switch must be in the ON
position to turn on the headlights.
Auto light position (if equipped)When the light switch is in the AUTO
light position, the taillights and head-
lights will turn ON or OFF automati-
cally depending on the amount of
light outside the vehicle.
OXM049128
CAUTION
 Never place anything over the
sensor (1) located on theinstrument panel. This willensure better auto-light systemcontrol.
 Don’t clean the sensor using a window cleaner. The cleanermay leave a light film whichcould interfere with sensoroperation.
 If your vehicle has window tint or other types of metallic coat-ing on the front windshield,the Auto light system may notwork properly.
OBK049047N
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:50 PM Page 110

Features of your vehicle114
4Windshield wipers Operates as follows when the igni-
tion switch is turned ON.
MIST/ : For a single wiping cycle,
move the lever to this
(MIST/ ) position and
release it. The wipers will
operate continuously if
the lever is held in this
position.
OFF / O : Wiper is not in operation
INT / --- : Wiper operates intermit-
tently at the same wiping
intervals. Use this mode in
light rain or mist. To vary
the speed setting, turn the
speed control knob.
LO / 1 : Normal wiper speed
HI / 2 : Fast wiper speed✽ ✽ NOTICEIf there is heavy accumulation of
snow or ice on the windshield, defrost
the windshield for about 10 minutes,
or until the snow and/or ice is
removed before using the windshield
wipers to ensure proper operation.
Auto control (if equipped)The rain sensor located on the upper
end of the windshield glass senses
the amount of rainfall and controls
the wiping cycle for the proper inter-
val. The more it rains, the faster the
wiper operates. When the rain stops,
the wipers stop. To vary the speed setting, turn the
speed control knob (1).
If the wiper switch is set in AUTO
mode when the ignition switch is ON,
the wiper will operate once to per-
form a self-check of the system. Set
the wiper to OFF (O) position when
the wiper is not in use.
CAUTION
When the ignition switch is ON
and the windshield wiper switchis placed in the AUTO mode, usecaution in the following situa-tions to avoid any injury to thehands or other parts of thebody:
 Do not touch the upper end of the windshield glass facingthe rain sensor.
 Do not wipe the upper end of the windshield glass with adamp or wet cloth.
 Do not put pressure on the windshield glass.
OXM049123L
Rain sensor
■Type A■Type B
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:51 PM Page 114

4 115
Features of your vehicle
Front windshield washersIn the OFF position, pull the lever
gently toward you to spray washer
fluid on the windshield and to run the
wipers 1-3 cycles.
Use this function when the wind-
shield is dirty.
The spray and wiper operation will
continue until you release the lever.If the washer does not work, check
the washer fluid level. If the fluid level
is not sufficient, you will need to add
appropriate non-abrasive windshield
washer fluid to the washer reservoir.
The reservoir filler neck is located in
the front of the engine compartment
on the passenger side.
CAUTION
When washing the vehicle, set
the wiper switch in the OFF (O)position to stop the auto wiperoperation.
The wiper may operate and bedamaged if the switch is set inthe AUTO mode while washingthe vehicle.
Do not remove the sensor coverlocated on the upper end of thepassenger side windshieldglass. Damage to system partscould occur and may not be cov-ered by your vehicle warranty.
When starting the vehicle inwinter, set the wiper switch inthe OFF (O) position. Otherwise,wipers may operate and ice maydamage the windshield wiperblades. Always remove all snowand ice and defrost the wind-shield properly prior to operat-ing the windshield wipers.
OAM049102NOXM049048E
■ Type B■ Type A
CAUTION
To prevent possible damage tothe washer pump, do not oper-ate the washer when the fluidreservoir is empty.
XM(FL) CAN(ENG) 4a(~158).QXP 1/23/2013 3:51 PM Page 115

549
Driving your vehicle
The BSD (Blind spot detection) sys-
tem uses a radar sensor to alert the
driver while driving.
It senses the rear side territory of the
vehicle and provides information to
the driver.➀
BSD(Blind spot detection)
Warning range is dependent on your
vehicle speed. However, if your vehi-
cle speed is speedy about 10km/h
than other vehicle, the warning is not
operated.
➁ LCA(Lane change assist)
When the vehicle is approaching to
your vehicle at high speed, the warn-
ing is operated.BLIND SPOT DETECTION SYSTEM (BSD) (IF EQUIPPED)
WARNING
• Always check the road condi- tions while driving for unex-
pected situations even
though the BSD (Blind spot
detection) system is operat-
ing.
 Never use the BSD system as a replacement for careful driv-
ing practices. Drivers should
always use their mirrors and
look over their shoulders to
detect other vehicles when
changing lanes. The BSD sys-
tem is only intended to sup-
plement safe practices.
OXMA053126OXM053013
XM(FL) CAN(ENG) 5.QXP 2/13/2013 9:53 AM Page 49

551
Driving your vehicle
The second stage alarm will activate
when:
1.The first stage alert is on
2.The turn signal is on to change alane or the hazard warning light is
on
When the second stage alert is acti-
vated, a warning light will illuminate
on the outside rearview mirror hous-
ing and a alarm will sound.
Detecting sensorThe sensors are located on inside of
the rear bumper.
Always keep the rear bumper clean
for the system to work properly.
Warning messageThe message will appear to notify
the driver if there are foreign sub-
stances on the rear bumper or it is
hot near the rear bumper. The light
on the switch and the system will
turn off automatically.
Remove the foreign matter on the
rear bumper.
If the system does not work normally
even though the foreign matter is
removed, take your vehicle to an
authorized Kia dealer and have the
system checked.
OXM053016
OXM053053E
OXMA053015
2nd stage
XM(FL) CAN(ENG) 5.QXP 1/23/2013 3:31 PM Page 51

553
Driving your vehicle
Non-operating conditionDriver's AttentionThe driver must be cautious in the
following situations in which the sys-
tem may not assist the driver and
may not function properly.
- Curved roads, tollgates, etc.
- The surrounding of the sensor iscovered by rain, snow, mud, etc
- The rear bumper near the sensor is covered or hidden with a foreign
matter such as a sticker, bumper
guard, bicycle stand etc.
- The rear bumper is damaged or the sensor is out of place.
- The height of the vehicle is changed or altered such as when
the trunk is loaded with heavy
objects, or has abnormal tire pres-
sure etc.
- Due to bad weather such as heavy rain or snow.
- A fixed object is near such as a guardrail, etc. - A lot of amount of metal sub-
stances are near the vehicles such
as a construction area.
- A big vehicle is near such as a bus or truck.
- A motorcycle or bicycle is near.
- A flat trailer like vehicle is near.
- If the vehicle has started at the same time as the vehicle next to it
and has accelerated.
- When the other vehicle passes by very fast.
- When changing lanes.
- When going down or up a steep road where the height of the lane is
different.
- When the other vehicle drives at the rear very nearby or drives very
close.
- When the temperature near the bumper is high.
- When a trailer or carrier is installed.
Outside rearview mirror may not alert the driver when:- The outside rearview mirror hous- ing is covered with foreign matter.
- The window is covered with foreign matter.
- The windows are severely tinted.
