2014 KIA Rondo headlamp

463
Features of your vehicle
Two Press Unlock (if equipped)
Off:The two press unlock function will
be deactivated. Therefore, all doors
will unlock if the door is unlocked.
On: The driver’s door will unlock if the
door is unlocked. When the door is
unlocked again within 4 seconds,
all doors will unlock.
Horn Feedback (if equipped)
Off: The Horn feedback operation will
be deactivated.
On: After locking the door by pressing
the lock button on the transmitter, if
you press the lock button again
within 4 seconds, the warning
sound will operate once to indicate
that all doors are locked.Lamp
Head Lamp Delay (if equipped)
If this item is checked, the headlamp
delay and headlamp welcome func-
tion will be activated.
Welcome Light (if equipped)
If this item is checked, the welcome
light function of the pocket lamp will
be activated.
One Touch Turn Lamp
If this item is checked, the lane change
signals will blink 3, 5 or 7 times when
the turn signal lever is moved slightly.
Settings
Temperature Unit
Convert the temperature unit from °C
to °F or from °F to °C.
Welcome Sound
If this item is checked, the welcome
sound function will be activated.
AVG Fuel Eco Reset
Auto Reset:The average fuel economy will
reset automatically when refueling.
Manual Reset: The average fuel economy will not
reset automatically whenever refu-
eling.
For more details, refer to “Trip
Computer” in this chapter.

499
Features of your vehicle
Battery saver function
The purpose of this feature is toprevent the battery from being dis-
charged. The system automatically
turns off the parking lights when
the driver removes the ignition key
and opens the driver- side door.
With this feature, the parking lights will turn off automatically if the driver
parks on the side of the road at night.
If necessary, to keep the lights on
when the ignition key is removed,
perform the following :
1) Open the driver-side door.
2) Turn the parking lights OFF and ON again using the light switch
on the steering column.
Headlamp delay function
(if equipped)
The headlamps (and/or taillights)
remain on for same minutes (5 min-
utes) after the ignition key is removed
or turned to the ACC or LOCK posi-
tion. However, if the driver’s door is
opened and closed, the headlights
are turned off after 15 seconds.
The headlights can be turned off by
pressing the lock button on the trans-
mitter or smart key twice or turning
off the light switch from the headlight
or Auto light position.
You can activate or deactivate the
headlamp delay function. Refer to
“User setting” in this chapter.
LIGHTING
CAUTION
If the driver gets out of the vehi-cle through other doors (exceptdriver’s door), the battery saverfunction does not operate andthe headlamp delay functiondoes not turn off automatically.Therefore, it causes the batteryto be discharged. In this case,make sure to turn off the lampbefore getting out of the vehicle.

Features of your vehicle
114
4

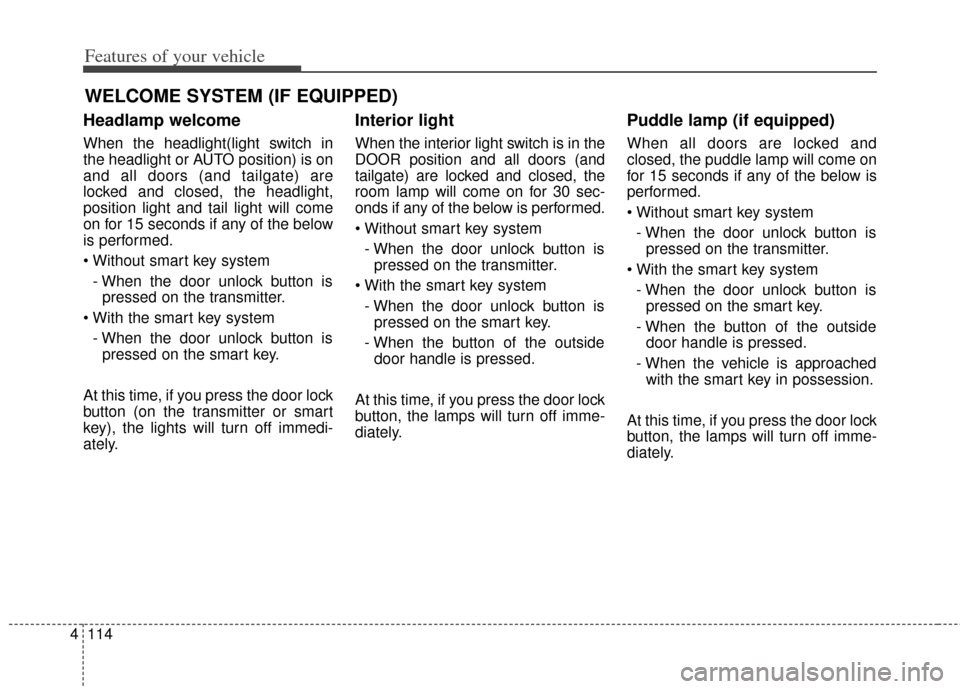

WELCOME SYSTEM (IF EQUIPPED)
Headlamp welcome
When the headlight(light switch in
the headlight or AUTO position) is on
and all doors (and tailgate) are
locked and closed, the headlight,
position light and tail light will come
on for 15 seconds if any of the below
is performed.

- When the door unlock button is pressed on the transmitter.
- When the door unlock button is pressed on the smart key.
At this time, if you press the door lock
button (on the transmitter or smart
key), the lights will turn off immedi-
ately.
Interior light
When the interior light switch is in the
DOOR position and all doors (and
tailgate) are locked and closed, the
room lamp will come on for 30 sec-
onds if any of the below is performed.
- When the door unlock button is pressed on the transmitter.
- When the door unlock button is pressed on the smart key.
- When the button of the outside door handle is pressed.
At this time, if you press the door lock
button, the lamps will turn off imme-
diately.
Puddle lamp (if equipped)
When all doors are locked and
closed, the puddle lamp will come on
for 15 seconds if any of the below is
performed.
- When the door unlock button is pressed on the transmitter.
- When the door unlock button is pressed on the smart key.
- When the button of the outside door handle is pressed.
- When the vehicle is approached with the smart key in possession.
At this time, if you press the door lock
button, the lamps will turn off imme-
diately.

83
Specifications & Consumer information
BULB WATTAGE
* If equippedLight Bulb Wattage Bulb type
Front Headlamps (Low) 55 H11B
Headlamps (Low) - HID type* 35 D3S
Headlamps (High) 55 H7
Front turn signal lamps* 28 PY28/8W
Front position lamps* 28 PY28/8W
Front fog lamps* 35 H8
Side Repeater lamps* 5 WY5W
Front side marker* 5 W5W
Daytime running lamps*
Bulb type 55 H7
LED type LED LED
Rear Bulb type
Turn signal lamp 27 PY27W
Stop/Tail lamp 28 PY28/8W
Tail lamp 8 PY28/8W
Back-up lamp 16 W16W
LED type Stop/Tail lamp (Inside) LED LED
Stop/Tail lamp (Outside) LED LED
Rear side marker* 5 W5W
High mounted stop lamp* LED LED
License plate lamps 5 W5W
Interior Map lamps 10 or LED 10W or LED
Room lamps
Type A 10 10W
Type B LED LED
Vanity mirror lamps 5 FESTOON
Luggage lamp 5 or LED FESTOON or LED
Portable lamp* LED LED

I5
Index
Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . 4-6
Folding key operations . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Folding the outside rearview mirror . . . . . . . . . . . . . . . 4-52
Front seat adjustment - Manual . . . . . . . . . . . . . . . . . . . 3-5
Front seat adjustment - power . . . . . . . . . . . . . . . . . . . . 3-6
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-72
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-57\
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Fuse switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-63\
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 7-61 Fuse switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-63
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . 7-65
Instrument panel fuse . . . . . . . . . . . . . . . . . . . . . . . . 7-66
Main fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-64
Multi fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-64
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-56
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14\
5
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . . . 4-98
Hazardous driving conditions . . . . . . . . . . . . . . . . . . . . 5-53 Headlamp delay function . . . . . . . . . . . . . . . . . . . . . . . 4-99
Headlamp welcome . . . . . . . . . . . . . . . . . . . . . . . . . . 4-114
Headlight washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-109
Headlight welcome function. . . . . . . . . . . . . . . . . . . . 4-100
Headrest(front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Headrest(rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Heated steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
Heater
Automatic climate control system . . . . . . . . . . . . . 4-127
Manual climate control system . . . . . . . . . . . . . . . 4-117
Height adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22
High beam operation . . . . . . . . . . . . . . . . . . . . . . . . . 4-102
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-56
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . . . 5-42
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-32
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-45
How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Immobilizer system (folding key) . . . . . . . . . . . . . . . . . 4-8
Immobilizer system (smart key) . . . . . . . . . . . . . . . . . . 4-15
Indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-83
Inflation and non-inflation conditions . . . . . . . . . . . . . 3-66
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-54 Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
56
Instrument panel illumination . . . . . . . . . . . . . . . . . 4-55
G
H
I

I7
Index
Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-99Auto light position . . . . . . . . . . . . . . . . . . . . . . . . . 4-101
Battery saver function . . . . . . . . . . . . . . . . . . . . . . . 4-99
Daytime running light (DRL) . . . . . . . . . . . . . . . . 4-100
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
Headlamp delay function . . . . . . . . . . . . . . . . . . . . . 4-99
Headlight welcome function . . . . . . . . . . . . . . . . . 4-100
High beam operation . . . . . . . . . . . . . . . . . . . . . . . 4-102
Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Turn signals and lane change signals . . . . . . . . . . . 4-103
Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Loss of the smart key . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Lower anchor system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-41
Lubricants and capacities . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Luggage net holder . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Luggage room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Luggage tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-147
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Main fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
64
Maintenance Explanation of scheduled maintenance items . . . . . 7-25
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Scheduled maintenance service . . . . . . . . . . . . . . . . . 7-8
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52 Maintenance schedule . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Manual climate control system. . . . . . . . . . . . . . . . . . 4-117
Manual transaxle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11\
1
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-49
Day/night rearview mirror . . . . . . . . . . . . . . . . . . . . 4-49
Electric chromic mirror with compass . . . . . . . . . . . 4-50
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-49
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-51
Moonroof, see panoramic sunroof . . . . . . . . . . . . . . . . 4-38
Multi fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
64
Occupant Detection System . . . . . . . . . . . . . . . . . . . . . 3-51
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
58
Oil (Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-51 Folding the outside rearview mirror. . . . . . . . . . . . . 4-52
Outside Temperature Gauge . . . . . . . . . . . . . . . . . . . . . 4-58
Overheats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
6-8
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Paddle shifter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-20
Panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38
P
O
M

Index
10I
Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . . . . 4-44
Tire and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . 6-9
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-49
Tire specification and pressure label . . . . . . . . . . . . . . . 8-9
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46Checking tire inflation pressure . . . . . . . . . . . . . . . . 7-48
Compact spare tire replacement . . . . . . . . . . . . . . . . 7-51
Recommended cold tire inflation pressures . . . . . . . 7-46
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46\
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-49
Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Wheel alignment and tire balance . . . . . . . . . . . . . . 7-50
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 6-24
Trailer towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-61
Transaxle Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . . . 5-17
Manual transaxle . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13
Transaxle Shift Indicator . . . . . . . . . . . . . . . . . . . . . . . 4-59
Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Trip A/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
4-73
Trip computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-71 Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-72
Trip A/B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-73\
Trip Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-71
Trip Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-71\
Turn By Turn Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-64
Turn signals and lane change signals . . . . . . . . . . . . . 4-103
User Settings Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-62
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Vehicle identification number (VIN) . . . . . . . . . . . . . . . 8-8
Vehicle load limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-71
Vehicle stability management . . . . . . . . . . . . . . . . . . . . 5-41
Vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-77
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-75
Warning Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Warnings and indicator lights . . . . . . . . . . . . . . . . . . . . 4-75
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-114 Headlamp welcome . . . . . . . . . . . . . . . . . . . . . . . . 4-114
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-114
Puddle lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-114
U
V
W
