2014 KIA Cadenza steering wheel adjustment

Safety features of your vehicle
43
Front seat adjustment - power
The front seat can be adjusted by
using the control switch located on
the outside of the seat cushion.
Before driving, adjust the seat to the
proper position so as to easily con-
trol the steering wheel, pedals and
switches on the instrument panel.WARNING- Seat adjustment
Do not adjust the seat while wearing seat belts. Moving the
seat forward will cause strong
pressure on the abdomen.
Do not place your hand near the seat bottom or seat track
while adjusting the seat. Your
hand could get caught in the
seat mechanism.
WARNING
The power seat is operable with
the ignition OFF.
Therefore, children should never
be left unatteded in the vehicle.
WARNING- Driver’s seat
Never attempt to adjust the seat while the vehicle is mov-
ing. This could result in loss
of control of your vehicle.
Do not allow anything to inter- fere with the normal position
of the seatback. Storing items
against a seatback or in any
other way interfering with
proper locking of a seatback
could result in a serious or
fatal injury in a sudden stop
or collision.
Sit as far back as possible from the steering wheel while
still maintaining comfortable
control of your vehicle. A dis-
tance of at least 10" from your
chest to the steering wheel is
recommended. Failure to do
so could result in air bag infla-
tion injuries to the driver.

Safety features of your vehicle
83
Recalling positions from memory
1. The shift lever should be in P(Park) when :
- The ignition switch is in ON or engine is running.
- It is less than 20 minutes after the driver's door is opened with the
ignition switch in OFF or ACC.
- It is less than 30 seconds after the driver's door is closed with
the ignition switch in OFF or
ACC.
2. To recall the position in memory, press the desired memory button
(1 or 2). The system will beep
once, then the driver seat, outside
rearview mirror and steering
wheel will automatically adjust to
the stored positions.
3. "Driver 1 (or 2) set is changed" will appear on the instrument cluster
LCD display. Adjusting the control switch for the
driver seat while the system is recall-
ing the stored position will cause the
movement to stop and move in the
direction that the control switch is
moved.Easy access function
With the shift lever in the P position,
the system will move the driver's seat
automatically as follows:
• It will move the driver’s seat rear-
ward when the engine start/stop
button is turned to the OFF position.
It will move the driver’s seat forward when the engine start/stop button is
turned to the ACC or START posi-
tion.
You can activate or deactivate this
feature. Refer to "User settings" in
chapter 4.
WARNING
Use caution when recalling
adjustment memory while sitting
in the vehicle. Push the seat
position control knob to the
desired position immediately if
the seat moves too far in any
direction.

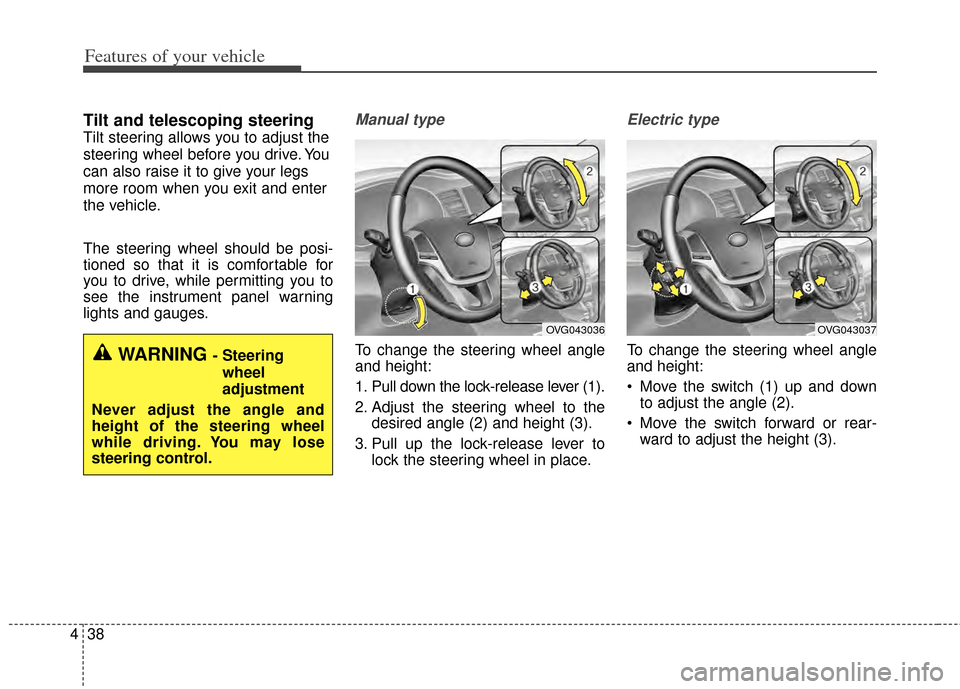

Features of your vehicle
38
4
Tilt and telescoping steering
Tilt steering allows you to adjust the
steering wheel before you drive. You
can also raise it to give your legs
more room when you exit and enter
the vehicle.
The steering wheel should be posi-
tioned so that it is comfortable for
you to drive, while permitting you to
see the instrument panel warning
lights and gauges.
Manual type
To change the steering wheel angle
and height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to the
desired angle (2) and height (3).
3. Pull up the lock-release lever to lock the steering wheel in place.
Electric type
To change the steering wheel angle
and height:
Move the switch (1) up and downto adjust the angle (2).
Move the switch forward or rear- ward to adjust the height (3).WARNING - Steering
wheel
adjustment
Never adjust the angle and
height of the steering wheel
while driving. You may lose
steering control.
OVG043036OVG043037

I5
Index
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-35
Fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
102
Folding the outside rearview mirror . . . . . . . . . . . . . . . 4-50
Front seat adjustment - power . . . . . . . . . . . . . . . . . . . . 3-4
Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-73
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-55\
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Fuse switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-63\
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 7-61 Fuse switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-63
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . 7-65
Instrument panel fuse . . . . . . . . . . . . . . . . . . . . . . . . 7-65
Main fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-64
Multi fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-64
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-54
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13\
0
Glove box lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-110
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
Hazardous driving conditions . . . . . . . . . . . . . . . . . . . . 5-66
Headlamp escort function . . . . . . . . . . . . . . . . . . . . . . . 4-97 Headlight leveling device . . . . . . . . . . . . . . . . . . . . . . 4-103
Headrest(front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Headrest(rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Heated steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . . 4-39
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-113
Height adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
High - beam operation . . . . . . . . . . . . . . . . . . . . . . . . 4-110
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-69
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . . . 5-33
HomeLink system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-27
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 4-39
How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-86
Inflation and non inflation conditions . . . . . . . . . . . . . 3-48
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
54
Instrument panel illumination . . . . . . . . . . . . . . . . . 4-53
LCD Display Control . . . . . . . . . . . . . . . . . . . . . . . . 4-53
Transaxle Shift Indicator . . . . . . . . . . . . . . . . . . . . . 4-58
Instrument panel fuse . . . . . . . . . . . . . . . . . . . . . . . . . . 7-62
Instrument panel overview . . . . . . . . . . . . . . . . . . . . . . . 2-5
Interior care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-79\
G
H
I
