2014 KIA Cadenza engine

85
Specifications & Consumer information
RECOMMENDED LUBRICANTS AND CAPACITIES
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM or ACEA A5 engine oil is not available in your country, you are able to use API service SL or ACEA A3.
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1*2 (drain and refill)
Recommends
5.7 l(6.02 US qt.) API Service SM,
ILSAC GF-4 or above
Automatic transaxle fluid7.8 l(8.24 US qt.) MICHANG ATF SP-4, SK ATF SP-4
NOCA ATF SP-4, Kia genuine ATF & SP-4
Coolant8.4 l(8.88 US qt.) Mixture of antifreeze and water (Ethylene glycol
base coolant for aluminum radiator)
Brake fluid0.7~0.8 l(0.7~0.8 US qt.)
FMVSS116 DOT-3 or DOT-4
Fuel70 l(18.49 US gal.)
Unleaded gasoline

Specifications & Consumer information
68
Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or draining
any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine and
other mechanisms that could be
damaged.Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage.
When choosing an oil, consider the
range of temperature your vehicle
will be operated in before the next oil
change. Proceed to select the rec-
ommended oil viscosity from the
chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
*1. For better fuel economy, it is recommended to use the engine oil of a vis-cosity grade SAE 5W-30 (API Service SM / ILSAC GF-4 / ACEA A5).
However, if the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
10W-30
5W-30, 5W-40

Specifications & Consumer information
88
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your car.The engine number is stamped on
the engine block as shown in the
drawing.
OHG050081L
OHG080004
ENGINE NUMBER
TIRE SPECIFICATION AND
PRESSURE LABEL

I3
Index
Electronic stability control (ESC) . . . . . . . . . . . . . . 5-30
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . 5-33
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17
Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-16
Vehicle stability management . . . . . . . . . . . . . . . . . 5-34
Brakes fluid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-34\
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Button start/stop, see engine start/stop button . . . . . . . . 5-5
Camera (Rear view) . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-94
Capacities (Lubricants) . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Care Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-74
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-79
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46\
Center console storage . . . . . . . . . . . . . . . . . . . . . . . . 4-130
Central door lock switch. . . . . . . . . . . . . . . . . . . . . . . . 4-19
Checking the parking brake . . . . . . . . . . . . . . . . . . . . . 7-36
Checking tire inflation pressure . . . . . . . . . . . . . . . . . . 7-47
Child restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24 Lower anchor system . . . . . . . . . . . . . . . . . . . . . . . . 3-29
Seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25\
Tether anchor system . . . . . . . . . . . . . . . . . . . . . . . . 3-28
Child-protector rear door lock . . . . . . . . . . . . . . . . . . . 4-20
Climate control air filter . . . . . . . . . . . . . . . . . . . . . . . . 7-38
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . 4-136 Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-137
Combined instrument, see instrument cluster . . . . . . . 4-52
Compact spare tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20
Compact spare tire replacement . . . . . . . . . . . . . . . . . . 7-51
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 7-31
Cooling fluid, see engine coolant . . . . . . . . . . . . . . . . . 7-31
Crankcase emission control system . . . . . . . . . . . . . . . 7-81
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 5-37
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-132
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-46
Dashboard illumination, see instrument panel
illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53
Dashboard, see instrument cluster . . . . . . . . . . . . . . . . 4-52
Daytime running light . . . . . . . . . . . . . . . . . . . . . . . . . 4-97
Defogging (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-126
Defogging logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-127
Defroster (Rear window) . . . . . . . . . . . . . . . . . . . . . . 4-112
Defrosting (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-127
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
2
Display illumination, see instrument panel illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-53
Displays, see instrument cluster . . . . . . . . . . . . . . . . . . 4-52
Do not install a child restraint on the front passenger’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
Door courtesy lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-110
C
D

Index
4I
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
17Central door lock switch . . . . . . . . . . . . . . . . . . . . . 4-19
Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-20
Drinks holders, see cup holders . . . . . . . . . . . . . . . . . 4-132
Driver position memory system . . . . . . . . . . . . . . . . . . . 3-7 Easy access function . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Recalling positions . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Storing positions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Driver's and passenger's front air bag . . . . . . . . . . . . . . 3-43
Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-67
Driving in flooded areas . . . . . . . . . . . . . . . . . . . . . . . . 5-68
Driving in the rain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-68
DRL see Daytime running light . . . . . . . . . . . . . . . . . . 4-97
Economical operation . . . . . . . . . . . . . . . . . . . . . . . . . . 5-64
Electric chromic mirror (ECM) . . . . . . . . . . . . . . . . . . 4-40
Electric parking brake (EPB) . . . . . . . . . . . . . . . . . . . . 5-19
Electric power steering . . . . . . . . . . . . . . . . . . . . . . . . . 4-37
Electronic stability control (ESC) . . . . . . . . . . . . . . . . 5-30
Emergency filler lid release . . . . . . . . . . . . . . . . . . . . . 4-31
Emergency starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5 Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Emergency trunk safety release . . . . . . . . . . . . . . . . . . 4-22
Emergency while driving . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Emission control system . . . . . . . . . . . . . . . . . . . . . . . . 7-81 Crankcase emission control system . . . . . . . . . . . . . 7-81 Evaporative emission control System . . . . . . . . . . . 7-81
Exhaust emission control system . . . . . . . . . . . . . . . 7-82
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 8-3
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31
Engine Coolant Temperature guage . . . . . . . . . . . . . . . 4-55
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-8
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
29
Engine overheats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Engine start/stop button . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Evaporative emission control System . . . . . . . . . . . . . . 7-81
Exhaust emission control system . . . . . . . . . . . . . . . . . 7-82
Explanation of scheduled maintenance items . . . . . . . 7-25
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-74
Exterior overview (Front) . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Exterior overview (Rear) . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Flat tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 6-14 Changing tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Compact spare tire . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20
Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
Removing and storing the spare tire . . . . . . . . . . . . 6-15
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-137
Fluid Brakes fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-34
E
F

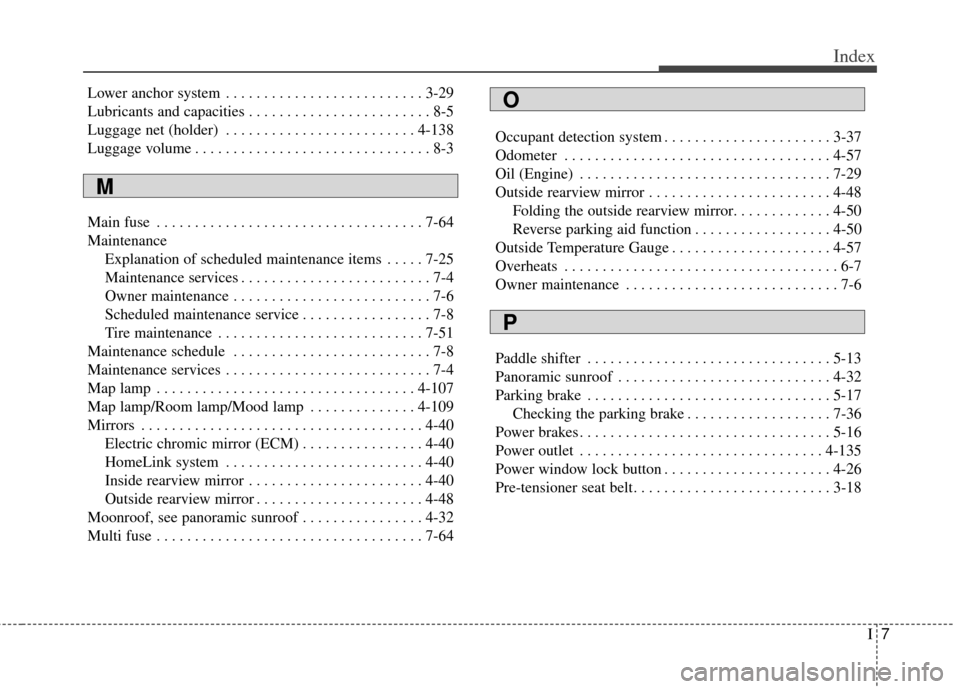

I7
Index
Lower anchor system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29
Lubricants and capacities . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Luggage net (holder) . . . . . . . . . . . . . . . . . . . . . . . . . 4-138
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Main fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
64
MaintenanceExplanation of scheduled maintenance items . . . . . 7-25
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Scheduled maintenance service . . . . . . . . . . . . . . . . . 7-8
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
Maintenance schedule . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Maintenance services . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10\
7
Map lamp/Room lamp/Mood lamp . . . . . . . . . . . . . . 4-109
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-40 Electric chromic mirror (ECM) . . . . . . . . . . . . . . . . 4-40
HomeLink system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-40
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-48
Moonroof, see panoramic sunroof . . . . . . . . . . . . . . . . 4-32
Multi fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-\
64 Occupant detection system . . . . . . . . . . . . . . . . . . . . . . 3-37
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
57
Oil (Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-48
Folding the outside rearview mirror. . . . . . . . . . . . . 4-50
Reverse parking aid function . . . . . . . . . . . . . . . . . . 4-50
Outside Temperature Gauge . . . . . . . . . . . . . . . . . . . . . 4-57
Overheats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
6-7
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6
Paddle shifter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13
Panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17 Checking the parking brake . . . . . . . . . . . . . . . . . . . 7-36
Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-16
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-135
Power window lock button . . . . . . . . . . . . . . . . . . . . . . 4-26
Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . . 3-18O
P
M

I9
Index
Spare tireChanging tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Compact spare tire . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20
Compact spare tire replacement . . . . . . . . . . . . . . . . 7-51
Removing and storing the spare tire . . . . . . . . . . . . 6-15
Special driving conditions . . . . . . . . . . . . . . . . . . . . . . 5-66 Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-67
Driving in flooded areas. . . . . . . . . . . . . . . . . . . . . . 5-68
Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . . 5-68
Hazardous driving conditions . . . . . . . . . . . . . . . . . 5-66
Highway driving. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-69
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 5-66
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-67
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-54
Sports mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
SRS care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-53
SRS components and functions . . . . . . . . . . . . . . . . . . 3-35
Starting difficulties, see engine will not start . . . . . . . . . 6-4
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37 Electric power steering. . . . . . . . . . . . . . . . . . . . . . . 4-37
Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . 4-39
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-39
Tilt and telescopic steering. . . . . . . . . . . . . . . . . . . . 4-38
Steering wheel remote controller . . . . . . . . . . . . . . . . 4-141
Storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . 4-130 Center console storage . . . . . . . . . . . . . . . . . . . . . . 4-130
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-130
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-131 Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-131
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
132
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-54\
Tether anchor system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . . . . 4-38
Tire and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . 6-8
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
Tire specification and pressure label . . . . . . . . . . . . . . . 8-8
Checking tire inflation pressure . . . . . . . . . . . . . . . . 7-47
Compact spare tire replacement . . . . . . . . . . . . . . . . 7-51
Recommended cold tire inflation pressures . . . . . . . 7-46
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-46\
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-50
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-48
Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . 7-52
Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
Wheel alignment and tire balance . . . . . . . . . . . . . . 7-49
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 7-51
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 6-22
Transaxle Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Transaxle Shift Indicator . . . . . . . . . . . . . . . . . . . . . . . 4-58
T
