INTRODUCTION/WELCOME WELCOME FROM CHRYSLER
GROUP LLC ................. 89
CONTROLS AT A GLANCE DRIVER COCKPIT ............... 6
INSTRUMENT CLUSTER .......... 8
GETTING STARTED KEYFOB ................... 10
REMOTE START .............. 11
THEFT ALARM ............... 11
SEATBELT .................. 12
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) — AIR BAGS ............ 13
CHILD RESTRAINTS ............ 14
FRONT SEATS ................ 19
REAR SEATS ................. 20
TILT STEERING COLUMN ......... 21
HEATEDSEATS ............... 22
OPERATING YOUR VEHICLE ENGINE BREAK-IN
RECOMMENDATIONS ........... 23
TURN SIGNAL/LIGHTS LEVER ...... 23
WIPER/WASHER LEVER .......... 25
SPEED CONTROL .............. 26
MANUAL CLIMATE CONTROLS ...... 27
AUTOMATIC TEMPERATURE
CONTROLS (ATC) .............. 28
SUNRIDER ®
AND SOFT TOP ....... 29
HARD TOP AND FREEDOM TOP ®
.... 38
DUAL TOP — IF EQUIPPED ........ 41
WIND BUFFETING ............. 41
ELECTRONICS YOUR VEHICLE'S SOUND SYSTEM . . . 42
Uconnect ®
130 ............... 44
Uconnect ®
130 WITH SiriusXM
SATELLITE RADIO .............. 46
Uconnect ®
230 ............... 49
Uconnect ®
430/430N ........... 52
Uconnect ®
730N .............. 62
SiriusXM SATELLITE RADIO/TRAVEL
LINK ...................... 73
STEERING WHEEL AUDIO
CONTROLS ................. 77 iPod ®
/USB/MP3 CONTROL ........ 77
Uconnect ®
Phone .............. 78
Uconnect ®
VOICE COMMAND ....... 81
Bluetooth ®
STREAMING AUDIO ..... 84
ELECTRONIC VEHICLE INFORMATION
CENTER (EVIC) ............... 84
PROGRAMMABLE FEATURES ....... 86
POWER INVERTER ............. 87
POWER OUTLETS ............. 88
OFF-ROAD CAPABILITIES
(4WD OPERATION) COMMAND-TRAC ®
/ROCK-TRAC ®
..... 89
AXLE LOCK (TRU-LOK ®
) RUBICON
ONLY ...................... 89
ELECTRONIC SWAY BAR DISCONNECT –
RUBICON ONLY ............... 90
UTILITY TRAILER TOWING WEIGHTS (MAXIMUM
TRAILER WEIGHT RATINGS) ....... 91
RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ............ 93
WHAT TO DO IN EMERGENCIES ROADSIDE ASSISTANCE .......... 96
INSTRUMENT CLUSTER WARNING
LIGHTS .................... 96
IF YOUR ENGINE OVERHEATS ..... 101
JACKING AND TIRE CHANGING .... 102
JUMP-STARTING ............. 107
EMERGENCY TOW HOOKS ....... 109
SHIFT LEVER OVERRIDE ........ 109
TOWING A DISABLED VEHICLE .... 110
FREEING A STUCK VEHICLE ...... 110
EVENT DATA RECORDER (EDR) .... 111
MAINTAINING YOUR VEHICLE OPENING THE HOOD .......... 112
ENGINE COMPARTMENT ........ 113
FLUIDS AND CAPACITIES ........ 114
MAINTENANCE SCHEDULE ...... 115
MAINTENANCE RECORD ........ 119
FUSES .................... 120
TIRE PRESSURES ............ 123
WHEEL AND WHEEL TRIM CARE . . . 125
EXTERIOR BULBS ............ 125
TABLE OF CONTENTS

KEY FOB Locking And Unlocking The
Doors/Swing Gate • Press the LOCK button once to lock all
the doors and swing gate. Press the
UNLOCK button once to unlock the
driver’s door only and twice within five
seconds to unlock all the doors and
swing gate.
• All doors can be programmed to un-
lock on the first press of the UNLOCK
button. Refer to Programmable Fea-
tures in this guide.
Panic Alarm • Press the PANIC button once to turn
the panic alarm on.
• Wait approximately three seconds and
press the button a second time to turn
the panic alarm off.
WARNING!• Never leave children alone in a vehicle, or with access to an unlocked vehicle.
Allowing children to be in a vehicle unattended is dangerous for a number of
reasons. A child or others could be severely injured or killed. Children should
be warned not to touch the parking brake, brake pedal, or the shift lever. Do not
leave the Key Fob in or near the vehicle, or in a location accessible to children,
A child could start the vehicle, operate power windows, other controls, or move
the vehicle.
• Do not leave children or animals inside parked vehicles in hot weather. Interior
heat build-up may cause them to be severely injured or killed. 1 — Unlock 3 — Lock
2 — Remote Start
GETTING STARTED
10

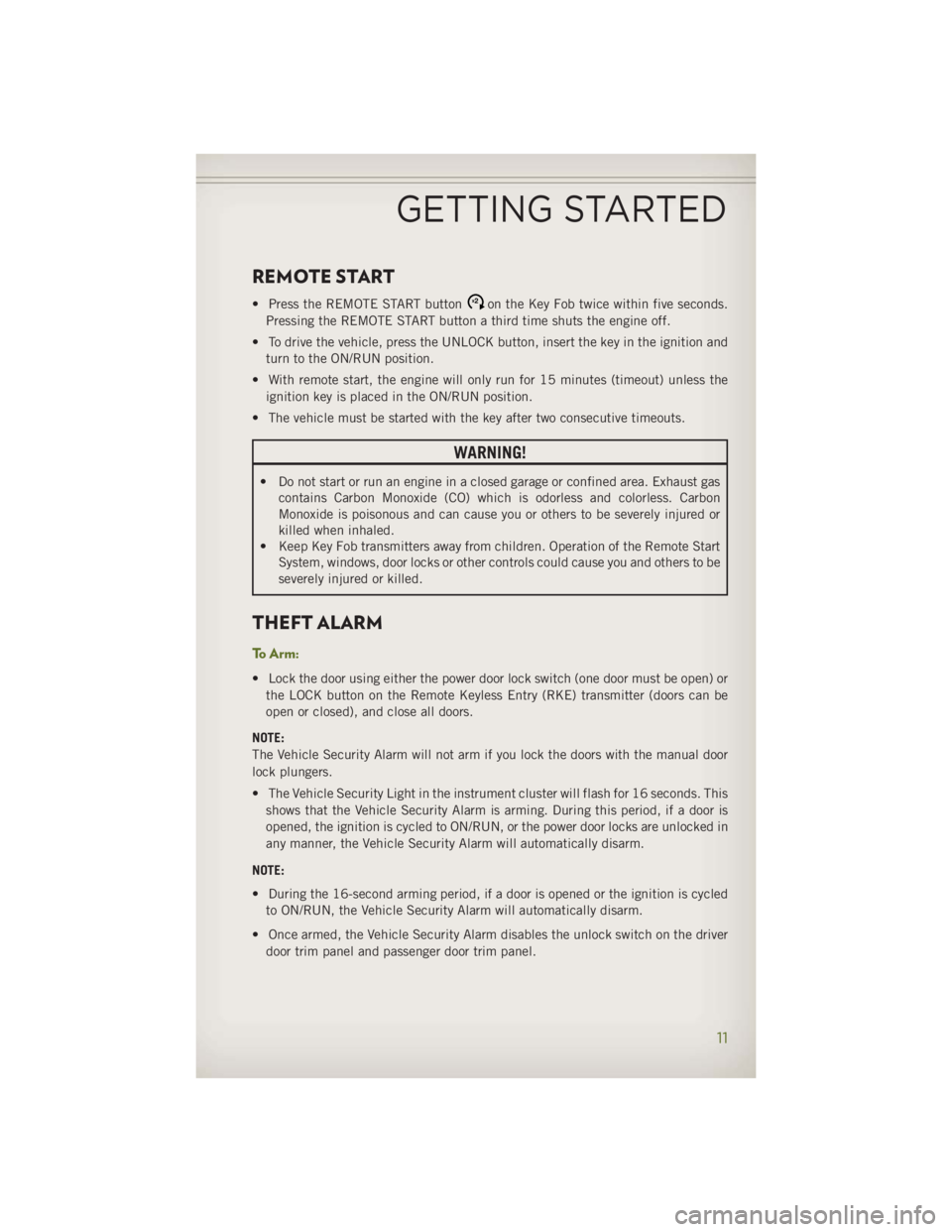

REMOTE START • Press the REMOTE START button x
2
on the Key Fob twice within five seconds.
Pressing the REMOTE START button a third time shuts the engine off.
• To drive the vehicle, press the UNLOCK button, insert the key in the ignition and
turn to the ON/RUN position.
• With remote start, the engine will only run for 15 minutes (timeout) unless the
ignition key is placed in the ON/RUN position.
• The vehicle must be started with the key after two consecutive timeouts.
WARNING!• Do not start or run an engine in a closed garage or confined area. Exhaust gas
contains Carbon Monoxide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause you or others to be severely injured or
killed when inhaled.
• Keep Key Fob transmitters away from children. Operation of the Remote Start
System, windows, door locks or other controls could cause you and others to be
severely injured or killed.
THEFT ALARM To Arm: • Lock the door using either the power door lock switch (one door must be open) or
the LOCK button on the Remote Keyless Entry (RKE) transmitter (doors can be
open or closed), and close all doors.
NOTE:
The Vehicle Security Alarm will not arm if you lock the doors with the manual door
lock plungers.
• The Vehicle Security Light in the instrument cluster will flash for 16 seconds. This
shows that the Vehicle Security Alarm is arming. During this period, if a door is
opened, the ignition is cycled to ON/RUN, or the power door locks are unlocked in
any manner, the Vehicle Security Alarm will automatically disarm.
NOTE:
• During the 16-second arming period, if a door is opened or the ignition is cycled
to ON/RUN, the Vehicle Security Alarm will automatically disarm.
• Once armed, the Vehicle Security Alarm disables the unlock switch on the driver
door trim panel and passenger door trim panel.GETTING STARTED
11

STEERING WHEEL AUDIO CONTROLS • The steering wheel audio controls are
located on the rear surface of the steer-
ing wheel.
Right Switch • Press the switch up or down to increase
or decrease the volume.
• Press the button in the center to change
modes AM/FM/CD/SAT.
Left Switch • Press the switch up or down to search
for the next listenable station or select
the next or previous CD track.
• Press the button in the center to select
the next preset station (radio) or to change CDs if equipped with a CD Changer.
iPod®/USB/MP3 CONTROL • There are many ways to play music from iPod ®
/MP3 players or USB devices
through your vehicle's sound system.
• The remote USB port, located within the center console, allows you to plug an
iPod ®
into the vehicle's sound system.
NOTE:
If equipped with the Uconnect ®
730N or 731N the USB port on the faceplate allows
the same functions as the remote USB port.
• Non-Touch-Screen Radios: To hear audio from devices connected to the USB port,
press the “AUX” button on the radio face plate
• Touch-Screen Radios: To hear audio from devices connected to the USB port, press
the “MEDIA” hard-key, then touch the “AUX” or “iPod ®
” soft-key.
• When connected to this feature:
• The iPod ®
can be controlled using
the radio buttons to Play, Browse,
and List the iPod ®
or external de-
vices contents.
• The iPod ®
battery charges when
plugged into the USB port (if sup-
ported by the specific audio device).
• Compatible iPod ®
devices may also
be controllable using voice commands. Refer to the Owner's Manual on the DVD
for details.ELECTRONICS
77

Jacking Instructions .........103
Jack Location .............102
Jack Operation ......... 102, 103
Jump Starting .............107
KeyFob.................10
Key Fob Programmable Features . . .86
LaneChangeandTurnSignals....24
Lane Change Assist ..........24
Lap/Shoulder Belts ...........12
LATCH (Lower Anchors and Tether for
CHildren).....14,15,16,17,18
Lights
Engine Temperature Warning . . .98
Tire Pressure Monitoring
(TPMS) ...............96
TurnSignal .............24
Warning (Instrument Cluster
Description) .............8
Lower Anchors and Tether for CHildren
(LATCH) ...............15
Maintenance Record .........119
MaintenanceSchedule........115
Malfunction Indicator Light
(CheckEngine) ...........98
Navigation Voice Prompt
Volume .............59,70
New Vehicle Break-In Period .....23
Oil Change Indicator .........100
Oil Change Indicator, Reset .....100
Oil, Engine
Capacity ..............114
Recommendation ........114
Viscosity .............114
Outlet
Power ................88
Overheating, Engine .........101
Placard, Tire and Loading
Information .............123
Power
Inverter ...............87
Outlet
(Auxiliary Electrical Outlet) ....88 Preparation for Jacking ........103
Programmable Electronic
Features ...............86
Rain Sensitive Wiper System .....25
RearSeat,Folding...........20
Recreational Towing ..........93
Shifting into Transfer Case
Neutral (N) .............94
Shifting out of Transfer Case
Neutral (N) .............94
Remote Starting System ........11
Replacement Bulbs ..........125
Reporting Safety Defects .......127
Schedule,Maintenance .......115
Seat Belts ................12
Seats ...................19
Adjustment .............19
EasyEntry .............19
Heated ...............22
RearFolding ............20
Security Against Theft .........11
Shifting
Transfer Case, Shifting into
Transfer Case Neutral (N) .....94
Transfer Case, Shifting out of
Transfer Case Neutral (N) .....94
Shift Lever Override .........109
Signals, Turn ..............24
SpareTire...............102
Speed Control (Cruise Control) ....26
Starting
Remote ...............11
Steering
TiltColumn .............21
Steering
Wheel Audio Controls ....
77
Stuck, Freeing .............110
Supplemental Restraint System -
Airbag ................13
Sway Bar Disconnect,
Electronic ..............90
Temperature Control,
Automatic (ATC) ...........28
Theft System Arming ..........11
Theft System Disarming ........12
Tilt Steering Column ..........21INDEX
