2014 INFINITI QX70 technical specifications

9 Technical and consumer information
Capacities and recommended fuel/lubricants....... 9-2Fuel information .............................................. 9-4
Engine oil and oil filter recommendation ......... 9-6
Air conditioning system refrigerant and
lubricant recommendations ............................. 9-7
Specifications ...................................................... 9-8
Engine............................................................. 9-8
Wheels and tires ............................................. 9-9
Dimensions ................................................... 9-10
When traveling or registering your vehicle in
another country ................................................. 9-11
Vehicle identification ......................................... 9-11 Vehicle Identification Number (VIN) plate ....... 9-11
Vehicle identification number
(chassis number) ........................................... 9-11
Engine serial number .................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label .......... 9-12
Emission control information label ................ 9-13
Tire and Loading Information label ................ 9-13
Air conditioner specification label.................. 9-13
Installing front license plate .............................. 9-14 Vehicle loading information............................... 9-15
Terms .......................................................... 9-15
Vehicle load capacity ................................... 9-17
Securing the load ........................................ 9-18
Loading tips................................................. 9-18
Measurement of weights.............................. 9-19
Towing a trailer ................................................. 9-19 Maximum load limits ................................... 9-19
Maximum Gross Vehicle Weight (GVW)/
Maximum Gross Axle Weight (GAW) ............. 9-21
Towing load/specification ............................ 9-23
Towing safety............................................... 9-23
Flat towing................................................... 9-27
Uniform tire quality grading .............................. 9-28 Treadwear .................................................... 9-28
Traction AA, A, B and C................................ 9-28
Temperature A, B and C ............................... 9-28
Emission control system warranty ..................... 9-29
Reporting safety defects.................................... 9-30
Readiness for Inspection/Maintenance
(I/M) test .......................................................... 9-31
Event Data Recorders (EDR) ............................... 9-31
Owner’s Manual/Service Manual
order information .............................................. 9-32

9-2Technical and consumer information
The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the“8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)
Recommended specifications
US measure Imp measure Liter
Fuel 23-3/4 gal19-3/4 gal 90 See“Fuel information” (P.9-4).
Engine oil*1
Drain and refill
With oil filter change VK50VE
6-1/2 qt
5-3/8 qt 6.1
.Genuine NISSAN engine oil or equivalent*2
. Engine oil with API Certification Mark*10
. Viscosity SAE 5W-30
VQ37VHR
5-1/8 qt
4-3/8 qt 4.9
Without oil filter change VK50VE
6-1/8 qt
5-1/8 qt 5.8
VQ37VHR 4-7/8 qt
4 qt4.6
Cooling system
With reservoir VK50VE
11-5/8 qt9-5/8 qt
11
Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
VQ37VHR
10 qt8-3/8 qt
9.5
VQ37VHR (models with towing
package for Canada) 10-5/8 qt
8-3/4 qt 10
Reservoir VK50VE
7/8 qt3/4 qt 0.8
VQ37VHR 7/8 qt3/4 qt 0.8
Automatic transmission fluid ———
Genuine NISSAN Matic S ATF*3
Front differential gear oil ———Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5
Viscosity SAE 80W-90*4
Rear differential gear oil VQ37VHR without towing pack-
age
——— Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5,
Viscosity SAE 80W-90*4
VK50VE/VQ37VHR with towing
package ———
API GL-5 synthetic gear oil, Viscosity SAE 75W-90*5
Transfer fluid ———Genuine NISSAN Matic J ATF*6
Power steering fluid (PSF) Refill to the proper oil level according to the instructions in the“8.
Maintenance and do-it-yourself” section. Genuine NISSAN PSF or equivalent*7
Brake fluid Genuine NISSAN Super Heavy Duty Brake Fluid*8 or equivalent DOT 3
Multi-purpose grease ———
NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant ———
HFC-134a (R-134a)*9
Air conditioning system lubricants ———NISSAN A/C System Oil
Type S or exact equivalent
Window washer fluid ———Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze or
equivalent
CAPACITIES AND RECOMMENDED FUEL/
LUBRICANTS

9-4Technical and consumer information
FUEL INFORMATION
Use unleaded premium gasoline with an
octane rating of at least 91 AKI (Anti-Knock
Index) number (Research octane number
96).
If premium gasoline is not available,
unleaded regular gasoline with an octane
rating of 87 AKI number (Research octane
number 91) may be temporarily used, but
only under the following precautions:
.Have the fuel tank filled only partially
with unleaded regular gasoline, and fill
up with unleaded premium gasoline as
soon as possible.
. Avoid full throttle driving and abrupt
acceleration.
Use unleaded premium gasoline for max-
imum vehicle performance.

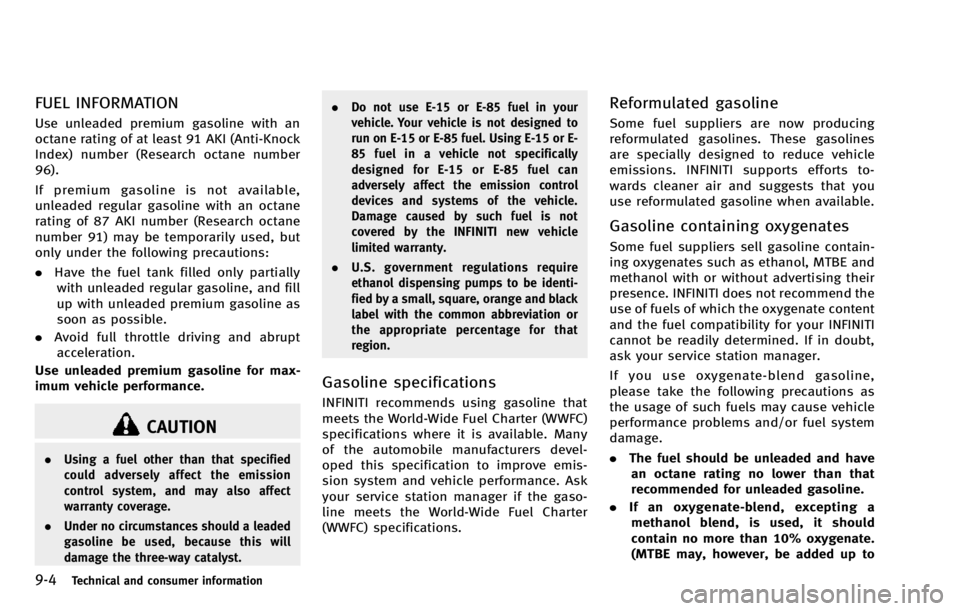

CAUTION
. Using a fuel other than that specified
could adversely affect the emission
control system, and may also affect
warranty coverage.
. Under no circumstances should a leaded
gasoline be used, because this will
damage the three-way catalyst. .
Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed to
run on E-15 or E-85 fuel. Using E-15 or E-
85 fuel in a vehicle not specifically
designed for E-15 or E-85 fuel can
adversely affect the emission control
devices and systems of the vehicle.
Damage caused by such fuel is not
covered by the INFINITI new vehicle
limited warranty.
. U.S. government regulations require
ethanol dispensing pumps to be identi-
fied by a small, square, orange and black
label with the common abbreviation or
the appropriate percentage for that
region.
Gasoline specifications
INFINITI recommends using gasoline that
meets the World-Wide Fuel Charter (WWFC)
specifications where it is available. Many
of the automobile manufacturers devel-
oped this specification to improve emis-
sion system and vehicle performance. Ask
your service station manager if the gaso-
line meets the World-Wide Fuel Charter
(WWFC) specifications.
Reformulated gasoline
Some fuel suppliers are now producing
reformulated gasolines. These gasolines
are specially designed to reduce vehicle
emissions. INFINITI supports efforts to-
wards cleaner air and suggests that you
use reformulated gasoline when available.
Gasoline containing oxygenates
Some fuel suppliers sell gasoline contain-
ing oxygenates such as ethanol, MTBE and
methanol with or without advertising their
presence. INFINITI does not recommend the
use of fuels of which the oxygenate content
and the fuel compatibility for your INFINITI
cannot be readily determined. If in doubt,
ask your service station manager.
If you use oxygenate-blend gasoline,
please take the following precautions as
the usage of such fuels may cause vehicle
performance problems and/or fuel system
damage.
.The fuel should be unleaded and have
an octane rating no lower than that
recommended for unleaded gasoline.
. If an oxygenate-blend, excepting a
methanol blend, is used, it should
contain no more than 10% oxygenate.
(MTBE may, however, be added up to

9-8Technical and consumer information
Contact an INFINITI retailer when servicing
your air conditioning system.ENGINE
ModelVK50VEVQ37VHR
Type Gasoline, 4-cycleGasoline, 4-cycle
Cylinder arrangement 8-cylinder, V-slanted at 908
6-cylinder, V-slanted at 608
Bore 6Stroke in (mm) 3.760
63.453
(95.5 687.7) 3.760
63.385
(95.5 686.0)
Displacement cu in (cm
3) 306.7 (5,026) 225.54 (3,696)
Firing order 1-8-7-3-6-5-4-21-2-3-4-5-6
Idle speed rpm
See the emission control information label on the underside of the
hood.
Ignition timing
(B.T.D.C.)
degree/rpm
Spark plug Standard FXE22HR-11 FXE24HR-11
Spark plug gap (Normal) in (mm) 0.043 (1.1) 0.043 (1.1)
Camshaft operation Timing chainTiming chain
This spark ignition system complies with the Canadian standard ICES-002.
SPECIFICATIONS

If you plan to travel in another country,
you should first find out if the fuel
available is suitable for your vehicle’s
engine.
Using fuel with too low an octane rating
may cause engine damage. All gasoline
vehicles must be operated with unleaded
gasoline. Therefore, avoid taking your
vehicle to areas where appropriate fuel is
not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify
the vehicle to meet local laws and regula-
tions.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications
may differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, trans-
portation, and registration are the respon-
sibility of the user. INFINITI is not
responsible for any inconvenience that
may result.
STI0431
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is
attached as shown. This number is the
identification for your vehicle and is used
in the vehicle registration.
STI0492
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The number is stamped as shown in the
engine compartment.
Technical and consumer information9-11
WHEN TRAVELING OR REGISTERING YOUR
VEHICLE IN ANOTHER COUNTRY VEHICLE IDENTIFICATION

9-24Technical and consumer information
of the ball.
. Choose the proper class hitch ball
based on the trailer weight.
. The diameter of the threaded shank of
the hitch ball must be matched to the
ball mount hole diameter. The hitch ball
shank should be no more than 1/16
smaller than the hole in the ball mount.
. The threaded shank of the hitch ball
must be long enough to be properly
secured to the ball mount. There should
be at least 2 threads showing beyond
the lock washer and nut.
Sway control device
Sudden maneuvers, wind gusts and buffet-
ing caused by other vehicles can affect
trailer handling. Sway control devices may
be used to help control these affects. If you
choose to use one, contact a reputable
trailer hitch supplier to make sure the sway
control device will work with the vehicle,
hitch, trailer and the trailer’s brake system.
Follow the instructions provided by the
manufacturer for installing and using the
sway control device.
Class I hitch
Class I trailer hitch equipment (receiver,
ball mount and hitch ball) can be used to
tow trailers of a maximum weight of 2,000
lb (907 kg).
Class II hitch
Class II trailer hitch equipment (receiver,
ball mount and hitch ball) can be used to
tow trailers of a maximum weight of 3,500
lb (1,588 kg).
CAUTION
. Special hitches which include frame
reinforcements are required for towing
above 2,000 lb (907 kg). Suitable
genuine INFINITI hitches for pickup
trucks and sport utility vehicles are
available at an INFINITI retailer.
. The hitch should not be attached to or
affect the operation of the impact-
absorbing bumper.
. Do not use axle-mounted hitches.
. Do not modify the vehicle exhaust
system, brake system, etc. to install a
trailer hitch. .
To reduce the possibility of additional
damage if your vehicle is struck from the
rear, where practical, remove the hitch
and/or receiver when not in use. After
the hitch is removed, seal the bolt holes
to prevent exhaust fumes, water or dust
from entering the passenger compart-
ment.
. Regularly check that all trailer hitch
mounting bolts are securely mounted.
Tire pressures
.When towing a trailer, inflate the
vehicle tires to the recommended
cold tire pressure indicated on the
Tire and Loading Information la-
bel.
.Trailer tire condition, size, loadrating and proper inflation pres-
sure should be in accordance with
the trailer and tire manufacturers’
specifications.
Safety chains
Always use a suitable chain between your
vehicle and the trailer. The safety chains
should be crossed and should be attached
