2014 INFINITI QX60 ECO mode

Thebutton will be on the INFINITI Intelli-
gent Key if the vehicle has remote engine start.
This feature allows the engine to start from out-
side the vehicle.
The following features may be affected when the
remote start feature is used:
● Vehicles with an automatic climate control
system will default to either a heating or
cooling mode depending on the outside
temperature.
● Vehicles without automatic climate control
will default to the last used heating or cool-
ing mode. ●
Vehicles equipped with heated seats may
have this feature come on during a remote
start. See “Heated front seats” in the “Instru-
ments and controls” section for more infor-
mation.
Laws in some local communities may restrict the
use of remote starters. For example, some laws
require a person using remote start to have the
vehicle in view. Check local regulations for any
requirements.
Other conditions may affect the function of the
Remote Engine Start feature. See “Conditions
the remote start will not work” in this section for
additional information.
Other conditions can affect the performance of
the Intelligent Key transmitter. See “INFINITI In-
telligent Key System” in this section for additional
information.
REMOTE ENGINE START
OPERATING RANGE
The remote engine start function can only be
used when the Intelligent Key is within the speci-
fied operating range from the vehicle.
When the Intelligent Key battery is discharged or
strong radio waves are present near the operat- ing location, the Intelligent Key operating range
becomes narrower, and the Intelligent Key may
not function properly.
The remote engine start operating range is ap-
proximately 197 ft (60 m) from the vehicle.
REMOTE STARTING THE VEHICLE
To use the remote start feature to start the engine
perform the following:
1. Aim the Intelligent Key at the vehicle.
2. Press the
LOCK button to lock all
doors.
3. Within 5 seconds press and hold the
remote start button until the turn signal lights
illuminate. If the vehicle is not within view
press and hold the
remote start but-
ton for about 2 seconds.
The following events will occur when the engine
starts: ● The parking lights will turn on and remain on
as long as the engine is running.
● The doors will be locked and the climate
control system may come on.
LPD2060
REMOTE ENGINE START (if so
equipped)
3-18Pre-driving checks and adjustments

NOTE:
To open, close or reverse the power liftgate,
the shift lever must be in P (Park) . Also, the
power liftgate will not operate if battery
voltage is low.
Power Open:
The power liftgate automatically moves from the
fully closed position to the fully open position in
approximately5–8seconds. The power open
feature can be activated by the switch on the
keyfob, the instrument panel switch and the lift-
gate request switch. The hazard lights flash and a
chime sounds to indicate the power open se-
quence has been started.● The liftgate can be opened by the instrument
panel switch, liftgate request switch and the
keyfob even if the vehicle is locked. The
liftgate will individually unlock and open.
Once the liftgate is closed, the vehicle will
remain in the unlock status.
● The keyfob button must be held for 0.5 sec-
ond before the liftgate opens.
● The liftgate must be unlocked to open it with
the liftgate opener switch
A.
A warning chime will sound if the shift lever is
moved out of P (Park) during a power open
operation. Power Close:
The power liftgate automatically moves from the
fully open position to the secondary position.
When the liftgate reaches the secondary posi-
tion, the cinching motor engages and pulls the
liftgate to its primary latch position. Power close
takes approximately7–10seconds. The power
close feature can be activated by the switch on
the keyfob, the instrument panel and the liftgate
opener switch
A. The hazard lights flash and a
chime sounds to indicate the power close se-
quence has been started.
● If the liftgate opener switch
Ais activated
while the cinching motor is engaged, the
cinching motor will disengage and release
the latch.
● The keyfob button must be held for 0.5 sec-
ond before the liftgate closes.
● The switch on the liftgate can only be used
to close the liftgate if the power liftgate main
switch is in the ON position.
Reverse:
The power liftgate will reverse direction immedi-
ately during power open or power close if the
keyfob, instrument panel or liftgate switch is
pushed or if the liftgate opener switch
Ais
pushed. A chime will sound to announce the
reversal. Auto Reverse:
If an obstacle is detected during power open or
power close, a warning chime will sound and the
liftgate will reverse direction and return to the full
open or full close position. If a second obstacle is
detected, the liftgate motion will stop and the
liftgate will enter manual mode.
A pinch strip is mounted on each side of the
liftgate. If an obstacle is detected by a pinch strip
during power close, the liftgate will reverse direc-
tion and return to the full open position.
NOTE:
If the pinch strip is damaged or removed,
the power close function will not operate.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the liftgate.
3-22Pre-driving checks and adjustments

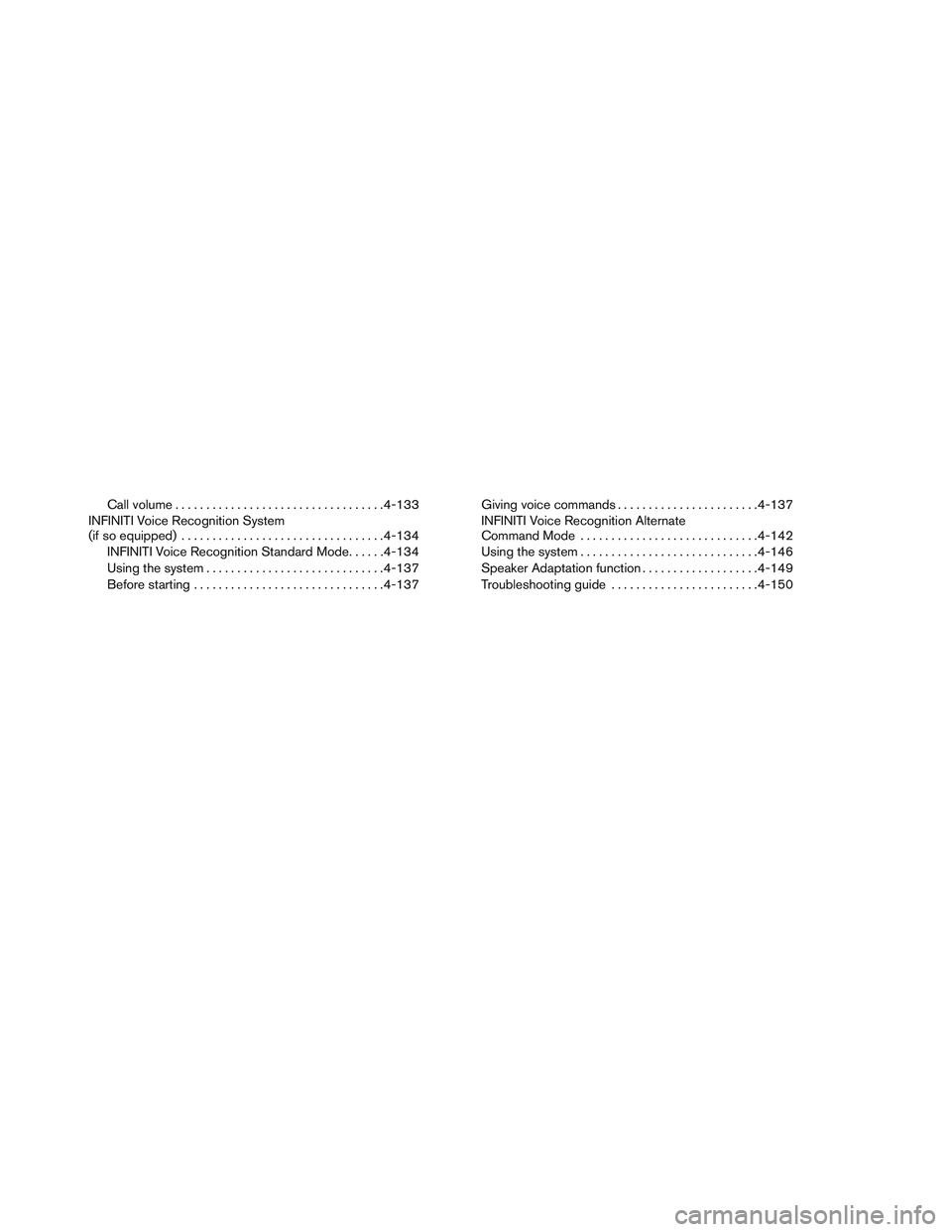

Call volume .................................. 4-133
INFINITI Voice Recognition System
(if so equipped) ................................. 4-134
INFINITI Voice Recognition Standard Mode ......4-134
Using the system ............................. 4-137
Before starting ............................... 4-137Giving voice commands
....................... 4-137
INFINITI Voice Recognition Alternate
Command Mode ............................. 4-142
Using the system ............................. 4-146
Speaker Adaptation function ...................4-149
Troubleshooting guide ........................ 4-150

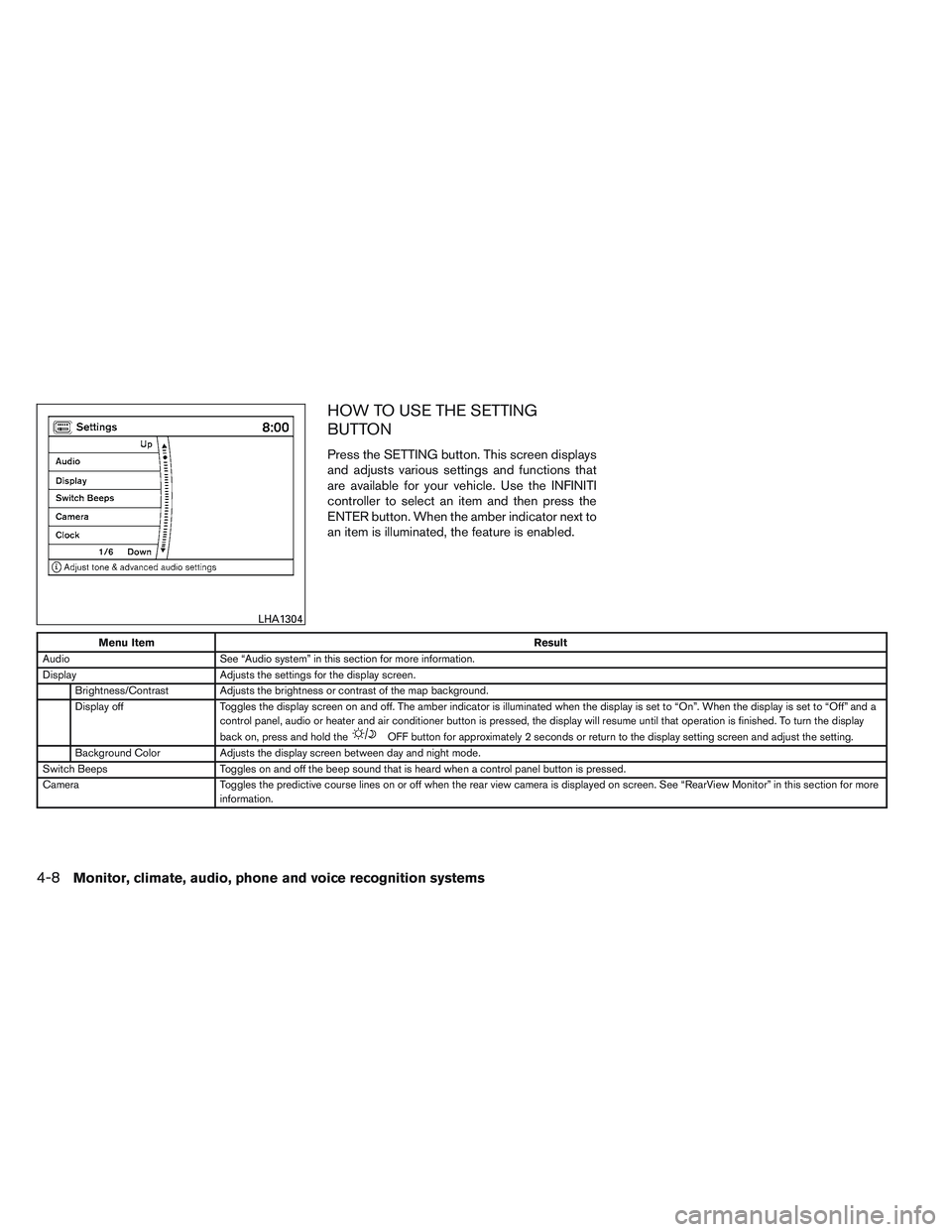

HOW TO USE THE SETTING
BUTTON
Press the SETTING button. This screen displays
and adjusts various settings and functions that
are available for your vehicle. Use the INFINITI
controller to select an item and then press the
ENTER button. When the amber indicator next to
an item is illuminated, the feature is enabled.
Menu ItemResult
Audio See “Audio system” in this section for more information.
Display Adjusts the settings for the display screen.
Brightness/Contrast Adjusts the brightness or contrast of the map background.
Display off Toggles the display screen on and off. The amber indicator is illuminated when the display is set to “On”. When the display is set to “Off” and a
control panel, audio or heater and air conditioner button is pressed, the display will resume until that operation is finished. To turn the display
back on, press and hold the
OFF button for approximately 2 seconds or return to the display setting screen and adjust the setting.
Background Color Adjusts the display screen between day and night mode.
Switch Beeps Toggles on and off the beep sound that is heard when a control panel button is pressed.
Camera Toggles the predictive course lines on or off when the rear view camera is displayed on screen. See “RearView Monitor” in this section for more
information.
LHA1304
4-8Monitor, climate, audio, phone and voice recognition systems

Menu ItemResult
Rear display settings To control the rear display settings, select the “Display Control” key. Select the “ON” key for either the left or right display to alternately enable or
disable the display fo the left or right rear passengers. If the display is enabled, select the key (DVD, USB, front AUX or rear AUX) that you wish
to have displayed on the corresponding screen. The front AUX setting is for devices plugged into the AUX jacks in the center console. The rear
AUX setting is for the devices plugged into the AUX jacks on the back of the center console.
Select the “Auto Display” to set the rear displays to always on when a movie is played from a DVD or USB device.
ECO DRIVE settings (if so
equipped) To adjust the Eco pedal driver’s assist, select the “Standard”, “Soft” or “OFF” key and adjust it with the INFINITI controller. For more information
about ECO DRIVE system,see “ECO pedal system” in the “Starting and driving” section.
Others Select the “Others” key using the INFINITI controller. The voice recognition, language and units setting screen will be displayed.
Display Adjusts the settings for the display screen
Display Adjustment To adjust the display settins, select the “Display Adjustment” key. The following settings are available: Brightness/
Contrast Adjusts the brightness or contrast of the map background.
Display off Toggles the display screen on and off. The amber indicator is illuminated when the display is set to “On”. When the display is set to “Off” and a
control panel, audio or heater and air conditioner button is pressed, the display will resume until that operation is finished. To turn the display bac k
on, press and hold the
OFF button for approximately 2 seconds or return to the display setting screen and adjust the setting.
Background
Color Adjusts the display screen between day and night mode.
Color Theme Changes the color of the background, arrows and bars on the screen. Choose between “Black”. “Brown”, or “Silver”.
Monitor, climate, audio, phone and voice recognition systems4-19

Viewing images in a slideshow
To view all of the images on the device in a
slideshow, first enter the full screen mode while
viewing one of the images. The slideshow control
buttons are located on the right side of the
screen.
Select the play key
to begin the slideshow.
The images shown on the screen will periodically
change at a given interval of time. To skip through
the images without waiting for them to change
automatically, select the
key to skip back-
ward or the
key to skip forward. Select the stop key
to end the slideshow and return
to the full screen display of the image currently on
the screen.
Slideshow settings
While in slideshow mode, the following settings can be accessed:
Settings
Slideshow Speed Changes the frequency at which images are changed during a slideshow. Choose one of the options on the screen or “No Auto Change” to have the images not change automatically.
Slideshow Order Random Changes images in a random order when selected.
Order List Changes images in the order in which they are saved on the USB device.
LHA1310
Monitor, climate, audio, phone and voice recognition systems4-23

●When the shift lever is shifted to the R (Re-
verse) position, the display screen automati-
cally changes to the RearView Monitor
mode. However, the radio can be heard.
● When the view is switched, the display im-
ages on the screen may be displayed in
some delay.
● When the temperature is extremely high or
low, the screen may not clearly display ob-
jects. This is not a malfunction.
● When strong light is directly coming on the
camera, objects may not be displayed
clearly. This is not a malfunction.
● Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
● The screen may flicker under fluorescent
light. This is not a malfunction.
● The colors of objects on the RearView Moni-
tor may differ somewhat from the actual
color of objects. This is not a malfunction.
● Objects on the monitor may not be clear in a
dark environment. This is not a malfunction.
● If dirt, rain or snow accumulates on the cam-
era, the RearView Monitor may not display
objects clearly. Clean the camera. ●
Do not use wax on the camera lens. Wipe off
any wax with a clean cloth that has been
dampened with a mild detergent diluted with
water. With the ignition switch in the ON position, press
the CAMERA button or move the shift lever to the
R (Reverse) position to operate the Around View
Monitor. The monitor displays various views of
the position of the vehicle.
Available views:
● Bird’s-Eye View
The surrounding view of the vehicle from
above.
● Front-Side View
The view around and ahead of the front
passenger’s side wheel.
● Front View
An approximately 150-degree view of the
front of the vehicle.
● Front-Wide View
An approximately 180-degree view of the
front of the vehicle.
● Rearview
An approximately 150-degree view of the
rear of the vehicle.
● Rear-Wide View
An approximately 180-degree view of the
rear of the vehicle.
The system is designed as an aid to the driver in
situations such as slot parking or parallel parking.
AROUND VIEW® MONITOR (if so
equipped)
Monitor, climate, audio, phone and voice recognition systems4-29

When the MOD system detects moving objects
surrounding the vehicle, the yellow frame will be
displayed on the view where the objects are
detected and a chime will sound once. While the
MOD system continues to detect moving ob-
jects, the yellow frame continues to be displayed.
In the bird’s-eye view, the yellow frame
1is
displayed on each camera image (front, rear,
right, left) depending on where moving objects
are detected.
The yellow frame
2is displayed on each view in
the front view, front-wide view, rear view and
rear-wide view modes. While the sonar or the BCI chime (if so equipped)
is beeping, the MOD system does not chime.
A blue MOD icon is displayed in the view where
the MOD system is operative. A gray MOD icon is
displayed in the view where the MOD system is
not operative.
When the “MOD” key
4is selected, the MOD
system will turn off temporarily and the indicator
5will turn off. At the same time the camera-
aiding sonar will also be turned OFF. When the
key is pressed again, the indicator will turn on and
the MOD system will turn back on.
If the MOD system is turned off, the MOD icon
3
is not displayed. The MOD system will turn on automatically under
the following conditions:
● When the shift lever is in the R position.
● When the CAMERA button is pressed to
switch from a different screen to the camera
view on the display
● When vehicle speed decreases below ap-
proximately 5 mph (8 km/h).
● When the ignition switch is placed in the
OFF position and then back to the ON posi-
tion.
LHA2322
Monitor, climate, audio, phone and voice recognition systems4-41
