●When cleaning the seat, never use
gasoline, benzine, thinner, or any simi-
lar materials.
●If any malfunctions are found or the
heated seat does not operate, turn the
switch off and have the system checked
by an INFINITI retailer.
The rear seats are warmed by built-in heaters.
The switches are located on the rear of the front
center console and can be operated indepen-
dently of each other.
1. Start the engine.
2. Push the LO or HI position of the switch, as
desired. The indicator light in the switch will
illuminate.
The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.3. When the seat is warmed or before you
leave the vehicle, be sure to turn the switch
off.
LIC1543
Instruments and controls2-37

WARNING
Do not use or allow occupants to use the
climate controlled seats if you or the oc-
cupants can not monitor seat tempera-
tures or have an inability to feel pain in
those body parts in contact with the seat.
Use of the climate controlled seats by
such people could result in serious injury.
CAUTION
●The battery could run down if the cli-
mate controlled seat is operated with
the engine is not running.
●Do not use the climate controlled seat
for extended periods or when no one is
using the seat.
●Do not put anything on the seat which
insulates heat, such as a blanket, cush-
ion, seat cover, etc. Otherwise, the seat
may become overheated.
●Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
object. This may result in damage to the
climate controlled seat.
●Any liquid spilled on the heated seat
should be removed immediately with a
dry cloth.●The climate controlled seat has an air
filter. Do not operate the climate con-
trolled seat without an air filter. This
may result in damage to the system.
●When cleaning the seat, never use
gasoline, benzine, thinner, or any simi-
lar materials.
●If any malfunctions are found or the
climate controlled seat does not oper-
ate, turn the switch off and have the
system checked by an INFINITI retailer.
The climate controlled seat warms up or cools
down the front seat by blowing warm or cool air
from the surface of the seat. The climate control
switch is located on the center console.
The climate controlled seat can be operated as
follows:
1. Start the engine.
2. Turn the control knob
Ato the heat side1
or the cool side2. The indicator lightBon
the control knob will illuminate.
3. Adjust the desired temperature using the
control knob
A.
SIC4334
CLIMATE CONTROL SEAT SWITCH (if
so equipped)
2-38Instruments and controls

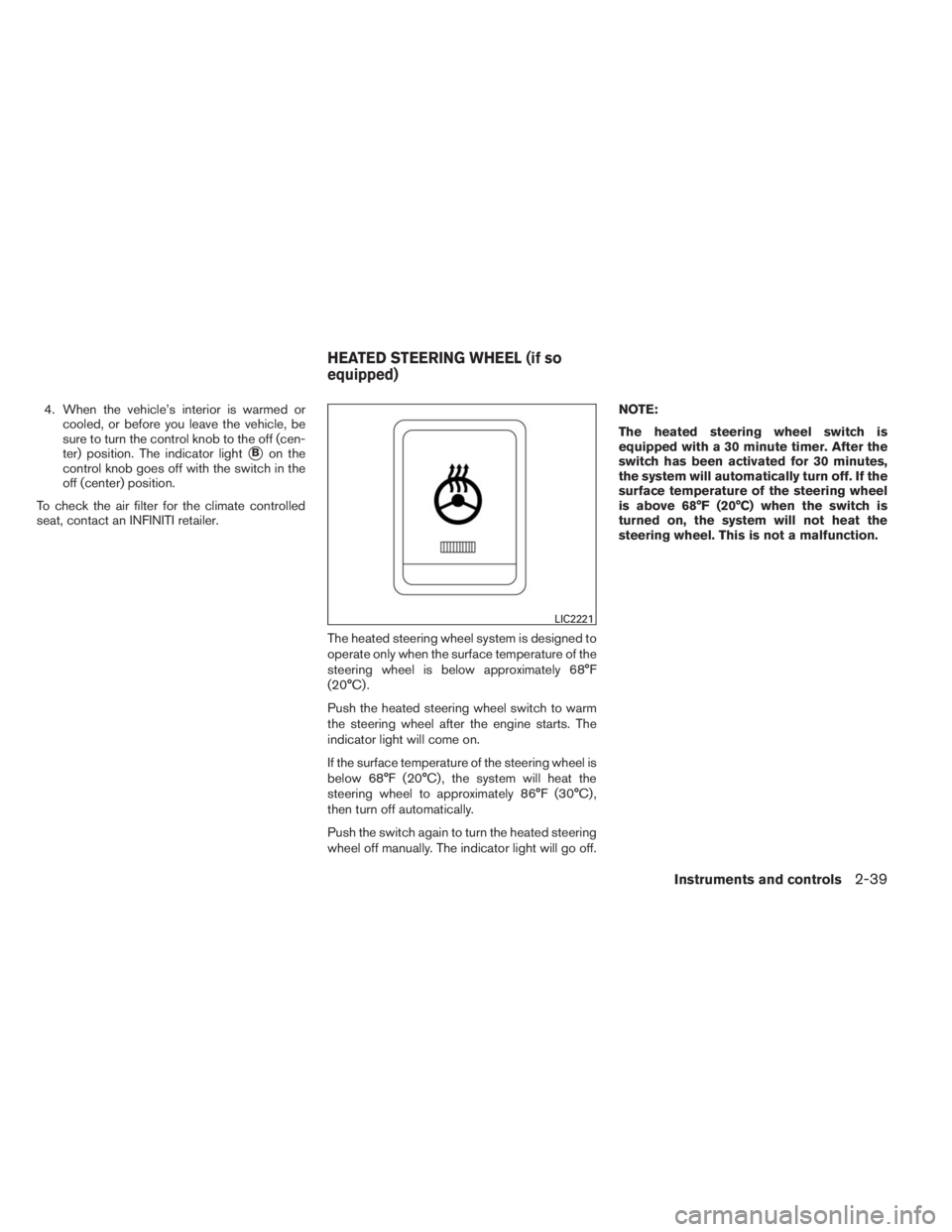

4. When the vehicle’s interior is warmed or
cooled, or before you leave the vehicle, be
sure to turn the control knob to the off (cen-
ter) position. The indicator light
Bon the
control knob goes off with the switch in the
off (center) position.
To check the air filter for the climate controlled
seat, contact an INFINITI retailer.
The heated steering wheel system is designed to
operate only when the surface temperature of the
steering wheel is below approximately 68°F
(20°C) .
Push the heated steering wheel switch to warm
the steering wheel after the engine starts. The
indicator light will come on.
If the surface temperature of the steering wheel is
below 68°F (20°C) , the system will heat the
steering wheel to approximately 86°F (30°C) ,
then turn off automatically.
Push the switch again to turn the heated steering
wheel off manually. The indicator light will go off.NOTE:
The heated steering wheel switch is
equipped with a 30 minute timer. After the
switch has been activated for 30 minutes,
the system will automatically turn off. If the
surface temperature of the steering wheel
is above 68°F (20°C) when the switch is
turned on, the system will not heat the
steering wheel. This is not a malfunction.
LIC2221
HEATED STEERING WHEEL (if so
equipped)
Instruments and controls2-39

3 Pre-driving checks and adjustments
Keys .............................................3-2
INFINITI Intelligent Key..........................3-2
INFINITI Vehicle Immobilizer System keys..........3-4
Doors............................................3-4
Locking with key................................3-5
Locking with inside lock knob....................3-5
Locking with power door lock switch.............3-6
Automatic door locks...........................3-6
Child safety rear door lock.......................3-7
INFINITI Intelligent Key System......................3-7
Operating range................................3-9
Door locks/unlocks precaution...................3-9
INFINITI Intelligent Key Operation...............3-10
How to use the remote keyless entry
function......................................3-13
Warning signals...............................3-16
Troubleshooting guide.........................3-17
Remote Engine Start (if so equipped)...............3-18
Remote engine start operating range............3-18
Remote starting the vehicle.....................3-18
Extending engine run time......................3-19
Canceling a remote start.......................3-19Conditions the remote start will not work . . .......3-19
Hood...........................................3-20
Liftgate..........................................3-20
Operating the power liftgate....................3-21
Power liftgate main switch......................3-23
Liftgate release lever...........................3-23
Liftgate position setting........................3-24
Fuel-filler door...................................3-24
Opening the fuel-filler door.....................3-24
Fuel-filler cap . ................................3-25
Tilt/telescopic steering............................3-27
Tilt and telescopic operation....................3-27
Sun visors.......................................3-28
Vanity mirrors . ................................3-29
Mirrors..........................................3-29
Automatic anti-glare rearview mirror.............3-29
Outside mirrors...............................
3-30
Automatic drive positioner (if so equipped)..........3-31
Memory storage function.......................3-32
Entry/exit function.............................3-34
Setting memory function........................3-34
System operation..............................3-35

TROUBLESHOOTING GUIDE
Verify the location of all Intelligent Keys that are
programmed for the vehicle. If another Intelligent
Key is in range or inside the vehicle, the vehicle
system may respond differently than expected.
Symptom Possible Cause Remedy
When stopping the engineThe Shift to Park warning appears on the display and the
inside warning chime sounds continuously.The shift lever is not in the P (Park)
position.Move the shift lever to the P (Park)
position.
When shifting the shift lever to the P
(Park) positionThe Push ignition to OFF warning appears in the display.The ignition switch is in the ACC or ON
position.Place the ignition switch in the OFF
position.
When opening the driver’s door to get
out of the vehicleThe Door Open warning appears on the display and the
inside warning chime sounds continuously.The ignition switch is in the ACC or ON
position.Place the ignition switch in the OFF
position.
When closing the door after getting out
of the vehicleThe No Key Detected warning appears on the display,
the outside chime sounds 3 times and the inside warn-
ing chime sounds for approximately 3 seconds.The ignition switch is in the ACC or ON
position.Place the ignition switch in the OFF
position.
The Shift to Park warning appears on the display and the
outside chime sounds continuously.The ignition switch is in the ACC posi-
tion and the shift lever is not in the P
(Park) position.Move the shift lever to the P (Park) po-
sition and place the ignition switch in
the OFF position.
When closing the door with the inside
lock knob turned to LOCKThe outside chime sounds for approximately 3 seconds
and all the doors unlock.The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
When pushing the door handle request
switch or the LOCK button on the Intel-
ligent Key to lock the doorThe outside chime sounds for approximately 2 seconds. The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
When pushing the ignition switch to
start the engineThe Intelligent Key battery indicator appears on the
display.The battery charge is low.Replace the battery with a new one.
(See “Battery replacement” in the
“Maintenance and do-it-yourself”
section.)
The No Key Detected warning appears on the display,
the outside chime sounds 3 times and the inside warn-
ing chime sounds for approximately 3 seconds.The Intelligent Key is not in the vehicle. Carry the Intelligent Key with you.
When pushing the ignition switchThe Intelligent Key system warning light in the meter illu-
minates in yellow.It warns of a malfunction with the Intelli-
gent Key system.Contact an INFINITI retailer.
Pre-driving checks and adjustments3-17

Thebutton will be on the INFINITI Intelli-
gent Key if the vehicle has remote engine start.
This feature allows the engine to start from out-
side the vehicle.
The following features may be affected when the
remote start feature is used:
●Vehicles with an automatic climate control
system will default to either a heating or
cooling mode depending on the outside
temperature.
●Vehicles without automatic climate control
will default to the last used heating or cool-
ing mode.●Vehicles equipped with heated seats may
have this feature come on during a remote
start. See “Heated front seats” in the “Instru-
ments and controls” section for more infor-
mation.
Laws in some local communities may restrict the
use of remote starters. For example, some laws
require a person using remote start to have the
vehicle in view. Check local regulations for any
requirements.
Other conditions may affect the function of the
Remote Engine Start feature. See “Conditions
the remote start will not work” in this section for
additional information.
Other conditions can affect the performance of
the Intelligent Key transmitter. See “INFINITI In-
telligent Key System” in this section for additional
information.
REMOTE ENGINE START
OPERATING RANGE
The remote engine start function can only be
used when the Intelligent Key is within the speci-
fied operating range from the vehicle.
When the Intelligent Key battery is discharged or
strong radio waves are present near the operat-ing location, the Intelligent Key operating range
becomes narrower, and the Intelligent Key may
not function properly.
The remote engine start operating range is ap-
proximately 197 ft (60 m) from the vehicle.
REMOTE STARTING THE VEHICLE
To use the remote start feature to start the engine
perform the following:
1. Aim the Intelligent Key at the vehicle.
2. Press the
LOCK button to lock all
doors.
3. Within 5 seconds press and hold the
remote start button until the turn signal lights
illuminate. If the vehicle is not within view
press and hold the
remote start but-
ton for about 2 seconds.
The following events will occur when the engine
starts:
●The parking lights will turn on and remain on
as long as the engine is running.
●The doors will be locked and the climate
control system may come on.
LPD2060
REMOTE ENGINE START (if so
equipped)
3-18Pre-driving checks and adjustments

●The engine will continue to run for 10 min-
utes. Repeat the steps to extend the time for
an additional 10 minutes. See “Extending
engine run time” in this section.
Depress the brake and place the ignition switch
in the ON position before driving. For further
instructions see “Driving the vehicle” in the
“Starting and driving” section.
EXTENDING ENGINE RUN TIME
The remote start feature can be extended one
time by performing the steps listed in “Remote
starting the vehicle” in this section. Run time will
be calculated as follows:
●The first 10 minute run time will start when
the remote start function is performed.
●The second 10 minutes will start immedi-
ately when the remote start function is per-
formed. For example, if the engine has been
running for 5 minutes, and 10 minutes are
added, the engine will run for a total of
15 minutes.
A maximum of two remote starts, or a single start
with an extension, are allowed between ignition
cycles.The ignition switch must be cycled to the ON
position and then back to the OFF position be-
fore the remote start procedure can be used
again.
CANCELING A REMOTE START
To cancel a remote start, perform one of the
following:
●Aim the Intelligent Key at the vehicle and
press and hold
until the parking lights
turn off.
●Turn on the hazard warning flashers.
●Cycle the ignition switch ON and then OFF.
CONDITIONS THE REMOTE START
WILL NOT WORK
The remote start will not operate if any of the
following conditions are present:
●The ignition switch is placed in the ON po-
sition.
●The hood is not securely closed.
●The hazard warning lights are on.
●The I–Key Indicator Light
remains
solid in the vehicle information display.
●The alarm sounds due to illegal entry into the
vehicle.●The ignition switch is pushed without an
Intelligent Key in the vehicle.
●The ignition switch is pushed with an Intelli-
gent Key in the vehicle but the brake pedal is
not depressed.
●Two remote vehicle starts, or a single remote
start with an extension, have already been
used.
●The vehicle is not in P (Park) .
●The Remote Start function has been
switched to the OFF position in Vehicle Set-
tings of the vehicle information display. For
additional information, see “Vehicle informa-
tion display” in the “Instruments and con-
trols” section of this manual.
The remote engine start may display a warning or
indicator in the vehicle information display. For an
explanation of the warning or indicator please see
“Vehicle information display warning and indica-
tors” in the “Instruments and controls” section.
Pre-driving checks and adjustments3-19

1Pull the hood lock release handle located
below the driver side instrument panel. The
hood will spring up slightly.
2Push the lever at the front of the hood to the
side as illustrated with your fingertips and
raise the hood.
When closing the hood, lower it slowly and make
sure it locks into place.
WARNING
●Make sure the hood is completely
closed and latched before driving. Fail-
ure to do so could cause the hood to fly
open and result in an accident.
●If you see steam or smoke coming from
the engine compartment, to avoid injury
do not open the hood.
WARNING
●Always be sure the liftgate has been
closed securely to prevent it from open-
ing while driving.
●Do not drive with the liftgate open. This
could allow dangerous exhaust gases
to be drawn into the vehicle. See “Ex-
haust gas” in the “Starting and driving”
section of this manual.
●Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.
●Always be sure that hands and feet are
clear of the door frame to avoid injury
while closing the liftgate.
LPD2061
HOODLIFTGATE
3-20Pre-driving checks and adjustments
