2014 INFINITI QX60-HYBRID fuse box

1. Power steering fluid reservoir(See Owner’s Manual)
2. Engine coolant reservoir (See Owner’s
Manual)
3. Drive belt location (P. 8-11)
4. Fuse box (P. 8-12) 5. Engine oil filler cap (P. 8-6)
6. Inverter coolant reservoir (P. 8-5)
7. Brake fluid reservoir (See Owner’s
Manual)
8. Air cleaner (See Owner’s Manual) 9. Fusible link box (P. 8-12) and remote
positive battery terminal
10. Fuse box (P. 8-12)
11. Fuse box/Fusible links (P. 8-12)
12. Fuse box/Fusible links (P. 8-12)
13. Battery (P. 8-9)
14. Engine oil dipstick (P. 8-6)
15. Radiator cap (See Owner’s Manual)
16. Windshield-washer fluid reservoir
(See Owner’s Manual)
See the page number indicated in paren-
theses for operating details.
NOTE:
Hybrid system engine compartment
cover(s) removed for clarity.
NJE0001
QR25DER ENGINE
0-2Illustrated table of contents

Fluid leaksCheck under the vehicle for fuel, oil,
water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from the
air conditioner after use is normal. If you should
notice any leaks or if gasoline fumes are evident,
check for the cause and have it corrected imme-
diately.
Power steering fluid level* and lines Check
the level when the fluid is cold, with the engine
off. Check the lines for proper attachment, leaks,
cracks, etc.
Radiator and hoses Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
Underbody The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances from the
underbody, otherwise rust may form on the floor
pan, frame, fuel lines and exhaust system. At the
end of winter, the underbody should be thor-
oughly flushed with plain water, in those areas
where mud and dirt may have accumulated. See
the “Appearance and care” section of this
manual.
Windshield-washer fluid* Check that there is
adequate fluid in the reservoir.
QR25DER ENGINE
1. Power steering fluid reservoir
2. Engine coolant reservoir
3. Drive belt location
4. Fuse box 5. Engine oil filler cap
6. Inverter coolant reservoir
7. Brake fluid reservoir
8. Air cleaner
9. Fusible link box and remote positive
battery terminal
NJE0001
ENGINE COMPARTMENT CHECK
LOCATIONS
8-4Maintenance and do-it-yourself

10. Fuse box
11. Fuse box/fusible links
12. Fuse box/fusible links
13. Battery
14. Engine oil dipstick
15. Radiator cap
16. Windshield-washer fluid reservoir
NOTE:
Hybrid system engine compartment cov-
er(s) removed for clarity.The inverter cooling system is filled at the factory
with a pre-diluted mixture of 50% Genuine
NISSAN Long Life Antifreeze/Coolant (blue) and
50% water to provide year-round anti-freeze and
coolant protection. The anti-freeze solution con-
tains rust and corrosion inhibitors. Additional in-
verter cooling system additives are not neces-
sary.WARNING
●
Never remove the coolant reservoir cap
when the engine and inverter are hot.
Wait until the engine and inverter cool
down. Serious burns could be caused
by high pressure fluid escaping from
the reservoir.
● The inverter reservoir is equipped with a
pressure type cap. To prevent engine
and inverter damage, use only a genu-
ine NISSAN inverter reservoir cap.
CAUTION
● Never use any additives in the coolant
such as radiator sealer in the cooling
system. This may cause damage to elec-
trical equipment such as the motor and
inverter, as well as the engine and
transmission. ●
When adding or replacing coolant, be
sure to use only a Genuine NISSAN
Long Life Antifreeze/Coolant (blue) or
equivalent. Genuine NISSAN Long Life
Antifreeze/Coolant (blue) is pre-diluted
to provide antifreeze protection to -34°
F (-37° C) . If additional antifreeze pro-
tection is needed due to weather where
you operate your vehicle, add Genuine
NISSAN Long Life Antifreeze/Coolant
(blue) . The use of other types of coolant
solutions other than Genuine NISSAN
Long Life Antifreeze/Coolant (blue) or
equivalent, may damage the inverter
cooling system.
● The life expectancy of the factory-fill
coolant is 125,000 miles (200,000 km) or
15 years. Mixing any other type of cool-
ant other than Genuine NISSAN Long
Life Antifreeze/ Coolant (blue) , includ-
ing Genuine NISSAN Long Life
Antifreeze/ Coolant (green) , or the use
on non-distilled water will reduce the
life expectancy of factory-fill coolant.
Refer to the INFINITI Service and Main-
tenance Guide for more details.
INVERTER COOLING SYSTEM
Maintenance and do-it-yourself8-5

ENGINE COMPARTMENT
CAUTION

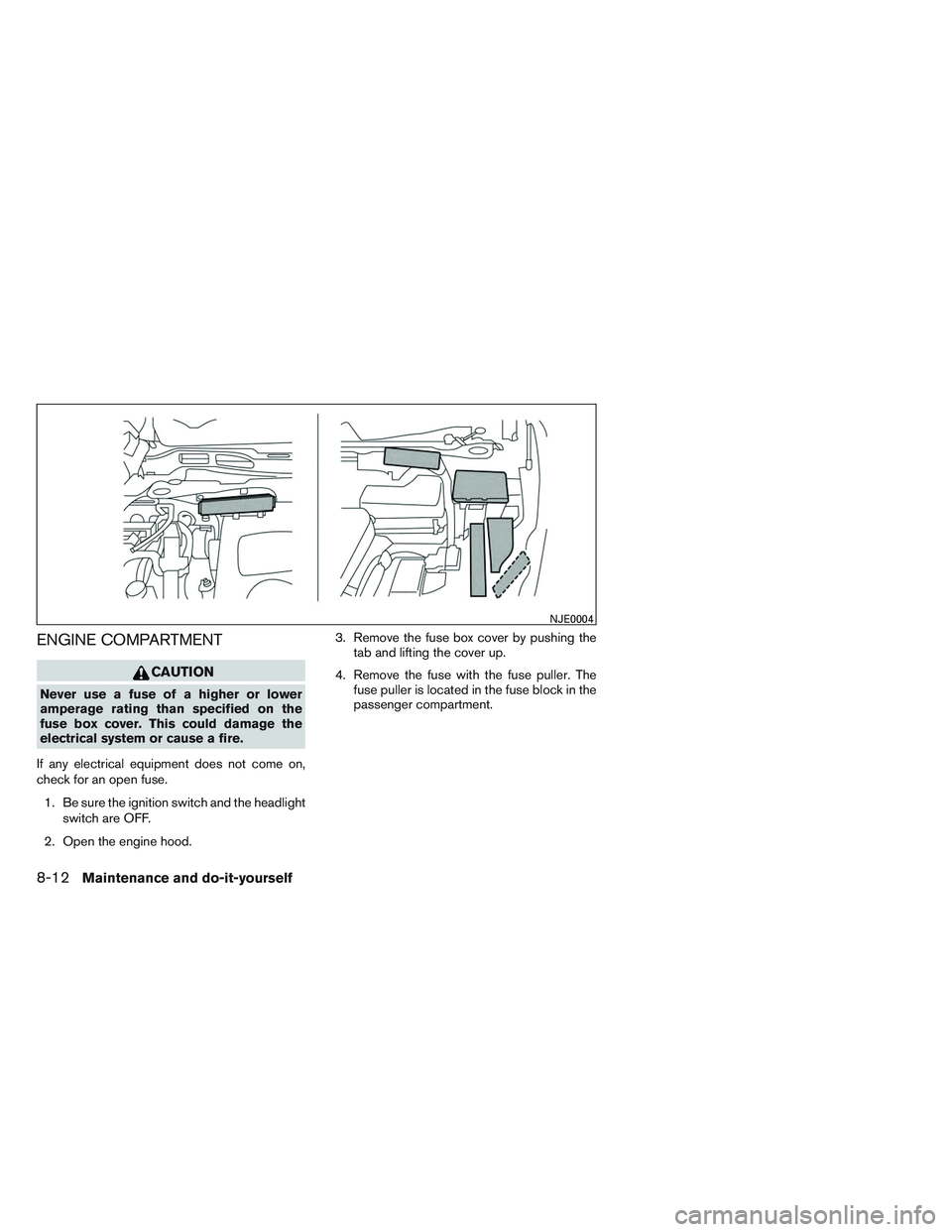

Never use a fuse of a higher or lower
amperage rating than specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not come on,
check for an open fuse. 1. Be sure the ignition switch and the headlight switch are OFF.
2. Open the engine hood. 3. Remove the fuse box cover by pushing the
tab and lifting the cover up.
4. Remove the fuse with the fuse puller. The fuse puller is located in the fuse block in the
passenger compartment.
NJE0004
8-12Maintenance and do-it-yourself
