2014 INFINITI QX60 HYBRID ESP

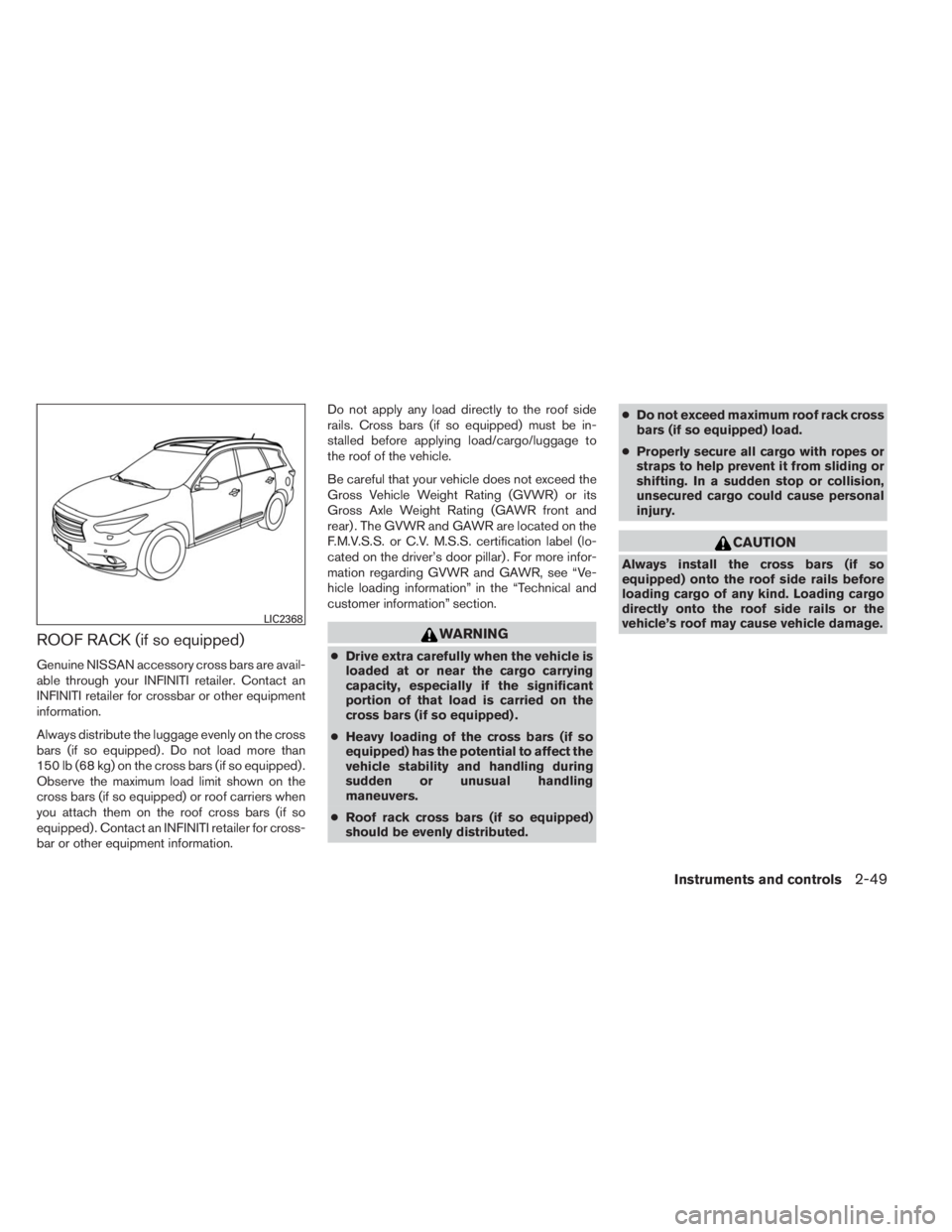

ROOF RACK (if so equipped)
Genuine NISSAN accessory cross bars are avail-
able through your INFINITI retailer. Contact an
INFINITI retailer for crossbar or other equipment
information.
Always distribute the luggage evenly on the cross
bars (if so equipped) . Do not load more than
150 lb (68 kg) on the cross bars (if so equipped) .
Observe the maximum load limit shown on the
cross bars (if so equipped) or roof carriers when
you attach them on the roof cross bars (if so
equipped) . Contact an INFINITI retailer for cross-
bar or other equipment information.Do not apply any load directly to the roof side
rails. Cross bars (if so equipped) must be in-
stalled before applying load/cargo/luggage to
the roof of the vehicle.
Be careful that your vehicle does not exceed the
Gross Vehicle Weight Rating (GVWR) or its
Gross Axle Weight Rating (GAWR front and
rear) . The GVWR and GAWR are located on the
F.M.V.S.S. or C.V. M.S.S. certification label (lo-
cated on the driver’s door pillar) . For more infor-
mation regarding GVWR and GAWR, see “Ve-
hicle loading information” in the “Technical and
customer information” section.
WARNING
●Drive extra carefully when the vehicle is
loaded at or near the cargo carrying
capacity, especially if the significant
portion of that load is carried on the
cross bars (if so equipped) .
●Heavy loading of the cross bars (if so
equipped) has the potential to affect the
vehicle stability and handling during
sudden or unusual handling
maneuvers.
●Roof rack cross bars (if so equipped)
should be evenly distributed.●Do not exceed maximum roof rack cross
bars (if so equipped) load.
●Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. In a sudden stop or collision,
unsecured cargo could cause personal
injury.
CAUTION
Always install the cross bars (if so
equipped) onto the roof side rails before
loading cargo of any kind. Loading cargo
directly onto the roof side rails or the
vehicle’s roof may cause vehicle damage.
LIC2368
Instruments and controls2-49

Front passenger’s power window
switch
The passenger’s window switch operates only
the corresponding passenger’s window. To open
the window partially, push the switch down lightly
until the desired window position is reached. To
close the window partially, pull the switch up until
the desired window position is reached.
Rear power window switch
The rear power window switches open or close
only the corresponding windows. To partially
open the window, push the switch down lightly
until the desired window position is reached. To
partially close the window, pull the switch up
lightly until the desired window position is
reached.
Automatic operation
To fully open a window, press the window switch
down to the second detent and release it; it need
not be held. The window automatically opens all
the way. To stop the window, lift the switch up
while the window is opening.
To fully close a window, pull the switch up to the
second detent and release it; it need not be held.
To stop the window, press the switch down while
the window is closing.
Auto-reverse function
The auto-reverse function can be activated when
a window is closed by automatic operation.
SIC4353LIC0410LIC0410
Instruments and controls2-51

FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This device complies with RSS-210 of In-
dustry Canada. Operation is subject to the
following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference, in-
cluding interference that may cause unde-
sired operation of the device.
Instruments and controls2-61

CHILD SAFETY REAR DOOR LOCK
Child safety locks help prevent the rear doors
from being opened accidentally, especially when
small children are in the vehicle.
The child safety lock levers are located on the
edge of the rear doors.
When the lever is in the LOCK position, the
door can be opened only from the outside.
WARNING
●Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.
●The Intelligent Key transmits radio
waves when the buttons are pressed.
The FAA advises the radio waves may
affect aircraft navigation and communi-
cation systems. Do not operate the In-
telligent Key while on an airplane. Make
sure the buttons are not operated unin-
tentionally when the unit is stored for a
flight.
The Intelligent Key system can operate all the
door locks using the remote controller function or
pushing the request switch on the vehicle without
taking the key out from a pocket or purse. The
operating environment and/or conditions may af-
fect the Intelligent Key system operation.
Be sure to read the following before using the
Intelligent Key system.
CAUTION
●Be sure to carry the Intelligent Key with
you when operating the vehicle.
●Never leave the Intelligent Key in the
vehicle when you leave the vehicle.
The Intelligent Key is always communicating with
the vehicle as it receives radio waves. The Intel-
ligent Key system transmits weak radio waves.
Environmental conditions may interfere with the
operation of the Intelligent Key system under the
following operating conditions:
●When operating near a location where
strong radio waves are transmitted, such as
a TV tower, power station and broadcasting
station.
●When in possession of wireless equipment,
such as a cellular telephone, transceiver,
and CB radio.
●When the Intelligent Key is in contact with or
covered by metallic materials.
●When any type of radio wave remote control
is used nearby.
●When the Intelligent Key is placed near an
electric appliance such as a personal com-
puter.
●When the vehicle is parked near a parking
meter.
LPD2049
INFINITI INTELLIGENT KEY SYSTEM
Pre-driving checks and adjustments3-7

TROUBLESHOOTING GUIDE
Verify the location of all Intelligent Keys that are
programmed for the vehicle. If another Intelligent
Key is in range or inside the vehicle, the vehicle
system may respond differently than expected.
Symptom Possible Cause Remedy
When stopping the engineThe Shift to Park warning appears on the display and the
inside warning chime sounds continuously.The shift lever is not in the P (Park)
position.Move the shift lever to the P (Park)
position.
When shifting the shift lever to the P
(Park) positionThe Push ignition to OFF warning appears in the display.The ignition switch is in the ACC or ON
position.Place the ignition switch in the OFF
position.
When opening the driver’s door to get
out of the vehicleThe Door Open warning appears on the display and the
inside warning chime sounds continuously.The ignition switch is in the ACC or ON
position.Place the ignition switch in the OFF
position.
When closing the door after getting out
of the vehicleThe No Key Detected warning appears on the display,
the outside chime sounds 3 times and the inside warn-
ing chime sounds for approximately 3 seconds.The ignition switch is in the ACC or ON
position.Place the ignition switch in the OFF
position.
The Shift to Park warning appears on the display and the
outside chime sounds continuously.The ignition switch is in the ACC posi-
tion and the shift lever is not in the P
(Park) position.Move the shift lever to the P (Park) po-
sition and place the ignition switch in
the OFF position.
When closing the door with the inside
lock knob turned to LOCKThe outside chime sounds for approximately 3 seconds
and all the doors unlock.The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
When pushing the door handle request
switch or the LOCK button on the Intel-
ligent Key to lock the doorThe outside chime sounds for approximately 2 seconds. The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
When pushing the ignition switch to
start the engineThe Intelligent Key battery indicator appears on the
display.The battery charge is low.Replace the battery with a new one.
(See “Battery replacement” in the
“Maintenance and do-it-yourself”
section.)
The No Key Detected warning appears on the display,
the outside chime sounds 3 times and the inside warn-
ing chime sounds for approximately 3 seconds.The Intelligent Key is not in the vehicle. Carry the Intelligent Key with you.
When pushing the ignition switchThe Intelligent Key system warning light in the meter illu-
minates in yellow.It warns of a malfunction with the Intelli-
gent Key system.Contact an INFINITI retailer.
Pre-driving checks and adjustments3-17

Comfort settings
Item Result
Comfort Select the “Comfort” key by using the INFINITI controller. The comfort option screen will be displayed. The items below will be available to adjust.
You can set the following operating conditions by highlighting the desired item using the INFINITI controller. The amber indicator (box at the right of
the selected item) alternately turns on and off each time the ENTER button is pressed.
Auto Interior Illumina-
tionSelect to turn on or turn off the illumination of the interior lights when any door is unlocked.
Light Sensitivity Select to adjust the sensitivity of the automatic headlights higher (right) or lower (left) .
Light OFF delay Select to change the duration of the automatic headlight off timer from 0–, 30–, 45–, 60–, 90–, 120–, 150– and 180–second periods.
Selective Door Un-
lockWhen this item is turned on, only the driver’s door is unlocked first after the door unlock operation. When the door handle request switch on the
driver’s or front passenger’s side door is pushed to be locked, only the corresponding door is unlocked first. All the doors can be unlocked if the
door unlock operation is performed again within 1 minute.
When this item is turned off, all the doors will be unlocked after the door unlock operation is performed once.
Intelligent Key Lock/
UnlockSelect to turn on or turn off the door lock/unlock function by pushing the door handle request switch.
Lift Steering Wheel
on Exit
(if so equipped)Select to turn on or turn off the steering wheel moving upward for easy exit when the ignition switch is in the OFF position and the driver’s door is
opened. After getting into the vehicle and pushing the ignition switch to the ACC position, the steering wheel moves to the previous position.
Slide Driver Seat
Back on Exit
(if so equipped)Select to turn on or turn off the driver’s seat moving backward for easy exit when the ignition switch is in the OFF position and the driver’s door is
opened. After getting into the vehicle and pushing the ignition switch to the ACC position, the driver’s seat moves to the previous position
Return All Settings to
DefaultSelect to change all the comfort and convenience systems to their default settings.
Monitor, climate, audio, phone and voice recognition systems4-9

Language/Units
Use the INFINITI controller to select the
“Language/Units” key.
Item Result
Language/Units Select which settings you want to change using the INFINITI controller.
Select Language Select the “English” key, the “Français” key or the “Español” key to change the language shown on the display.
Select Units Select the “US” (mi, °F, MPG) key or the “Metric” (km, °C, L/100 km) key to change the units shown on the display.
OFF BUTTON
To change the display brightness, press
the
OFF button. Pressing the button again
will change the display to the day
or the
night
display. The brightness can then be
adjusted using the INFINITI controller.
The display brightness can also be adjusted us-
ing the + (brighter) button or the(dimmer)
button.
If no operation is done within 10 seconds, the
display will return to the previous display.
Press and hold the
OFF button for more
than 2 seconds to turn the display off. Press the
button again to turn the display on.
4-10Monitor, climate, audio, phone and voice recognition systems

Menu ItemResult
Rear display settings To control the rear display settings, select the “Display Control” key. Select the “ON” key for either the left or right display to alternately enable or
disable the display fo the left or right rear passengers. If the display is enabled, select the key (DVD, USB, front AUX or rear AUX) that you wish
to have displayed on the corresponding screen. The front AUX setting is for devices plugged into the AUX jacks in the center console. The rear
AUX setting is for the devices plugged into the AUX jacks on the back of the center console.
Select the “Auto Display” to set the rear displays to always on when a movie is played from a DVD or USB device.
ECO DRIVE settings (if so
equipped)To adjust the Eco pedal driver’s assist, select the “Standard”, “Soft” or “OFF” key and adjust it with the INFINITI controller. For more information
about ECO DRIVE system,see “ECO pedal system” in the “Starting and driving” section.
Others Select the “Others” key using the INFINITI controller. The voice recognition, language and units setting screen will be displayed.
Display Adjusts the settings for the display screen
Display Adjustment To adjust the display settins, select the “Display Adjustment” key. The following settings are available:
Brightness/
ContrastAdjusts the brightness or contrast of the map background.
Display off Toggles the display screen on and off. The amber indicator is illuminated when the display is set to “On”. When the display is set to “Off” anda
control panel, audio or heater and air conditioner button is pressed, the display will resume until that operation is finished. To turn the display back
on, press and hold the
OFF button for approximately 2 seconds or return to the display setting screen and adjust the setting.
Background
ColorAdjusts the display screen between day and night mode.
Color Theme Changes the color of the background, arrows and bars on the screen. Choose between “Black”. “Brown”, or “Silver”.
Monitor, climate, audio, phone and voice recognition systems4-19
