5-64Starting and driving
The light comes on if there is a
malfunction in the DCA system.
SSD0907
Operating Distance Control Assist
(DCA) system
To turn on the DCA system, push the
dynamic driver assistance switch on the
steering wheel after starting the engine.
The Distance Control Assist (DCA) system
switch indicator light in the dot matrix
liquid crystal display will illuminate. Push
the dynamic driver assistance switch again
to turn off the DCA system. The Distance
Control Assist (DCA) system switch indica-
tor light will turn off.
The system will start to operate after the
vehicle speed becomes above approxi-mately 3 MPH (5 km/h).
WARNING
When the DCA system is not necessary, be
sure to turn off the DCA switch. Using the
system when it is not necessary may result
in an accident.
The dynamic driver assistance switch is
used for both the LDP and DCA systems.
When the dynamic driver assistance switch
is pushed, the LDP system will also turn on
or off simultaneously. The DCA system can
be individually set to on or off on the
display. If the system is set to off, the
system will not turn on even if the dynamic
driver assistance switch is pushed to on. To
set the system to on or off on the display,
see
“Setting DCA system to ON/OFF” (P.5-
65).

5-66Starting and driving
SSD0771
Under the following conditions, the Dis-
tance Control Assist system will not oper-
ate and the Distance Control Assist (DCA)
system switch indicator light will blink:
.When the SNOW mode switch is ON (To
use the DCA system, turn off the SNOW
mode switch, then push the dynamic
driver assistance switch.)
For details about the SNOW mode
switch, see “SNOW mode switch” (P.2-
42).
. When the VDC system is off (To use the
DCA system, turn on the VDC, then
push the dynamic driver assistance
switch.) For details about the VDC system, see
“Vehicle Dynamic Control (VDC) sys-
tem”
(P.5-88).
. When ABS or VDC (including the trac-
tion control system) is operating
. When driving into a strong light (for
example, sunlight)
When the Conventional (fixed speed) cruise
control mode is operating, the DCA system
will not operate. (To use the DCA system,
turn the Conventional (fixed speed) cruise
control mode off, then push the dynamic
driver assistance switch.)
For details about the Conventional (fixed
speed) cruise control mode, see “Intelli-
gent Cruise Control (ICC) system (FULL
SPEED RANGE)” (P.5-36).
When the engine is turned off, the system
is automatically turned off.

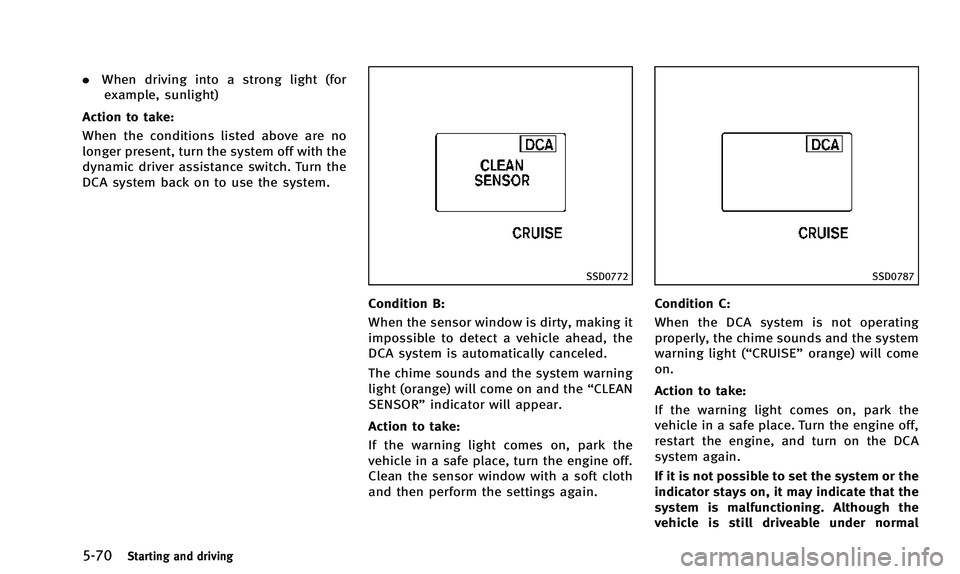

5-70Starting and driving
.When driving into a strong light (for
example, sunlight)
Action to take:
When the conditions listed above are no
longer present, turn the system off with the
dynamic driver assistance switch. Turn the
DCA system back on to use the system.
SSD0772
Condition B:
When the sensor window is dirty, making it
impossible to detect a vehicle ahead, the
DCA system is automatically canceled.
The chime sounds and the system warning
light (orange) will come on and the “CLEAN
SENSOR” indicator will appear.
Action to take:
If the warning light comes on, park the
vehicle in a safe place, turn the engine off.
Clean the sensor window with a soft cloth
and then perform the settings again.
SSD0787
Condition C:
When the DCA system is not operating
properly, the chime sounds and the system
warning light (“CRUISE” orange) will come
on.
Action to take:
If the warning light comes on, park the
vehicle in a safe place. Turn the engine off,
restart the engine, and turn on the DCA
system again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the
system is malfunctioning. Although the
vehicle is still driveable under normal

—When abruptly accelerating or de-celerating.
—On a steep downhill slope or onroads with sharp curves.
—When there is a highly reflectiveobject near the vehicle ahead (for
example, being very close to another
vehicle, signboard, etc.)
. Depending on certain road conditions
(curved or beginning of a curve), vehicle
conditions (steering position or vehicle
position), or the preceding vehicle’ s
conditions (position in lane, etc.), the
system may not function properly. The
system may detect highly reflective
objects such as reflectors, signs, white
markers, and other stationary objects on
the road or near the traveling lane and
provide unnecessary warning.
. The system may not function in offset
conditions.
. The system may not function when the
distance to the vehicle ahead is extre-
mely close.
. The system is designed to automatically
check the sensor’s functionality. If the
sensor is covered with ice, a transparent or translucent plastic bag, etc., the
system may not detect them. In these
instances the system may not be able to
warn the driver properly. Be sure to
check and clean the sensor regularly.
. Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
. A sudden appearance of a vehicle in
front (for example, it abruptly cuts in)
may not be detected and the system may
not warn the driver soon enough.
. The system will be cancelled automati-
cally with a beep sound and the IBA OFF
indicator light will illuminate under the
following conditions:
—When the sensor window is dirty
—When the system malfunctions
SSD0887
If the IBA OFF indicator light*Ailluminates
with a beep sound, pull off the road to a
safe location, stop the vehicle and turn the
engine off. Check to see if the sensor
window is dirty. If the sensor window is
dirty, clean it with a soft cloth and restart
the engine. If the sensor window is not
dirty, restart the engine. If the IBA OFF
indicator light continues to illuminate even
if the IBA system is turned on with the IBA
OFF switch
*B, have the system checked
by an INFINITI retailer.
To turn on the IBA system, see “Intelligent
Brake Assist (IBA) system” (P.5-74).
Starting and driving5-73

system may not detect them. In these
instances the system may not be able to
warn the driver properly. Be sure to
check and clean the sensor regularly.
. Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
. Never place your foot under the brake
pedal when the IBA system turns on.
Your foot may be caught when the
system controls the brake.
. A sudden appearance of a vehicle in
front (for example, it abruptly cuts in)
may not be detected and the system may
not warn the driver soon enough.
. The system will be cancelled automati-
cally with a beep sound and the IBA
warning light will illuminate under the
following conditions:
—When the sensor window is dirty
—When the system malfunctions
If the IBA OFF indicator light illuminates
with a beep sound, pull off the road to a
safe location, stop the vehicle and turn the
engine off. Check to see if the sensor
window is dirty. If the sensor window is dirty, clean it with a soft cloth and restart
the engine. If the sensor window is not
dirty, restart the engine. If the IBA OFF
indicator light continues to illuminate even
if the IBA system is turned on, have the
system checked by an INFINITI retailer.
SSD0887
IBA system operation
The IBA system will function when your
vehicle is driven at speeds of approxi-
mately 10 MPH (15 km/h) or above, and
when the vehicle’s speed is approximately
10 MPH (15 km/h) faster than that of the
vehicle ahead.
To turn the system off/on, push and hold
the IBA OFF switch
*Bfor more than 1
second after starting the engine. When the
IBA OFF indicator light
*Aon the instru-
ment panel turns off and the IBA OFF
switch is pushed, the system will turn off
and the IBA OFF indicator light will
illuminate. When the IBA OFF switch is
Starting and driving5-77

5-78Starting and driving
pushed again, the system will turn on and
the IBA OFF indicator light will turn off.
The IBA system will remain in the last ON
or OFF state it was left in until it is
manually changed by pressing the IBA
OFF switch.
Illumination of the IBA OFF indicator light
without the warning chime sound is an
indication that the IBA system is tempora-
rily unavailable. It will occur under the
following conditions:
.When driving into a strong light (for
example, sunlight)
The IBA OFF indicator light will turn off
when the system returns to its normal
operating conditions.
For the sensor maintenance, see “Intelli-
gent Cruise Control (ICC) system (FULL
SPEED RANGE)” (P.5-36).
CAUTION
During the first 1,200 miles (2,000 km),
follow these recommendations to obtain
maximum engine performance and ensure
the future reliability and economy of your
new vehicle.
Failure to follow these recommendations
may result in shortened engine life and
reduced engine performance.
.Avoid driving for long periods at con-
stant speed, either fast or slow. Do not
run the engine over 4,000 rpm.
. Do not accelerate at full throttle in any
gear.
. Avoid quick starts.
. Avoid hard braking as much as possi-
ble. Follow these easy-to-use Fuel Efficient
Driving Tips to help you achieve the most
fuel economy from your vehicle.
1. Use smooth accelerator and brake
pedal application.
.Avoid rapid starts and stops..Use smooth, gentle accelerator andbrake application whenever possi-
ble.
.Maintain constant speed while com-muting and coast whenever possi-
ble.
2. Maintain constant speed.
.Look ahead to try and anticipate and minimize stops.
.Synchronizing your speed with traf-fic lights allows you to reduce your
number of stops.
.Maintaining a steady speed can
minimize red light stops and im-
prove fuel efficiency.
3. Use air conditioning (A/C) at higher vehicle speeds.
.Below 40 MPH (64 km/h), it is moreefficient to open windows to cool the
vehicle due to reduced engine load.
.Above 40 MPH (64 km/h), it is moreefficient to use A/C to cool the
vehicle due to increased aerody-
BREAK-IN SCHEDULE FUEL EFFICIENT DRIVING TIPS

namic drag..Recirculating the cool air in the cabinwhen the A/C is on reduces cooling
load.
4. Drive at economical speeds and dis- tances.
.Observing the speed limit and not
exceeding 60 MPH (97 km/h) (where
legally allowed) can improve fuel
efficiency due to reduced aerody-
namic drag.
.Maintaining a safe following dis-tance behind other vehicles reduces
unnecessary braking.
.Safely monitoring traffic to antici- pate changes in speed permits
reduced braking and smooth accel-
eration changes.
.Select a gear range suitable to road
conditions.
5. Use cruise control.
.Using cruise control during highway driving helps maintain a steady
speed.
.Cruise control is particularly effec-tive in providing fuel savings when
driving on flat terrains. 6. Plan for the shortest route.
.Utilize a map or navigation system to
determine the best route to save
time.
7. Avoid idling.
.Shutting off your engine when safe for stops exceeding 30-60 seconds
saves fuel and reduces emissions.
8. Buy an automated pass for toll roads.
.Automated passes permit drivers to use special lanes to maintain cruis-
ing speed through the toll and avoid
stopping and starting.
9. Winter warm up.
.Limit idling time to minimize impact to fuel economy.
.Vehicles typically need no more than30 seconds of idling at start-up to
effectively circulate the engine oil
before driving.
.Your vehicle will reach its ideal
operating temperature more quickly
while driving versus idling.
10. Keeping your vehicle cool.
.Park your vehicle in a covered
parking area or in the shade when-
ever possible.
.When entering a hot vehicle, open- ing the windows will help to reduce
the inside temperature faster, result-
ing in reduced demand on your A/C
system.
Starting and driving5-79

5-80Starting and driving
.Keep your engine tuned up.
. Follow the recommended scheduled
maintenance.
. Keep the tires inflated to the correct
pressure. Low tire pressure increases
tire wear and lowers fuel economy.
. Keep the wheels in correct alignment.
Improper alignment increases tire wear
and lowers fuel economy.
. Use the recommended viscosity engine
oil. (See “Engine oil and oil filter
recommendation” (P.9-5).)
SSD0336
The AWD warning light is located in the
meter.
The AWD warning light comes on when the
ignition switch is pushed to the ON
position. It turns off soon after the engine
is started. If any malfunction occurs in the AWD
system while the engine is running, the
warning light will come on.
The warning light may blink rapidly (about
twice per second) while trying to free a
stuck vehicle due to high power train oil
temperature. The driving mode may change
to two-wheel drive. If the warning light
blinks rapidly during operation, stop the
vehicle with the engine idling in a safe
place immediately. Then if the light goes
off after a while, you can continue driving.
A large difference between the diameters
of front and rear wheels will make the
warning light blink slowly (about once per
two seconds). Pull off the road in a safe
area, and idle the engine. Check that all
tire sizes are the same, tire pressure is
correct and tires are not worn.
If the warning light is blinking after the
above operation, have your vehicle
checked by an INFINITI retailer as soon as
possible.
WARNING
.
For AWD equipped vehicles, do not
attempt to raise two wheels off the
INCREASING FUEL ECONOMY ALL-WHEEL DRIVE (AWD) (if so equipped)
