2014 INFINITI Q70 key

Black plate (101,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Y51D-V-E01-3A21F676-5A6E-4477-B844-5B384A714C8C
SIC2132
Your vehicle has two types of security
systems, as follows:
.Vehicle security system
. INFINITI Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
VEHICLE SECURITY SYSTEMY51D-V-E01-B2E64354-87F4-40F9-91AD-DA874CA2A588The vehicle security system provides visual
and audio alarm signals if someone opens
the doors, hood, or trunk lid when the
system is armed. It is not, however, a
motion detection type system that acti-
vates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but
cannot prevent it, nor can it prevent the
theft of interior or exterior vehicle compo-
nents in all situations. Always secure your
vehicle even if parking for a brief period.
Never leave your Intelligent Key(s) in the
vehicle, and always lock it when unat-
tended. Be aware of your surroundings,
and park in secure, well-lit areas whenever
possible.
Many devices offering additional protec-
tion, such as component locks, identifica-
tion markers, and tracking systems, are
available at auto supply stores and speci-
alty shops. Your INFINITI retailer may also
offer such equipment. Check with your
insurance company to see if you may be
eligible for discounts for various theft
protection features.
SIC2045
How to arm the vehicle security
system
Y51D-V-E01-8ED55579-9B8D-449D-B4BE-9610F62444F01. Close all windows.
The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF position.
3. Remove the Intelligent Key from the vehicle.
4. Close all doors, hood and trunk. Lock all doors. The doors can be locked with
the Intelligent Key, door handle request
switch, power door lock switch or
mechanical key.
Instruments and controls2-29
SECURITY SYSTEMS
Condition:

Black plate (102,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-30Instruments and controls
5. Confirm that the security indicator lightcomes on. The security indicator light
stays on for about 30 seconds. The
vehicle security system is now pre-
armed. After about 30 seconds the
vehicle security system automatically
shifts into the armed phase. The
security light begins to flash once every
approximately 3 seconds. If, during this
30-second pre-arm time period, the
door is unlocked, or the ignition switch
is pushed to ACC or ON, the system will
not arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood, and trunk lid locked
with the ignition switch in the LOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.
Vehicle security system activationY51D-V-E01-3A452288-F884-4B4B-B1D6-D5997C1EA010The vehicle security system will give the
following alarm:
. The headlights blink and the horn
sounds intermittently.
. The alarm automatically turns off after
approximately 1 minute. However, the
alarm reactivates if the vehicle is tampered with again.
The alarm is activated by:
. Unlocking the door or opening the trunk
lid without using the button on the
Intelligent Key, the door handle request
switch or the mechanical key. (Even if
the door is opened by releasing the
door inside lock knob, the alarm will
activate.)
. Opening the hood.
How to stop an activated alarmY51D-V-E01-DF1E4DAC-68DF-4235-AD8F-E1909167B5F8The alarm will stop by unlocking a door by
pushing the unlock button on the Intelli-
gent Key, the door handle request switch
or using the mechanical key. The alarm will
not stop if the ignition switch is pushed to
the ACC or ON position.
If the system does not operate as de-
scribed above, have it checked by an
INFINITI retailer.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
Y51D-V-E01-4C75AC83-8C74-453D-97A9-A911C41A3437The INFINITI Vehicle Immobilizer System
will not allow the engine to start without
the use of the registered Intelligent Key.
Never leave these keys in the vehicle.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
Condition:

Black plate (103,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
cause undesired operation of the device.
SIC2045
Security indicator lightY51D-V-E01-CDF2B03A-33CE-47EA-8D1E-DF796DD54E1AThe security indicator light is located on
the meter panel. It indicates the status of
the INFINITI Vehicle Immobilizer System.
The light blinks after the ignition switch
was in the LOCK, ACC or OFF position. This
function indicates the security systems
equipped on the vehicle are operational.
If the INFINITI Vehicle Immobilizer System
is malfunctioning, this light will remain on
while the ignition switch is in the ON
position.If the light still remains on and/or the
engine will not start, see an INFINITI
retailer for INFINITI Vehicle Immobilizer
System service as soon as possible.
Please bring all Intelligent Keys that you
have when visiting an INFINITI retailer for
service.
Instruments and controls2-31
Condition:

Black plate (121,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
.Do not leave glasses in the sunglasses
holder while parking in direct sunlight.
The heat may damage the glasses.
SIC4345
GLOVE BOXY51D-V-E01-F6CF0AA5-0A30-48C6-AD56-CE8831BA2E34
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle*1.
To close, push the lid in until the lock
latches.
To lock
*2/unlock*3the glove box, use
the mechanical key. For the mechanical key
usage, see “Keys”(P.3-2).
SIC4346
CONSOLE BOXY51D-V-E01-7E281298-B6E5-49A9-B436-68642C896FE8To open the console box, push up the knob
*Aand pull up the lid.
To close, push the lid down until latched.
Instruments and controls2-49
Condition:

Black plate (129,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Y51D-V-E01-A49514E4-7B46-4396-AD1D-05DFE545CE1D

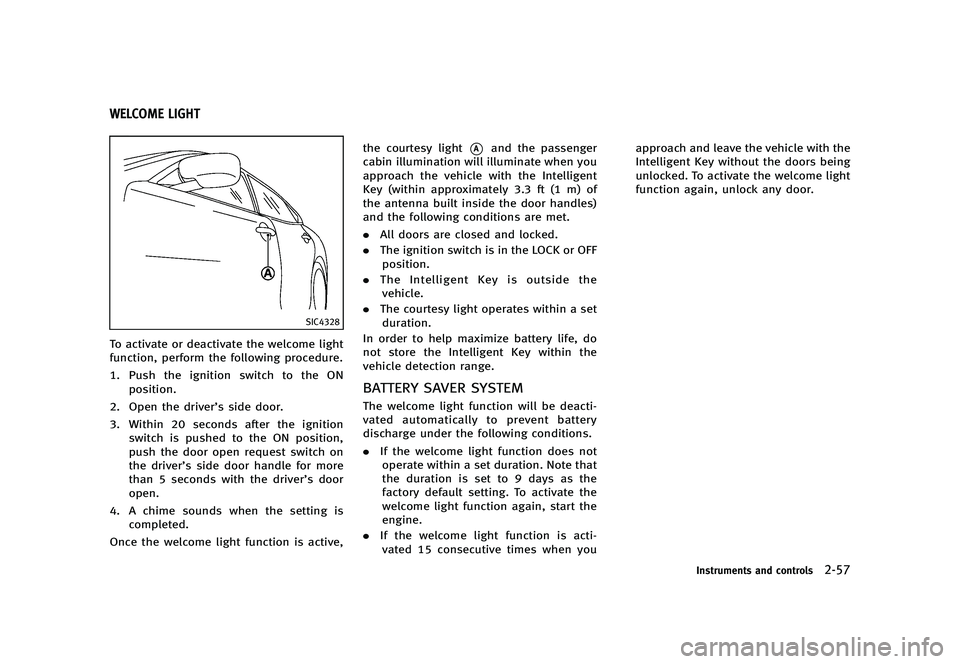

SIC4328
To activate or deactivate the welcome light
function, perform the following procedure.
1. Push the ignition switch to the ONposition.
2. Open the driver’s side door.
3. Within 20 seconds after the ignition switch is pushed to the ON position,
push the door open request switch on
the driver’s side door handle for more
than 5 seconds with the driver’s door
open.
4. A chime sounds when the setting is completed.
Once the welcome light function is active, the courtesy light
*Aand the passenger
cabin illumination will illuminate when you
approach the vehicle with the Intelligent
Key (within approximately 3.3 ft (1 m) of
the antenna built inside the door handles)
and the following conditions are met.
. All doors are closed and locked.
. The ignition switch is in the LOCK or OFF
position.
. The Intelligent Key is outside the
vehicle.
. The courtesy light operates within a set
duration.
In order to help maximize battery life, do
not store the Intelligent Key within the
vehicle detection range.
BATTERY SAVER SYSTEMGUID-5A2EF1D4-D5CF-497F-BE81-E2F4B49EA79EThe welcome light function will be deacti-
vated automatically to prevent battery
discharge under the following conditions.
. If the welcome light function does not
operate within a set duration. Note that
the duration is set to 9 days as the
factory default setting. To activate the
welcome light function again, start the
engine.
. If the welcome light function is acti-
vated 15 consecutive times when you approach and leave the vehicle with the
Intelligent Key without the doors being
unlocked. To activate the welcome light
function again, unlock any door.
Instruments and controls2-57
WELCOME LIGHT
Condition:

Black plate (131,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
.ignition switch is switched to the OFF
position
— remain on for about 15 seconds.
. doors are unlocked by pushing the
UNLOCK button on the Intelligent Key
or door handle request switch with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed
with the ignition switch in the LOCK
position
— remain on for about 15 seconds.
. any door is opened
— remain on while the door is opened.
When the door is closed, the lights
go off.
When the DOOR OFF switch
*2is pushed
on, the map and rear personal lights will
not illuminate under the above condition.
The map and rear personal lights can be
turned on only with the ON switch
*1.
The lights will also turn off after a period
of time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
When the auto interior illumination is set
to the OFF position (see “Vehicle informa-tion and settings”
(P.4-10)), the lights will
illuminate under the following condition:
. any door is opened with the ignition
switch in any position
— remain on while the door is opened.
When the door is closed, the lights
go off.
CAUTION
Do not use for extended periods of time with
the engine stopped. This could result in a
discharged battery.
Y51D-V-E01-C411E7C5-750B-43CD-8458-695C07891728
SIC3869
The light on the vanity mirror will turn on
when the cover on the vanity mirror is
opened.
When the cover is closed, the light will turn
off.
The lights will also turn off after a period
of time when the lights remain illuminated
to prevent the battery from becoming
discharged.
Instruments and controls2-59
VANITY MIRROR LIGHTS
Condition:

Black plate (137,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
3 Pre-driving checks and adjustments
Keys...
.................................................................... 3-2
Intelligent Key ...
................................................. 3-2
Valet hand-off ...
.................................................. 3-3
Doors ...
.................................................................. 3-4
Locking with mechanical key ...
........................... 3-4
Opening and closing windows with the
mechanical key ...
................................................ 3-4
Locking with inside lock knob ...
......................... 3-5
Locking with power door lock switch ...
............... 3-5
Automatic door locks ...
....................................... 3-5
Child safety rear door lock ...
.............................. 3-6
Intelligent Key system ...
......................................... 3-6
Intelligent Key operating range ...
........................ 3-8
Door locks/unlocks precaution ...
....................... 3-9
Intelligent Key operation ...
................................. 3-9
Battery saver system ...
..................................... 3-11
Warning signals ...
............................................. 3-11
Troubleshooting guide ...
................................... 3-12
Remote keyless entry system ...
............................. 3-13
How to use remote keyless entry system ...
....... 3-13
Hood ...
................................................................. 3-17
Trunk lid ...
............................................................ 3-17
Trunk lid release switch ...
................................. 3-18 Trunk open request switch
...
........................... 3-18
Opening with key ...
......................................... 3-19
Trunk button ...
................................................ 3-19
Trunk release power cancel switch ...
............... 3-19
Auto closure ...
................................................ 3-19
Interior trunk lid release ...
.............................. 3-20
Fuel-filler door ...
................................................... 3-21
Opening the fuel-filler door ...
.......................... 3-21
Fuel-filler cap ...
............................................... 3-21
Tilt/telescopic steering ...
...................................... 3-23
Electric operation ...
......................................... 3-23
Sun visors ...
......................................................... 3-24
Mirrors ...
.............................................................. 3-25
Inside mirror ...
................................................ 3-25
Outside mirrors ...
............................................ 3-25
Vanity mirror ...
................................................ 3-27
Automatic drive positioner ...
................................ 3-27
Entry/exit function ...
....................................... 3-27
Seat synchronization function ...
..................... 3-28
Memory storage ...
........................................... 3-29
Setting memory function ...
.............................. 3-30
System operation ...
......................................... 3-30
Condition:

Black plate (138,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
3-2Pre-driving checks and adjustments
Y51D-V-E01-34905E83-1F92-42BA-9201-6E547D9CC6E7A key number plate is supplied with your
keys. Record the key number and keep it in
a safe place (such as your wallet), not in
the vehicle. If you lose your keys, see an
INFINITI retailer for duplicates by using the
key number. INFINITI does not record any
key numbers so it is very important to keep
track of your key number plate.
A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, this
key can be duplicated by an INFINITI
retailer.
SPA2222
1. Intelligent Keys (2 sets)
2. Mechanical keys (inside the Keys) (2sets)
3. Key number plate (1 set)
INTELLIGENT KEYY51D-V-E01-983099D0-6576-4B3D-89E3-E144CB5578B2Your vehicle can only be driven with the
Intelligent Keys which are registered to
your vehicle’s Intelligent Key system com-
ponents and INFINITI Vehicle Immobilizer
System components. As many as 4 Intelli-
gent Keys can be registered and used with
one vehicle. The new keys must be
registered by an INFINITI retailer prior to
use with the Intelligent Key system and INFINITI Vehicle Immobilizer System of your
vehicle. Since the registration process
requires erasing all memory in the Intelli-
gent Key components when registering
new keys, be sure to take all Intelligent
Keys that you have to the INFINITI retailer.
It is possible that the Intelligent Key
functions become canceled. Contact an
INFINITI retailer.
CAUTION
.
Be sure to carry the Intelligent Key with
you when driving. The Intelligent Key is a
precision device with a built-in transmit-
ter. To avoid damaging it, please note
the following.
—The Intelligent Key is water resis-
tant; however, wetting may damage
the Intelligent Key. If the Intelligent
Key gets wet, immediately wipe until
it is completely dry.
—Do not bend, drop or strike it
against another object.
—If the outside temperature is below 148F (−108C), the battery of the
Intelligent Key may not function
properly.
KEYS
Condition:
