2014 INFINITI Q70 headlights

Black plate (73,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2 Instruments and controls
Cockpit...
................................................................ 2-3
Instrument panel ...
................................................. 2-5
Meters and gauges ...
.............................................. 2-6
Speedometer and odometer ...
............................ 2-7
Tachometer ...
...................................................... 2-8
Engine coolant temperature gauge ...
.................. 2-8
Fuel gauge ...
...................................................... 2-9
Warning/indicator lights and
audible reminders ...
............................................. 2-10
Checking bulbs ...
.............................................. 2-10
Warning lights ...
............................................... 2-11
Indicator lights ...
.............................................. 2-16
Audible reminders ...
......................................... 2-19
Dot matrix liquid crystal display ...
........................ 2-19
Indicators for operation ...
................................. 2-22
Indicators for maintenance ...
............................ 2-25
Trip computer ...
................................................ 2-26
Security systems ...
............................................... 2-29
Vehicle Security System ...
................................ 2-29
INFINITI Vehicle Immobilizer System ...
.............. 2-30
Windshield wiper and washer switch ...
................. 2-32
Rain-sensing auto wiper system ...
.................... 2-33
Rear window and outside mirror
defroster switch ...
................................................. 2-34
Headlight and turn signal switch ...
....................... 2-34 Xenon headlights
...
......................................... 2-34
Headlight switch ...
.......................................... 2-35
Turn signal switch ...
........................................ 2-39
Fog light switch ...
........................................... 2-40
Heated steering wheel (if so equipped) ...
............. 2-40
Horn ...
................................................................. 2-41
Heated seats ...
..................................................... 2-41
Climate controlled seats (if so equipped) ...
.......... 2-42
Warning systems switch (if so equipped) ...
.......... 2-43
Intelligent Brake Assist (IBA) OFF switch (if
so equipped) ...
..................................................... 2-44
Vehicle Dynamic Control (VDC) OFF switch ...
......... 2-45
Clock ...
................................................................. 2-45
Adjusting the time ...
....................................... 2-45
Power outlet ...
..................................................... 2-46
Cigarette lighter and ashtrays ...
........................... 2-46
Front ...
............................................................ 2-46
Rear ...
............................................................. 2-47
Storage ...
............................................................. 2-47
Cup holders ...
................................................. 2-47
Sunglasses holder ...
....................................... 2-48
Glove box ...
.................................................... 2-49
Console box ...
................................................. 2-49
Card holder ...
.................................................. 2-50
Rear pocket ...
................................................. 2-50
Condition:
>

Black plate (89,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
Warning (BSW)/Blind Spot Intervention
(BSI) system warning light”(P.2-12).)
For more details, see “Blind Spot Warning
(BSW) system/Blind Spot Intervention
TM
(BSI) system” (P.5-33).
ECO drive indicator lightY51D-V-E01-AC745CB7-7DA9-4BDF-B68A-C7496057B8CDWhen the ignition switch is pushed to the
ON position, the light will come on in
orange, turn green, and then turn off.
When the drive mode select switch is
turned to the ECO mode, the ECO drive
indicator light will illuminate or change its
color depending on the accelerator pedal
operation to help assist the driver to drive
economically. For more details, see “Eco
mode” (P.5-20).
Exterior light indicatorY51D-V-E01-007EC214-0CA9-4F5C-9C0E-66B22D543F4AThis indicator illuminates when the head-
light switch is turned to the AUTO,
or
position and the front parking lights,
instrument panel lights, rear combination
lights, license plate lights or headlights are
on. The indicator turns off when these
lights are turned off.
Front fog light indicator lightY51D-V-E01-F44E86A5-3DE4-4396-AE5B-7D3D962F82B0The front fog light indicator light illumi-
nates when the front fog lights are on. (See
“Fog light switch” (P.2-40).)
Front passenger air bag status
light
Y51D-V-E01-B5550EDA-03BC-41BA-8B43-3CDDA9789CEAThe front passenger air bag status light
(
) will be lit and the passenger front air
bag will be OFF depending on how the front
passenger seat is being used.
For front passenger air bag status light
operation, see “INFINITI Advanced Air Bag
System (front seats)” (P.1-43).
High beam indicator lightY51D-V-E01-CFCB3FB3-DC4F-4572-AFDF-7DC4BD932014This light comes on when the headlight
high beam is on and goes out when the low
beam is selected.
Intelligent Brake Assist (IBA)
off indicator light (if so equipped)
Y51D-V-E01-C0D38BA5-F926-431E-9856-11B7A45A2EC5The light illuminates when the Intelligent
Brake Assist (IBA) off switch is pushed to
OFF. This indicates that the Intelligent
Brake Assist (IBA) system is not operating.
When the IBA off indicator light illuminates
while the system is turned on (without the
warning chime sound), this light indicates that the system control is temporarily
unavailable.
When the IBA off indicator light illuminates
with the warning chime sound while the
IBA system is turned on, this light indicates
that the system may not be functioning
properly. Park the vehicle in a safe place.
Check to see if the laser sensor is clean.
Turn the engine off, then restart the
engine.
If the IBA off indicator light illuminates
after following the procedures above, it
may indicate that the system or Active
Trace Control (if so equipped) is malfunc-
tioning. Although the vehicle is still drive-
able under normal conditions, have the
vehicle checked at an INFINITI retailer. (See
“Intelligent Brake Assist (IBA) system”
(P.5-
87) and “Vehicle Dynamic Control (VDC)
system” (P.5-102).)
Lane Departure Warning (LDW)
light (green; if so equipped)
Y51D-V-E01-10016286-EB84-47C7-AB0D-46A19C20BCE0The light comes on in green when the Lane
Departure Prevention (LDP) system is
turned on. The light turns off when the
system is turned off.
Instruments and controls2-17
Condition:

Black plate (102,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-30Instruments and controls
5. Confirm that the security indicator lightcomes on. The security indicator light
stays on for about 30 seconds. The
vehicle security system is now pre-
armed. After about 30 seconds the
vehicle security system automatically
shifts into the armed phase. The
security light begins to flash once every
approximately 3 seconds. If, during this
30-second pre-arm time period, the
door is unlocked, or the ignition switch
is pushed to ACC or ON, the system will
not arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors, hood, and trunk lid locked
with the ignition switch in the LOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.
Vehicle security system activationY51D-V-E01-3A452288-F884-4B4B-B1D6-D5997C1EA010The vehicle security system will give the
following alarm:
. The headlights blink and the horn
sounds intermittently.
. The alarm automatically turns off after
approximately 1 minute. However, the
alarm reactivates if the vehicle is tampered with again.
The alarm is activated by:
. Unlocking the door or opening the trunk
lid without using the button on the
Intelligent Key, the door handle request
switch or the mechanical key. (Even if
the door is opened by releasing the
door inside lock knob, the alarm will
activate.)
. Opening the hood.
How to stop an activated alarmY51D-V-E01-DF1E4DAC-68DF-4235-AD8F-E1909167B5F8The alarm will stop by unlocking a door by
pushing the unlock button on the Intelli-
gent Key, the door handle request switch
or using the mechanical key. The alarm will
not stop if the ignition switch is pushed to
the ACC or ON position.
If the system does not operate as de-
scribed above, have it checked by an
INFINITI retailer.
INFINITI VEHICLE IMMOBILIZER
SYSTEM
Y51D-V-E01-4C75AC83-8C74-453D-97A9-A911C41A3437The INFINITI Vehicle Immobilizer System
will not allow the engine to start without
the use of the registered Intelligent Key.
Never leave these keys in the vehicle.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
Condition:

Black plate (106,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-34Instruments and controls
.When the windshield glass is coated
with water repellent, the speed of the
rain-sensing auto wipers may be high-
er even though the amount of the
rainfall is small.
. Be sure to turn off the rain-sensing
auto wiper system when you use a car
wash.
. Using genuine wiper blades is recom-
mended for proper operation of the
rain-sensing auto wiper system. (See
“Windshield wiper blades” (P.8-25) for
wiper blade replacement.)
Y51D-V-E01-E0A2D0C4-55C8-4F18-A2DE-1F96531D49A1
SIC4330
To defog/defrost the rear window glass
and outside mirrors, start the engine and
push the switch
*1on. The indicator light
*2will come on. Push the switch again to
turn the defroster off.
It will automatically turn off in approxi-
mately 15 minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or damage
the rear window defroster.
Y51D-V-E01-DC8AE445-0020-408E-A99C-1746C7FA278D
XENON HEADLIGHTSY51D-V-E01-0B345AA3-E59C-4CC5-A9DB-43A856EFBC9D
WARNING
HIGH VOLTAGE
. When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xenon
headlights replaced at an INFINITI retai-
ler.
. Xenon headlights provide considerably
more light than conventional headlights.
If they are not correctly aimed, they
might temporarily blind an oncoming
driver or the driver ahead of you and
cause a serious accident. If headlights
are not aimed correctly, immediately
take your vehicle to an INFINITI retailer
and have the headlights adjusted cor-
rectly.
When the xenon headlight is initially
turned on, its brightness or color varies
slightly. However, the color and brightness
will soon stabilize.
.The life of xenon headlights will be
shortened by frequent on-off operation.
REAR WINDOW AND OUTSIDE MIRROR
DEFROSTER SWITCH HEADLIGHT AND TURN SIGNAL SWITCH
Condition:

Black plate (107,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
It is generally desirable not to turn off
the headlights for short intervals (for
example, when the vehicle stops at a
traffic signal). Even when the daytime
running lights are active (Canada only),
the xenon headlights do not turn on.
This way the life of the xenon head-
lights is not reduced.
. If the xenon headlight bulb is close to
burning out, the brightness will dras-
tically decrease, the light will start
blinking, or the color of the light will
become reddish. If one or more of the
above signs appear, contact an INFINITI
retailer.
SIC3267
HEADLIGHT SWITCHY51D-V-E01-A97D1787-5D60-49FB-97B0-C49E3C404EDC
LightingY51D-V-E01-7FF0D9DF-3DE7-4696-9944-BB1F285007B0*1Turn the switch to theposition:
The front parking, side marker, tail
and license plate lights will come on.
*2Turn the switch to theposition:
Headlights will come on and all the
other lights remain on.
SIC3268
Autolight systemY51D-V-E01-6670CC80-46B2-4BB2-A7FE-53049C3FA3BEThe autolight system allows the headlights
to be set so they turn on and off
automatically.
To set the autolight system:
1. Make sure the headlight switch is in the AUTO position
*1.
2. Push the ignition switch to the ON position.
3. The autolight system automatically
turns the headlights on and off.
To turn the autolight system off, turn the
switch to the OFF,
orposition.
Instruments and controls2-35
Condition:

Black plate (108,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-36Instruments and controls
The autolight system can turn on the
headlights automatically when it is dark
and turn off the headlights when it is light.
For US models: The headlights will also be
turned on automatically at twilight or in
rainy weather (when the windshield wiper
is operated continuously).
If the ignition switch is pushed to the OFF
position and one of the doors is opened
and this condition is continued, the head-
lights remain on for 5 minutes.
Automatic headlights off delay:
GUID-CA441E56-2FD0-4540-A74C-DB510E9F7AE0You can keep the headlights on for up to
180 seconds after you push the ignition
switch to OFF and open any door then close
all the doors.
You can adjust the period of the automatic
headlights off delay from 0 seconds (OFF)
to 180 seconds. The factory default setting
is 45 seconds.
For automatic headlights off delay setting,
see“Light Off Delay” (P.4-22).SAA0642A
Be sure not to put anything on top of the
photo sensor
*Alocated on the top of the
instrument panel. The photo sensor con-
trols the autolight; if it is covered, the
photo sensor reacts as if it is dark and the
headlights will illuminate.
SIC3269
Headlight beam selectY51D-V-E01-F70D9D7A-F42F-45D3-9507-557BBC6C84AE*1To select the low beam, put the lever
in the neutral position as shown.
*2To select the high beam, push the
lever forward while the switch is in the
position. Pull it back to select the
low beam.
*3Pulling the lever toward you will flash
the headlight high beam even when
the headlight switch is in the OFF
position.
Condition:

Black plate (109,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]

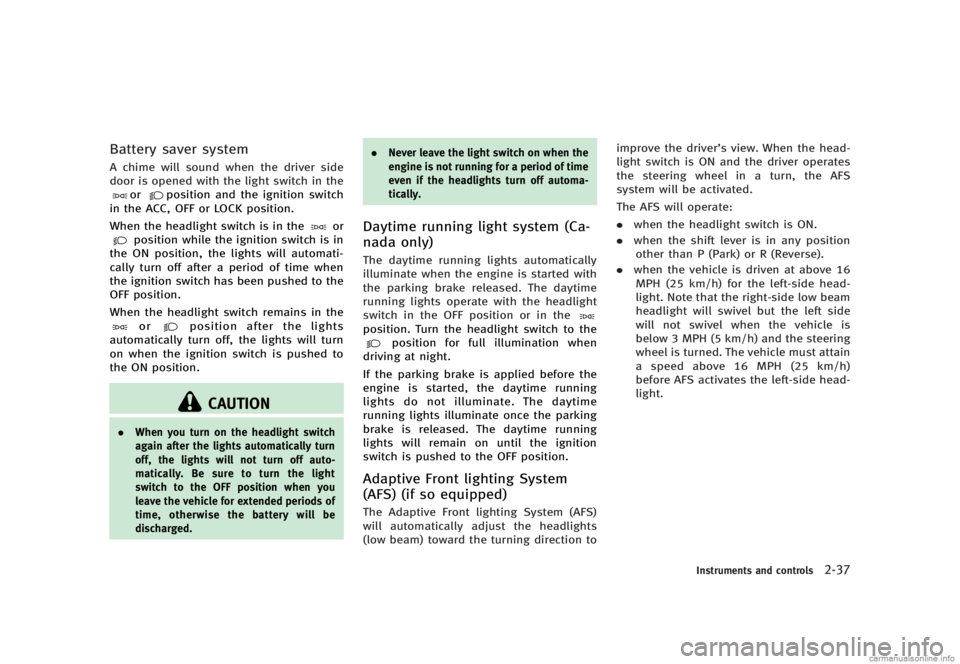

Battery saver systemY51D-V-E01-2545EC0C-F5FC-4D5B-A65F-0CBE6414EDA7A chime will sound when the driver side
door is opened with the light switch in the
orposition and the ignition switch
in the ACC, OFF or LOCK position.
When the headlight switch is in the
or
position while the ignition switch is in
the ON position, the lights will automati-
cally turn off after a period of time when
the ignition switch has been pushed to the
OFF position.
When the headlight switch remains in the
orposition after the lights
automatically turn off, the lights will turn
on when the ignition switch is pushed to
the ON position.
CAUTION
. When you turn on the headlight switch
again after the lights automatically turn
off, the lights will not turn off auto-
matically. Be sure to turn the light
switch to the OFF position when you
leave the vehicle for extended periods of
time, otherwise the battery will be
discharged. .
Never leave the light switch on when the
engine is not running for a period of time
even if the headlights turn off automa-
tically.
Daytime running light system (Ca-
nada only)
Y51D-V-E01-96A89700-E692-4881-A9D1-74D83EDD550CThe daytime running lights automatically
illuminate when the engine is started with
the parking brake released. The daytime
running lights operate with the headlight
switch in the OFF position or in the
position. Turn the headlight switch to the
position for full illumination when
driving at night.
If the parking brake is applied before the
engine is started, the daytime running
lights do not illuminate. The daytime
running lights illuminate once the parking
brake is released. The daytime running
lights will remain on until the ignition
switch is pushed to the OFF position.
Adaptive Front lighting System
(AFS) (if so equipped)
Y51D-V-E01-5CF3AE2B-E740-40B3-9176-1D2088411228The Adaptive Front lighting System (AFS)
will automatically adjust the headlights
(low beam) toward the turning direction to improve the driver’s view. When the head-
light switch is ON and the driver operates
the steering wheel in a turn, the AFS
system will be activated.
The AFS will operate:
.
when the headlight switch is ON.
. when the shift lever is in any position
other than P (Park) or R (Reverse).
. when the vehicle is driven at above 16
MPH (25 km/h) for the left-side head-
light. Note that the right-side low beam
headlight will swivel but the left side
will not swivel when the vehicle is
below 3 MPH (5 km/h) and the steering
wheel is turned. The vehicle must attain
a speed above 16 MPH (25 km/h)
before AFS activates the left-side head-
light.
Instruments and controls2-37
Condition:

Black plate (110,1)
[ Edit: 2013/ 10/ 21 Model: Y51-D ]
2-38Instruments and controls
SIC4333
To turn the AFS off, push the AFS switch.
(The AFS OFF indicator light will illuminate.)
Push the switch again to turn the system
on again.
AFS will also adjust the headlight to a
proper axis automatically, depending on
the number of occupants in the vehicle, the
load the vehicle is carrying and the road
conditions.
If the AFS OFF indicator light blinks after
the ignition switch has been pushed to the
ON position, this may indicate that the AFS
is not functioning properly. Have the
system checked by an INFINITI retailer.
When the engine is started, the headlightswill vibrate to check the system condition.
This is not a malfunction.
SIC4331
Condition:
