0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS) ....................................................... 0-2
Exterior front ....................................................... 0-3
Exterior rear......................................................... 0-4
Passenger compartment ...................................... 0-5
Cockpit ................................................................ 0-6 Instrument panel................................................. 0-8
Meters and gauges ............................................. 0-9
Engine compartment ......................................... 0-10
VQ37VHR engine ......................................... 0-10
Warning and indicator lights ............................. 0-11

0-6Illustrated table of contents
JVC0426X
1. Side ventilator (P.4-2)
2. Headlight, fog light and turn signalswitch (P.2-36)
3. Steering wheel —Horn (P.2-43) —
Driver supplemental air bag
(P.1-42)
— Heated steering wheel (if so
equipped)*
— Steering system (P.5-104) 4. Windshield wiper and washer switch
(P.2-33)
5. Hazard warning flasher switch (P.6-2)
6. Shift lever (P.5-15)
7. INFINITI controller*
8. Vehicle Dynamic Control (VDC) OFF switch (P.2-43, P.5-108)
9. Trunk lid release switch (P.3-19)
10. Instrument brightness control switch (P.2-42)
11. TRIP/RESET switch for twin trip od- ometer (P.2-7)
12. Electric tilting/telescopic steering wheel switch (if so equipped)
(P.3-24)
13. Manual tilting/telescopic steering wheel lever (if so equipped) (P.3-24)
14. Steering-wheel-mounted controls (left side)
—Audio control steering switch*
— Hands-Free Phone System switch*
— Voice recognition system switch*
15. Steering-wheel-mounted controls (right side)
—Trip computer switches (P.2-28)
— Cruise control switches (if so
equipped) (P.5-56)
COCKPIT

JVC0428X
1. Tachometer (P.2-8)
2. Warning/Indicator lights (P.2-12)
3. Speedometer (P.2-7)
4. Engine coolant temperature gauge(P.2-8)
5. Vehicle information display (P.2-20)/ Odometer/twin trip odometer (P.2-7)
6. Fuel gauge (P.2-9)
Illustrated table of contents0-9
METERS AND GAUGES

Warninglight Name
Page
Anti-lock Braking System (ABS)
warning light 2-12
Brake warning light
2-13
Charge warning light2-13
Forward emergency braking
system warning light* 2-13
Low fuel warning light
2-14
Low tire pressure warning light 2-14
Master warning light 2-16
Power steering warning light* 2-16
Seat belt warning light 2-16
Supplemental air bag warning
light 2-16
Vehicle Dynamic Control (VDC)
warning light2-17Indicator
light Name
Page
ECO drive indicator light
2-17
Exterior light indicator2-17
Front fog light indicator light
2-17
Front passenger air bag status
light2-17
High beam assist indicator
light*2-18
High beam indicator light
2-18
Malfunction Indicator Light
(MIL)2-18
Security indicator light 2-19
Turn signal/hazard indicator
lights
2-19
Vehicle Dynamic Control (VDC)
off indicator light2-19
*: if so equipped
Illustrated table of contents0-11
WARNING AND INDICATOR LIGHTS

1 Safety—Seats, seat belts and supplemental
restraint system
Seats................................................................... 1-2
Front seats ...................................................... 1-3
Rear seats ....................................................... 1-5
Armrest ........................................................... 1-7
Head restraints/headrests ................................... 1-8 Adjustable head
restraint/headrest components........................ 1-9
Non-adjustable head
restraint/headrest components........................ 1-9
Remove ........................................................... 1-9
Install............................................................ 1-10
Adjust ........................................................... 1-10
Seat belts .......................................................... 1-12
Precautions on seat belt usage ..................... 1-12
Pregnant women ........................................... 1-14
Injured persons ............................................. 1-14
Pre-crash seat belts with comfort function
(front seats) (if so equipped) ......................... 1-14
Three-point type seat belt ............................. 1-15
Seat belt extenders ....................................... 1-21
Seat belt maintenance................................... 1-21
Child safety ....................................................... 1-22 Infants........................................................... 1-23
Small children ............................................... 1-23
Larger children .............................................. 1-23 Child restraints ................................................. 1-24
Precautions on child restraints..................... 1-24
Lower Anchors and Tethers for CHildren
System (LATCH) ............................................ 1-26
Rear-facing child restraint installation
using LATCH................................................. 1-28
Rear-facing child restraint installation using
the seat belts .............................................. 1-30
Forward-facing child restraint installation
using LATCH................................................. 1-33
Forward-facing child restraint installation
using the seat belts ..................................... 1-35
Installing top tether strap ............................ 1-38
Booster seats .............................................. 1-39
Supplemental restraint system .......................... 1-42 Precautions on supplemental
restraint system........................................... 1-42
INFINITI Advanced Air Bag System
(front seats) ................................................. 1-47
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ..................... 1-52
Seat belts with pretensioners (front seats).... 1-54
Supplemental air bag warning labels ........... 1-55
Supplemental air bag warning light ............. 1-55
Repair and replacement procedure............... 1-56

SSS0016
SSS0014
WARNING
.Every person who drives or rides in this
vehicle should use a seat belt at all
times. Children should be properly re-
strained in the rear seat and, if appro-
priate, in a child restraint.
. The seat belt should be properly ad-
justed to a snug fit. Failure to do so may
reduce the effectiveness of the entire
restraint system and increase the chance
or severity of injury in an accident.
Serious injury or death can occur if the
seat belt is not worn properly.
. Always route the shoulder belt over your
shoulder and across your chest. Never
run the belt behind your back, under
your arm or across your neck. The belt
should be away from your face and neck,
but not falling off your shoulder.
. Position the lap belt as low and snug as
possible AROUND THE HIPS, NOT THE
WAIST. A lap belt worn too high could
increase the risk of internal injuries in an
accident.
. Be sure the seat belt tongue is securely
fastened to the proper buckle. .
Do not wear the seat belt inside out or
twisted. Doing so may reduce its effec-
tiveness.
. Do not allow more than one person to
use the same seat belt.
. Never carry more people in the vehicle
than there are seat belts.
. If the seat belt warning light glows
continuously while the ignition is turned
ON with all doors closed and all seat
belts fastened, it may indicate a mal-
function in the system. Have the system
checked by an INFINITI retailer.
. No changes should be made to the seat
belt system. For example, do not modify
the seat belt, add material or install
devices that may change the seat belt
routing or tension. Doing so may affect
the operation of the seat belt system.
Modifying or tampering with the seat
belt system may result in serious perso-
nal injury.
. Once a seat belt pretensioner has
activated, it cannot be reused and must
be replaced together with the retractor.
See an INFINITI retailer.
. Removal and installation of the preten-
sioner seat belt system components
Safety —Seats, seat belts and supplemental restraint system1-13

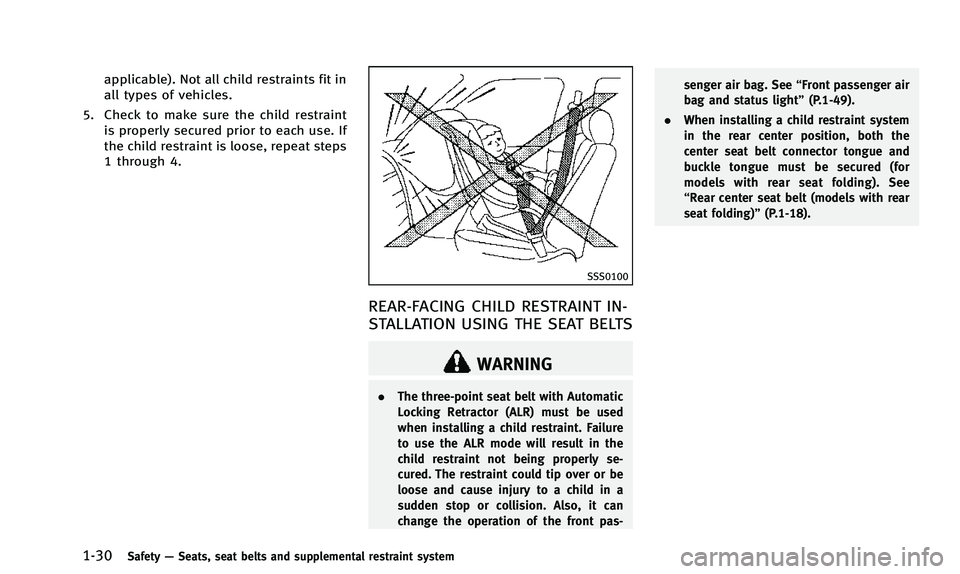

1-30Safety—Seats, seat belts and supplemental restraint system
applicable). Not all child restraints fit in
all types of vehicles.
5. Check to make sure the child restraint is properly secured prior to each use. If
the child restraint is loose, repeat steps
1 through 4.
SSS0100
REAR-FACING CHILD RESTRAINT IN-
STALLATION USING THE SEAT BELTS
WARNING
. The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure
to use the ALR mode will result in the
child restraint not being properly se-
cured. The restraint could tip over or be
loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front pas- senger air bag. See
“Front passenger air
bag and status light” (P.1-49).
. When installing a child restraint system
in the rear center position, both the
center seat belt connector tongue and
buckle tongue must be secured (for
models with rear seat folding). See
“Rear center seat belt (models with rear
seat folding)” (P.1-18).

7. Check to make sure the child restraintis properly secured prior to each use. If
the child restraint is loose, repeat steps
1 through 6.
FORWARD-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT
BELTS
WARNING
. The three-point seat belt with Automatic
Locking Retractor (ALR) must be used
when installing a child restraint. Failure
to use the ALR mode will result in the
child restraint not being properly se-
cured. The restraint could tip over or be
loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front pas-
senger air bag. See “Front passenger air
bag and status light” (P.1-49).
. When installing a child restraint system
in the rear center position, both the
center seat belt connector tongue and
buckle tongue must be secured (for
models with rear seat folding). See
“Rear center seat belt (models with rear seat folding)”
(P.1-18).
SSS0640
Forward-facing (front passenger seat) —
step 1
Refer to all Warnings and Cautions in the
“Child safety” and“Child restraints” sec-
tions before installing a child restraint.
Follow these steps to install a forward-
facing child restraint using the vehicle seat
belt in the rear seats or in the front
passenger seat:
1. If you must install a child restraint in
the front seat, it should be placed in a
forward-facing direction only. Move the
seat to the rearmost position. Child
restraints for infants must be used in
the rear-facing direction and, therefore,
must not be used in the front seat.
Safety —Seats, seat belts and supplemental restraint system1-35
