2-34Instruments and controls
9. Navigation (if so equipped)
When the route guidance is set in the
navigation system, this item shows the
navigation route information.
For more details, see the Infiniti InTouch
Owner’s Manual.
10. Audio
The audio mode shows the status of audio
information.
For more details, see the Infiniti InTouch
Owner’s Manual.
11. Driving aids (if so equipped)
The driving aids mode shows the operating
condition for the following systems.
.Lane Departure Warning (LDW)
. Lane Departure Prevention (LDP)
. Blind Spot Warning (BSW)
. Blind Spot Intervention
TM(BSI)
. Distance Control Assist (DCA)
. Forward emergency braking
. Predictive forward collision warning
For more details, see “Lane Departure
Warning (LDW) system/Lane Departure
Prevention (LDP) system” (P.5-30),“Blind
Spot Warning (BSW) system/Blind Spot
Intervention
TM(BSI) system” (P.5-37),“Dis-tance Control Assist (DCA) system”
(P.5-
79), “Forward emergency braking system”
(P.5-89) and “Predictive forward collision
warning system” (P.5-94).
12. Tire pressure
The tire pressure mode shows the pressure
of all four tires while the vehicle is driven.
See the Infiniti InTouch Owner’s Manual for
the display settings.
When the“Tire Pressure Low - Add Air” or
“Flat Tire - Visit dealer” warning appears,
the display can be switched to the tire
pressure mode by pushing the
orswitch.
13. Chassis control
When Active Lane Control (if so equipped)
or the active trace control system is
operated, it shows the operating condition.
See “Active Lane Control” (P.5-24) and
“Active trace control” (P.5-110) for more
details.
14. Warning check
The present warnings are displayed. If no
warning is present, “No Warning”is dis-
played.
JVI0679M
CLOCK AND OUTSIDE AIR TEM-
PERATURE
The clock*1and outside air temperature
*2are displayed on the upper side of the
vehicle information display.
Clock
The clock can be adjusted on the lower
display. See the Infiniti InTouch Owner’s
Manual.
Outside air temperature (8For 8C)
The outside air temperature is displayed in
8For8C in the range of −22 to 1318F(−30
to 558C).

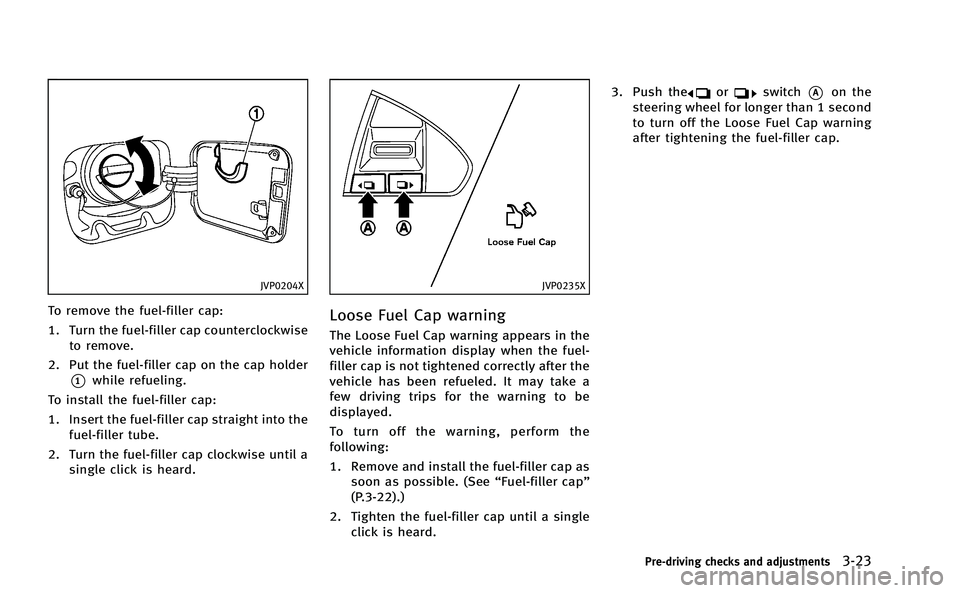

JVP0204X
To remove the fuel-filler cap:
1. Turn the fuel-filler cap counterclockwiseto remove.
2. Put the fuel-filler cap on the cap holder
*1while refueling.
To install the fuel-filler cap:
1. Insert the fuel-filler cap straight into the fuel-filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
JVP0235X
Loose Fuel Cap warning
The Loose Fuel Cap warning appears in the
vehicle information display when the fuel-
filler cap is not tightened correctly after the
vehicle has been refueled. It may take a
few driving trips for the warning to be
displayed.
To turn off the warning, perform the
following:
1. Remove and install the fuel-filler cap assoon as possible. (See “Fuel-filler cap”
(P.3-22).)
2. Tighten the fuel-filler cap until a single click is heard. 3. Push the
orswitch*Aon the
steering wheel for longer than 1 second
to turn off the Loose Fuel Cap warning
after tightening the fuel-filler cap.
Pre-driving checks and adjustments3-23
