2014 INFINITI Q50-HYBRID stop start

5-114Starting and driving
fast, the drive wheels will lose even
more traction.
. Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pavement.
. Allow greater following distances on
slippery roads.
. Watch for slippery spots (glare ice).
These may appear on an otherwise clear
road in shaded areas. If a patch of ice is
seen ahead, brake before reaching it. Try
not to brake while on the ice, and avoid
any sudden steering maneuvers.
. Do not use the cruise control on slippery
roads.
. Snow can trap dangerous exhaust gases
under your vehicle. Keep snow clear of
the exhaust pipe and from around your
vehicle.ENGINE BLOCK HEATER (if so
equipped)
Engine block heaters are used to assist in
cold temperature starting.
The engine block heater should be used
when the outside temperature is 208 F
(−78C) or lower.
To use the engine block heater
1. Turn the INFINITI Direct Response Hy- brid®System off.
2. Open the hood and unwrap the engine block heater cord.
3. Plug the engine block heater cord into a grounded 3-wire, 3-pronged extension
cord.
4. Plug the extension cord into a Ground Fault Interrupt (GFI) protected,
grounded 110-volt AC (VAC) outlet.
5. The engine block heater must be plugged in for at least 2 - 4 hours,
depending on outside temperatures, to
properly warm the engine coolant. Use
an appropriate timer to turn the engine
block heater on.
6. Before starting the hybrid system, unplug and properly store the cord to
keep it away from moving parts.
WARNING
. Do not use your engine block heater with
an ungrounded electrical system or a 2-
pronged adapter. You can be seriously
injured by an electrical shock if you use
an ungrounded connection.
. Disconnect and properly store the en-
gine block heater cord before starting
the hybrid system. Damage to the cord
could result in an electrical shock and
can cause serious injury.
. Use a heavy-duty 3-wire, 3-pronged
extension cord rated for at least 10A.
Plug the extension cord into a Ground
Fault Interrupt (GFI) protected, grounded
110-VAC outlet. Failure to use the proper
extension cord or a grounded outlet can
result in a fire or electrical shock and
cause serious personal injury.

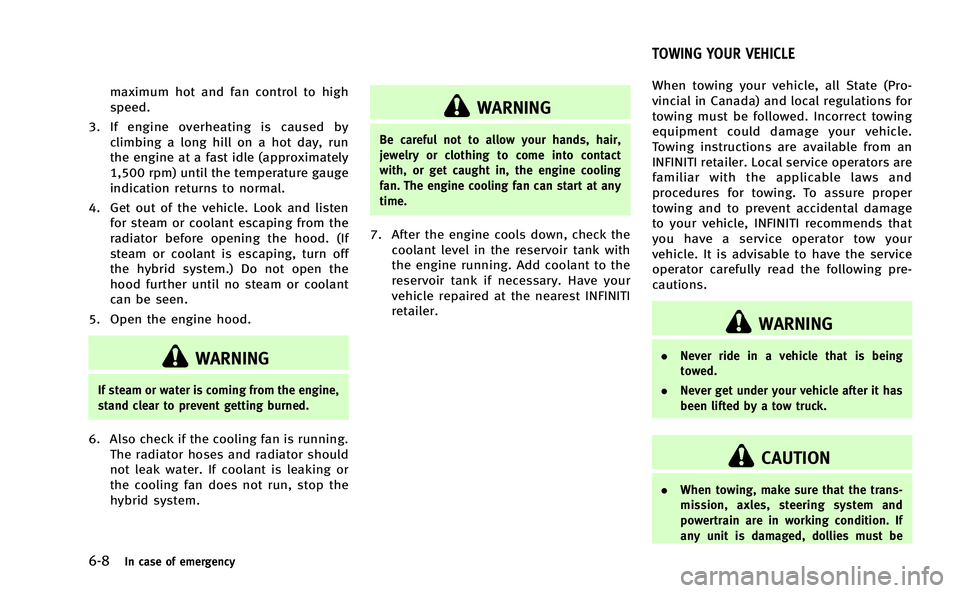

6-8In case of emergency
maximum hot and fan control to high
speed.
3. If engine overheating is caused by climbing a long hill on a hot day, run
the engine at a fast idle (approximately
1,500 rpm) until the temperature gauge
indication returns to normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the
radiator before opening the hood. (If
steam or coolant is escaping, turn off
the hybrid system.) Do not open the
hood further until no steam or coolant
can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
6. Also check if the cooling fan is running. The radiator hoses and radiator should
not leak water. If coolant is leaking or
the cooling fan does not run, stop the
hybrid system.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, the engine cooling
fan. The engine cooling fan can start at any
time.
7. After the engine cools down, check thecoolant level in the reservoir tank with
the engine running. Add coolant to the
reservoir tank if necessary. Have your
vehicle repaired at the nearest INFINITI
retailer. When towing your vehicle, all State (Pro-
vincial in Canada) and local regulations for
towing must be followed. Incorrect towing
equipment could damage your vehicle.
Towing instructions are available from an
INFINITI retailer. Local service operators are
familiar with the applicable laws and
procedures for towing. To assure proper
towing and to prevent accidental damage
to your vehicle, INFINITI recommends that
you have a service operator tow your
vehicle. It is advisable to have the service
operator carefully read the following pre-
cautions.
WARNING
.
Never ride in a vehicle that is being
towed.
. Never get under your vehicle after it has
been lifted by a tow truck.
CAUTION
.When towing, make sure that the trans-
mission, axles, steering system and
powertrain are in working condition. If
any unit is damaged, dollies must be
TOWING YOUR VEHICLE

8-20Maintenance and do-it-yourself
JVM0254X
Remove the retainers*1as illustrated and
pull out the filter element
*2.
The filter element should not be cleaned
and reused. Replace it according to the
maintenance intervals. See “INFINITI Ser-
vice and Maintenance Guide” for mainte-
nance intervals. When replacing the filter, wipe the inside of the air cleaner housing
and the cover with a damp cloth.
WARNING
.
Operating the engine with the air
cleaner removed can cause you or others
to be burned. The air cleaner not only
cleans the air, it stops flame if the
engine backfires. If it isn’t there, and the
engine backfires, you could be burned.
Do not drive with the air cleaner
removed, and be careful when working
on the engine with the air cleaner
removed.
. Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.
AIR CLEANER

10 Index
Number
12-volt battery charge warning light ................. 2-12
A
ABS (Anti-lock Braking System) ....................... 5-107
Acceleration guide ............................................ 2-31
Active Lane Control ........................................... 5-24
Active noise control ........................................ 5-115
Active sound control ....................................... 5-115
Active trace control ......................................... 5-110
Air bag systemFront-seat mounted side-impact
supplemental air bag system ....................... 1-47
Roof-mounted curtain side-impact
supplemental air bag system ....................... 1-47
Air bag warning labels ...................................... 1-50
Air bag warning light ............................... 1-50, 2-17
Air cleaner housing filter ................................... 8-20
Air conditioner Air conditioner specification label ................ 9-13
Air conditioning system refrigerant and
lubricant recommendations ............................ 9-7
Air deflectors .................................................... 9-15
Air vent ............................................................... 7-6
Alarm How to stop alarm (see vehicle
security system) ........................................... 2-36
Alcohol, drugs and driving .................................. 5-9
Antenna .............................................................. 4-3 Anti-lock Braking System (ABS) ....................... 5-107
Appearance care
Exterior appearance care ................................ 7-2
Interior appearance care ................................ 7-5
Approaching Vehicle Sound for Pedestrians
(VSP) system .................................. Hybrid System-8
Armrest ............................................................... 1-5
Ashtray ............................................................. 2-49
Assist charge gauge ................. Hybrid System-5, 2-8
Audible reminders ............................................ 2-20
Audio ................................................................ 2-34
Autolight system ............................................... 2-41
Automatic Automatic transmission fluid (ATF) ............... 8-15
Driving with automatic transmission ............ 5-14
Automatic door locks .......................................... 3-5
Automatic drive positioner ................................ 3-28
Automatic moonroof.......................................... 2-56
Automatic seat positioner ................................. 3-28
Average speed .................................................. 2-33
Avoiding collision and rollover ............................ 5-8
B
Back-up Collision Intervention (BCI) system ....... 5-48
Battery .............................................................. 8-17
Battery replacement, Intelligent Key ............... 3-2
Battery saver system ................................... 2-45
Intelligent Key .............................................. 8-25 Before starting the INFINITI Direct Response
Hybrid
®System ................................................ 5-13
Blind Spot Warning (BSW) system/Blind Spot
Intervention
TM(BSI) system ............................... 5-37
Brake
Anti-lock Braking System (ABS) .................. 5-107
Brake fluid ................................................... 8-15
Brake force distribution ............................. 5-109
Brake system ............................................. 5-106
Brake system warning light (yellow) ............. 2-13
Brake warning light (red) ............................. 2-13
Parking brake operation ............................... 5-20
Rise-up and build-up ................................. 5-109
Break-in schedule ............................................. 5-99
Bulb check/instrument panel ............................ 2-12
Bulb replacement .............................................. 8-27
C
Capacities and recommended fuel/lubricants ...... 9-2
Car phone or CB radio ........................................ 4-3
Card holder ....................................................... 2-52
Catalytic converter
Three-way catalyst ......................................... 5-4
Changing inverter coolant ................................. 8-12
Chassis control ............................................... 5-112
Chassis control warning .................................... 2-27
Checking battery fluid level ............................... 8-18
Checking inverter coolant level ......................... 8-12
Child restraints ................................................. 1-19
