2014 INFINITI Q50 HYBRID check engine light

9-22Technical and consumer information
online at:
https://wwwapps.tc.gc.ca/Saf-Sec-
Sur/7/PCDB-BDPP/Index.aspx.
Additional information concerning
motor vehicle safety may be obtained
from Transport Canada’s Road Safety
Information Centre at 1-800- 333-
0371 or online at www.tc.gc.ca/
roadsafety (English speakers) or
www.tc.gc.ca/securiteroutiere
(French speakers).
To notify INFINITI of any safety con-
cerns please contact our Consumer
Information Centre toll free at 1-800-
361-4792.WARNING
A vehicle equipped with Intelligent All-
Wheel Drive (AWD) should never be tested
using a two wheel dynamometer (such as
the dynamometers used by some states for
emissions testing), or similar equipment.
Make sure you inform test facility personnel
that your vehicle is equipped with AWD
before it is placed on a dynamometer. Using
the wrong test equipment may result in
transmission damage or unexpected vehicle
movement which could result in serious
vehicle damage or personal injury.

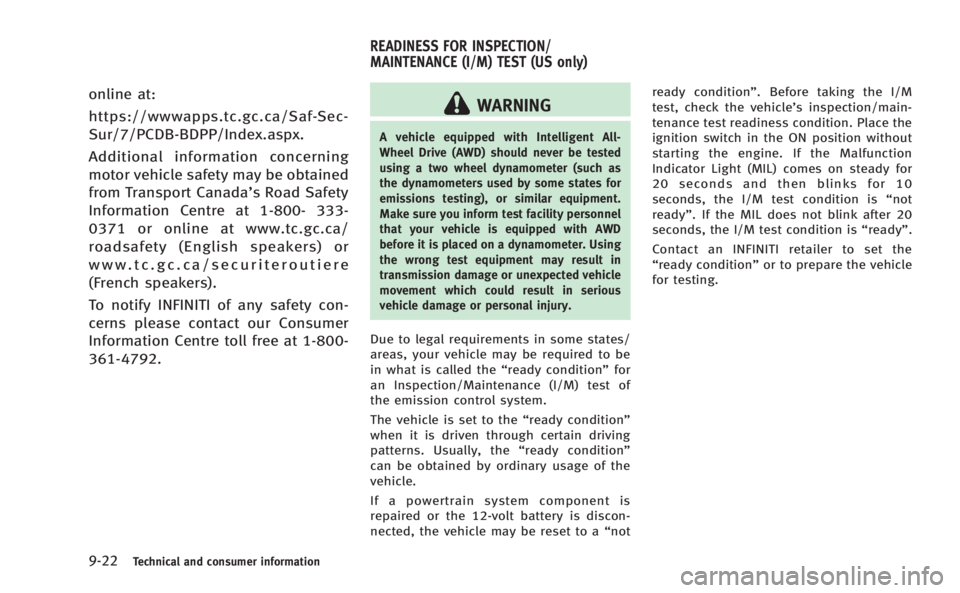

Due to legal requirements in some states/
areas, your vehicle may be required to be
in what is called the“ready condition”for
an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition”
when it is driven through certain driving
patterns. Usually, the “ready condition”
can be obtained by ordinary usage of the
vehicle.
If a powertrain system component is
repaired or the 12-volt battery is discon-
nected, the vehicle may be reset to a “notready condition”. Before taking the I/M
test, check the vehicle’s inspection/main-
tenance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for
20 seconds and then blinks for 10
seconds, the I/M test condition is
“not
ready”. If the MIL does not blink after 20
seconds, the I/M test condition is “ready”.
Contact an INFINITI retailer to set the
“ready condition” or to prepare the vehicle
for testing.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US only)

10-2
LATCH system .............................................. 1-21
Precautions on child restraints ..................... 1-19
Child safety ...................................................... 1-17
Child safety rear door lock .................................. 3-6
Chimes Audible reminders ....................................... 2-20
Seat belt warning light and chime ............... 2-17
Circuit breaker Fusible link .................................................. 8-23
Cleaning exterior and interior ....................... 7-2, 7-5
Clock ................................................................ 2-34
Coat hooks ....................................................... 2-53
Cockpit ............................................................... 2-3
Cold weather driving ....................................... 5-113
Compass ............................................................. 2-9
Console box ...................................................... 2-52
Coolant Capacities and recommended
fuel/ lubricants .............................................. 9-2
Changing engine coolant ............................. 8-10
Checking engine coolant level ...................... 8-10
Corrosion protection ........................................... 7-8
Courtesy light ................................................... 2-61
Cruise control ................................................... 5-56 Fixed speed cruise control (on ICC system) ... 5-74
Intelligent Cruise Control (ICC) system .......... 5-58
Cruise indicator ................................................ 2-27 Cup holders ...................................................... 2-49
Current fuel consumption .................................. 2-33D
Daytime running light system ........................... 2-45
Defroster switch Rear window and outside mirror
defroster switch ........................................... 2-41
Dimensions ....................................................... 9-10
Direct adaptive steering .................................. 5-104
Direct Response Hybrid
®System warning light
(hybrid system warning light) ............................ 2-14
Distance Control Assist (DCA) system ................ 5-79
Distance to empty ............................................. 2-33
Drive positioner ................................................ 3-28
Driver assist system indicator ........................... 2-28
Driving Cold weather driving .................................. 5-113
Driving with automatic transmission ............ 5-14
Precautions when starting and driving ........... 5-3
Driving aids ...................................................... 2-34
E
ECO drive indicator light ................................... 2-18
ECO mode ......................................................... 5-21
ECO pedal system ............................................. 5-22
Economy Fuel ........................................................... 5-100
Efficient use of your vehicle ............ Hybrid System-8
Elapsed time ..................................................... 2-33
Elapsed time and trip odometer ........................ 2-33
Emergency shut-off system ............. Hybrid System-4
Emission control information label .................... 9-12 Emission control system warranty ..................... 9-20
Energy flow ..................................... Hybrid System-5
Energy monitor ................................................. 2-31
Energy monitors .............................. Hybrid System-5
Engine
Break-in schedule ........................................ 5-99
Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine coolant ............................. 8-10
Changing engine oil and filter ...................... 8-13
Checking engine coolant level ...................... 8-10
Checking engine oil level ............................. 8-12
Emergency hybrid system shut off ............... 5-12
Engine block heater ................................... 5-114
Engine compartment check locations ............. 8-7
Engine cooling system ................................... 8-9
Engine oil .................................................... 8-12
Engine oil and filter replacement indicator ... 2-29
Engine oil and oil filter recommendation ........ 9-6
Engine oil viscosity ........................................ 9-7
Engine serial number ................................... 9-12
Engine specifications ..................................... 9-8
If your vehicle overheats ................................ 6-7
Engine coolant temperature gauge .................... 2-33
Entry/exit function
Automatic drive positioner ........................... 3-28
EV mode odometer and twin trip odometer ....... 2-31
Event Data Recorders (EDR) ............................... 9-23
Exhaust gas (carbon monoxide) .......................... 5-3

M
MaintenanceBattery ......................................................... 8-17
General maintenance ..................................... 8-2
Indicators for maintenance (vehicle
information display) ..................................... 2-29
Inside the vehicle .......................................... 8-3
Maintenance precautions ............................... 8-5
Maintenance requirements ............................. 8-2
Outside the vehicle ........................................ 8-2
Seat belt maintenance ................................. 1-16
Under the hood and vehicle ........................... 8-4
Malfunction Indicator Light (MIL) ....................... 2-19
Map lights ........................................................ 2-58
Master warning light ......................................... 2-17
Mechanical key (Intelligent Key system) .............. 3-3
Memory storage Automatic drive positioner ........................... 3-29
Meter Trip computer .............................................. 2-31
Meters and gauges ............................................. 2-6
Instrument brightness control ...................... 2-46
Mirror
Inside mirror ................................................ 3-25
Outside mirrors ............................................ 3-26
Vanity mirror ................................................ 3-28
Moonroof .......................................................... 2-56
N
NAVI Shift Control ............................................. 5-19
New vehicle break-in ......................................... 5-99
Noise and vibration ...................... Hybrid System-12
O
Odometer............................................................ 2-7
Off-road recovery ................................................ 5-8
Oil Capacities and
recommended fuel/lubricants ........................ 9-2
Changing engine oil and filter ...................... 8-13
Checking engine oil level ............................. 8-12
Engine oil .................................................... 8-12
Engine oil viscosity ........................................ 9-7
One touch unlock sensor (See Intelligent
Key system) ........................................................ 3-9
Operation Indicators for operation ............................... 2-24
Operation of the INFINITI Direct Response
Hybrid
®System .............................. Hybrid System-4
Outside mirrors ................................................. 3-26
Overheat, If your vehicle overheats ..................... 6-7
Owner’s Manual/Service Manual
order information .............................................. 9-23
P
Panic alarm ...................................................... 3-16 Parking
Parking brake operation ............................... 5-20
Parking on hills ......................................... 5-103
Parking brake break-in .................................... 5-106
Personal lights .................................................. 2-59
PERSONAL mode ............................................... 5-23
Phone
Car phone or CB radio ................................... 4-3
Power Power door lock ............................................. 3-4
Power outlet ................................................ 2-48
Power steering system ............................... 5-104
Power windows ............................................ 2-54
Power steering warning light ............................. 2-17
Precautions Braking precautions ................................... 5-106
Child restraints ............................................ 1-19
Cruise control .............................................. 5-56
Maintenance .................................................. 8-5
Seat belt usage ........................................... 1-10Supplemental restraint system ..................... 1-37
When starting and driving .............................. 5-3
Pre-crash seat belts with comfort function ........ 1-12
Predictive forward collision warning system ...... 5-94
Push starting ...................................................... 6-7
Push-button ignition switch ..................... 5-10, 5-11
R
Radio Car phone or CB radio ................................... 4-3
Rain-sensing auto wiper system ........................ 2-40
10-5
